Toyota Pixis epoch LA310A ALTERNATOR

LA310A-GBGF (2013)

Toyota Pixis Epoch

Production Jul 2013 - Apr 2017

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

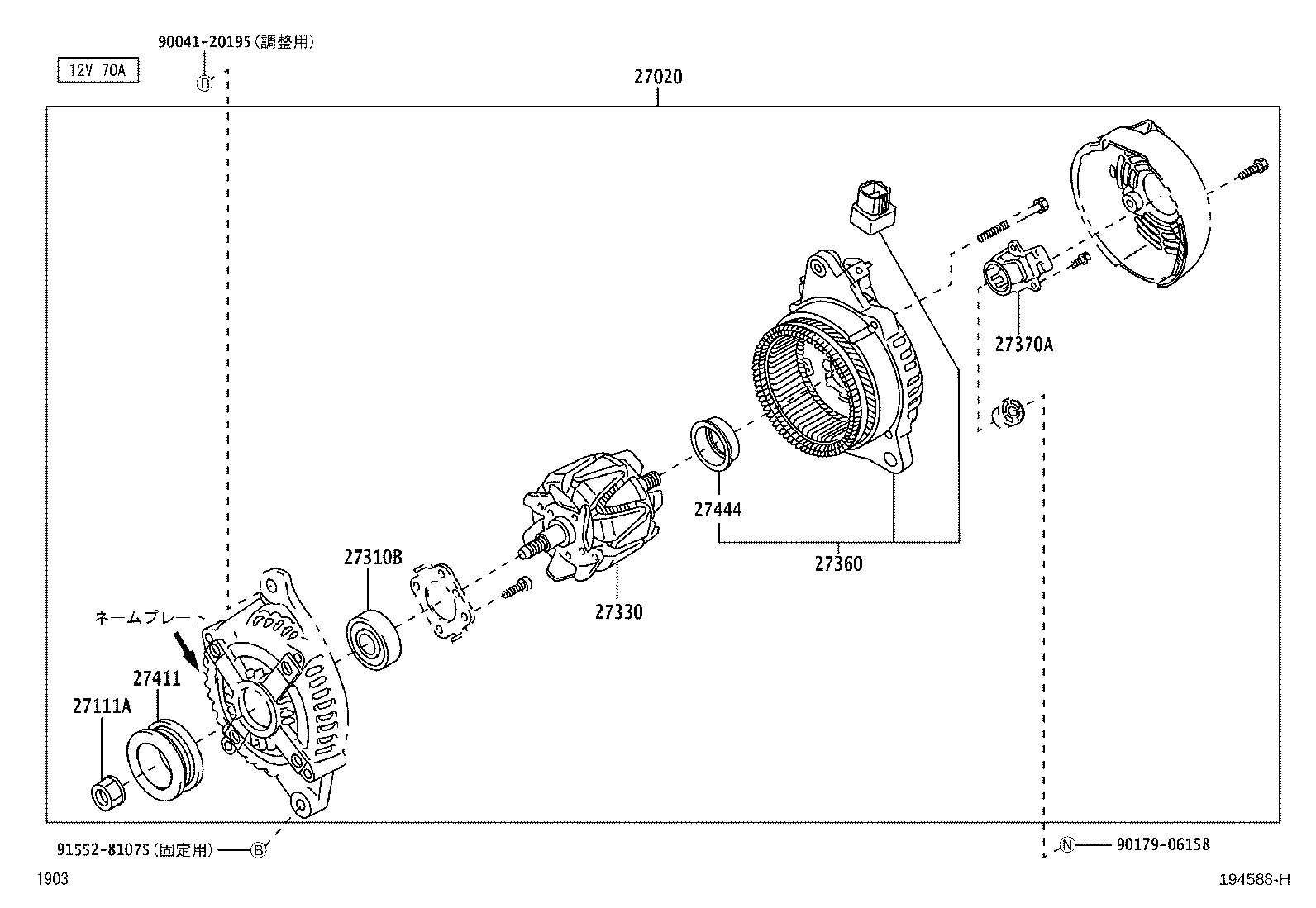

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-B2170	KFVE..LA300,310 12V 70A	02/2015 - 12/2999	1
27060-B2130	KFVE..LA300,310 12V 70A	07/2013 - 02/2015	1
27060-B2070	KFVE..LA300,310 12V 70A	04/2012 - 07/2013	1
27111A - NUT, ALTERNATOR
90099-05171	KFVE..LA300,310	07/2013 - 04/2017	1
90099-05171	KFVE..LA300,310	04/2012 - 07/2013	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004C-37002	KFVE..LA300,310	07/2013 - 12/2999	1
9004C-37002	KFVE..LA300,310	04/2012 - 07/2013	1
27330 - ROTOR ASSY, ALTERNATOR
27330-B5010	KFVE..LA300,310	02/2015 - 12/2999	1
27330-B2010	KFVE..LA300,310	07/2013 - 02/2015	1
27330-87716	KFVE..LA300,310	04/2012 - 07/2013	1
27360 - COIL ASSY, ALTERNATOR
27360-B2020	KFVE..LA300,310	02/2015 - 12/2999	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-B2020	KFVE..LA300,310	02/2015 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-97202	KFVE..LA300,310	04/2012 - 07/2013	1
27411-B2010	KFVE..LA300,310	07/2013 - 04/2017	1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-B1010	KFVE..LA300,310	02/2015 - 12/2999	1
Common parts
90041-20195
90179-06158
91552-81075

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-B2170	KFVE..LA300,310 12V 70A	02/2015 - 12/2999	1
27060-B2130	KFVE..LA300,310 12V 70A	07/2013 - 02/2015	1
27060-B2070	KFVE..LA300,310 12V 70A	04/2012 - 07/2013	1
27111A - NUT, ALTERNATOR
90099-05171	KFVE..LA300,310	07/2013 - 04/2017	1
90099-05171	KFVE..LA300,310	04/2012 - 07/2013	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004C-37002	KFVE..LA300,310	07/2013 - 12/2999	1
9004C-37002	KFVE..LA300,310	04/2012 - 07/2013	1
27330 - ROTOR ASSY, ALTERNATOR
27330-B5010	KFVE..LA300,310	02/2015 - 12/2999	1
27330-B2010	KFVE..LA300,310	07/2013 - 02/2015	1
27330-87716	KFVE..LA300,310	04/2012 - 07/2013	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
27791-87708	KFVE..LA300,310	04/2012 - 07/2013	1
27791-87708	KFVE..LA300,310	07/2013 - 02/2015	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
27357-B1010	KFVE..LA300,310	07/2013 - 02/2015	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
27370-B1010	KFVE..LA300,310	07/2013 - 02/2015	1
27411 - PULLEY, ALTERNATOR
27411-97202	KFVE..LA300,310	04/2012 - 07/2013	1
27411-B2010	KFVE..LA300,310	07/2013 - 04/2017	1
27700A - REGULATOR ASSY, GENERATOR
27700-B2040	KFVE..LA300,310	04/2012 - 07/2013	1
27700-B2040	KFVE..LA300,310	07/2013 - 02/2015	1
Common parts
90041-20195
90179-06158
91552-81075
