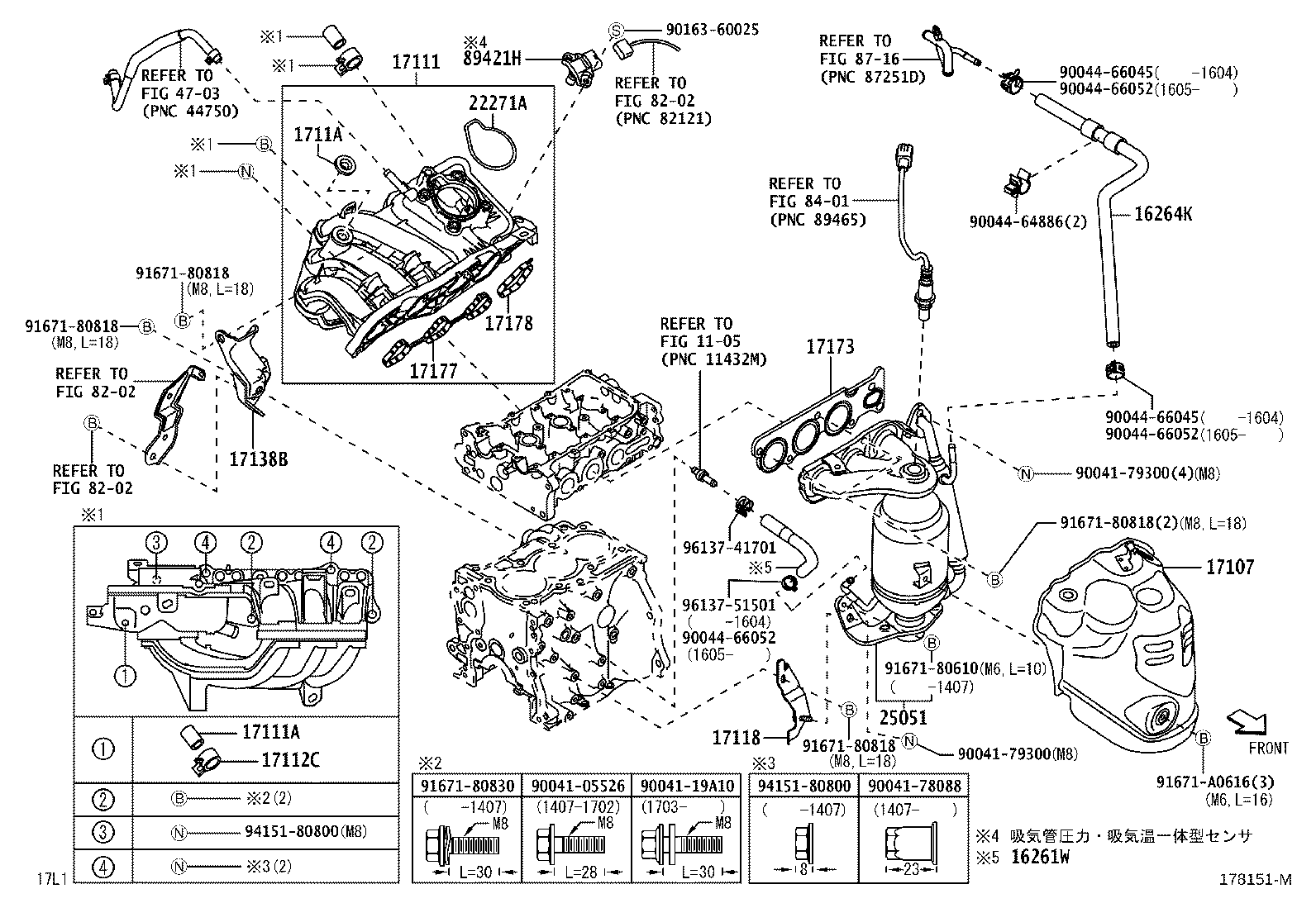

Toyota Pixis epoch LA310A MANIFOLD

Part #	Description	Period	Qty
16261W - HOSE, WATER BY-PASS, NO.1
16261-B2210	KFVE..LA300,310	08/2015 - 12/2999	1
16261-B2170	KFVE..LA300,310	07/2013 - 07/2015	1
16264K - HOSE, WATER BY-PASS, NO.2
16264-B2080	KFVE..LA300,310	07/2013 - 04/2017	1
17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT
17107-B2011	KFVE..LA300,310	04/2012 - 07/2013	1
17111 - MANIFOLD, INTAKE
17120-B2091	KFVE..LA300,310	07/2013 - 07/2014	1
17120-B2110	KFVE..LA300,310	07/2014 - 11/2014	1
17120-B2111	KFVE..LA300,310	12/2014 - 12/2999	1
17120-B2090	KFVE..LA300,310	04/2012 - 07/2013	1
17111A - PLUG, NO.1
90043-39029	KFVE..LA300,310	07/2013 - 12/2999	1
90043-39029	KFVE..LA300,310	04/2012 - 07/2013	1
17112C - CLIP(FOR INTAKE MANIFOLD)
90044-67220	KFVE..LA300,310	07/2013 - 07/2015	1
90044-67220	KFVE..LA300,310	04/2012 - 07/2013	1
17118 - STAY, MANIFOLD
17118-B2020	KFVE..LA300,310	04/2012 - 07/2013	1
17118-B2070	KFVE..LA300,310	07/2013 - 10/2014	1
17118-B2080	KFVE..LA300,310	11/2014 - 12/2999	1
1711A - GROMMET
90044-80676	KFVE..LA300,310	07/2013 - 04/2017	1
90044-80676	KFVE..LA300,310	04/2012 - 07/2013	1
17138B - STAY, INTAKE MANIFOLD
17138-B2040	KFVE..LA300,310 ﾀｲﾌﾟ A	04/2012 - 05/2013	1
17138-B2050	KFVE..LA300,310	07/2013 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-B2052	KFVE..LA300,310 ﾀｲﾌﾟ A	04/2012 - 08/2012	1
17173-B2060	KFVE..LA300,310	07/2013 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-B2040	KFVE..LA300,310	04/2012 - 07/2013	1
17177-B2040	KFVE..LA300,310	07/2013 - 07/2014	1
17177-B2050	KFVE..LA300,310	07/2014 - 12/2999	1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-B2010	KFVE..LA300,310	07/2013 - 12/2999	1
17178-B2010	KFVE..LA300,310	04/2012 - 07/2013	1
22271A - GASKET, THROTTLE BODY
22271-B2030	KFVE..LA300,310	04/2012 - 07/2013	1
22271-B2030	KFVE..LA300,310	07/2013 - 12/2999	1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-B2430	KFVE..LA300,310	07/2014 - 12/2999	1
25051-B2311	KFVE..LA300,310	04/2012 - 07/2012	1
25051-B2400	KFVE..LA300,310	07/2013 - 07/2014	1
89421H - SENSOR, VACUUM
89421-B2040	LA300,310	07/2013 - 12/2999	1
89421-B2010	LA300,310	04/2012 - 07/2013	1
Common parts
90041-05526
90041-19A10
90041-78088
90041-79300
90044-64886
90044-66045
90044-66052
90163-60025
91671-80610
91671-80818
91671-80830
91671-A0616
94151-80800
96137-41701
96137-51501
Linked diagrams
1105
4703
8202
8401
8716

LA310A-GBGF (2013)

(1307- )
