Toyota Pixis epoch LA310A REAR AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-B2010	LA310	04/2012 - 07/2013	1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-B2110	LA310	04/2012 - 07/2013	1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
41114-B2010	LA310 M8,L=43	04/2012 - 07/2013	4
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
41114-B2010	LA310 M8,L=43	04/2012 - 07/2013	4
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
41114-B2010	LA310 M8,L=43	04/2012 - 07/2013	4
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
41114-B2010	LA310 M8,L=43	04/2012 - 07/2013	4
41181Q - PLUG(FOR REAR DIFFERENTIAL CARRIER)
90043-41046	LA310	04/2012 - 07/2013	1
41181R - GASKET(FOR REAR DIFFERENTIAL CARRIER PLUG)
90044-30311	LA310	04/2012 - 07/2013	1
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-B2010	LA310	04/2012 - 07/2013	1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90043-68041	LA310	04/2012 - 07/2013	1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90043-68040	LA310	04/2012 - 07/2013	1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90043-11418	LA310	04/2012 - 07/2013	1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90045-64052	LA310 厚さ=0.50	04/2012 - 07/2013	1
90045-64050	LA310 厚さ=0.20	04/2012 - 07/2013	1
90045-64049	LA310 厚さ=0.15	04/2012 - 07/2013	1
90045-64051	LA310 厚さ=0.25	04/2012 - 07/2013	1
41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
90045-64529	LA310 厚さ=0.25	04/2012 - 07/2013	1
90045-64532	LA310 厚さ=0.50	04/2012 - 07/2013	1
90045-64531	LA310 厚さ=0.40	04/2012 - 07/2013	1
90045-64530	LA310 厚さ=0.30	04/2012 - 07/2013	1
41204B - NUT (FOR REAR DRIVE PINION)
90041-78050	LA310	04/2012 - 07/2013	1
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-B2010	LA310	04/2012 - 07/2013	1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
97103-06007	LA310	04/2012 - 07/2013	2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
97103-06007	LA310	04/2012 - 07/2013	2
41311K - CASE, REAR DIFFERENTIAL
41311-B2010	LA310	04/2012 - 07/2013	1
41330D - COUPLING ASSY, TRANSMISSION
41330-B2011	LA310	04/2012 - 07/2013	1
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-87518	LA310	04/2012 - 07/2013	2
41331 - GEAR, REAR DIFFERENTIAL SIDE
41331-87518	LA310	04/2012 - 07/2013	2
41341 - PINION, REAR DIFFERENTIAL
41341-87509	LA310	04/2012 - 07/2013	2
41341 - PINION, REAR DIFFERENTIAL
41341-87509	LA310	04/2012 - 07/2013	2
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-B2010	LA310	04/2012 - 07/2013	1
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-87501	LA310 厚さ=0.8	04/2012 - 07/2013	2
41361-87506	LA310 厚さ=0.9	04/2012 - 07/2013	2
41361-87507	LA310 厚さ=1.0	04/2012 - 07/2013	2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-87501	LA310 厚さ=0.8	04/2012 - 07/2013	2
41361-87506	LA310 厚さ=0.9	04/2012 - 07/2013	2
41361-87507	LA310 厚さ=1.0	04/2012 - 07/2013	2
41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)
90045-64049	LA310 厚さ=0.15	04/2012 - 07/2013	1
90045-64050	LA310 厚さ=0.20	04/2012 - 07/2013	1
90045-64051	LA310 厚さ=0.25	04/2012 - 07/2013	1
90045-64052	LA310 厚さ=0.50	04/2012 - 07/2013	1
41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST)
90045-64049	LA310 厚さ=0.15	04/2012 - 07/2013	1
90045-64050	LA310 厚さ=0.20	04/2012 - 07/2013	1
90045-64051	LA310 厚さ=0.25	04/2012 - 07/2013	1
90045-64052	LA310 厚さ=0.50	04/2012 - 07/2013	1
Common parts
90041-05235
90042-01740
90043-39106
90045-20299

LA310A-GBGF (2012)

ILLUST NO. 1 OF 2(1204-1307)LA310

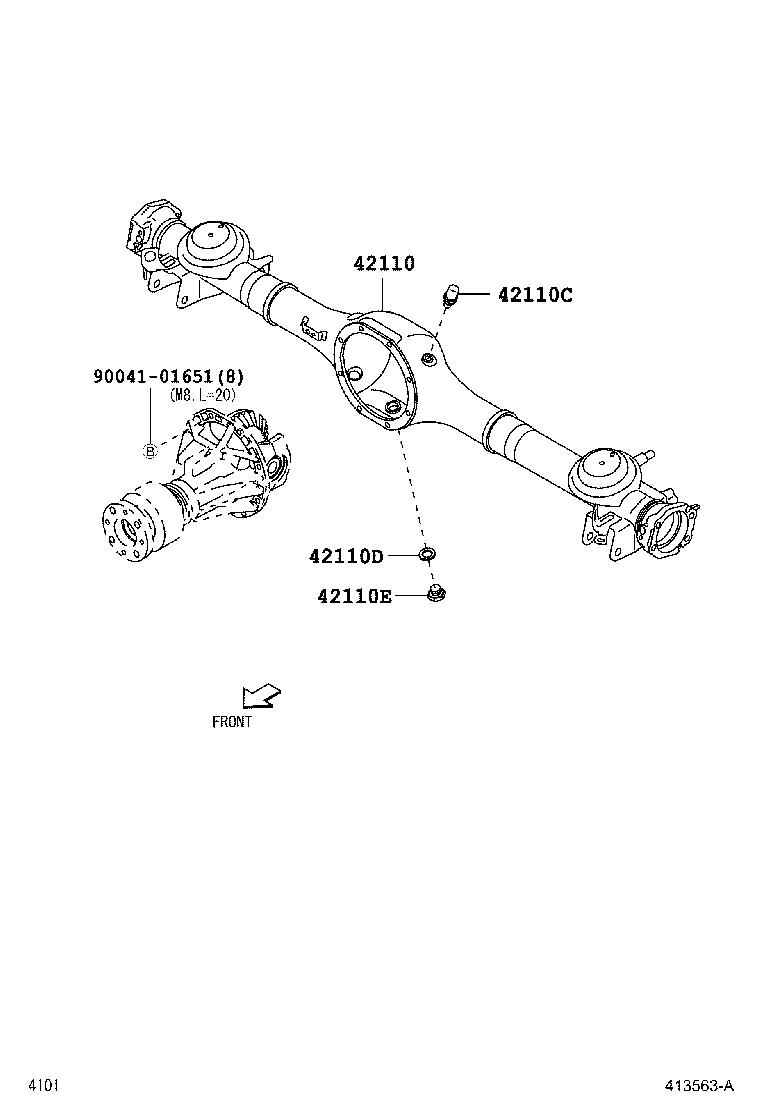

ILLUST NO. 2 OF 2(1204-1307)LA310

Part Price Details

Part #	Description	Period	Qty
42110 - HOUSING ASSY, REAR AXLE
42110-B2020	LA310	04/2012 - 07/2013	1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90049-15026	LA310	04/2012 - 07/2013	1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
90044-30237	LA310	04/2012 - 07/2013	1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90043-41046	LA310	04/2012 - 07/2013	1
Common parts
90041-01651
