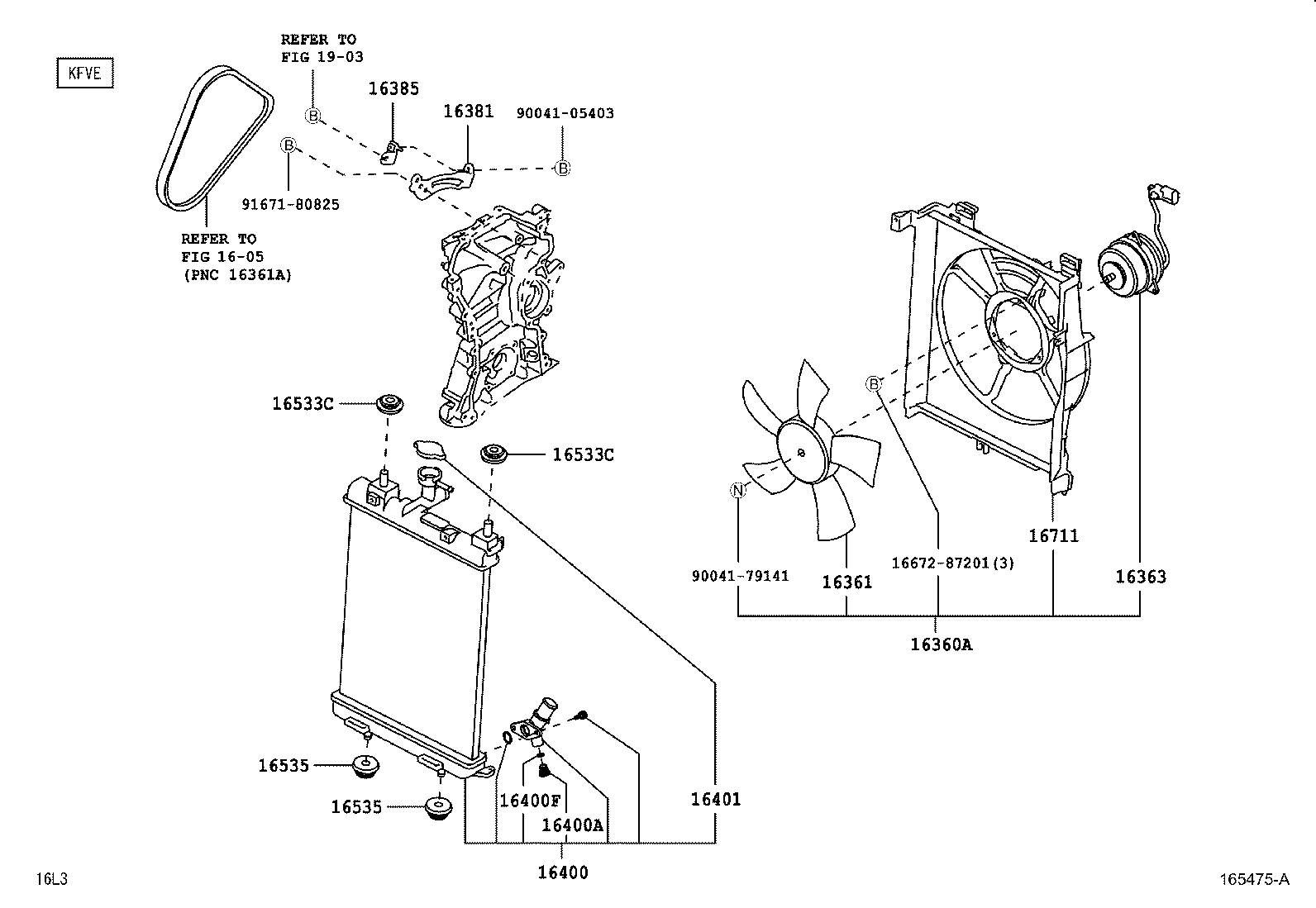

Toyota Pixis epoch LA300A RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
16360A - FAN ASSY, W/MOTOR
16360-B2151	KFVE..LA300	04/2012 - 07/2013	1
16360-B2151	KFVE..LA300,310	07/2013 - 12/2999	1
16361 - FAN
16361-B2060	KFVE..LA300,310	07/2013 - 12/2999	1
16361-B2060	KFVE..LA300,310	04/2012 - 07/2013	1
16363 - MOTOR, COOLING FAN
16363-B2030	KFVE..LA300,310	07/2013 - 12/2999	1
16363-B2030	KFVE..LA300,310	04/2012 - 07/2013	1
16381 - BAR, FAN BELT ADJUSTING
16381-B2011	KFVE..LA300,310	04/2012 - 07/2013	1
16381-B2011	KFVE..LA300,310	07/2013 - 12/2999	1
16385 - SLIDER, FAN BELT ADJUSTING
16385-B2021	KFVE..LA300,310	04/2012 - 07/2013	1
16385-B2021	KFVE..LA300,310	07/2013 - 12/2999	1
16400 - RADIATOR ASSY
16400-B2131	KFVE..LA300	04/2012 - 07/2013	1
16400-B2370	KFVE..LA300,310	07/2013 - 12/2999	1
16400A - COCK SUB-ASSY, RADIATOR DRAIN
16417-B2010	KFVE..LA300,310	07/2013 - 12/2999	1
16417-B2010	KFVE..LA300	04/2012 - 07/2013	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16442-97201	KFVE..LA300	04/2012 - 07/2013	1
16442-97201	KFVE..LA300,310	07/2013 - 12/2999	1
16401 - CAP SUB-ASSY, RADIATOR
16401-87211	KFVE..LA300	04/2012 - 07/2013	1
16401-87211	KFVE..LA300,310	07/2013 - 12/2999	1
16533C - GROMMET(FOR RADIATOR SUPPORT)
90044-80621	KFVE..LA300,310	04/2012 - 07/2013	2
90044-80621	KFVE..LA300,310	07/2013 - 12/2999	2
16533C - GROMMET(FOR RADIATOR SUPPORT)
90044-80621	KFVE..LA300,310	04/2012 - 07/2013	2
90044-80621	KFVE..LA300,310	07/2013 - 12/2999	2
16535 - SUPPORT, RADIATOR, LOWER
90044-80592	KFVE..LA300,310	04/2012 - 07/2013	2
90044-80592	KFVE..LA300,310	07/2013 - 12/2999	2
16535 - SUPPORT, RADIATOR, LOWER
90044-80592	KFVE..LA300,310	04/2012 - 07/2013	2
90044-80592	KFVE..LA300,310	07/2013 - 12/2999	2
16711 - SHROUD, FAN
16711-B2090	KFVE..LA300	04/2012 - 07/2013	1
16711-B2090	KFVE..LA300,310	07/2013 - 12/2999	1
Common parts
16672-87201
90041-05403
90041-79141
91671-80825
Linked diagrams
1605
1903

LA300A-GBPF (2013)

ILLUST NO. 1 OF 2(1307- )
