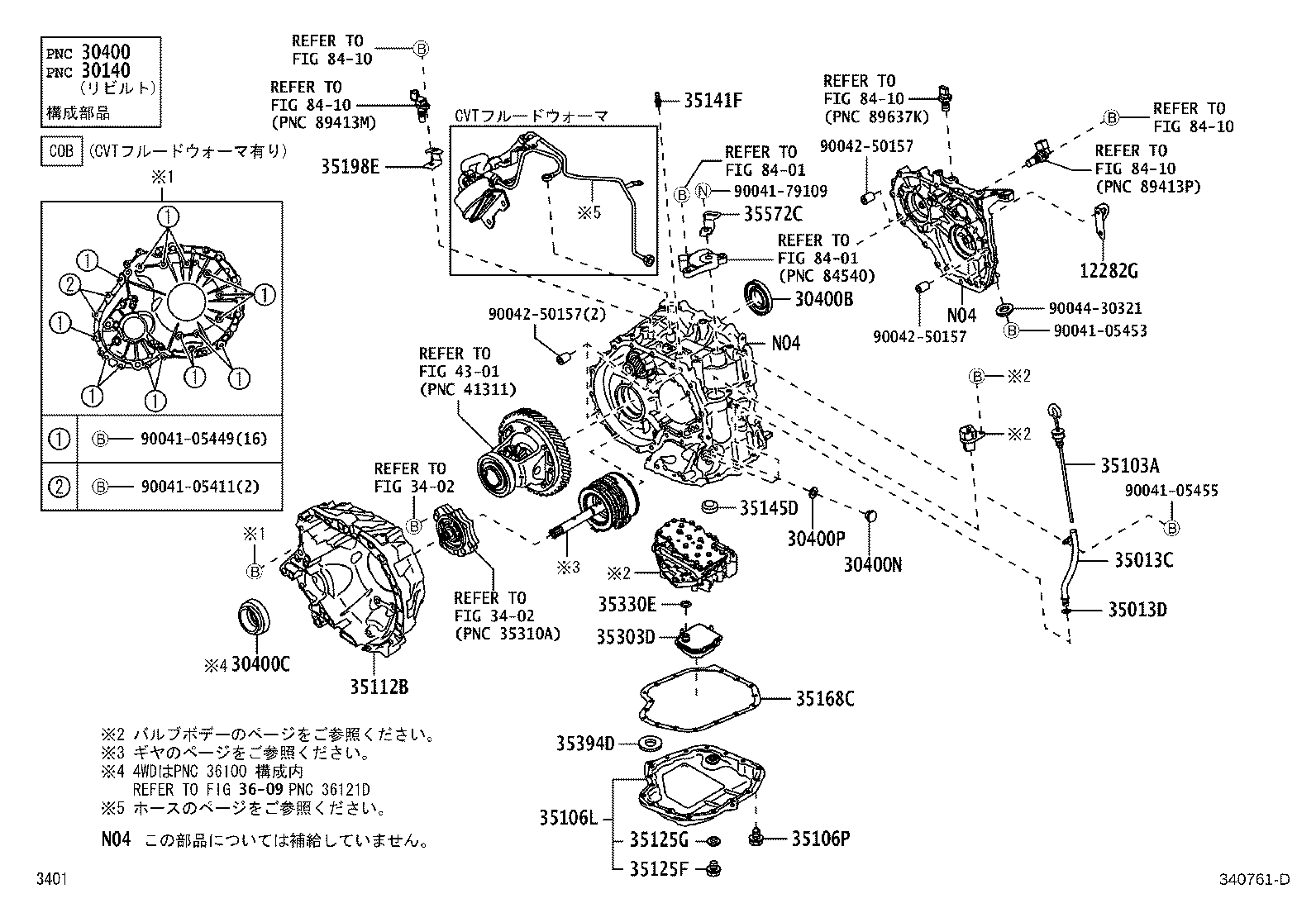

Toyota Pixis epoch LA300A TRANSAXLE ASSY(CVT)

Part #	Description	Period	Qty
12282G - HANGER, TRANSAXLE
12282-B2030	KFVE..LA300,310	07/2013 - 12/2999	1
12282-B2030	KFVE..LA300,310	04/2012 - 07/2013	1
30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)
30140-B0240	LA300 識別ﾗﾍﾞﾙ 6AC	04/2012 - 07/2013	1
30140-B0570	LA300 識別ﾗﾍﾞﾙ 6BD	07/2014 - 04/2017	1
30140-B0510	LA300 識別ﾗﾍﾞﾙ 6BC	07/2013 - 07/2014	1
30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400-B2510	LA300 識別ﾗﾍﾞﾙ 6BC	07/2013 - 07/2014	1
30400-B2570	LA300 識別ﾗﾍﾞﾙ 6BD	07/2014 - 12/2999	1
30400-B2240	LA300 識別ﾗﾍﾞﾙ 6AC	04/2012 - 07/2013	1
30400B - SEAL, TYPE T OIL, NO.1(FOR CVT)
90043-11421	LA300,310	07/2013 - 04/2017	1
90043-11421	LA300,310	04/2012 - 07/2013	1
30400C - SEAL, TYPE T OIL, NO.2(FOR CVT)
90043-11422	LA300	07/2013 - 04/2017	1
90043-11422	LA300	04/2012 - 07/2013	1
30400N - PLUG, REFILL(CVT)
90041-05453	LA300,310	04/2012 - 07/2013	3
90041-05453	LA300,310	07/2013 - 04/2017	3
30400P - GASKET, REFILL PLUG(CVT)
90044-30325	LA300,310	04/2012 - 07/2013	3
90044-30325	LA300,310	07/2013 - 04/2017	3
35013C - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-B2012	LA300,310	07/2013 - 12/2999	1
35013-B2012	LA300,310	04/2012 - 07/2013	1
35013D - RING, O(FOR TRANSMISSION OIL FILLER TUBE)
90043-01160	LA300,310	07/2013 - 12/2999	1
90043-01160	LA300,310	04/2012 - 07/2013	1
35103A - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-B2060	LA300,310	04/2012 - 07/2013	1
35103-B2060	LA300,310	07/2013 - 12/2999	1
35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT)
35160-B2030	LA300,310	04/2012 - 07/2013	1
35160-B2030	LA300,310	07/2013 - 12/2999	1
35106P - BOLT(FOR TRANSAXLE OIL PAN)
90041-20203	LA300,310	04/2012 - 07/2013	17
90041-20203	LA300,310	07/2013 - 12/2999	17
35112B - CASE, TORQUE CONVERTER & DIFFRENTIAL
35111-B2051	LA300,310	07/2013 - 12/2999	1
35111-B2051	LA300,310	04/2012 - 07/2013	1
35125F - PLUG, OVERFLOW(CVT)
90043-41041	LA300,310	07/2013 - 04/2017	1
90043-41041	LA300,310	04/2012 - 07/2013	1
35125G - GASKET, OVERFLOW PLUG(CVT)
90044-30281	LA300,310	04/2012 - 07/2013	1
90044-30281	LA300,310	07/2013 - 04/2017	1
35141F - PLUG, BREATHER, NO.1(CVT)
90049-15054	LA300,310	04/2012 - 07/2013	1
90049-15054	LA300,310	07/2013 - 12/2999	1
35145D - GASKET, TRANSAXLE CASE
35145-B2011	LA300,310	07/2013 - 12/2999	1
35145-B2011	LA300,310	04/2012 - 07/2013	1
35168C - GASKET, TRANSAXLE OIL PAN(CVT)
35168-B2020	LA300,310	07/2013 - 12/2999	1
35168-B2020	LA300,310	04/2012 - 07/2013	1
35198E - BRACKET, WIRE HARNESS CLAMP, NO.1
58379-B2020	LA300,310	07/2013 - 12/2999	1
82715-B2390	LA300,310	04/2012 - 07/2013	1
35303D - STRAINER SUB-ASSY, OIL
35303-B2012	LA300,310	07/2013 - 12/2999	1
35303-B2011	LA300,310	04/2012 - 11/2012	1
35330E - RING, O (FOR OIL STRAINER)
90043-01347	LA300,310	07/2013 - 12/2999	1
90043-01347	LA300,310	04/2012 - 07/2013	1
35394D - MAGNET, OIL CLEANER(CVT)
33449-B2010	LA300,310	04/2012 - 07/2013	1
33449-B2010	LA300,310	07/2013 - 12/2999	1
35572C - LEVER, TRANSMISSION CONTROL SHAFT
35572-B2020	LA300,310	07/2013 - 12/2999	1
35572-B2010	LA300,310	04/2012 - 07/2013	1
Common parts
90041-05411
90041-05449
90041-05453
90041-05455
90041-79109
90042-50157
90044-30321
Linked diagrams
3402
3609
4301
8401
8410

LA300A-GBMF (2013)

ILLUST NO. 2 OF 5(1307- )

ILLUST NO. 4 OF 5(1307-1508)

ILLUST NO. 4 OF 5(1508- )
