LA300A-GBMF (2012)
Toyota Pixis Epoch
Production
Apr 2012
-
Jul 2013
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

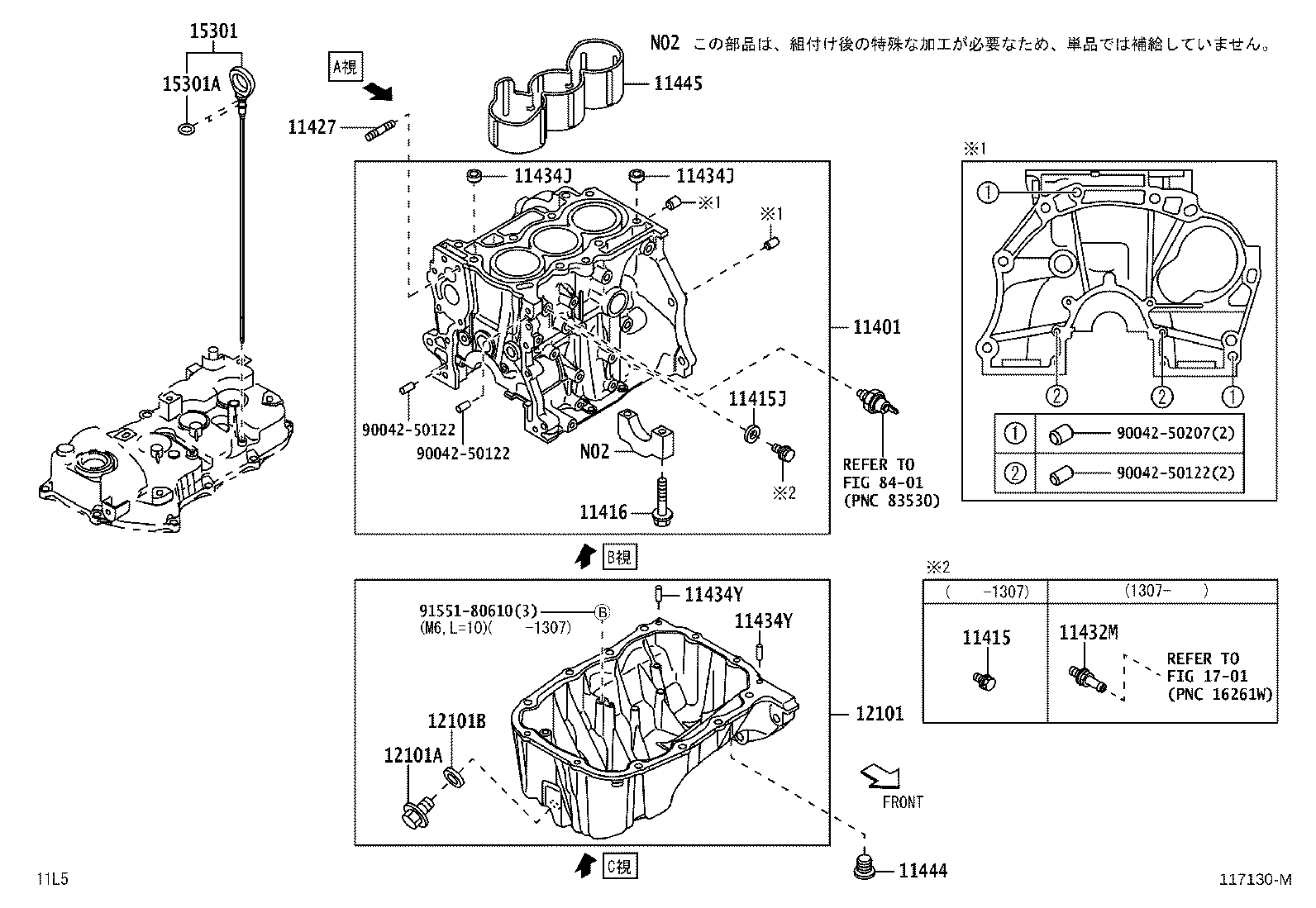

ILLUST NO. 1 OF 3(1204- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-B2231 |
KFVE..LA300,310 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90043-41088 |
KFVE..LA300,310 |
1 | ||
| 11415J - GASKET(FOR DRAIN COCK) | ||||
| 90044-30279 |
KFVE..LA300,310 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90041-05368 |
KFVE..LA300,310 M10,L=66 |
8 | ||
| 11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET) | ||||
| 90041-16498 |
KFVE..LA300,310 |
1 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90042-53013 |
KFVE..LA300,310 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90042-53013 |
KFVE..LA300,310 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-06003 |
KFVE..LA300,310 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-06003 |
KFVE..LA300,310 |
2 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-B2010 |
KFVE..LA300,310 |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-B2030 |
KFVE..LA300,310 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-B2024 |
KFVE..LA300,310 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90043-41087 |
KFVE..LA300,310 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90044-30281 |
KFVE..LA300,310 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-B2060 |
KFVE..LA300,310 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
KFVE..LA300,310 |
2 | ||
| Common parts | ||||
| 90042-50122 | ||||
| 90042-50207 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8401 | ||||

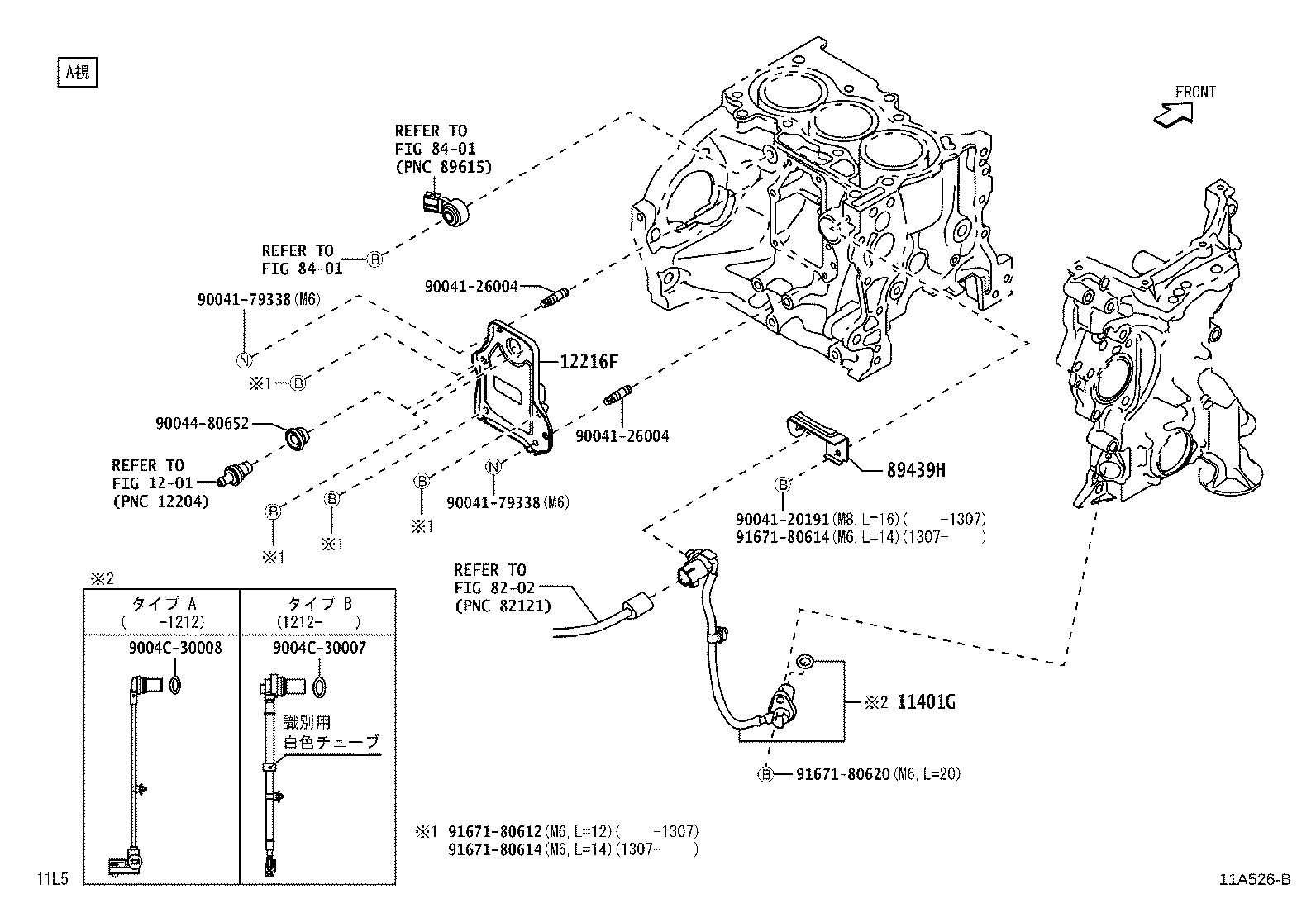

ILLUST NO. 2 OF 3(1204- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401G - SENSOR, CRANK POSITION | ||||
| 19311-B2030 |
KFVE..LA300,310 ﾀｲﾌﾟ B |
1 | ||
| 19311-B2021 |
KFVE..LA300,310 ﾀｲﾌﾟ A |
1 | ||
| 12216F - PLATE, VENTILATION BAFFLE | ||||
| 12216-B2020 |
KFVE..LA300,310 |
1 | ||
| 89439H - BRACKET, SENSOR | ||||
| 89439-B2070 |
LA300,310 |
1 | ||
| Common parts | ||||
| 90041-20191 | ||||
| 90041-26004 | ||||
| 90041-79338 | ||||
| 90044-80652 | ||||
| 9004C-30007 | ||||
| 9004C-30008 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 8202 | ||||
| 8401 | ||||

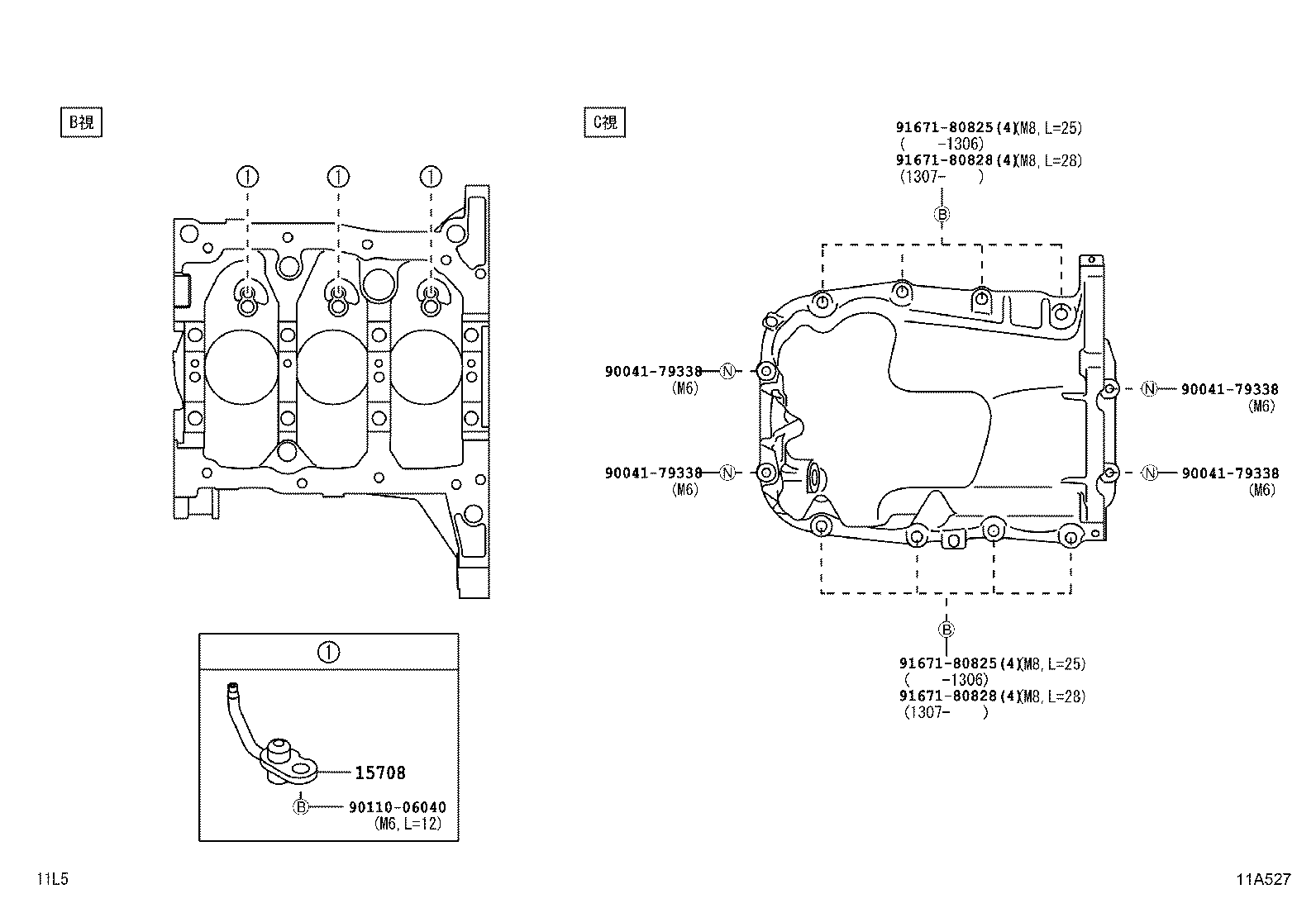

ILLUST NO. 3 OF 3(1204- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-B2010 |
KFVE..LA300,310 |
1 | ||
| Common parts | ||||
| 90041-79338 | ||||
| 90110-06040 | ||||
| 91671-80825 | ||||
| 91671-80828 | ||||
