8719 - HEATING & AIR CONDITIONING - COMPRESSOR

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1204- )

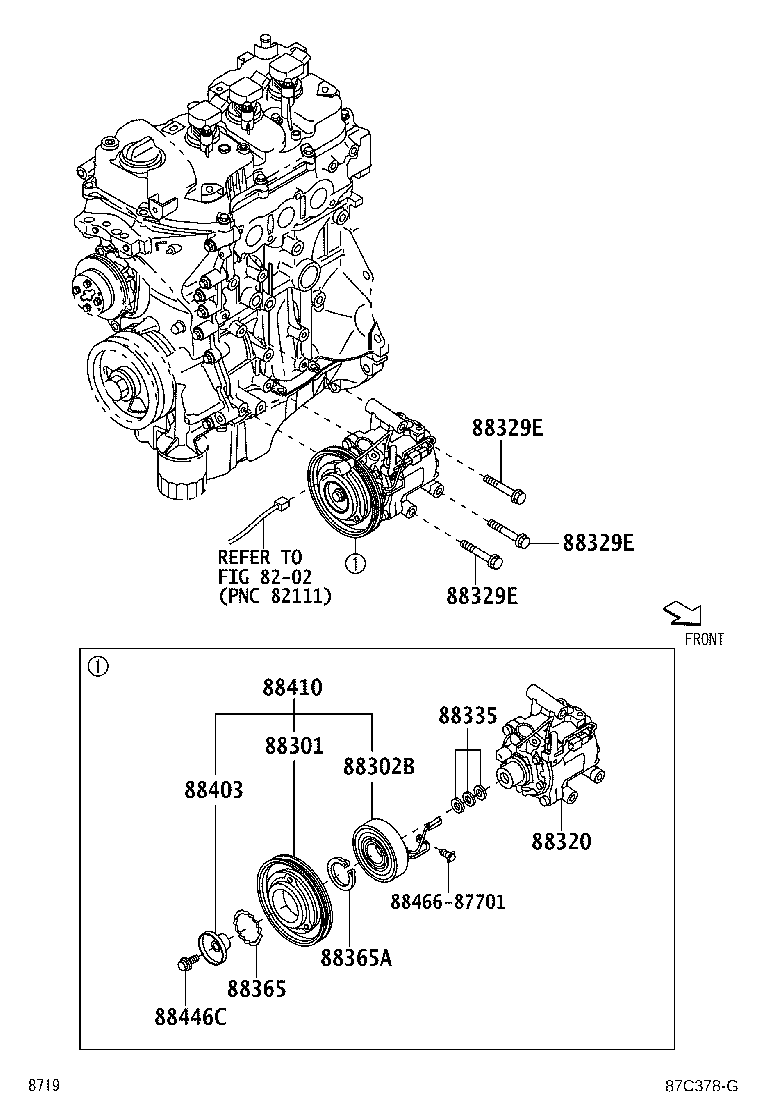

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-B2020	LA300,310	04/2012 - 07/2013	1
88302B - STATOR, MAGNET CLUTCH
88411-87264	LA300,310	04/2012 - 07/2013	1
88320 - COMPRESSOR ASSY, COOLER
88320-B2020	LA300,310	04/2012 - 07/2013	1
88329E - BOLT, COMPRESSOR, NO.1
88899-12400	LA300,310 M8,L=75	04/2012 - 07/2013	3
88329E - BOLT, COMPRESSOR, NO.1
88899-12400	LA300,310 M8,L=75	04/2012 - 07/2013	3
88329E - BOLT, COMPRESSOR, NO.1
88899-12400	LA300,310 M8,L=75	04/2012 - 07/2013	3
88335 - GASKET KIT, OVERHAUL
88335-14020	LA300,310	04/2012 - 07/2013	1
88365 - RING, SNAP
90099-07125	LA300,310	04/2012 - 07/2013	1
88365A - RING, SNAP (FOR COMPRESSOR)
88365-87201	LA300,310	04/2012 - 07/2013	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-97201	LA300,310	04/2012 - 07/2013	1
88410 - CLUTCH ASSY, MAGNET
88410-B2050	LA300,310	04/2012 - 07/2013	1
88446C - BOLT, MAGNET CLUTCH SETTING
90099-04349	LA300,310 M6,L=16	04/2012 - 07/2013	1
Common parts
88466-87701
Linked diagrams
8202
