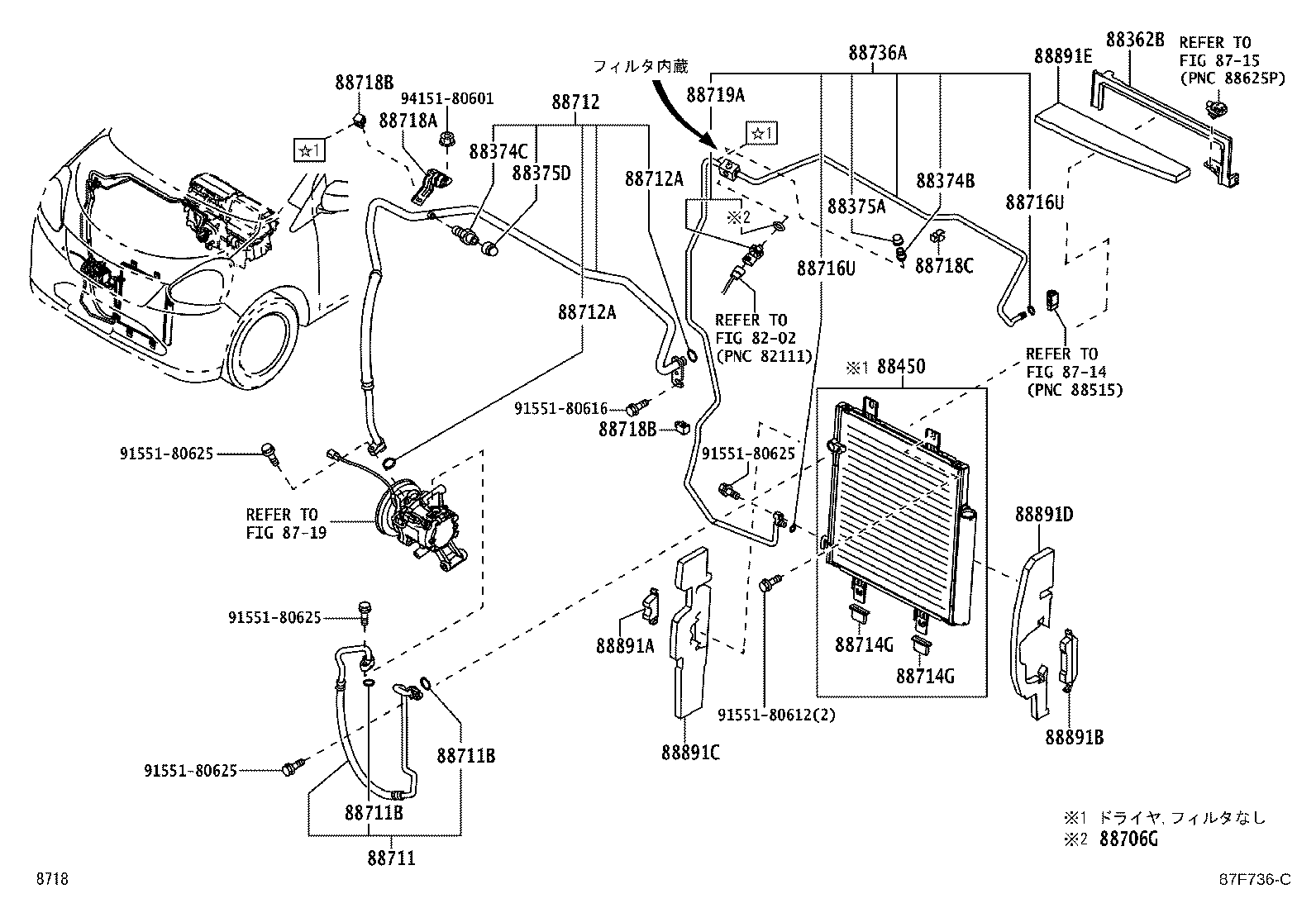

Toyota Pixis epoch LA300A HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88362B - PLATE, SEAL
88362-B2420	LA300,310	04/2012 - 07/2013	1
88374B - VALVE, SERVICE, NO.1
88374-87601	LA300,310	04/2012 - 07/2013	1
88374C - VALVE, SERVICE, NO.2
88374-87601	LA300,310	04/2012 - 07/2013	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-87603	LA300,310	04/2012 - 07/2013	1
88375D - CAP, SERVICE VALVE, NO.2
88375-87601	LA300,310	04/2012 - 07/2013	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-B2140	LA300,310	04/2012 - 07/2013	1
88706G - RING, O(FOR LIQUID TUBE)
15188-B5090	LA300,310	04/2012 - 07/2013	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-B2240	LA300,310	04/2012 - 07/2013	1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
15188-87402	LA300,310	04/2012 - 07/2013	2
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
15188-87402	LA300,310	04/2012 - 07/2013	2
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-B2400	LA300,310	04/2012 - 07/2013	1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
15188-87403	LA300,310	04/2012 - 07/2013	2
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
15188-87403	LA300,310	04/2012 - 07/2013	2
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88714-B2010	LA300,310	04/2012 - 07/2013	2
88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1
88714-B2010	LA300,310	04/2012 - 07/2013	2
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
15188-87401	LA300,310	04/2012 - 07/2013	2
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
15188-87401	LA300,310	04/2012 - 07/2013	2
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-B2170	LA300,310	04/2012 - 07/2013	1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-13060	LA300,310	04/2012 - 07/2013	2
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-13060	LA300,310	04/2012 - 07/2013	2
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-B2180	LA300,310	04/2012 - 07/2013	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-B2010	LA300,310	04/2012 - 07/2013	1
88736A - TUBE, LIQUID, A(FOR COOL BOX)
88716-B2320	LA300,310	04/2012 - 07/2013	1
88891A - PACKING A (FOR COOLER)
88578-B2610	LA300,310	04/2012 - 07/2013	1
88891B - PACKING B (FOR COOLER)
88578-B2620	LA300,310	04/2012 - 07/2013	1
88891C - PACKING C (FOR COOLER)
88578-B2710	LA300,310	04/2012 - 07/2013	1
88891D - PACKING D (FOR COOLER)
88578-B2721	LA300,310	04/2012 - 07/2013	1
88891E - PACKING E (FOR COOLER)
88578-B2730	LA300,310	04/2012 - 07/2013	1
Common parts
91551-80612
91551-80616
91551-80625
94151-80601
Linked diagrams
8202
8714
8715
8719

LA300A-GBDF (2012)

(1204-1307)
