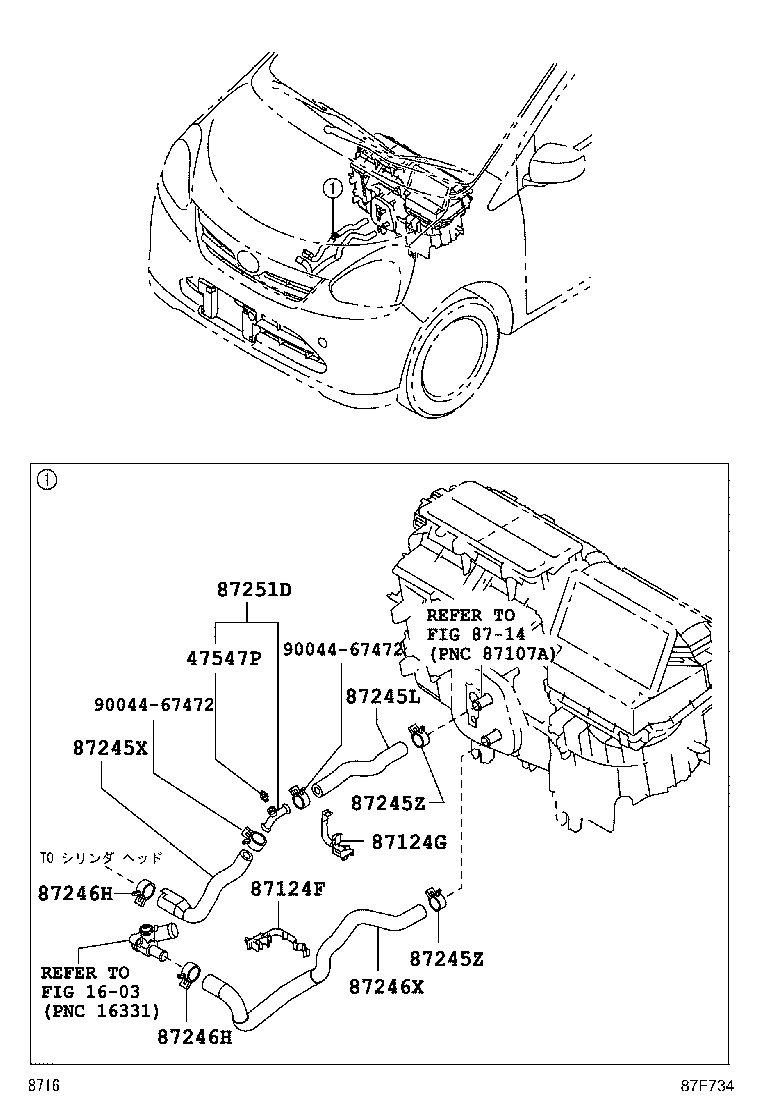

Toyota Pixis epoch LA300A HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
47547P - PLUG, BLEEDER(FOR WATER JOINT)
47546-87202	LA300,310	04/2012 - 07/2013	1
87124F - CLAMP, HEATER HOSE, NO.1
87124-B2010	LA300,310	04/2012 - 07/2013	1
87124G - CLAMP, HEATER HOSE, NO.2
87124-B2060	LA300,310	04/2012 - 07/2013	1
87245L - HOSE, HEATER WATER, L
87245-B2170	LA300,310	04/2012 - 07/2013	1
87245X - HOSE, HEATER WATER
87242-B2010	LA300,310	04/2012 - 07/2013	1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
96136-42101	LA300,310	04/2012 - 07/2013	2
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
96136-42101	LA300,310	04/2012 - 07/2013	2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
96136-42501	LA300,310	04/2012 - 07/2013	2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
96136-42501	LA300,310	04/2012 - 07/2013	2
87246X - HOSE, HEATER WATER
87246-B2210	LA300,310	04/2012 - 07/2013	1
87251D - JOINT, WATER, NO.1
16035-B2010	LA300,310	04/2012 - 07/2013	1
Common parts
90044-67472
Linked diagrams
1603
8714

LA300A-GBDF (2012)
