Toyota Pixis epoch LA300A HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty

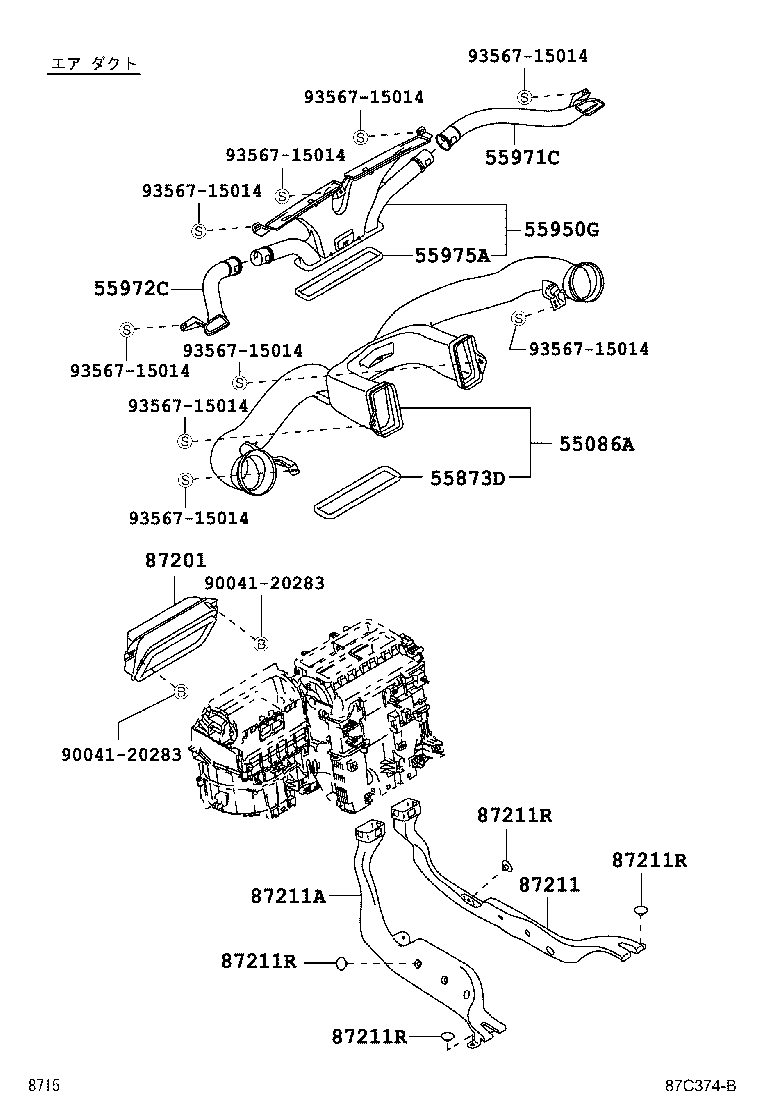

55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-B2370	LA300,310	04/2012 - 07/2013	1
55873D - SEAL, AIR DUCT, CENTER
55873-B2080	LA300,310	04/2012 - 07/2013	1
55950G - NOZZLE ASSY, DEFROSTER
55950-B2221	LA300,310	12/2012 - 07/2013	1
55950-B2220	LA300,310	04/2012 - 11/2012	1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55961-B2070	LA300,310	04/2012 - 07/2013	1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55962-B2070	LA300,310	04/2012 - 07/2013	1
55975A - SEAL, DEFROSTER NOZZLE, NO.1
55975-B2070	LA300,310	04/2012 - 07/2013	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87220-B2171	LA300,310	04/2012 - 07/2013	1
87211 - DUCT, AIR, NO.1
87220-B2210	LA300 寒冷地仕様	04/2012 - 07/2013	1
87211A - DUCT, AIR, NO.2
87230-B2100	LA300 寒冷地仕様	04/2012 - 07/2013	1
87211R - CLIP, AIR DUCT
90044-67492	LA300 寒冷地仕様	04/2012 - 07/2013	4
87211R - CLIP, AIR DUCT
90044-67492	LA300 寒冷地仕様	04/2012 - 07/2013	4
87211R - CLIP, AIR DUCT
90044-67492	LA300 寒冷地仕様	04/2012 - 07/2013	4
87211R - CLIP, AIR DUCT
90044-67492	LA300 寒冷地仕様	04/2012 - 07/2013	4
Common parts
90041-20283
93567-15014

Click highlighted areas on diagram

Part #	Description	Period	Qty

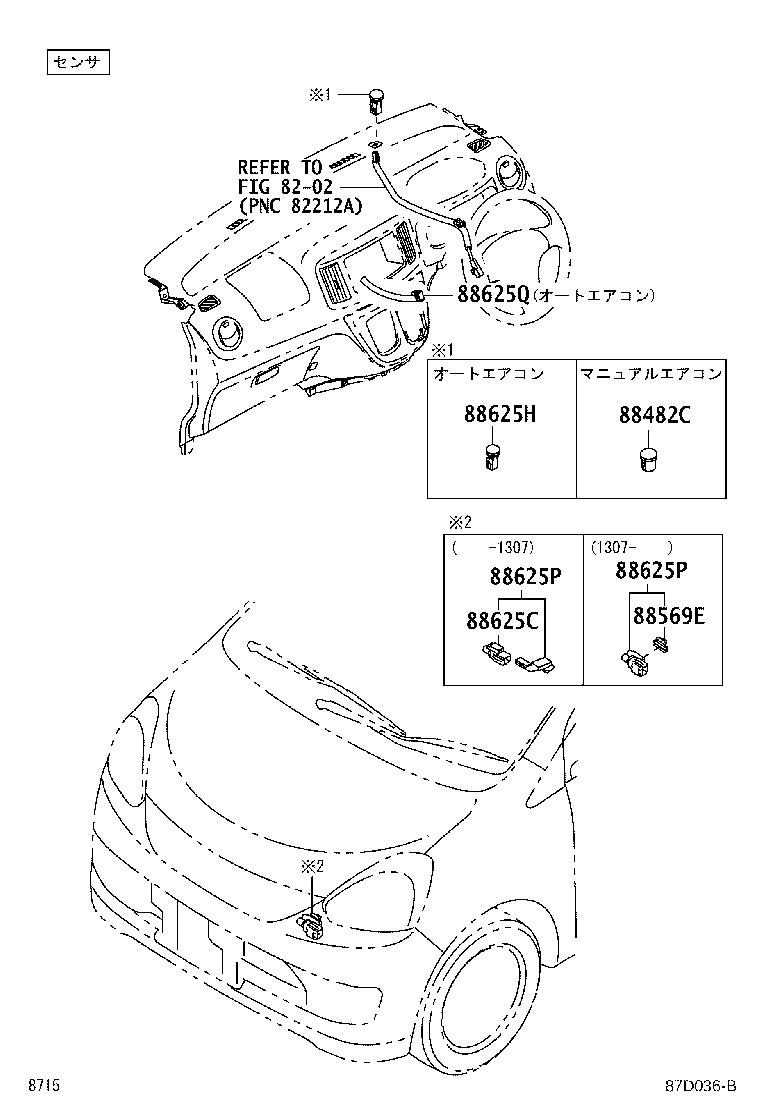

88482C - CAP, COOLER
88482-B4010	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	1
88625C - THERMISTOR, COOLER
88625-32171	LA300,310	04/2012 - 07/2013	1
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-B2070	LA300,310..G,GF	04/2012 - 07/2013	1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-B2170	LA300,310	04/2012 - 07/2013	1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-B2170	LA300,310	04/2012 - 07/2013	1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88790-B2140	LA300,310..G,GF	04/2012 - 07/2013	1
Linked diagrams
8202

Click highlighted areas on diagram

Part #	Description	Period	Qty

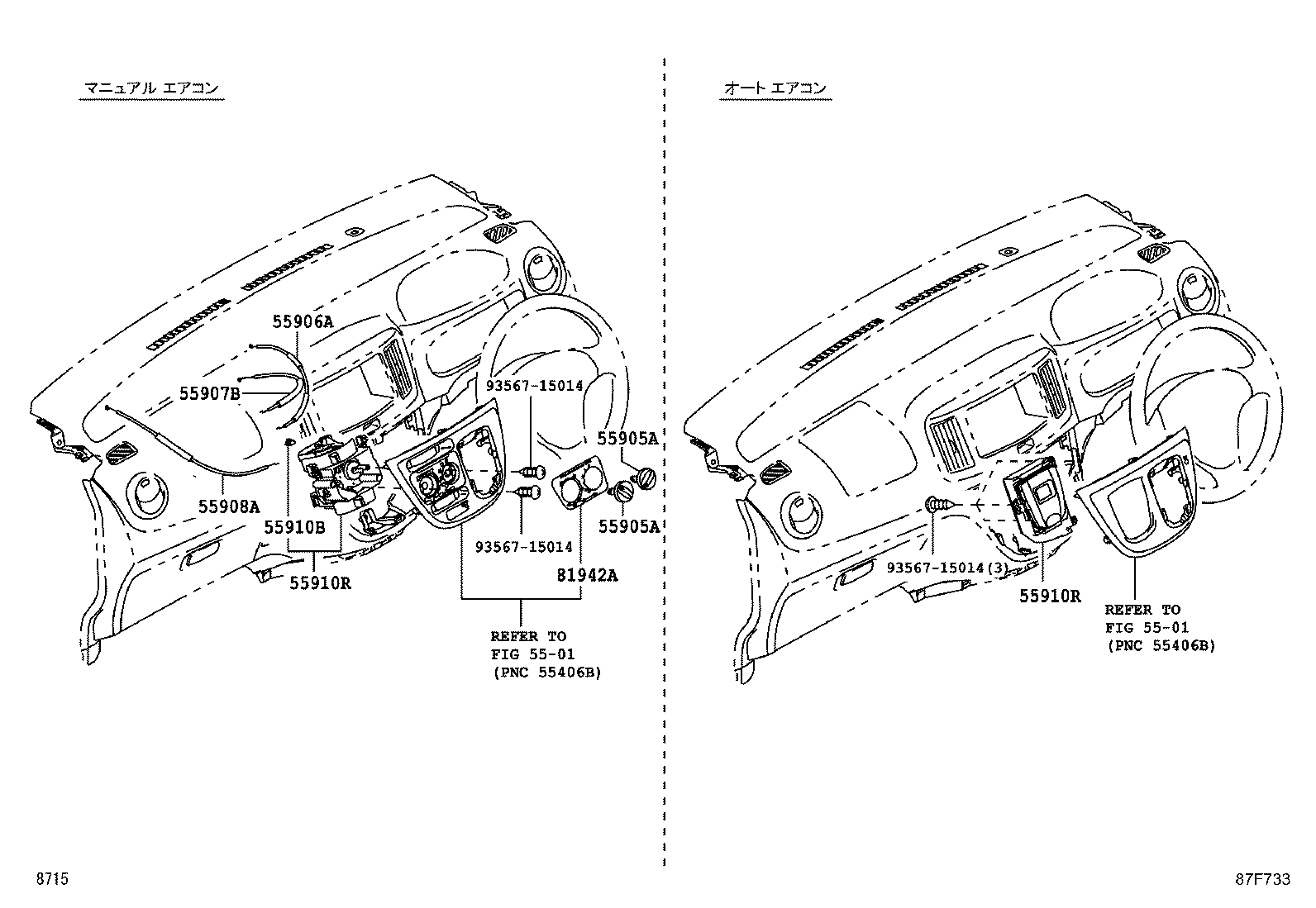

55905A - KNOB, HEATER CONTROL
55905-B2190	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	2
55905A - KNOB, HEATER CONTROL
55905-B2190	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-B2210	LA300,310..D,L,LF,X,XF 吹き出し口切替用	04/2012 - 07/2013	1
55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL
55907-B2200	LA300,310..D,L,LF,X,XF 温度調整用	04/2012 - 07/2013	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-B2210	LA300,310..D,L,LF,X,XF 内外気切替用	04/2012 - 07/2013	1
55910B - BULB, HEATER CONTROL
81936-B2040	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	1
55910R - CONTROL ASSY, HEATER
55910-B2530B0	LA300,310..G,GF MD.GRAY,TRIM1#	04/2012 - 11/2012	1
55910-B2531B0	LA300,310..G,GF MD.GRAY,TRIM1#	11/2012 - 12/2012	1
55910-B2551B0	LA300,310..G,GF MD.GRAY,TRIM1#	01/2013 - 07/2013	1
55910-B2320	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	1
55910R - CONTROL ASSY, HEATER
55910-B2530B0	LA300,310..G,GF MD.GRAY,TRIM1#	04/2012 - 11/2012	1
55910-B2531B0	LA300,310..G,GF MD.GRAY,TRIM1#	11/2012 - 12/2012	1
55910-B2551B0	LA300,310..G,GF MD.GRAY,TRIM1#	01/2013 - 07/2013	1
55910-B2320	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-B2460	LA300,310..D,L,LF,X,XF	04/2012 - 07/2013	1
Common parts
93567-15014
Linked diagrams
5501
