LA300A-GBDF (2012)
Toyota Pixis Epoch

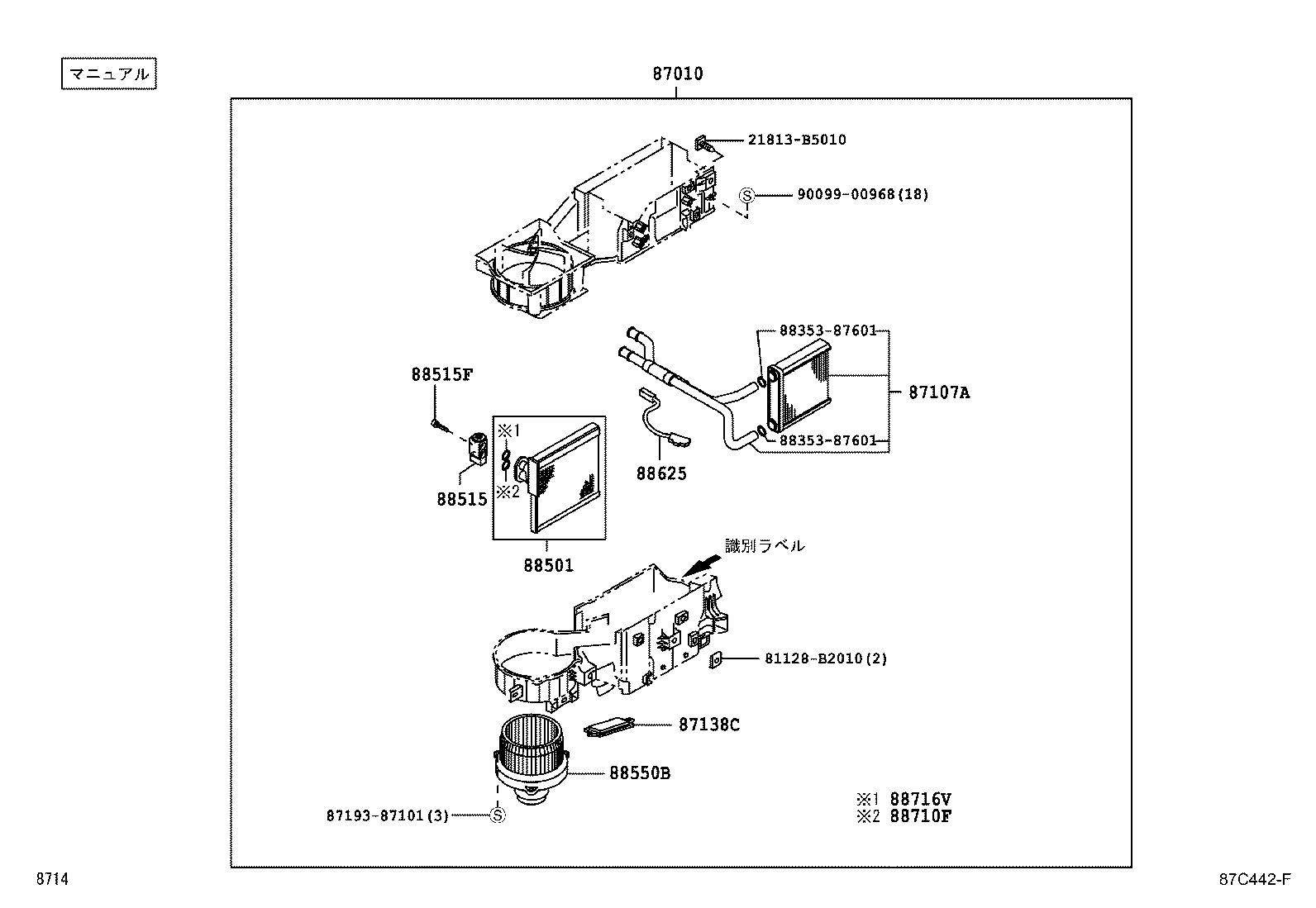

(1204- )D,L,LF,X,XF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-B2B80 |
LA300..G 寒冷地仕様 |
1 | ||
| 87010-B2B70 |
LA300..G |
1 | ||
| 87010-B2B01 |
LA300..D,L,X 寒冷地仕様 |
1 | ||
| 87010-B2A91 |
LA300..D,L,X |
1 | ||
| 87010-B2B71 |
LA300..G |
1 | ||
| 87010-B2B81 |
LA300..G 寒冷地仕様 |
1 | ||
| 87010-B2B00 |
LA300..D,L,X 寒冷地仕様 |
1 | ||
| 87010-B2A90 |
LA300..D,L,X |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-B2020 |
LA300,310 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-B2020 |
LA300,310..G,GF |
1 | ||
| 87138-B2010 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-B2010 |
LA300..G 識別ﾗﾍﾞﾙ(PNC 87010)=B71 |
1 | ||
| 88304-B2040 |
LA300..D,L,X 識別ﾗﾍﾞﾙ(PNC 87010)=A90 |
1 | ||
| 88304-B2040 |
LA300..G 識別ﾗﾍﾞﾙ(PNC 87010)=B70 |
1 | ||
| 88501-B2010 |
LA300..D,L,X 識別ﾗﾍﾞﾙ(PNC 87010)=A91 |
1 | ||
| 88501-B2010 |
LA300..D,L,X 寒冷地仕様,識別ﾗﾍﾞﾙ(PNC 87010)=B01 |
1 | ||
| 88304-B2040 |
LA300..G 寒冷地仕様,識別ﾗﾍﾞﾙ(PNC 87010)=B80 |
1 | ||
| 88304-B2040 |
LA300..D,L,X 寒冷地仕様,識別ﾗﾍﾞﾙ(PNC 87010)=B00 |
1 | ||
| 88501-B2010 |
LA300..G 寒冷地仕様,識別ﾗﾍﾞﾙ(PNC 87010)=B81 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-B2020 |
LA300,310 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
LA300,310 M5,L=40 |
2 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-B2100 |
LA300,310 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-B2080 |
LA300,310 |
1 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
LA300,310 |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
LA300,310 |
1 | ||
| Common parts | ||||
| 21813-B5010 | ||||
| 81128-B2010 | ||||
| 87193-87101 | ||||
| 88353-87601 | ||||
| 90099-00968 | ||||

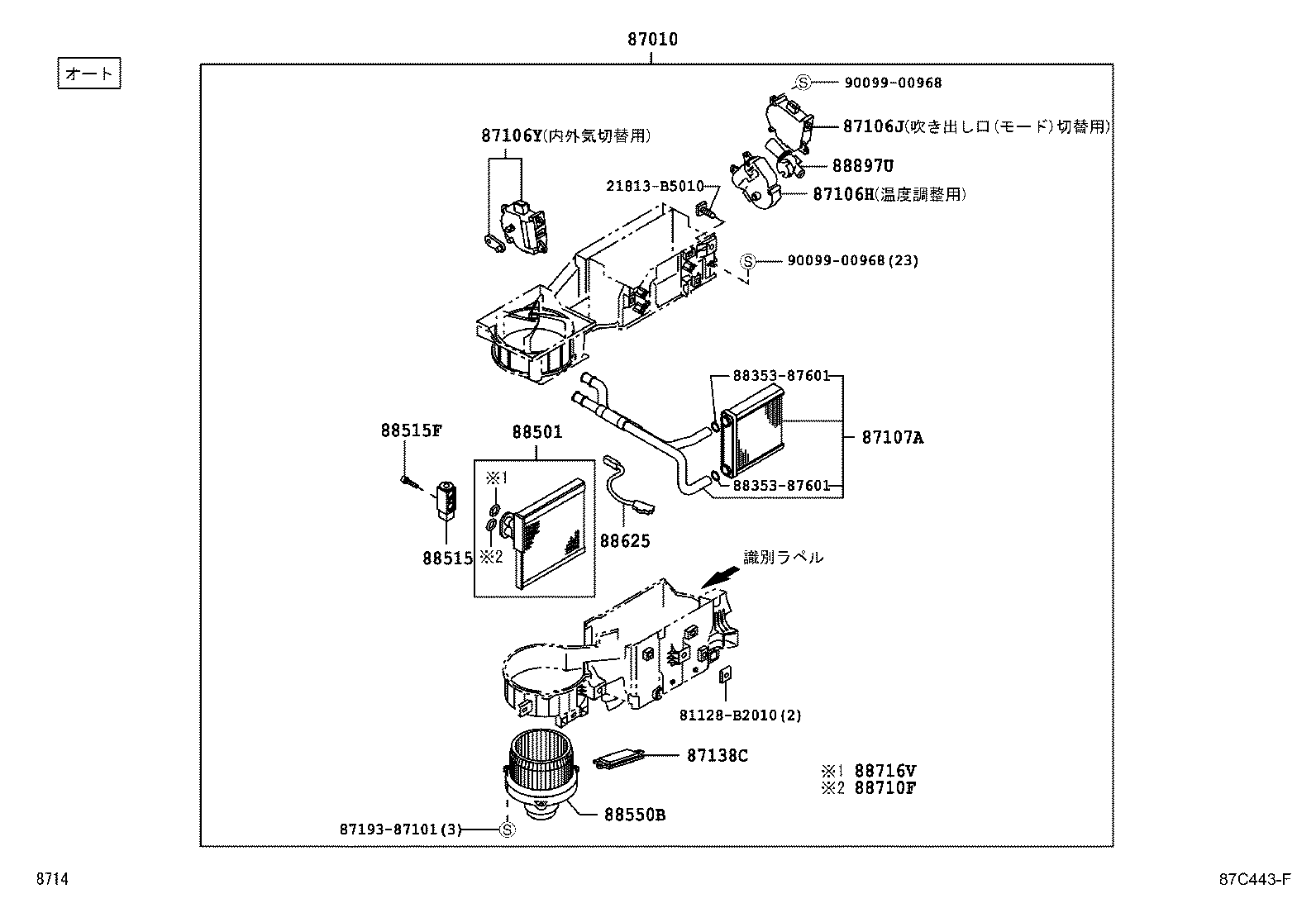

(1204- )G,GF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-B2B80 |
LA300..G 寒冷地仕様 |
1 | ||
| 87010-B2B70 |
LA300..G |
1 | ||
| 87010-B2B01 |
LA300..D,L,X 寒冷地仕様 |
1 | ||
| 87010-B2A91 |
LA300..D,L,X |
1 | ||
| 87010-B2B71 |
LA300..G |
1 | ||
| 87010-B2B81 |
LA300..G 寒冷地仕様 |
1 | ||
| 87010-B2B00 |
LA300..D,L,X 寒冷地仕様 |
1 | ||
| 87010-B2A90 |
LA300..D,L,X |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-B2010 |
LA300,310..G,GF |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 88660-B2010 |
LA300,310..G,GF |
1 | ||
| 87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH) | ||||
| 87106-B2020 |
LA300,310..G,GF |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-B2020 |
LA300,310 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-B2020 |
LA300,310..G,GF |
1 | ||
| 87138-B2010 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-B2010 |
LA300..G 識別ﾗﾍﾞﾙ(PNC 87010)=B71 |
1 | ||
| 88304-B2040 |
LA300..D,L,X 識別ﾗﾍﾞﾙ(PNC 87010)=A90 |
1 | ||
| 88304-B2040 |
LA300..G 識別ﾗﾍﾞﾙ(PNC 87010)=B70 |
1 | ||
| 88501-B2010 |
LA300..D,L,X 識別ﾗﾍﾞﾙ(PNC 87010)=A91 |
1 | ||
| 88501-B2010 |
LA300..D,L,X 寒冷地仕様,識別ﾗﾍﾞﾙ(PNC 87010)=B01 |
1 | ||
| 88304-B2040 |
LA300..G 寒冷地仕様,識別ﾗﾍﾞﾙ(PNC 87010)=B80 |
1 | ||
| 88304-B2040 |
LA300..D,L,X 寒冷地仕様,識別ﾗﾍﾞﾙ(PNC 87010)=B00 |
1 | ||
| 88501-B2010 |
LA300..G 寒冷地仕様,識別ﾗﾍﾞﾙ(PNC 87010)=B81 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-B2020 |
LA300,310 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| C9909-97201 |
LA300,310 M5,L=40 |
2 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-B2100 |
LA300,310 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-B2080 |
LA300,310 |
1 | ||
| 88710F - RING, O | ||||
| 15188-87402 |
LA300,310 |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 15188-87403 |
LA300,310 |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-B2030 |
LA300,310..G,GF |
1 | ||
| Common parts | ||||
| 21813-B5010 | ||||
| 81128-B2010 | ||||
| 87193-87101 | ||||
| 88353-87601 | ||||
| 90099-00968 | ||||

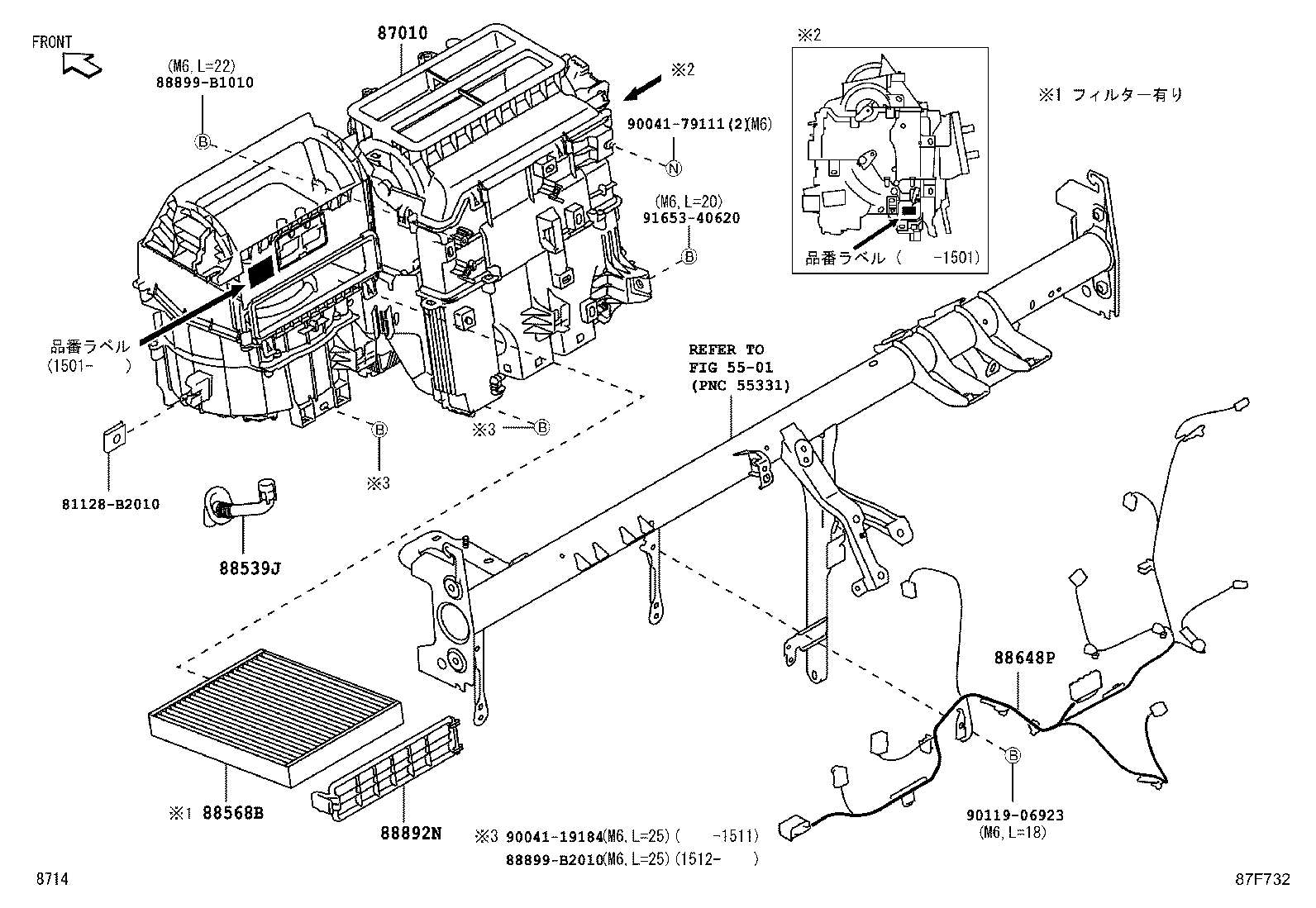

(1204- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-B2B70 |
LA300..G |
1 | ||
| 87010-B2B01 |
LA300..D,L,X 寒冷地仕様 |
1 | ||
| 87010-B2A91 |
LA300..D,L,X |
1 | ||
| 87010-B2B71 |
LA300..G |
1 | ||
| 87010-B2B81 |
LA300..G 寒冷地仕様 |
1 | ||
| 87010-B2B00 |
LA300..D,L,X 寒冷地仕様 |
1 | ||
| 87010-B2B80 |
LA300..G 寒冷地仕様 |
1 | ||
| 87010-B2A90 |
LA300..D,L,X |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-B2060 |
LA300,310 |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-B2030 |
LA300,310..D,L,LF,XF 粗塵ﾌｨﾙﾀ |
1 | ||
| 88568-B2030 |
LA300,310..G,GF,X ｸﾘｰﾝｴｱﾌｨﾙﾀ−有り(D−OPT),粗塵ﾌｨﾙﾀ |
1 | ||
| 88568-B2030 |
LA300,310..D,L,LF,XF ｸﾘｰﾝｴｱﾌｨﾙﾀ−有り(D−OPT),粗塵ﾌｨﾙﾀ |
1 | ||
| 88568-B2030 |
LA300,310..G,GF,X 粗塵ﾌｨﾙﾀ |
1 | ||
| 88648P - WIRE,AIR CONDITIONER,NO.1 | ||||
| 88648-B2450 |
LA300,310..G,GF |
1 | ||
| 88648-B2440 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-B2020 |
LA300,310 |
1 | ||
| Common parts | ||||
| 81128-B2010 | ||||
| 88899-B1010 | ||||
| 88899-B2010 | ||||
| 90041-19184 | ||||
| 90041-79111 | ||||
| 90119-06923 | ||||
| 91653-40620 | ||||
| Linked diagrams | ||||
| 5501 | ||||
