LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204-1307)

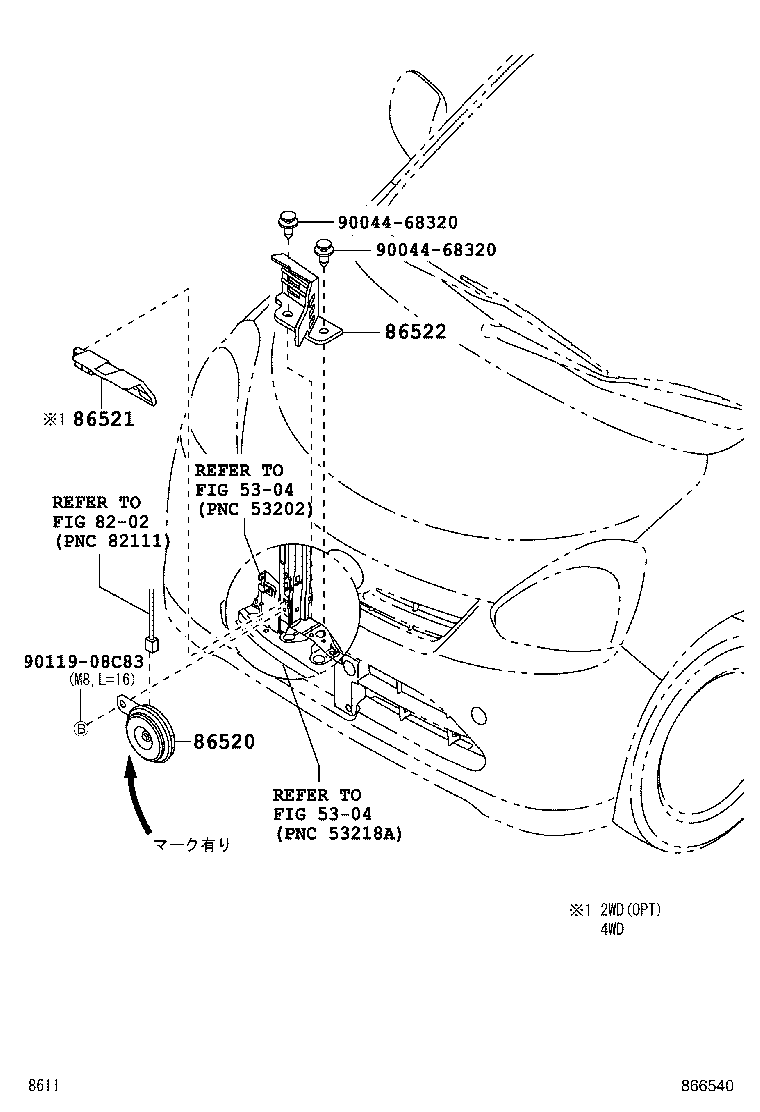

Click highlighted areas on diagram

diagram 5304 5304 8202 86520 86521 86522 9004468320 9004468320 9011908C83
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-B5010

LA300,310

 1
86521 - COVER, LOW PITCHED HORN
86522-B2030

LA300

寒冷地仕様

 1
86522 - PROTECTOR, HORN
86522-B2040

LA300,310

 1
Common parts
90044-68320
90119-08C83
Linked diagrams
5304
8202
