LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )G,GF,L,X,XF ; (1307- )LF

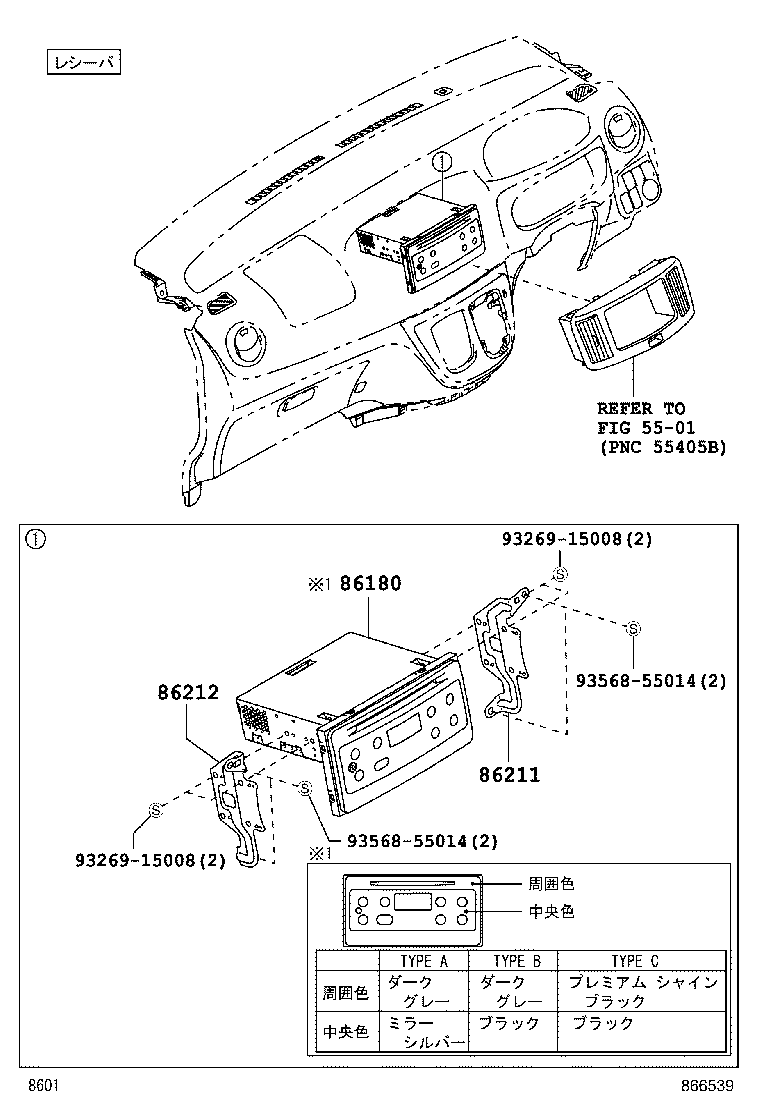

Click highlighted areas on diagram

diagram 5501 86180 86211 86212 9326915008 9326915008 9356855014 9356855014
Part # Description Qty Price
86180 - TUNER ASSY, STEREO COMPONENT
86180-B2670B0

LA300,310..G,GF,L,X,XF

富士通ﾃﾝ,DK.GRAY,TRIM1#,ﾀｲﾌﾟ A

 1
00000-00000

LA300,310..G,GF,L,X,XF

ｵｰﾃﾞｨｵ−ﾌﾛﾝﾄ ｽﾋﾟｰｶｰ (16CM*2),該当品番なし

 1
86211 - BRACKET, RADIO, NO.1
00000-00000

LA300,310..G,GF,L,X,XF

ｵｰﾃﾞｨｵ−ﾌﾛﾝﾄ ｽﾋﾟｰｶｰ (16CM*2),該当品番なし

 1
86211-B2370

LA300,310..G,GF,L,X,XF

 1
86211-B2370

LA300,310..G,GF,L,X,XF

ｵｰﾃﾞｨｵ−ﾌﾛﾝﾄ ｽﾋﾟｰｶｰ (16CM*2)

 1
86212 - BRACKET, RADIO, NO.2
00000-00000

LA300,310..G,GF,L,X,XF

ｵｰﾃﾞｨｵ−ﾌﾛﾝﾄ ｽﾋﾟｰｶｰ (16CM*2),該当品番なし

 1
86212-B2370

LA300,310..G,GF,L,X,XF

ｵｰﾃﾞｨｵ−ﾌﾛﾝﾄ ｽﾋﾟｰｶｰ (16CM*2)

 1
86212-B2370

LA300,310..G,GF,L,X,XF

 1
Common parts
93269-15008
93568-55014
Linked diagrams
5501
