LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

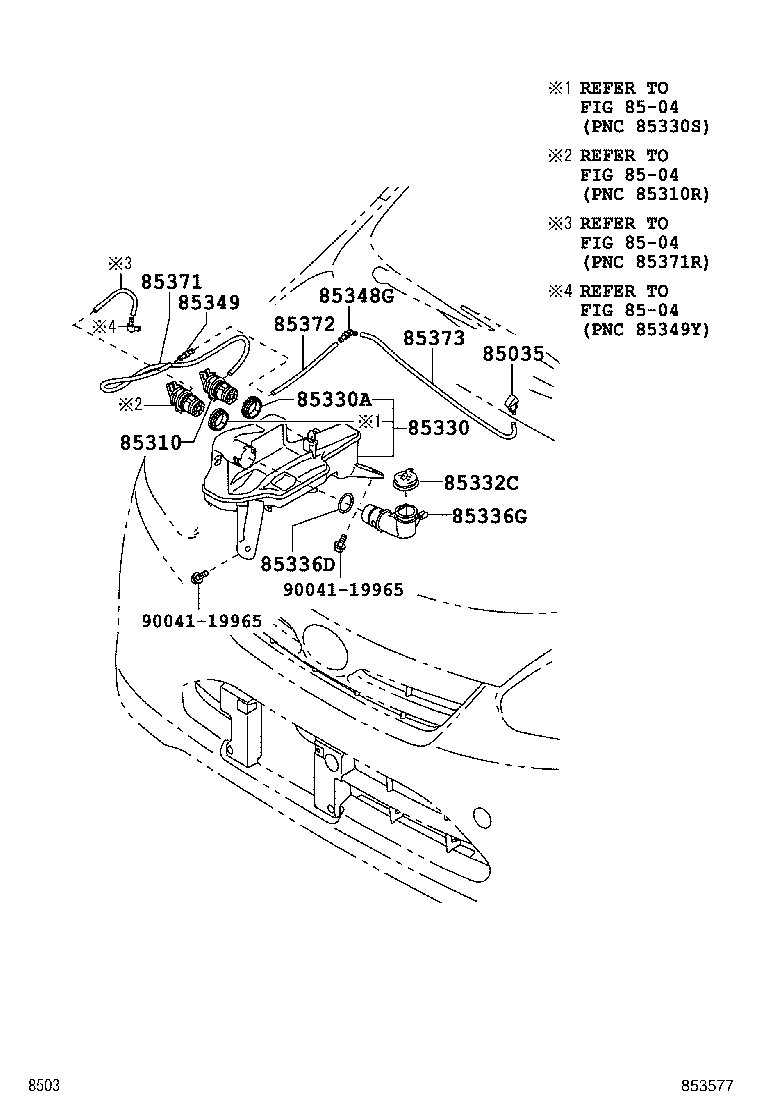

Click highlighted areas on diagram

diagram 85035 8504 8504 8504 8504 85310 85330 85330A 85332C 85336D 85336G 85348G 85349 85371 85372 85373 9004119965 9004119965
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-B2110

LA300,310

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-97203

LA300,310

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-B2120

LA300..G

寒冷地仕様&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW

 1
85315-B2120

LA300

寒冷地仕様

 1
85315-B2110

LA300

 1
85315-B2120

LA300..G

ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85373-97202

LA300,310

 1
85332C - CAP, FRONT WASHER TANK
85332-B1020

LA300,310

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-B2060

LA300,310

 1
85336G - GAGE, WATER LEVEL
85318-B2060

LA300,310

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85317-B2030

LA300,310

 1
85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-87201

LA300,310

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85343-97401

LA300..G

*H,L=700,寒冷地仕様&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰg+ﾘｸｴｽﾄSW,供給品L=1000mm

 1
85343-97401

LA300

*H,L=700,寒冷地仕様,供給品L=1000mm

 1
85343-97401

LA300..G

*H,L=700,ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽgSW,供給品L=1000mm

 1
85343-97401

LA300,310

*H,L=700,供給品L=1000mm

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85343-97401

LA300,310

*H,L=110,供給品L=1000mm

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85374-87401

LA300,310

*H,L=480,供給品L=1000mm

 1
Common parts
90041-19965
Linked diagrams
8504
