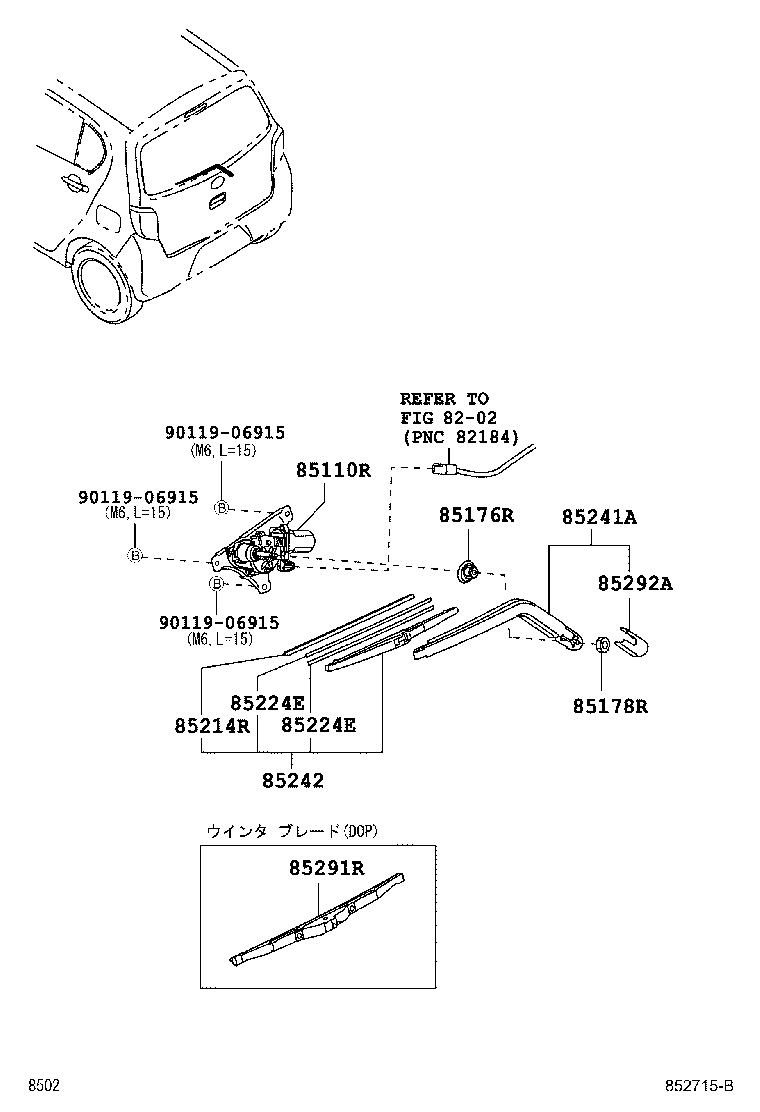

Toyota Pixis epoch LA300A REAR WIPER

Part #	Description	Period	Qty
85110R - MOTOR ASSY, REAR WIPER
85130-B2080	LA300 寒冷地仕様	04/2012 - 07/2013	1
85130-B2080	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85130-B2080	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85176R - CAP, REAR WIPER LINK
85176-87603	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85176-87603	LA300 寒冷地仕様	04/2012 - 07/2013	1
85176-87603	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85178R - NUT (FOR REAR WIPER ARM SETTING)
94130-60640	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,M6	04/2012 - 07/2013	1
94130-60640	LA300 寒冷地仕様,M6	04/2012 - 07/2013	1
94130-60640	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,M6	04/2012 - 07/2013	1
85214R - RUBBER, REAR WIPER
85214-12310	LA300 寒冷地仕様,長さ=275	04/2012 - 07/2013	1
85214-12310	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,長さ=275	04/2012 - 07/2013	1
85214-12310	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,長さ=27T	04/2012 - 07/2013	1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-12710	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	2
85224-12710	LA300 寒冷地仕様	04/2012 - 07/2013	2
85224-12710	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	2
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-12710	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	2
85224-12710	LA300 寒冷地仕様	04/2012 - 07/2013	2
85224-12710	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	2
85241A - ARM, REAR WIPER
85241-B2060	LA300 寒冷地仕様	04/2012 - 07/2013	1
85241-B2060	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85241-B2060	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85242 - BLADE, RR WIPER
85242-12090	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85242-12090	LA300 寒冷地仕様	04/2012 - 07/2013	1
85242-12090	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85291R - BLADE,REAR WIPER, WINTER
85291-97403	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW&ｳｲﾝﾀｰﾌﾞﾚｰﾄﾞ(DOP)	04/2012 - 07/2013	1
85291-97403	LA300 寒冷地仕様&ｳｲﾝﾀｰﾌﾞﾚｰﾄﾞ(DOP)	04/2012 - 07/2013	1
85291-97403	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW&ｳｲﾝﾀｰﾌﾞﾚｰﾄﾞ(DOP)	04/2012 - 07/2013	1
85292A - CAP, REAR WIPER ARM HEAD
85292-28030	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85292-28030	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
85292-28030	LA300 寒冷地仕様	04/2012 - 07/2013	1
Common parts
90119-06915
Linked diagrams
8202

LA300A-GBDF (2012)

(1204- )
