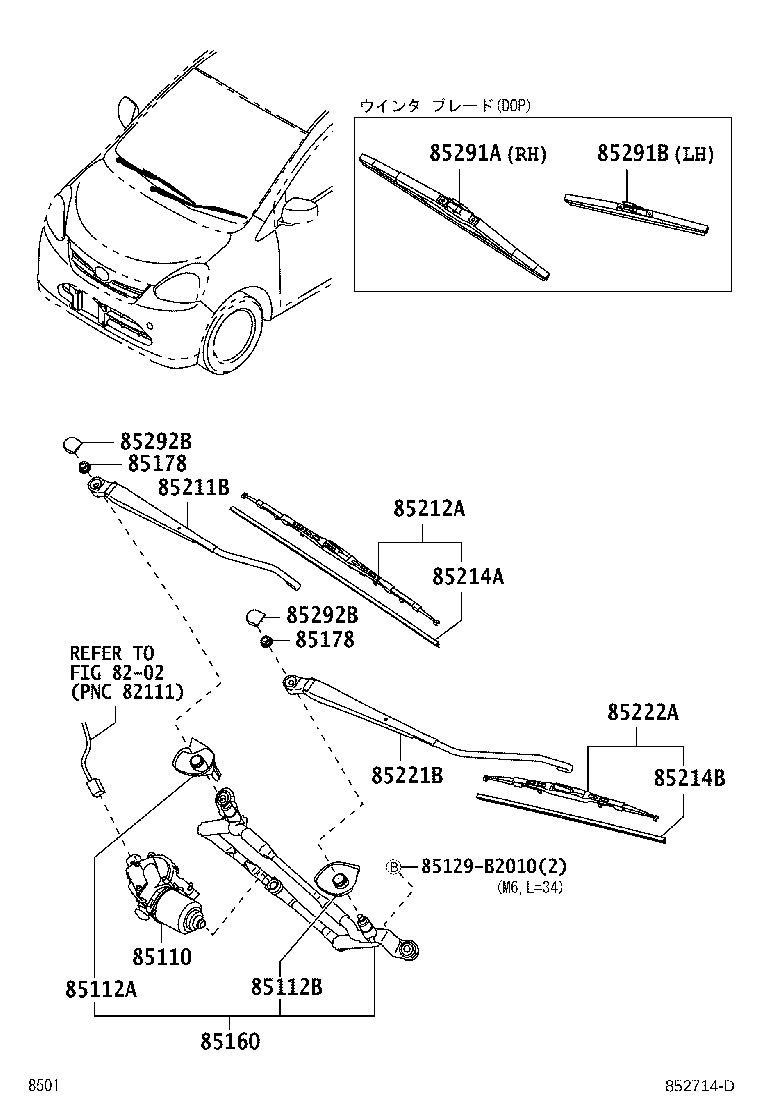

Toyota Pixis epoch LA300A WINDSHIELD WIPER

Part #	Description	Period	Qty
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-B2370	LA300 寒冷地仕様	04/2012 - 07/2013	1
85110-B2360	LA300	04/2012 - 07/2013	1
85112A - COVER, WINDSHIELD WIPER SHAFT, NO.1
85218-B2050	LA300,310	04/2012 - 07/2013	1
85112B - COVER, WINDSHIELD WIPER SHAFT, NO.2
85228-B2010	LA300,310	04/2012 - 07/2013	1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-B2290	LA300,310	04/2012 - 07/2013	1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
81128-87205	LA300,310	04/2012 - 07/2013	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
81128-87205	LA300,310	04/2012 - 07/2013	2
85211B - ARM, FRONT WIPER, RH
85211-B2260	LA300,310	04/2012 - 07/2013	1
85212A - BLADE, FR WIPER, RH
85212-B2070	LA300,310	04/2012 - 07/2013	1
85214A - RUBBER, WIPER, RH
85214-B2010	LA300,310	04/2012 - 07/2013	1
85214B - RUBBER, WIPER, LH
85221-97401	LA300,310	04/2012 - 07/2013	1
85221B - ARM, FRONT WIPER, LH
85221-B2260	LA300,310	04/2012 - 07/2013	1
85222A - BLADE, FR WIPER, LH
85222-B2200	LA300,310	04/2012 - 07/2013	1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-B5070	LA300,310 ｳｲﾝﾀｰﾌﾞﾚｰﾄﾞ(DOP)	04/2012 - 07/2013	1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-B2260	LA300,310 ｳｲﾝﾀｰﾌﾞﾚｰﾄﾞ(DOP)	04/2012 - 07/2013	1
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020	LA300,310	04/2012 - 07/2013	2
85292B - CAP, FRONT WIPER ARM HEAD
85292-12020	LA300,310	04/2012 - 07/2013	2
Common parts
85129-B2010
Linked diagrams
8202

LA300A-GBDF (2012)
