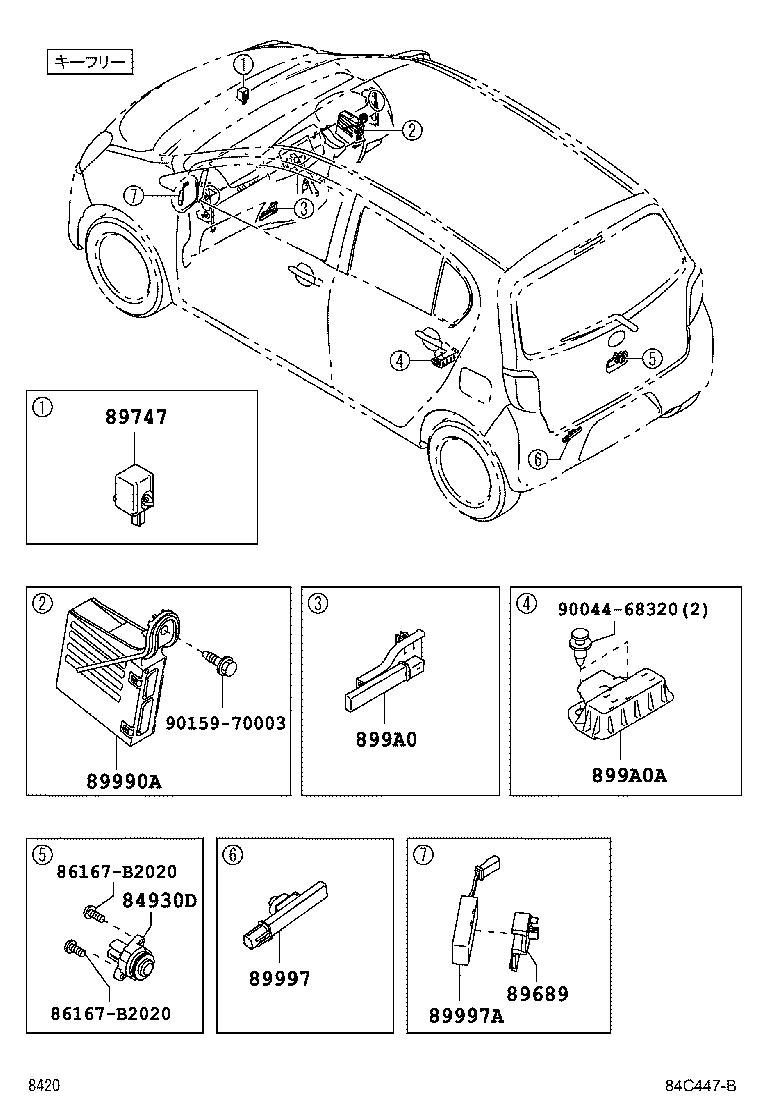

Toyota Pixis epoch LA300A WIRELESS DOOR LOCK

Part #	Description	Period	Qty

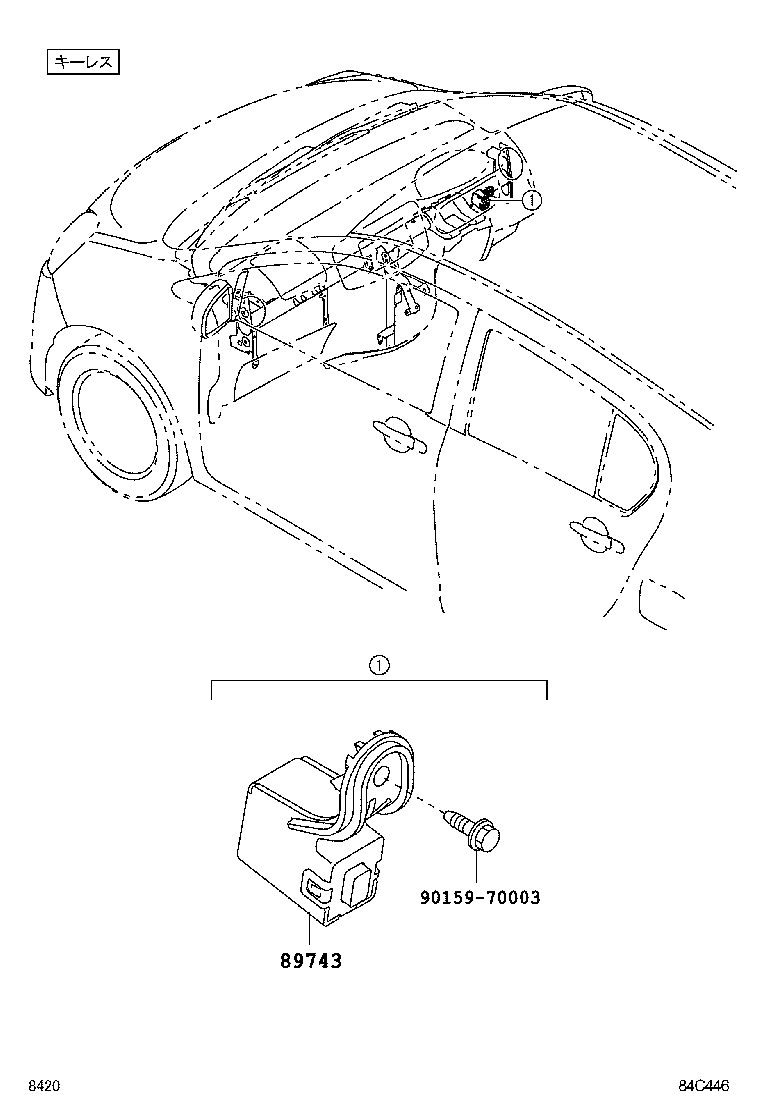

89743 - RECEIVER, DOOR CONTROL
89741-B2290	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89741-B2290	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
89741-B2290	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
GAITO-UNASI	LA300,310..G,GF,X,XF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 12/2999	1
Common parts
90159-70003

Part #	Description	Period	Qty
84930D - SWITCH, DOOR CONTROL
84905-B2050	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89689 - CLAMP, WIRELESS DOOR LOCK
87616-B2010	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	2
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89990A - COMPUTER ASSY, SMART KEY
89990-B2120	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89997 - ANTENNA, ELECTRICAL KEY
89997-B2310	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89997A - ANTENNA, ELECTRICAL KEY, NO.2
89997-B2300	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
89997-B2280	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
89997-B2290	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
Common parts
86167-B2020
90044-68320
90159-70003

LA300A-GBDF (2012)

(1204- )G,GF,L,LF,X,XF

(1204- )G,GF
