LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )LA300

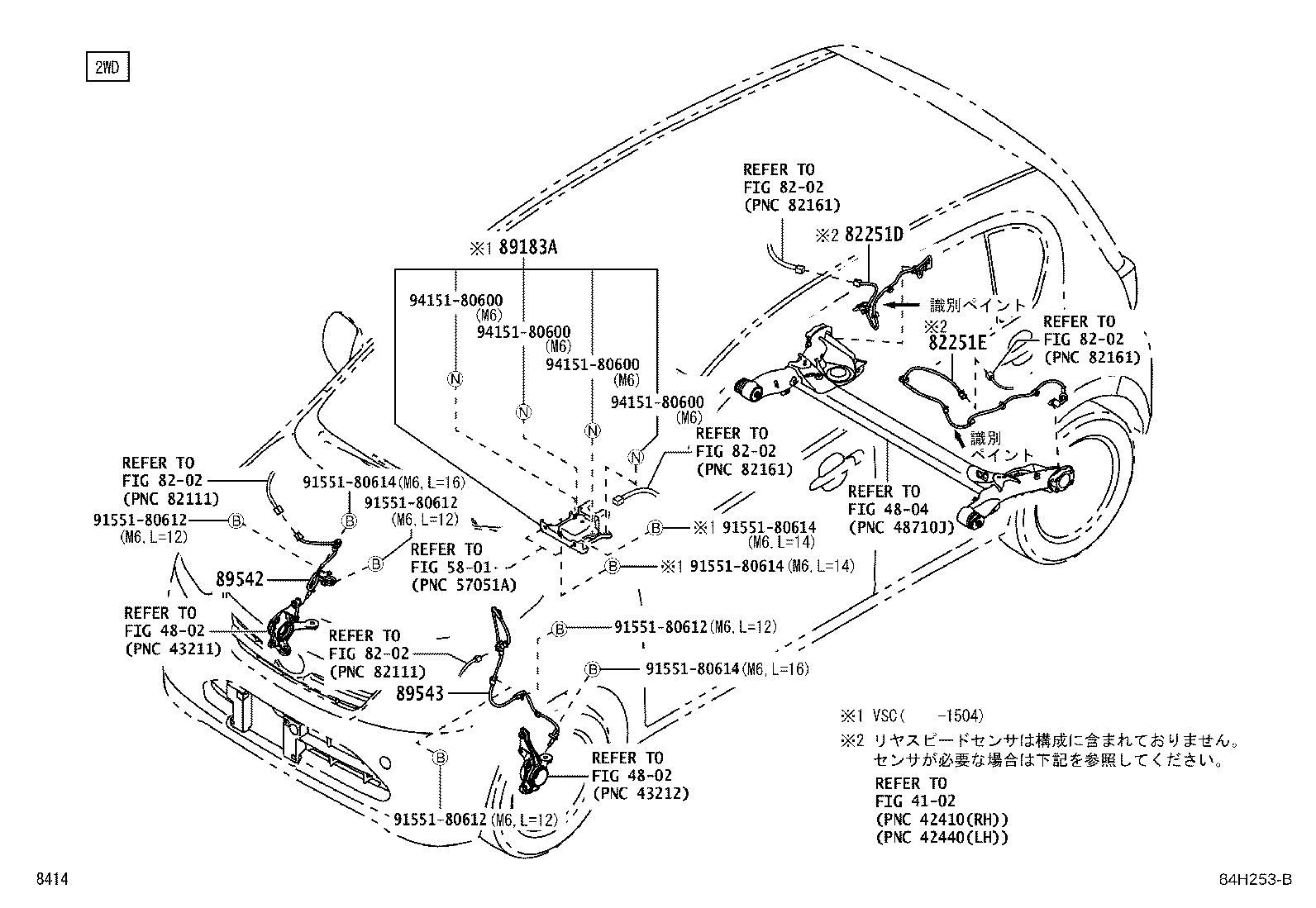

Click highlighted areas on diagram

diagram 4102 4802 4802 4804 5801 8202 8202 8202 8202 8202 82251D 82251E 89183A 89542 89543 9155180612 9155180612 9155180612 9155180612 9155180614 9155180614 9155180614 9155180614 9415180600 9415180600 9415180600 9415180600
Part # Description Qty Price
82251D - WIRE, SPEED SENSOR, RH
82251-B2230

LA300

識別ﾍﾟｲﾝﾄ=緑

 1
82251E - WIRE, SPEED SENSOR, LH
82251-B2240

LA300

識別ﾍﾟｲﾝﾄ=紫

 1
89183A - SENSOR, YAWRATE
89180-B2010

LA300,310..G,GF

 1
89542 - SENSOR, SPEED, FRONT RH
89542-B2080

LA300,310

 1
89543 - SENSOR, SPEED, FRONT LH
89543-B2080

LA300,310

 1
Common parts
91551-80612
91551-80614
94151-80600
Linked diagrams
4102
4802
4804
5801
8202
