LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

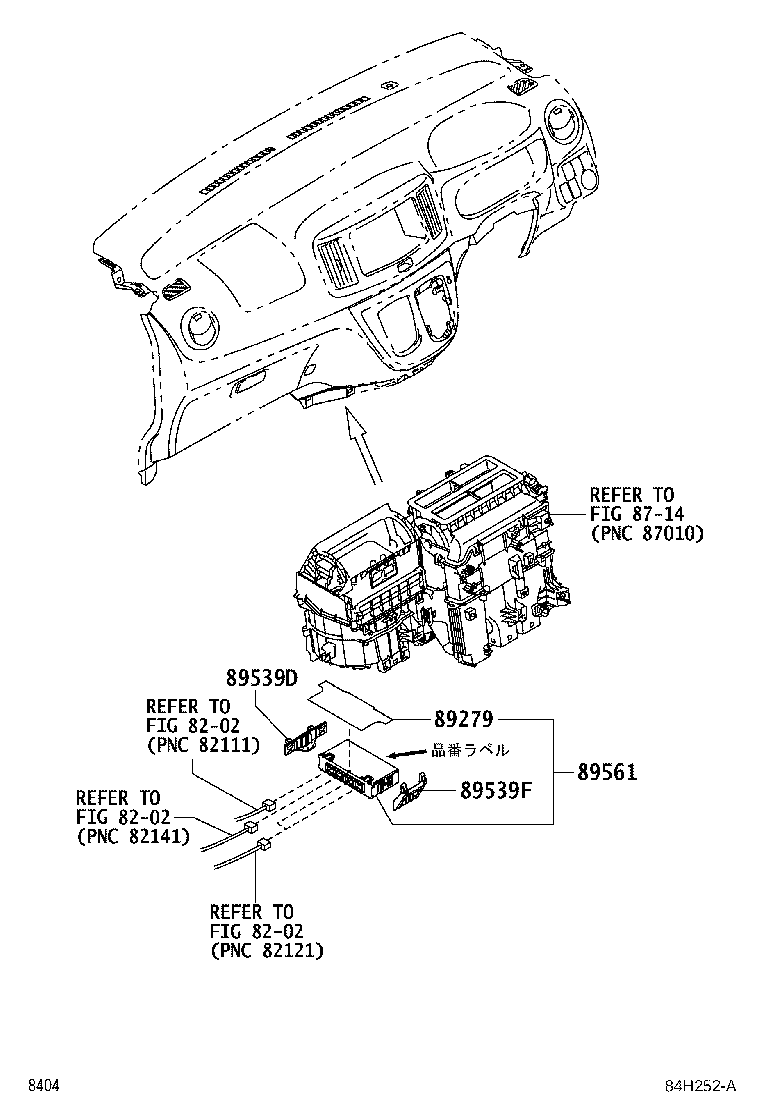

Click highlighted areas on diagram

diagram 8202 8202 8202 8714 89279 89539D 89539F 89561
Part # Description Qty Price
89279 - COVER, ENGINE CONTROL COMPUTER
89279-B1030

LA300,310

 1
89539D - BRACKET, COMPUTER
48141-B2040

LA300,310

 1
89539F - BRACKET, COMPUTER
48142-B2030

LA300,310

 1
89561 - COMPUTER, FUEL INJECTION
89560-B2W01

LA300

DENSO,ﾊﾞｰｺｰﾄﾞ:*272281M*

 1
89560-B2W11

LA300..G

DENSO,ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW

 1
89560-BA530

LA300..G

DENSO,ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW

 1
89560-BA520

LA300

DENSO,ﾊﾞｰｺｰﾄﾞ:*274480P*

 1
Linked diagrams
8202
8714
