LA300A-GBDF (2012)
Toyota Pixis Epoch

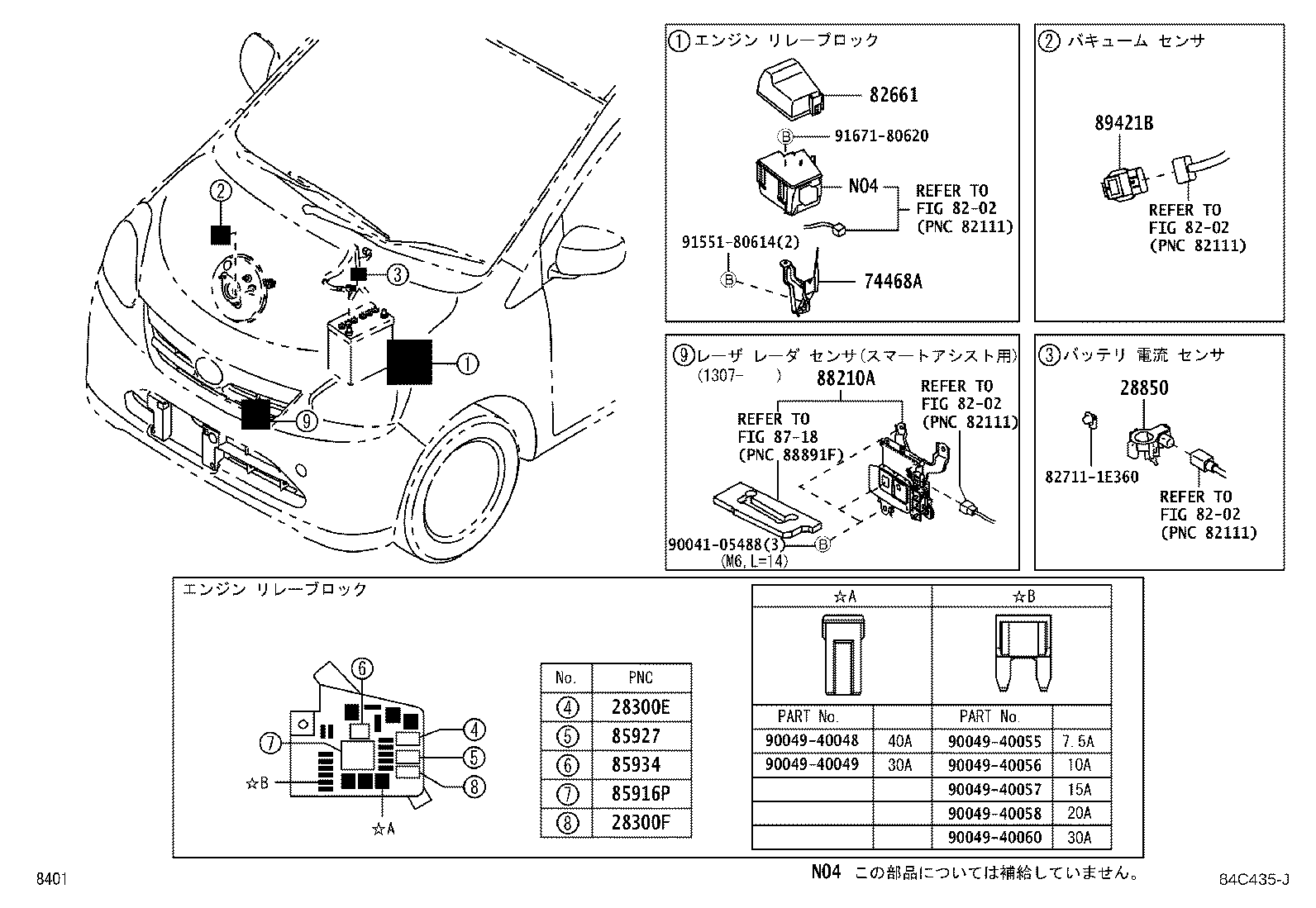

ILLUST NO. 2 OF 6(1204- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300E - RELAY ASSY, STARTER, NO.1 | ||||
| 90049-88004 |
KFVE..LA300,310 |
1 | ||
| 28300F - RELAY ASSY, STARTER, NO.2 | ||||
| 90049-88004 |
KFVE..LA300,310 |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-B2030 |
KFVE..LA300,310 |
1 | ||
| 74468A - BRACKET, RELAY BLOCK | ||||
| 74468-B2090 |
LA300,310 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-B2250 |
LA300,310 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90049-87026 |
LA300,310 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90049-88004 |
LA300,310 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90049-88004 |
LA300,310 |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-B2030 |
LA300,310 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90041-05488 | ||||
| 90049-40048 | ||||
| 90049-40049 | ||||
| 90049-40055 | ||||
| 90049-40056 | ||||
| 90049-40057 | ||||
| 90049-40058 | ||||
| 90049-40060 | ||||
| 91551-80614 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8718 | ||||

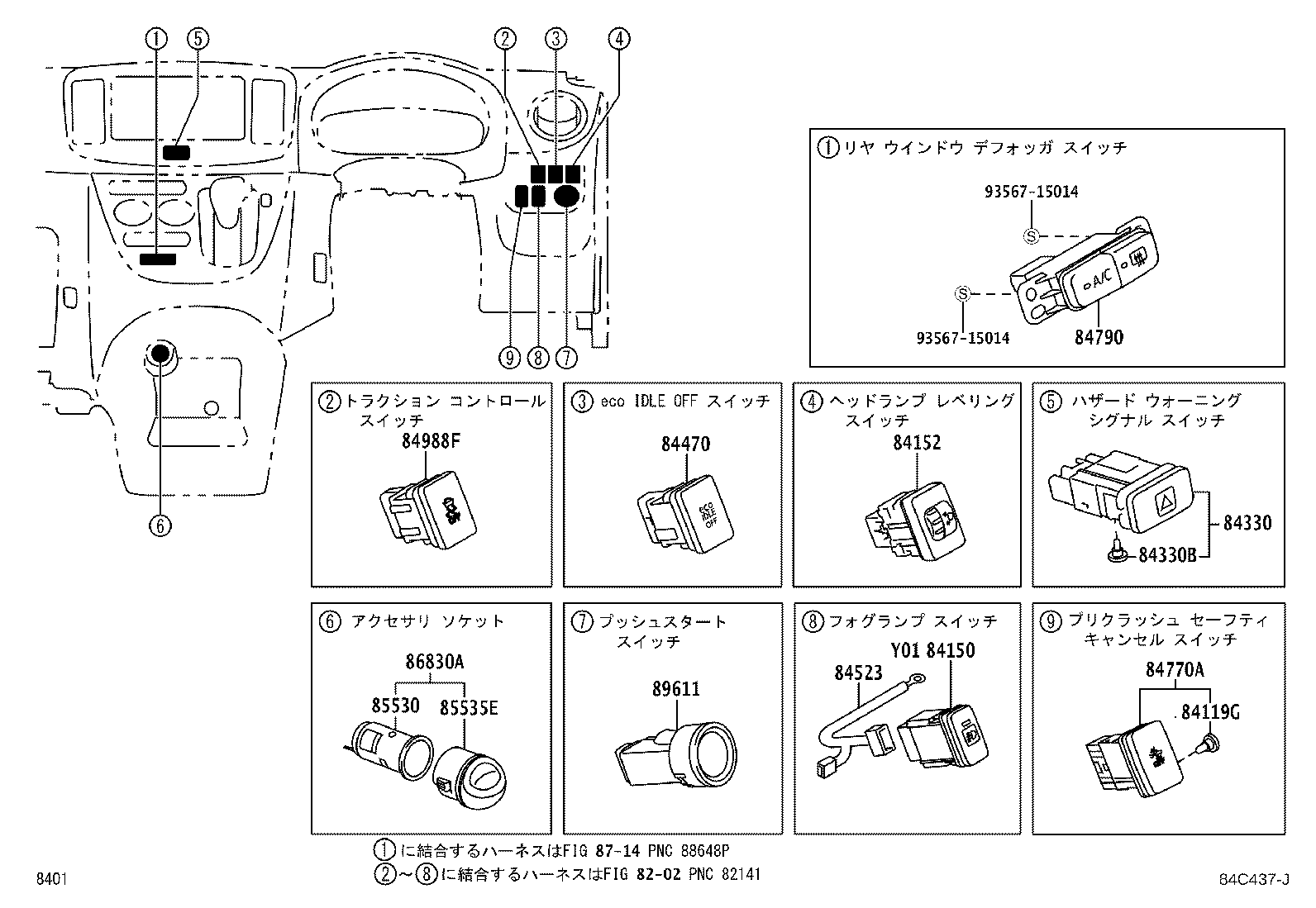

ILLUST NO. 4 OF 6(1204- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-B2010 |
LA300,310 ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−D−OPT |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-B2100 |
LA300,310 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-B2030 |
LA300,310 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-B5010 |
LA300,310 14V 0.91W |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-B2020 |
LA300,310 |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-B2020 |
LA300,310 ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−D−OPT |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-B2010 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-B2030 |
LA300,310..G,GF |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
LA300,310 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-47020 |
LA300,310 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-B2030 |
LA300,310..G,GF ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| Common parts | ||||
| 93567-15014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8714 | ||||

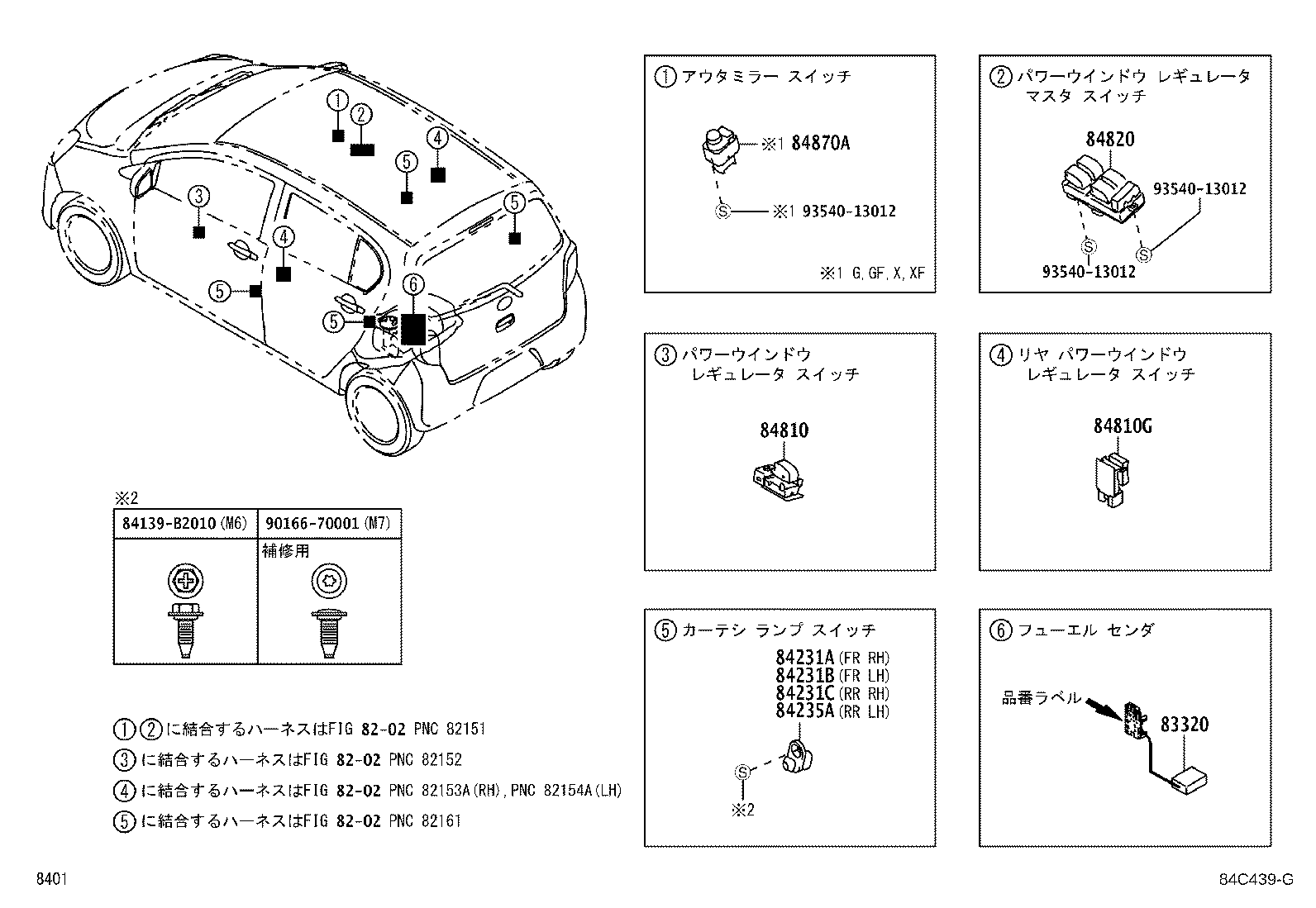

ILLUST NO. 6 OF 6(1204- )
ﾄﾞｱ&ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83301-B2080 |
LA300 品番ﾗﾍﾞﾙ有り |
1 | ||
| 83301-B2130 |
LA300 品番ﾗﾍﾞﾙ有り |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-97201 |
LA300,310 |
1 | ||
| 84231B - SWITCH, COURTESY LAMP | ||||
| 84231-97201 |
LA300,310 |
1 | ||
| 84231C - SWITCH, COURTESY LAMP | ||||
| 84231-97201 |
LA300,310 |
1 | ||
| 84235A - SWITCH, COURTESY LAMP | ||||
| 84231-97201 |
LA300,310 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-B2060 |
LA300,310 |
1 | ||
| 84810G - SWITCH ASSY, POWER WINDOW REGULATOR, REAR NO.2 | ||||
| 84810-B2050 |
LA300,310 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-B2280 |
LA300,310 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-B2041 |
LA300,310..G,GF,X,XF |
1 | ||
| Common parts | ||||
| 84139-B2010 | ||||
| 90166-70001 | ||||
| 93540-13012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

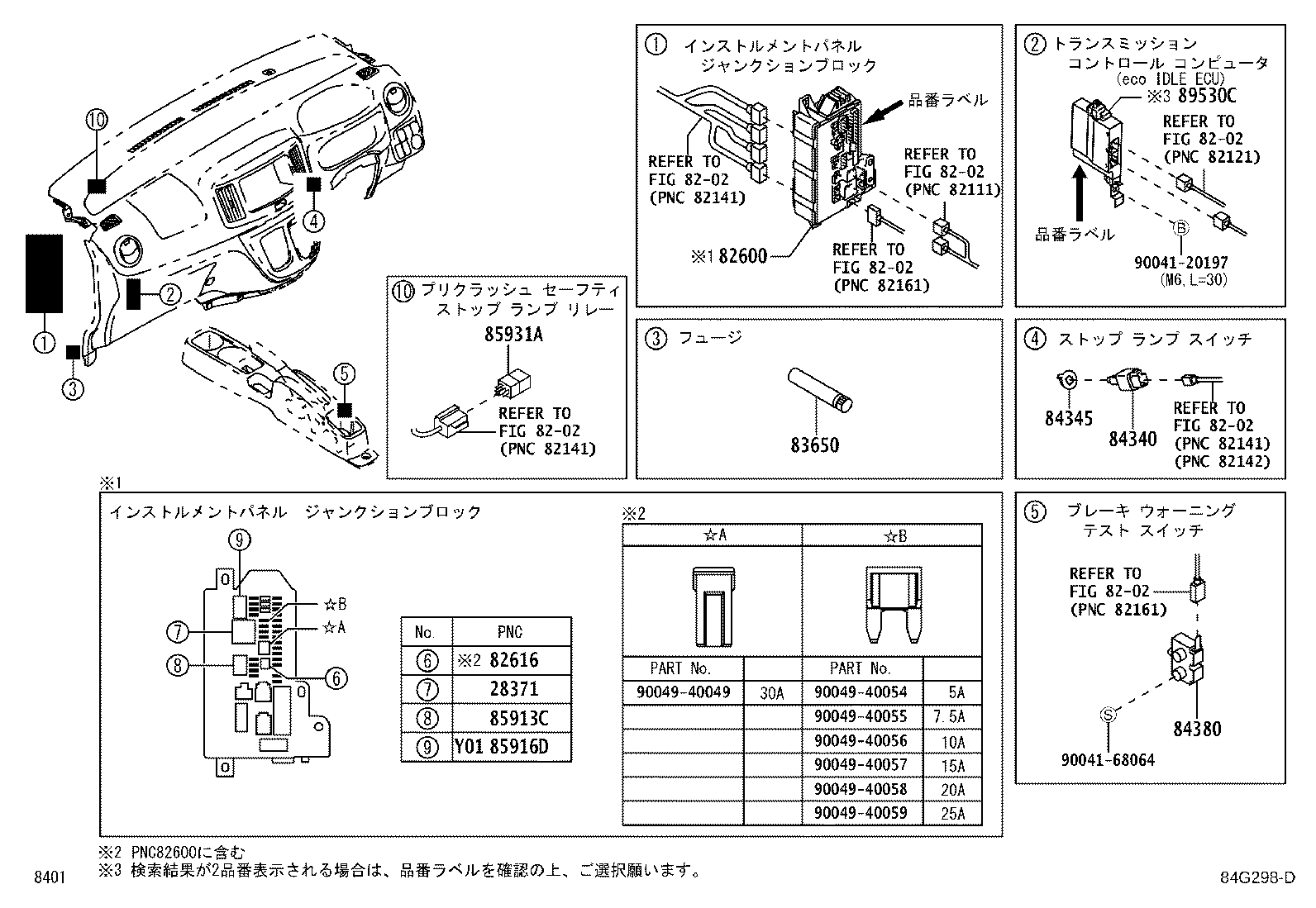

ILLUST NO. 3 OF 6(1204- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ NO.1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90049-88001 |
KFVE..LA300,310 |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-B2420 |
LA300..D |
1 | ||
| 82600-B2370 |
LA300..G,L,X |
1 | ||
| 82600-B2401 |
LA300..G 寒冷地仕様&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 82600-B2401 |
LA300,310..G,GF ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 82600-B2410 |
LA300..G,L,X 寒冷地仕様 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-B2010 |
LA300,310 |
1 | ||
| 83650 - FUSEE | ||||
| 90049-86005 |
LA300,310 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-B2050 |
LA300,310 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-B2010 |
LA300,310 |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-97201 |
LA300,310 |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90049-88004 |
LA300,310 |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-B2714 |
LA300 |
1 | ||
| 89530-B2712 |
LA300 |
1 | ||
| 89530-B2713 |
LA300 |
1 | ||
| Common parts | ||||
| 90041-20197 | ||||
| 90041-68064 | ||||
| 90049-40049 | ||||
| 90049-40054 | ||||
| 90049-40055 | ||||
| 90049-40056 | ||||
| 90049-40057 | ||||
| 90049-40058 | ||||
| 90049-40059 | ||||
| Linked diagrams | ||||
| 8202 | ||||

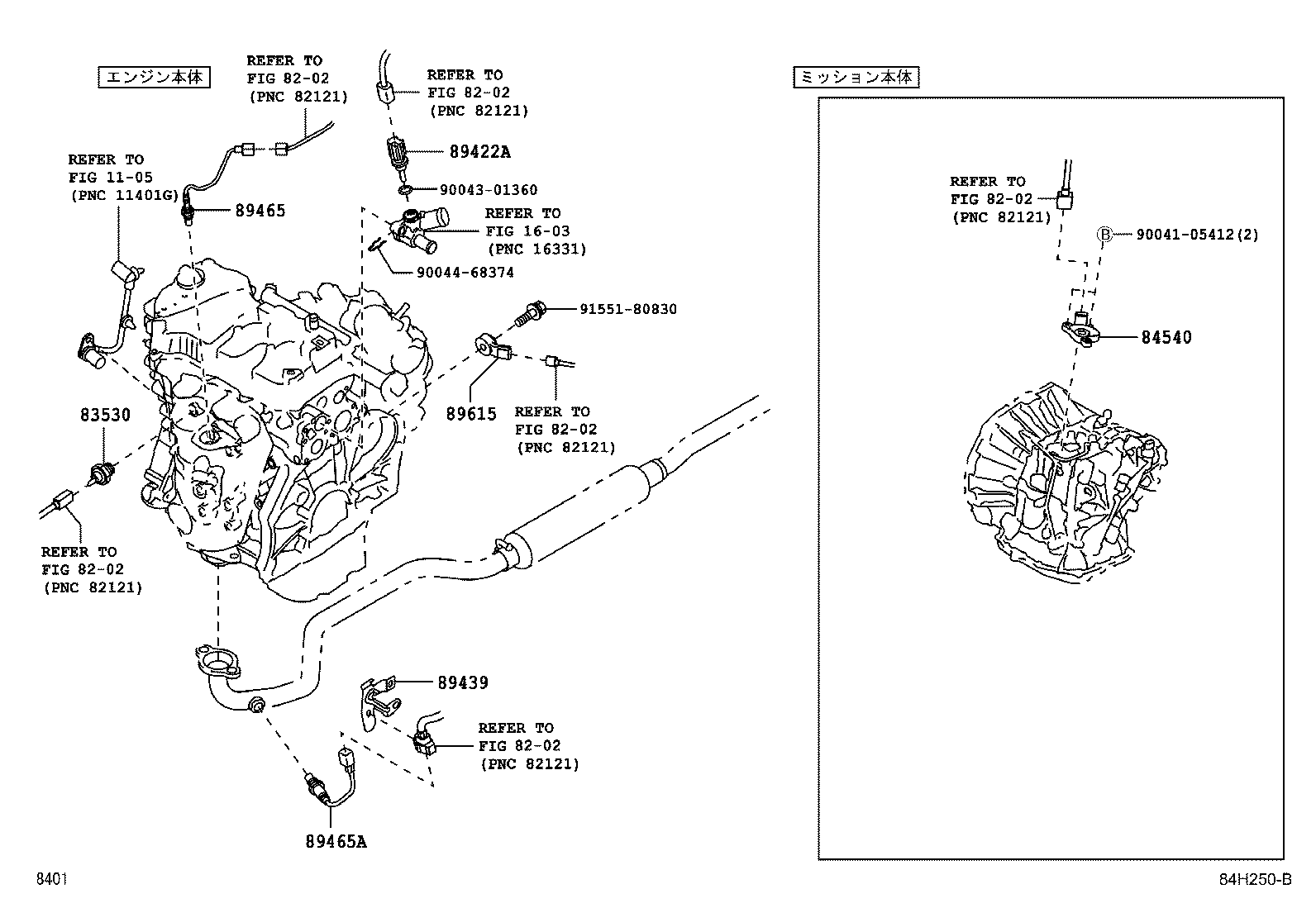

ILLUST NO. 1 OF 6(1204- )
ｴﾝｼﾞﾝ&ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-B2010 |
LA300,310 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-B2050 |
LA300,310 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-B2010 |
LA300,310 |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-B2170 |
LA300,310 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-B2100 |
LA300,310 |
1 | ||
| 89465-B2101 |
LA300,310 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-B2091 |
LA300,310 |
1 | ||
| 89465-B2090 |
LA300,310 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
LA300,310 |
1 | ||
| Common parts | ||||
| 90041-05412 | ||||
| 90043-01360 | ||||
| 90044-68374 | ||||
| 91551-80830 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1603 | ||||
| 8202 | ||||

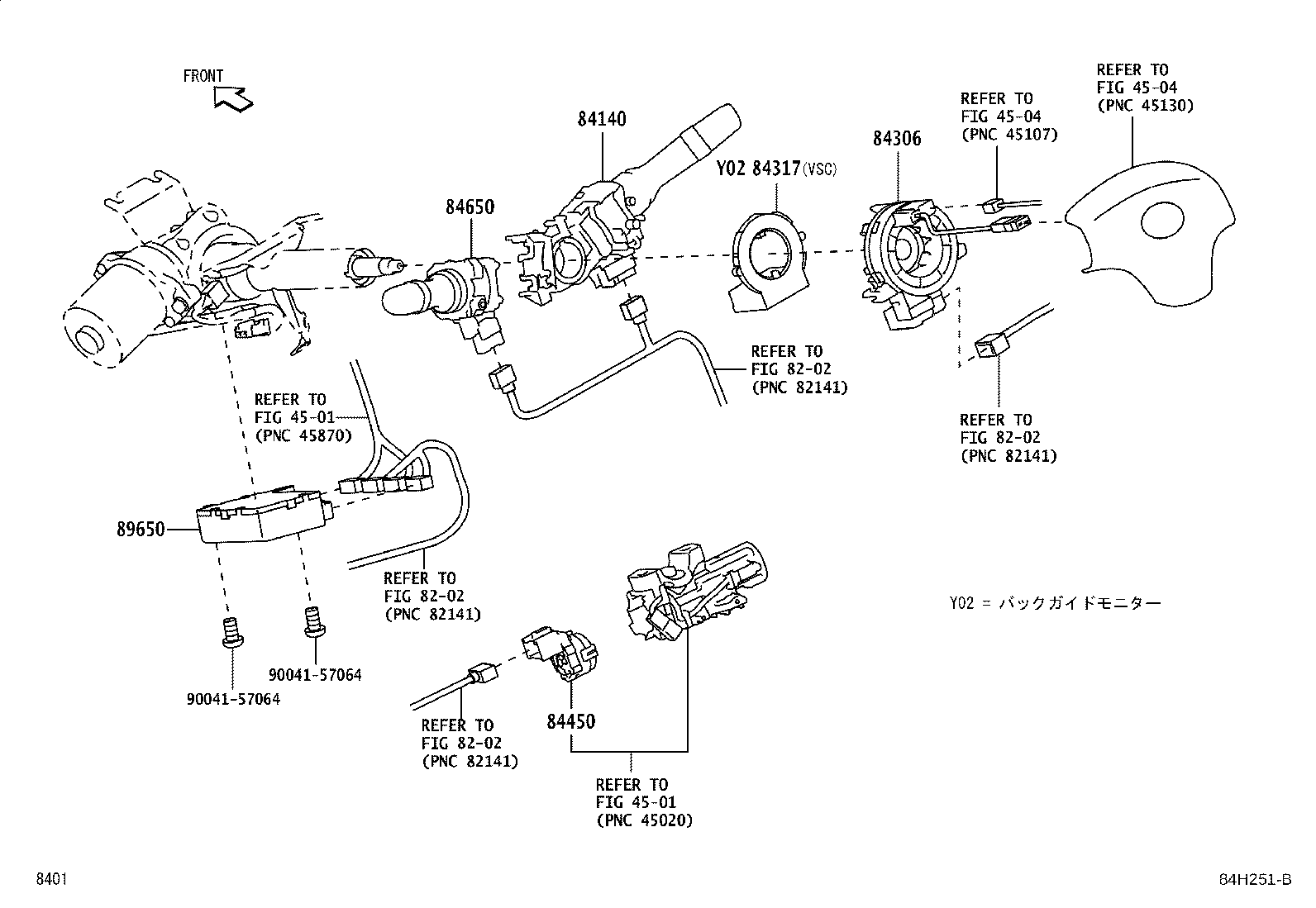

ILLUST NO. 5 OF 6(1204- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-B2110 |
LA300,310 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-B2080 |
LA300,310 |
1 | ||
| 84317 - SENSOR, STEERING POSITION | ||||
| 84317-B1020 |
LA300,310..G,GF |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 00000-00000 |
LA300,310..G,GF ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,該当品番なｵ |
1 | ||
| GAITO-UNASI |
LA300,310 ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 84450-B2020 |
LA300,310 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-B2120 |
LA300 寒冷地仕様 |
1 | ||
| 84652-B2120 |
LA300..G ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 84652-B2120 |
LA300..G 寒冷地仕様&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 84652-B2150 |
LA300 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-B2130 |
LA300,310 古河電気 |
1 | ||
| Common parts | ||||
| 90041-57064 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
| 8202 | ||||
