LA300A-GBDF (2012)
Toyota Pixis Epoch

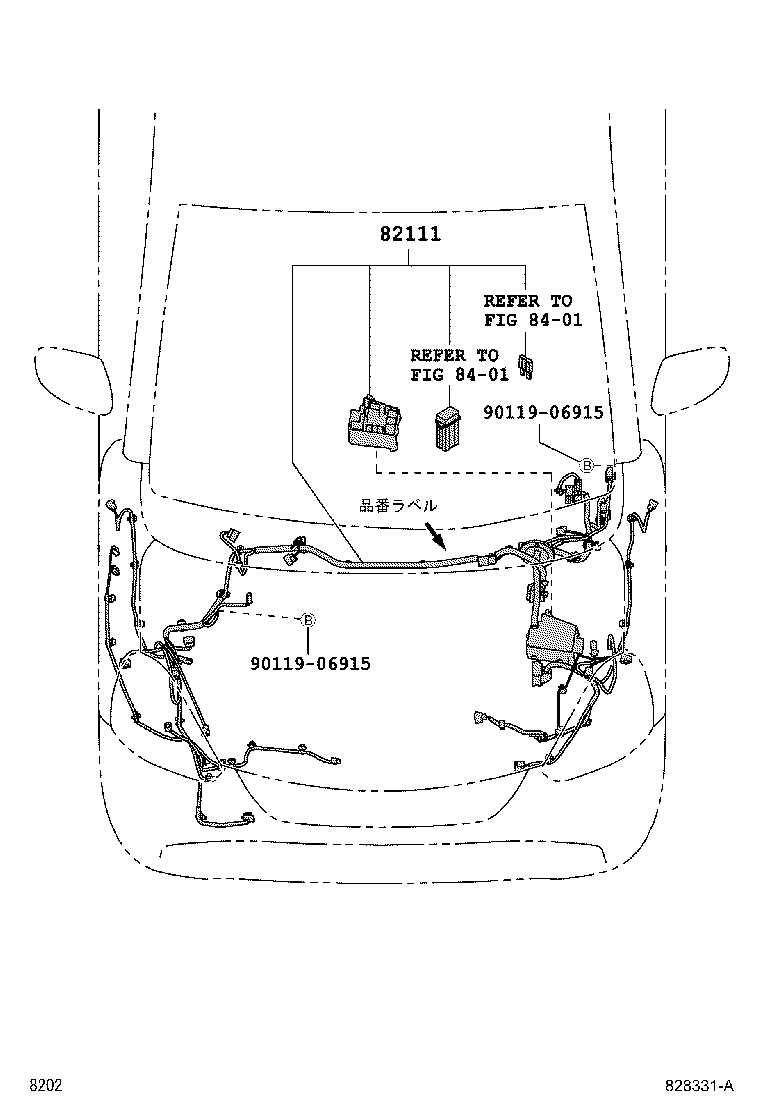

ILLUST NO. 2 OF10(1204- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-B2392 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 82116-B2403 |
LA300,310..G,GF |
1 | ||
| 82116-B2402 |
LA300,310..G,GF |
1 | ||
| 82116-B2391 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 82116-B2401 |
LA300,310..G,GF |
1 | ||
| 82116-B2393 |
LA300,310..D,L,LF,X,XF |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

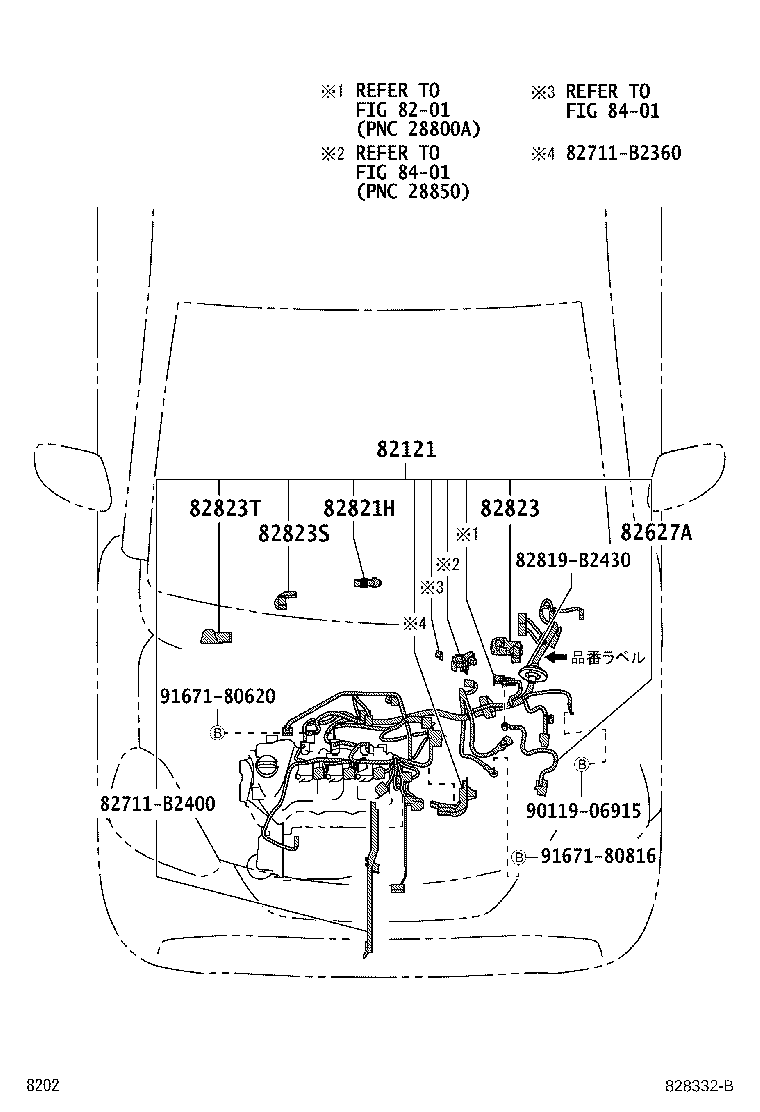

ILLUST NO. 3 OF10(1204- )
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-B2A01 |
LA300,310 |
1 | ||
| 82627A - WIRE, FUSIBLE LINK | ||||
| 82627-B2030 |
LA300,310 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-60100 |
LA300,310 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-B2020 |
LA300,310 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-B2030 |
LA300,310 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22060 |
LA300,310 |
1 | ||
| Common parts | ||||
| 82711-B2360 | ||||
| 82711-B2400 | ||||
| 82819-B2430 | ||||
| 90119-06915 | ||||
| 91671-80620 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||

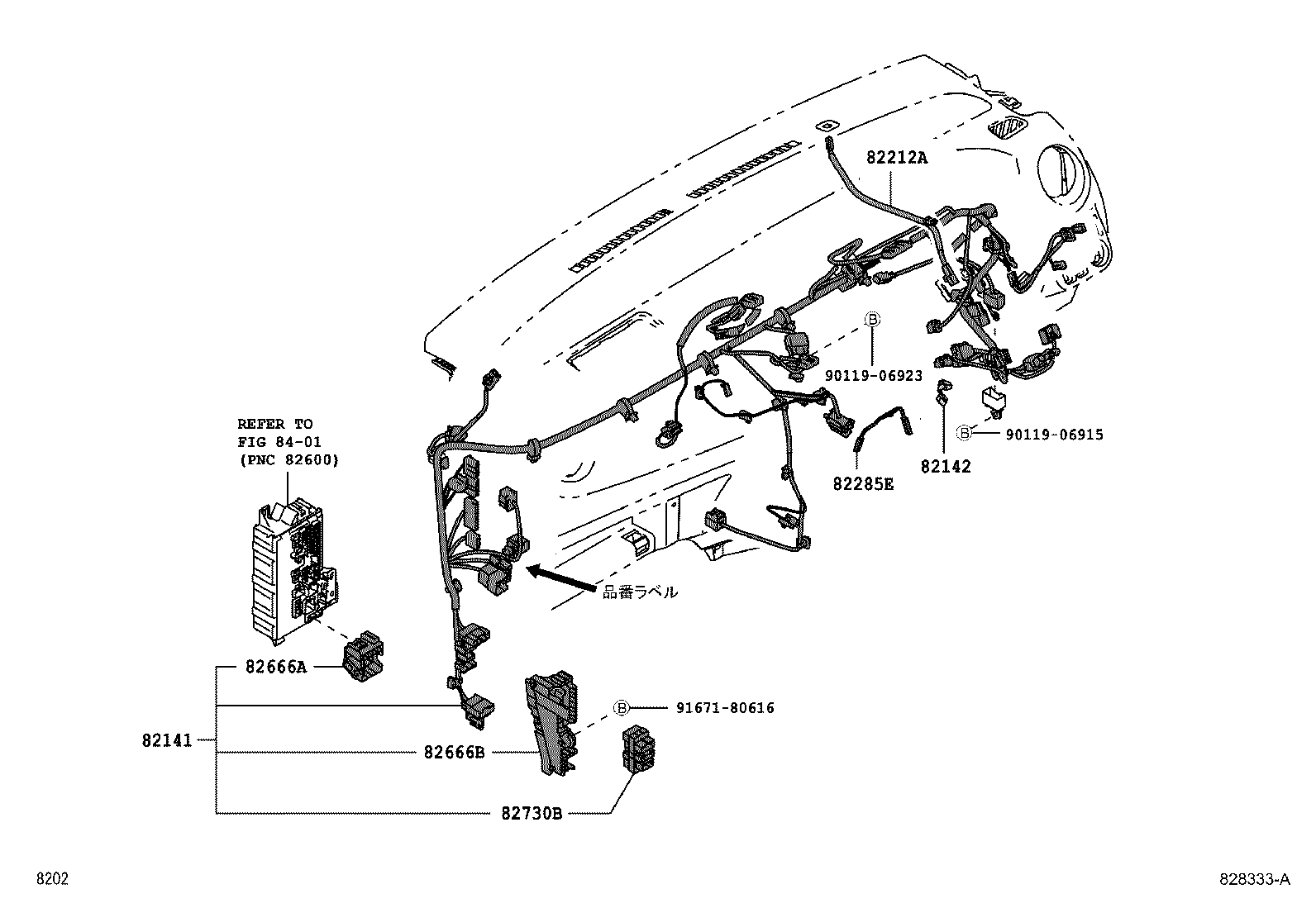

ILLUST NO. 4 OF10(1204- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82118-B2W80 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 82118-B2W90 |
LA300,310..G,GF ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 82118-B2Z20 |
LA300,310..G,GF |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-B2090 |
LA300,310 |
1 | ||
| 82212A - HARNESS, AIR CONDITIONER | ||||
| 88605-B2080 |
LA300,310..G,GF |
1 | ||
| 82285E - WIRE, ILLUMINATION | ||||
| 82285-B2030 |
LA300,310..G,GF,L,LF,X,XF ﾊﾞﾙﾌﾞ付き |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-B2180 |
LA300,310 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-B2190 |
LA300,310 |
1 | ||
| 82730B - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-B2170 |
LA300,310 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

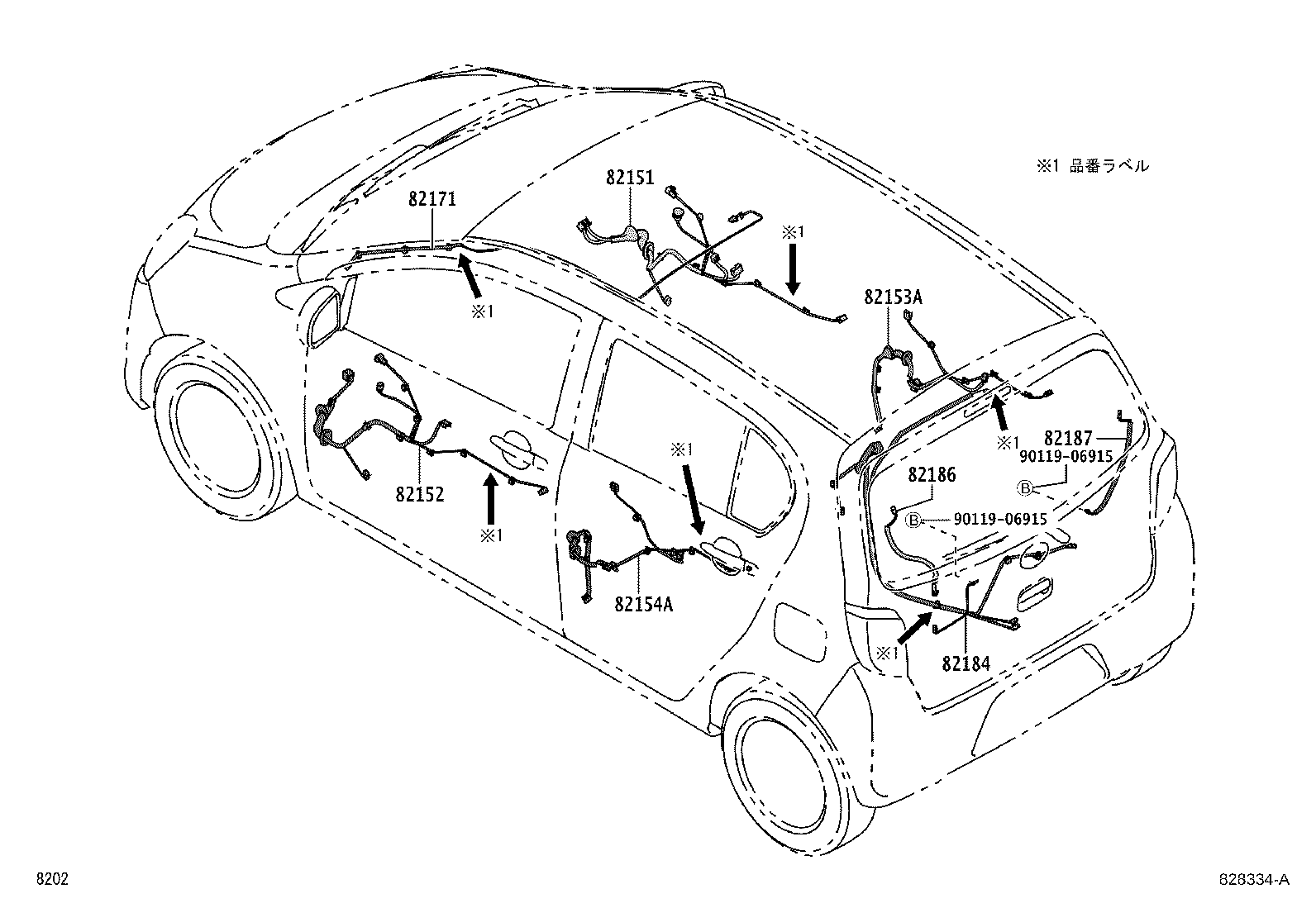

ILLUST NO. 5 OF10(1204- )
ﾄﾞｱ&ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-B2L30 |
LA300,310..G,GF,X,XF |
1 | ||
| 82151-B2L20 |
LA300,310..D,L,LF |
1 | ||
| 82151-B2L40 |
LA300,310..G,GF ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-B2N20 |
LA300,310..G,GF,X,XF |
1 | ||
| 82152-B2N10 |
LA300,310..D,L,LF |
1 | ||
| 82152-B2N30 |
LA300,310..G,GF ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-B2300 |
LA300,310 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82153-B2300 |
LA300,310 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-B2C50 |
LA300,310 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-B2830 |
LA300 寒冷地仕様 |
1 | ||
| 82184-B2850 |
LA300..G 寒冷地仕様&ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 82184-B2850 |
LA300,310..G,GF ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 82184-B2820 |
LA300 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-B2160 |
LA300,310 ﾃﾞﾌｫｯｶﾞ(+) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-B2060 |
LA300,310 ﾃﾞﾌｫｯｶﾞ(−) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

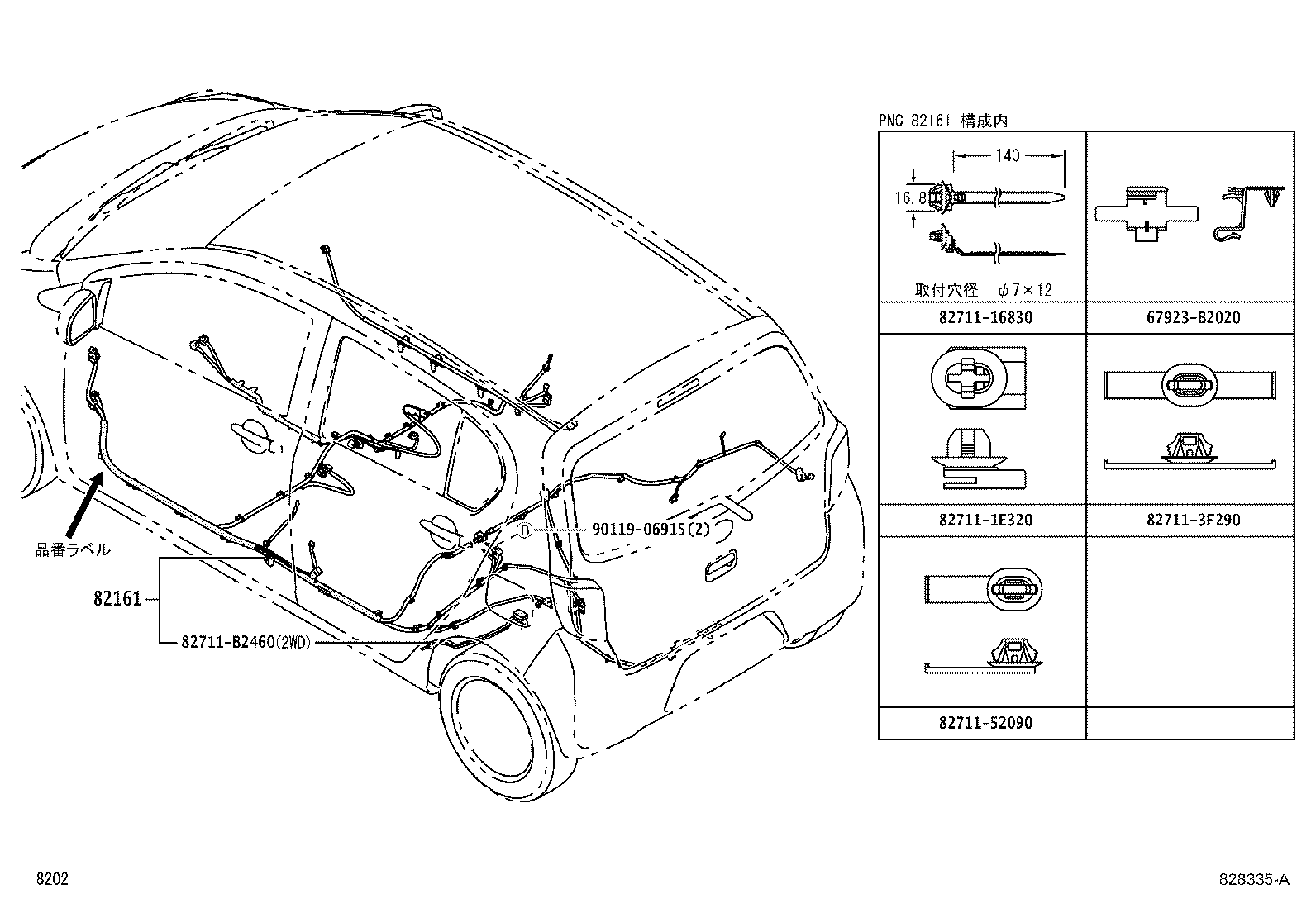

ILLUST NO. 6 OF10(1204- )
ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82199-B2R90 |
LA300..D,L,X |
1 | ||
| 82199-B2S00 |
LA300..G |
1 | ||
| Common parts | ||||
| 67923-B2020 | ||||
| 82711-16830 | ||||
| 82711-1E320 | ||||
| 82711-3F290 | ||||
| 82711-52090 | ||||
| 82711-B2460 | ||||
| 90119-06915 | ||||

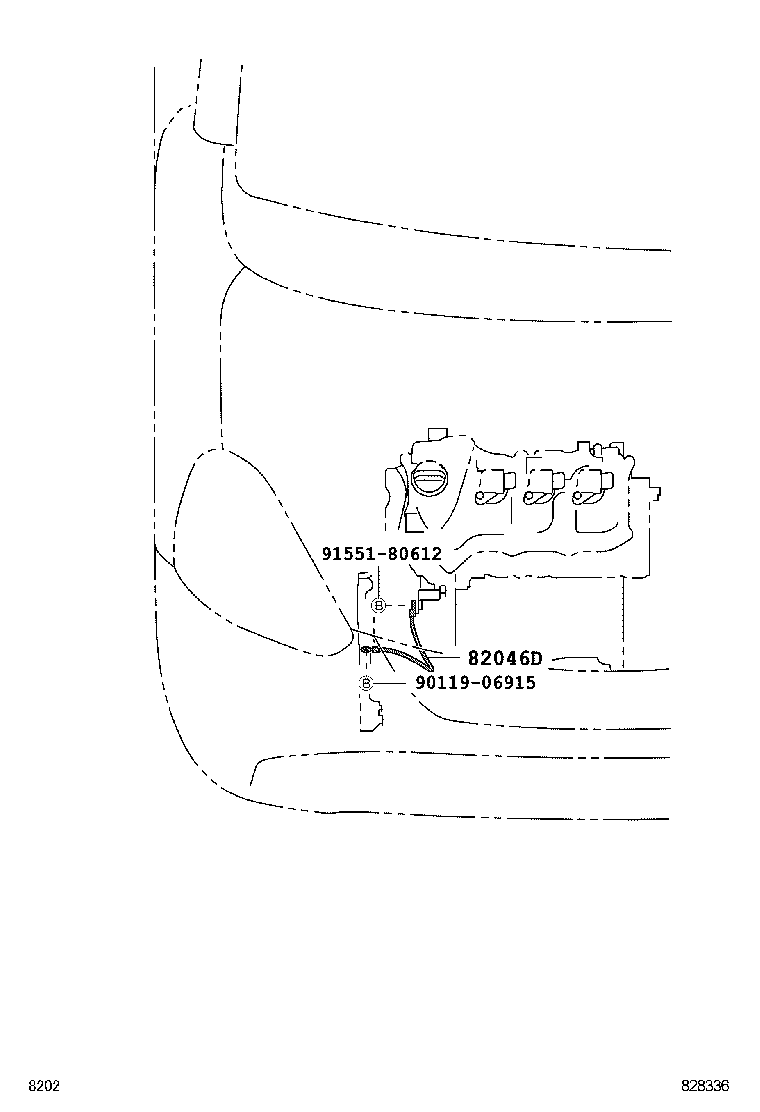

ILLUST NO. 8 OF10(1204- )
ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046D - WIRE, BODY GROUND | ||||
| 82046-B2070 |
LA300,310 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91551-80612 | ||||

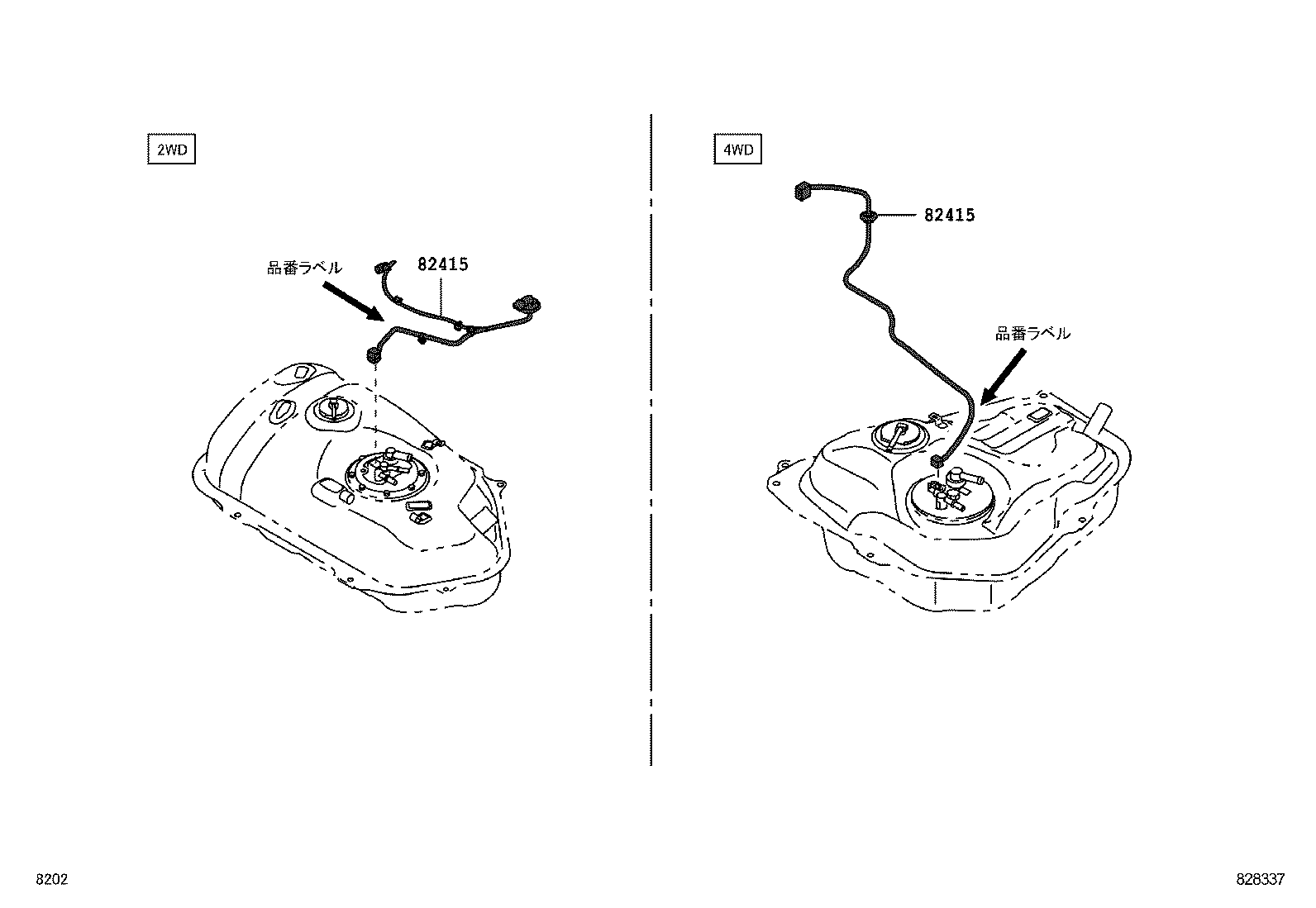

ILLUST NO. 9 OF10(1204- )
ﾌｭｰｴﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82415 - WIRE, FUEL PUMP | ||||
| 82415-B2260 |
LA300 |
1 | ||
| 82415 - WIRE, FUEL PUMP | ||||
| 82415-B2260 |
LA300 |
1 | ||

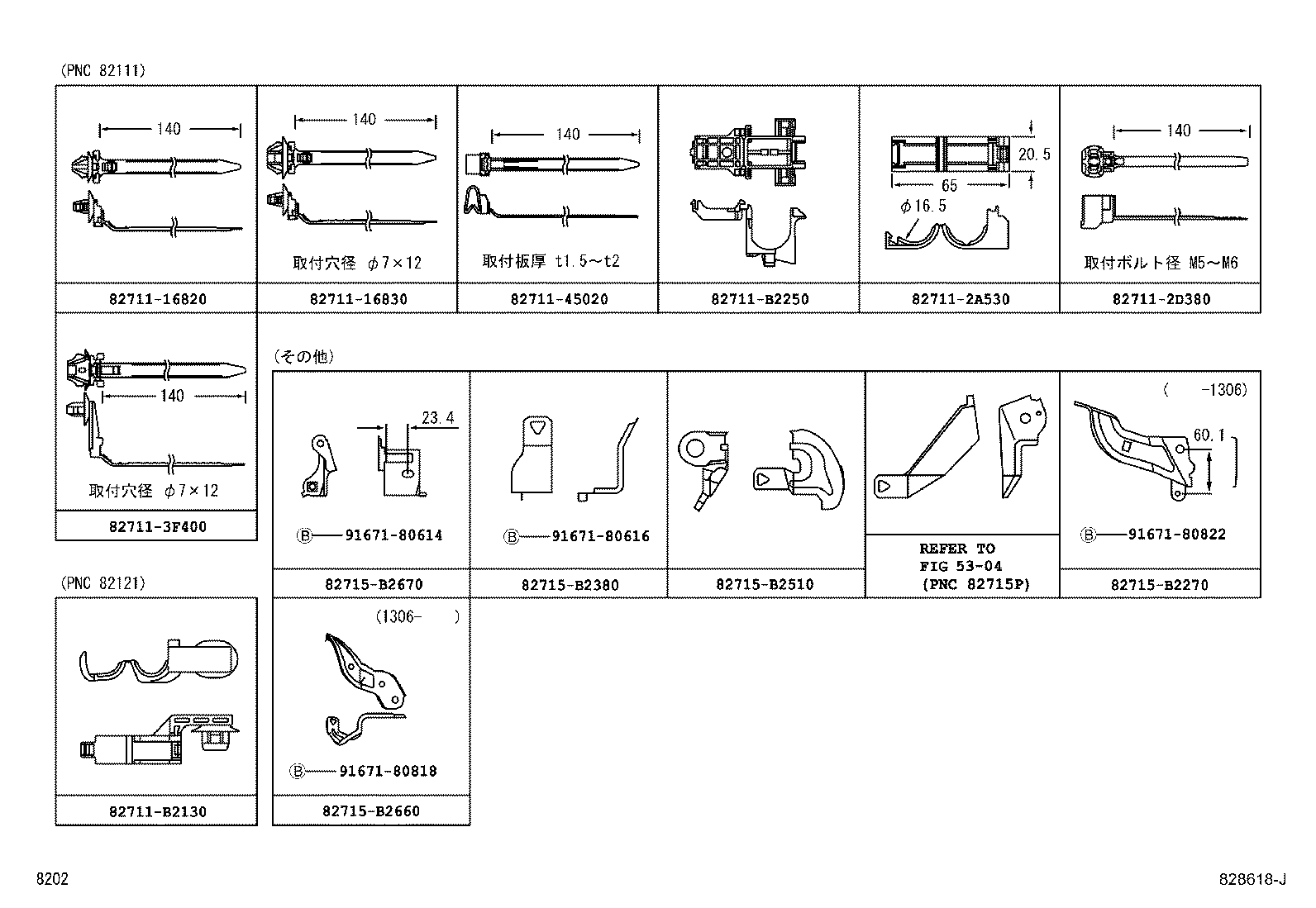

ILLUST NO. 7 OF10(1204- )
ｸﾗﾝﾌﾟ&ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 82711-2A530 | ||||
| 82711-2D380 | ||||
| 82711-3F400 | ||||
| 82711-45020 | ||||
| 82711-B2130 | ||||
| 82711-B2250 | ||||
| 82715-B2270 | ||||
| 82715-B2380 | ||||
| 82715-B2510 | ||||
| 82715-B2660 | ||||
| 82715-B2670 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80818 | ||||
| 91671-80822 | ||||
| Linked diagrams | ||||
| 5304 | ||||

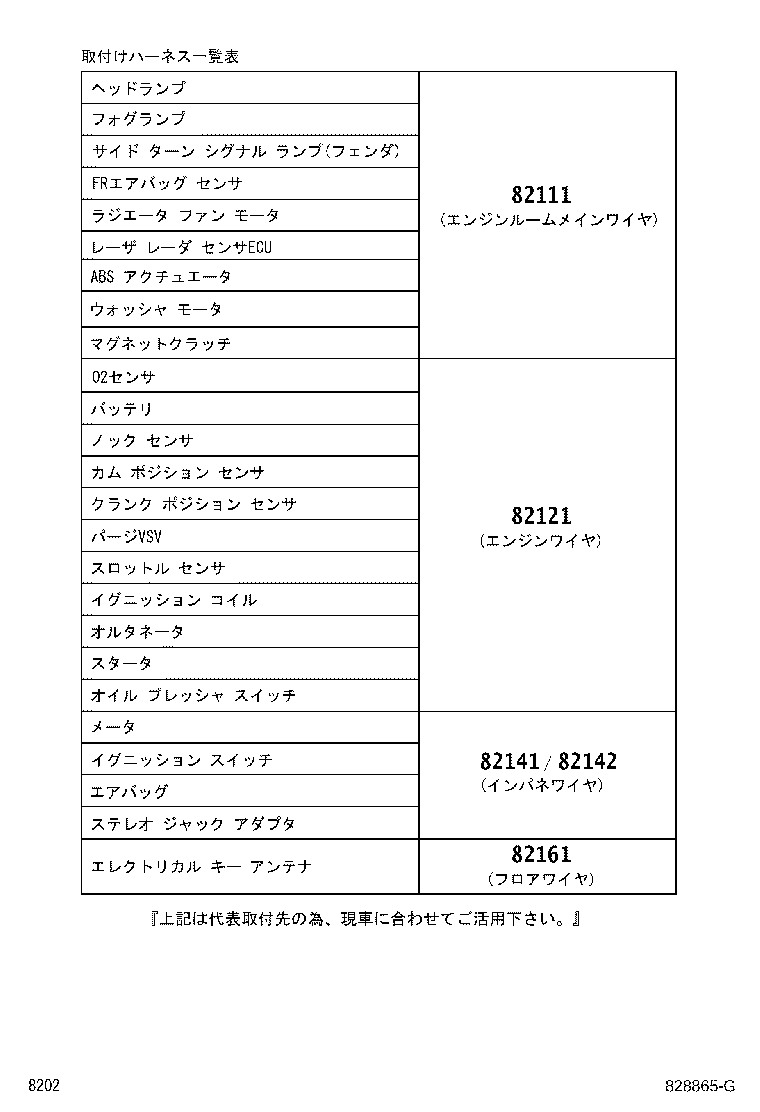

ILLUST NO. 1 OF10(1204- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-B2392 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 82116-B2403 |
LA300,310..G,GF |
1 | ||
| 82116-B2402 |
LA300,310..G,GF |
1 | ||
| 82116-B2391 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 82116-B2401 |
LA300,310..G,GF |
1 | ||
| 82116-B2393 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-B2A01 |
LA300,310 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82118-B2W80 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 82118-B2W90 |
LA300,310..G,GF ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW |
1 | ||
| 82118-B2Z20 |
LA300,310..G,GF |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-B2090 |
LA300,310 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82199-B2R90 |
LA300..D,L,X |
1 | ||
| 82199-B2S00 |
LA300..G |
1 | ||

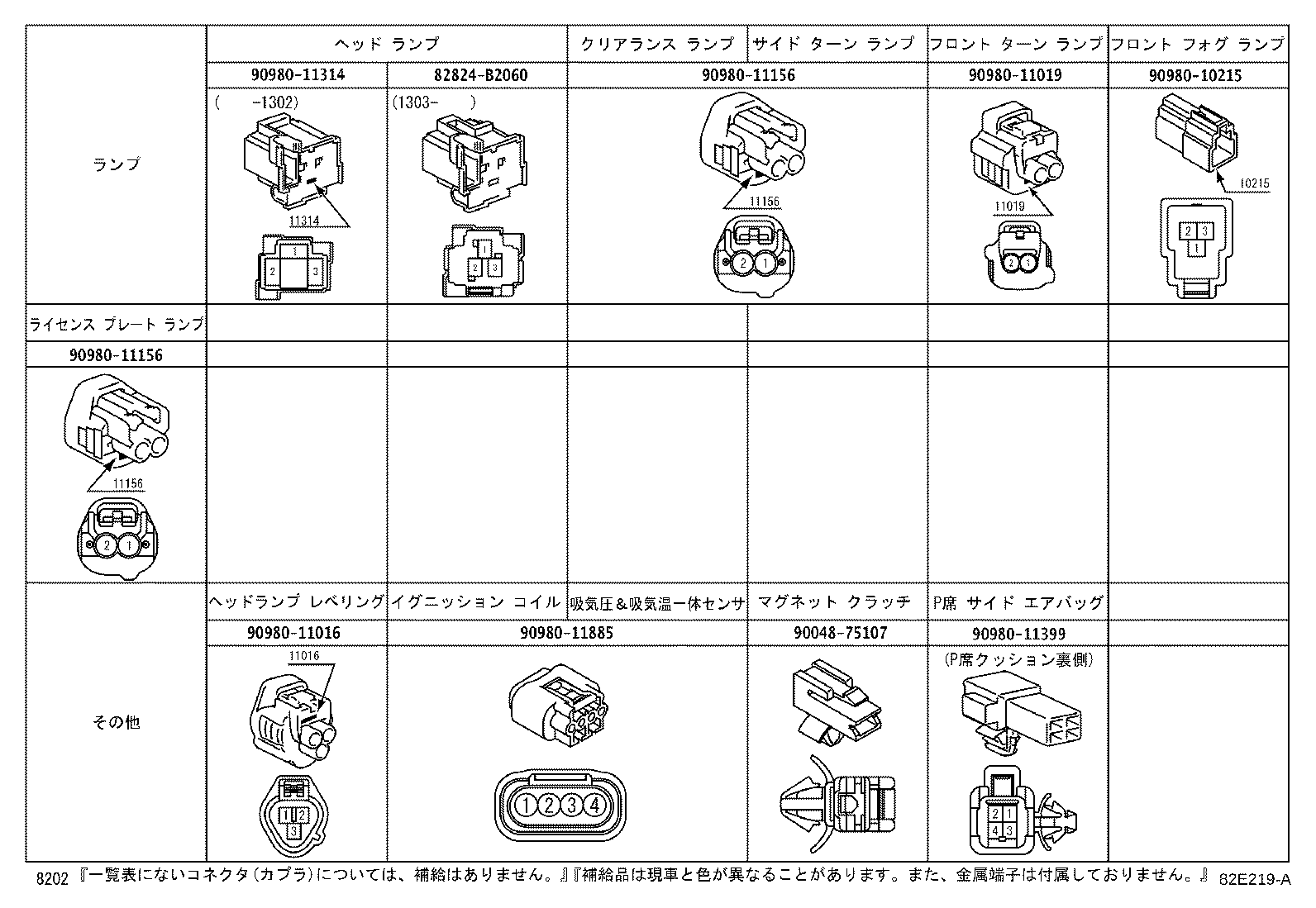

ILLUST NO.10 OF10(1204- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-B2060 | ||||
| 90048-75107 | ||||
| 90980-10215 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||
| 90980-11399 | ||||
| 90980-11885 | ||||
