LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

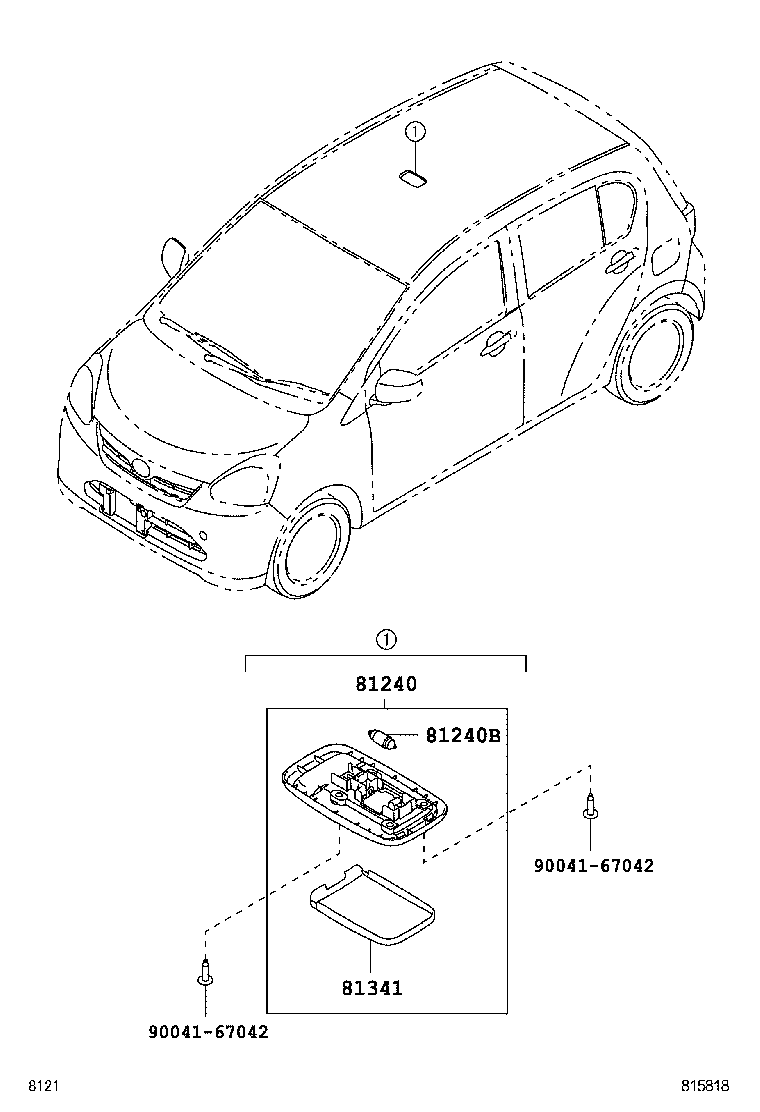

Click highlighted areas on diagram

diagram 81240 81240B 81341 9004167042 9004167042
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-B2050B0

LA300,310

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90049-51153

LA300,310

12V 8W

 1
81341 - LENS, VANITY LAMP
81241-97201

LA300,310

 1
Common parts
90041-67042
