LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

Click highlighted areas on diagram

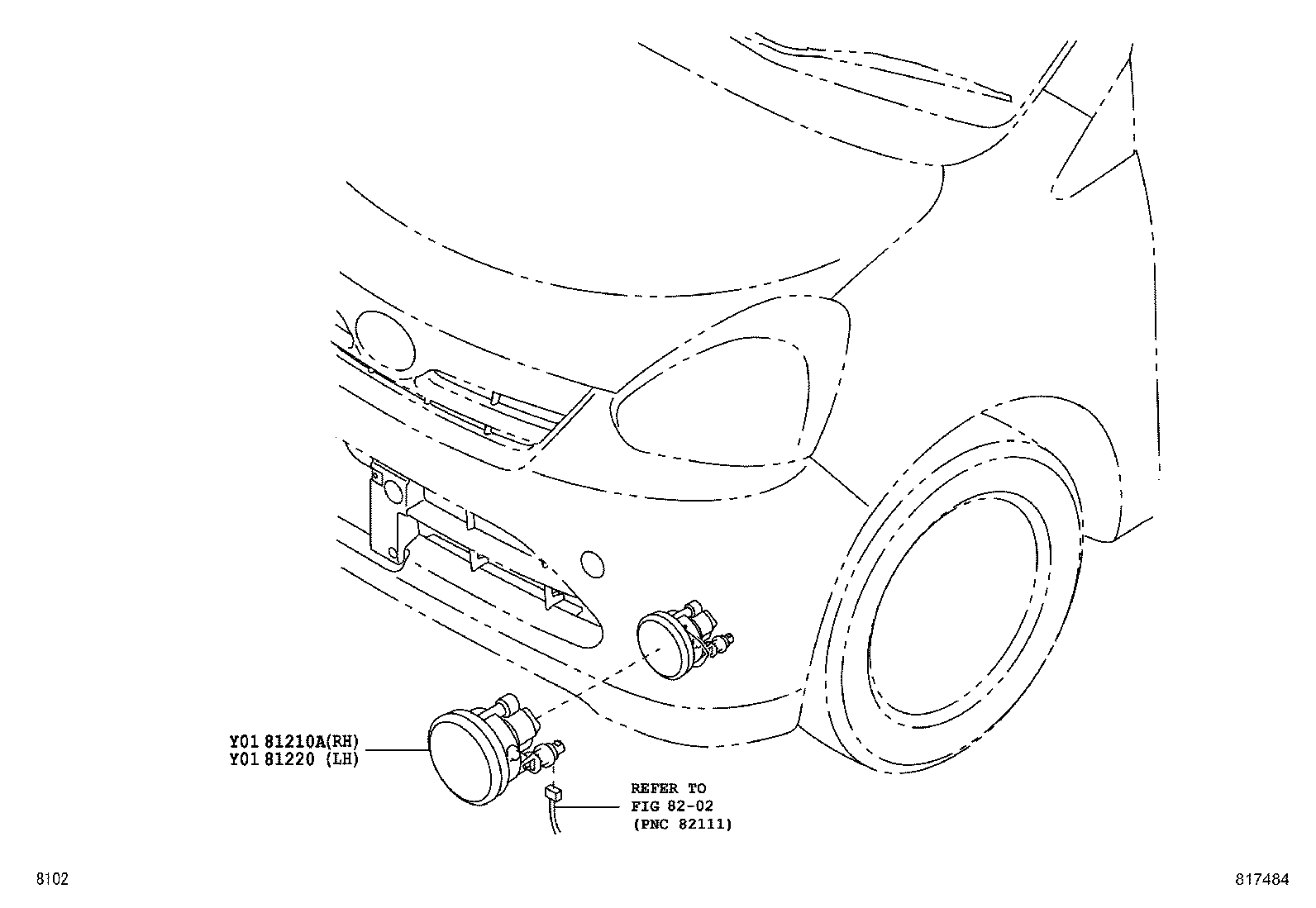

diagram 81210A 81220 8202
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-B2340

LA300,310

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−D−OPT

 1
81220 - LAMP ASSY, FOG, LH
81210-B2340

LA300,310

ﾌﾛﾝﾄﾌｫｸﾞ & ﾄﾞﾗｲﾋﾞﾝｸﾞﾗﾝﾌﾟ−D−OPT

 1
Linked diagrams
8202
