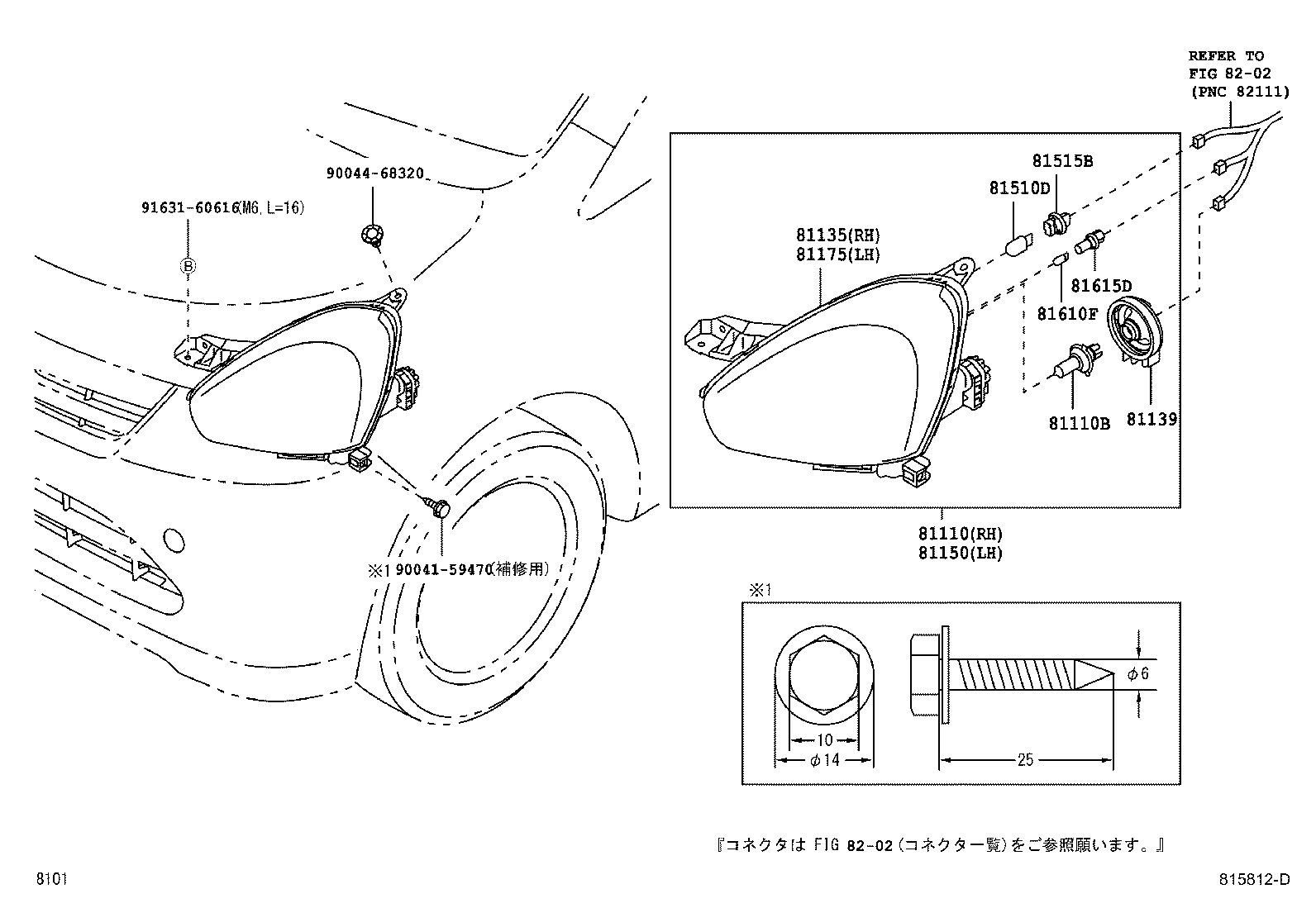

Toyota Pixis epoch LA300A HEADLAMP

Part #	Description	Period	Qty
81110 - HEADLAMP ASSY, RH
81110-B2720	LA300,310	04/2012 - 07/2013	1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51088	LA300,310 12V 60/55W,H4 ﾊﾛｹﾞﾝ	04/2012 - 07/2013	1
81135 - UNIT ASSY, HEADLAMP, RH
81130-B2500	LA300,310 ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	04/2012 - 07/2013	1
81139 - COVER, HEADLAMP SOCKET
81139-B2010	LA300,310	04/2012 - 07/2013	2
81150 - HEADLAMP ASSY, LH
81150-B2760	LA300,310	04/2012 - 07/2013	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-B2510	LA300,310 ﾚﾍﾞﾘﾝｸﾞﾓｰﾀ付	04/2012 - 07/2013	1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90049-51179	LA300,310 12V 21W	04/2012 - 07/2013	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028	LA300,310	04/2012 - 07/2013	2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11013	LA300,310 12V 5W T10	04/2012 - 07/2013	2
81615D - SOCKET, CLEARANCE LAMP
9004C-82001	LA300,310	04/2012 - 07/2013	2
Common parts
90041-59470
90044-68320
91631-60616
Linked diagrams
8202

LA300A-GBDF (2012)
