LA300A-GBDF (2012)
Toyota Pixis Epoch

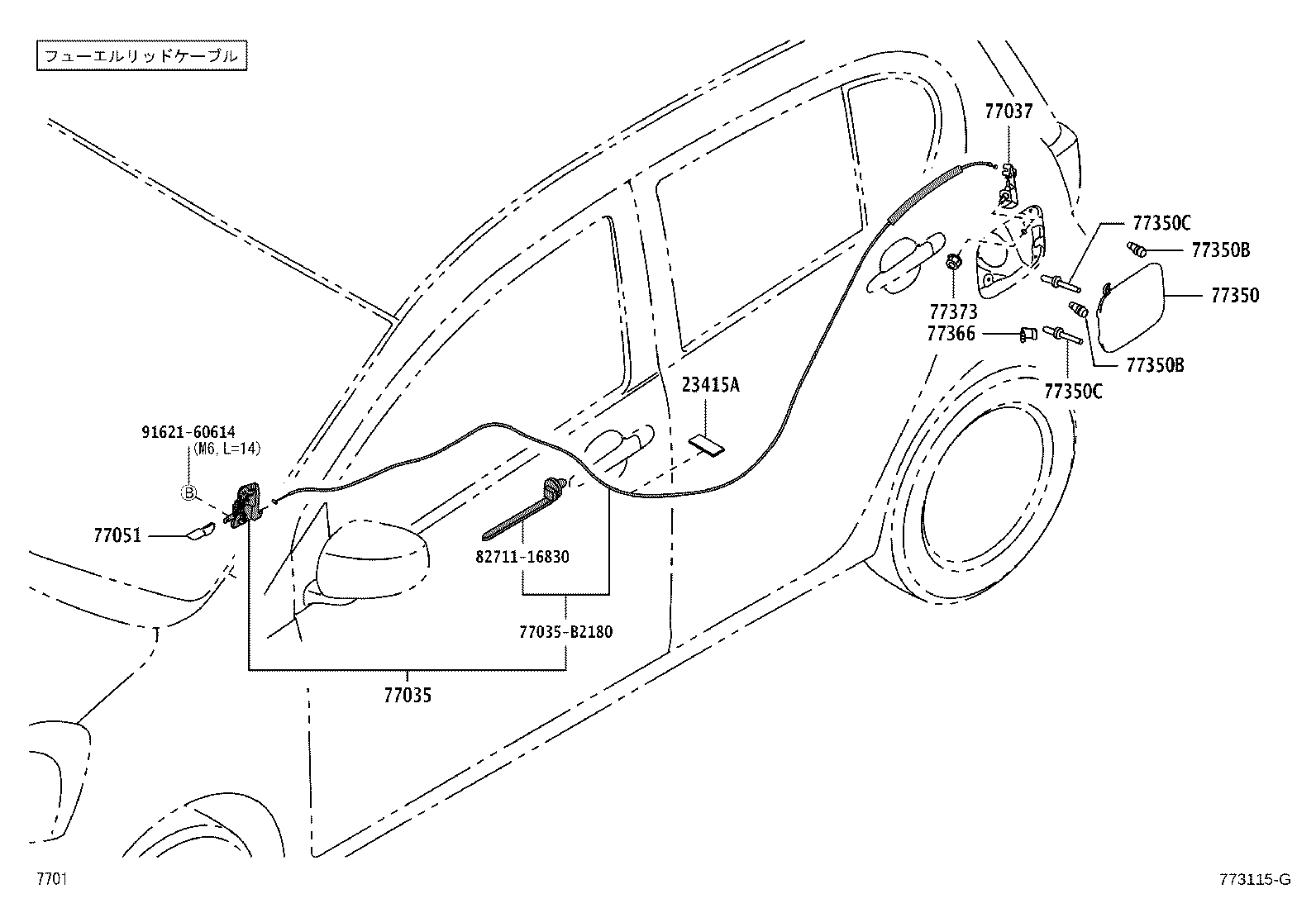

ILLUST NO. 3 OF 3(1204- )
ﾌｭｰｴﾙﾘｯﾄﾞｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23415A - PLATE | ||||
| 55445-87502 |
KFVE..LA300,310 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77030-B2040 |
LA300,310 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-97201 |
LA300,310 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 69438-97203 |
LA300,310 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-B2210 |
LA300,310 |
1 | ||
| 77350B - CUSHION(FOR FUEL FILLER OPENING LID) | ||||
| 90045-41270 |
LA300,310 |
2 | ||
| 90045-41272 |
LA300,310 |
2 | ||
| 77350B - CUSHION(FOR FUEL FILLER OPENING LID) | ||||
| 90045-41270 |
LA300,310 |
2 | ||
| 90045-41272 |
LA300,310 |
2 | ||
| 77350C - RIVET | ||||
| 90042-69027 |
LA300,310 |
2 | ||
| 77350C - RIVET | ||||
| 90042-69027 |
LA300,310 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-B2050 |
LA300,310 |
1 | ||
| 77373 - NUT, FUEL LID LOCK | ||||
| 90041-70299 |
LA300,310 M10 |
1 | ||
| Common parts | ||||
| 77035-B2180 | ||||
| 82711-16830 | ||||
| 91621-60614 | ||||

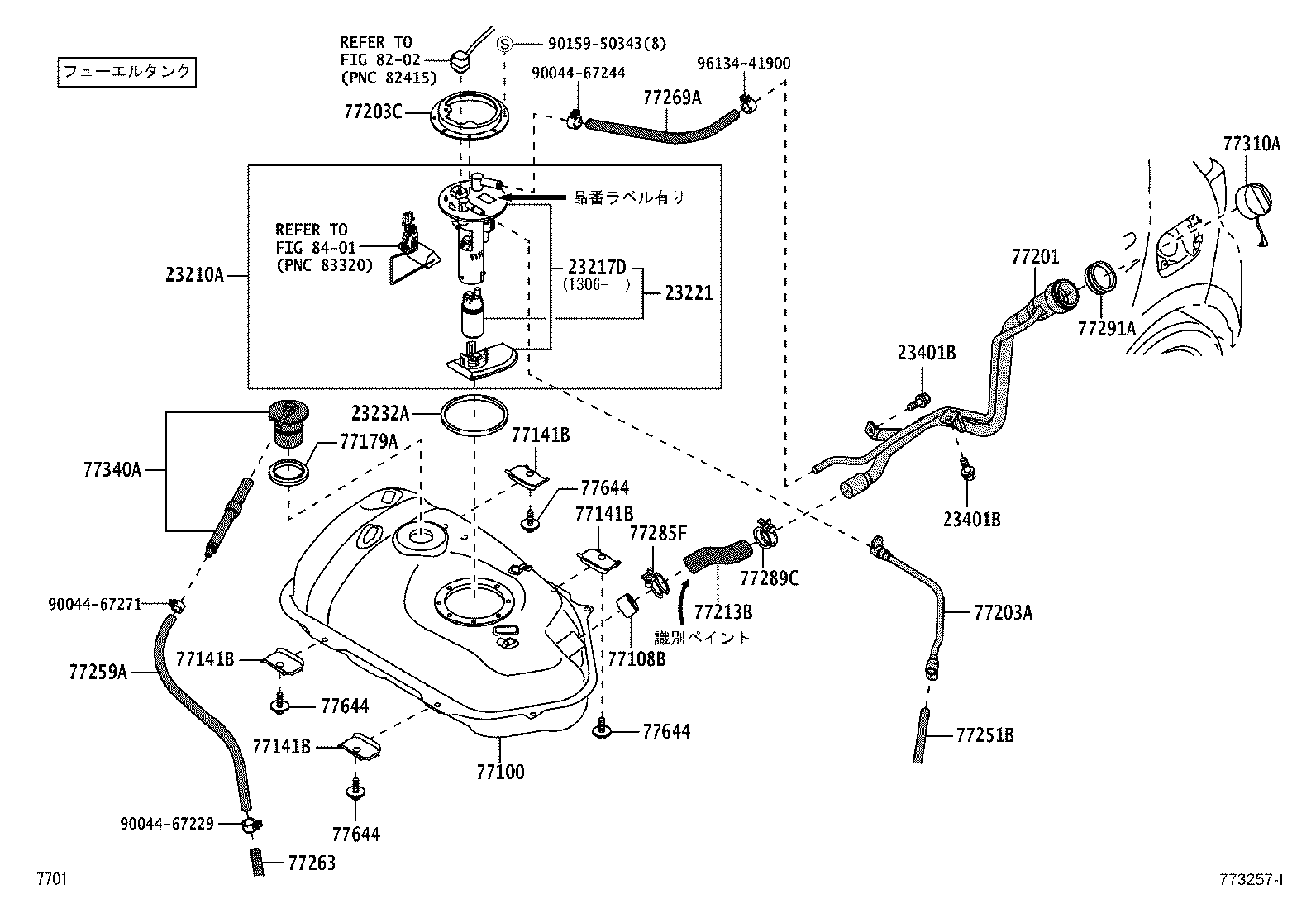

ILLUST NO. 1 OF 3(1204- )LA300
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-B2102 |
KFVE..LA300 品番ﾗﾍﾞﾙ有り |
1 | ||
| 23210-B2280 |
KFVE..LA300 品番ﾗﾍﾞﾙ有り |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23908-B2130 |
KFVE..LA300 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23100-B2280 |
KFVE..LA300 ASSY,NO.23210B2280 |
1 | ||
| 23100-B2160 |
KFVE..LA300 ASSY,NO.23210B2102 |
1 | ||
| 23232A - GASKET, FUEL PUMP | ||||
| 23232-87401 |
KFVE..LA300,310 |
1 | ||
| 23401B - BOLT | ||||
| 91551-A0816 |
KFVE..LA300 M8,L=16 |
2 | ||
| 23401B - BOLT | ||||
| 91551-A0816 |
KFVE..LA300 M8,L=16 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-B2091 |
LA300 |
1 | ||
| 77001-B2270 |
LA300 |
1 | ||
| 77001-B2240 |
LA300 |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-B2010 |
LA300,310 |
1 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B1020 |
LA300 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B1020 |
LA300 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B1020 |
LA300 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-B1020 |
LA300 |
4 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
LA300,310 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-B2141 |
LA300 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-B2040 |
LA300 |
1 | ||
| 77203C - BRACKET, FUEL PUMP | ||||
| 23265-B2010 |
LA300,310 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-B2060 |
LA300 長さ=212 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B2230 |
LA300,310 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-B2070 |
LA300 長さ=230 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B2220 |
LA300,310 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-97201 |
LA300 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 96111-30440 |
LA300,310 |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 96111-30440 |
LA300 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-B2021 |
LA300,310 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
LA300,310 |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-B2030 |
LA300 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
LA300,310 M8,L=29.5 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
LA300,310 M8,L=29.5 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
LA300,310 M8,L=29.5 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20155 |
LA300,310 M8,L=29.5 |
4 | ||
| Common parts | ||||
| 90044-67229 | ||||
| 90044-67244 | ||||
| 90044-67271 | ||||
| 90159-50343 | ||||
| 96134-41900 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

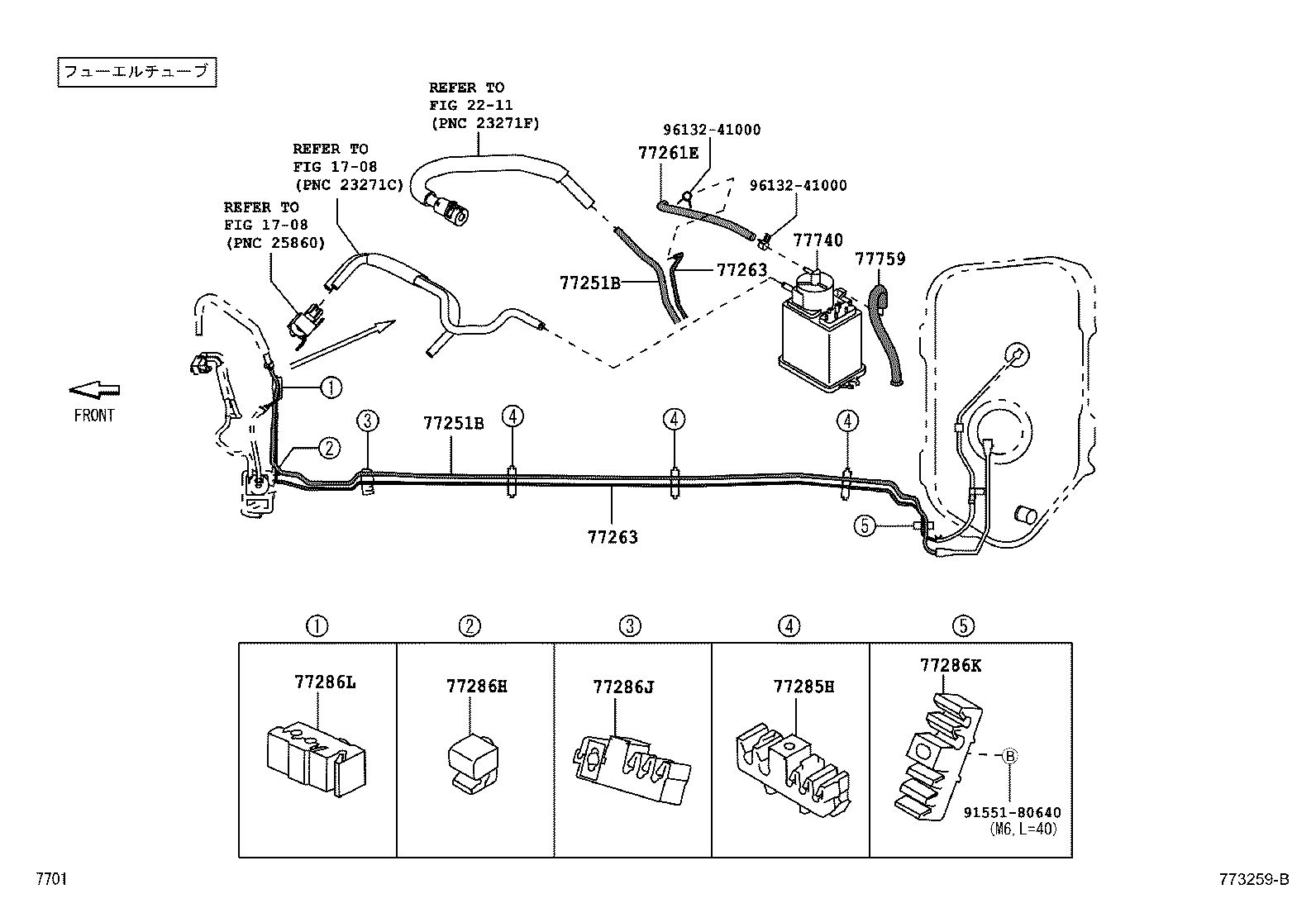

ILLUST NO. 2 OF 3(1204- )
ﾌｭｰﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B2230 |
LA300,310 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-B2230 |
LA300,310 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-04095 |
LA300,310 *H,L=220 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B2220 |
LA300,310 |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 77263-B2220 |
LA300,310 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 90044-64657 |
LA300,310 |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 90044-64655 |
LA300,310 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 90044-64695 |
LA300,310 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 90044-64766 |
LA300,310 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 90044-64878 |
LA300,310 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-B2070 |
LA300,310 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-B2011 |
LA300,310 L=226 |
1 | ||
| Common parts | ||||
| 91551-80640 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
