LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

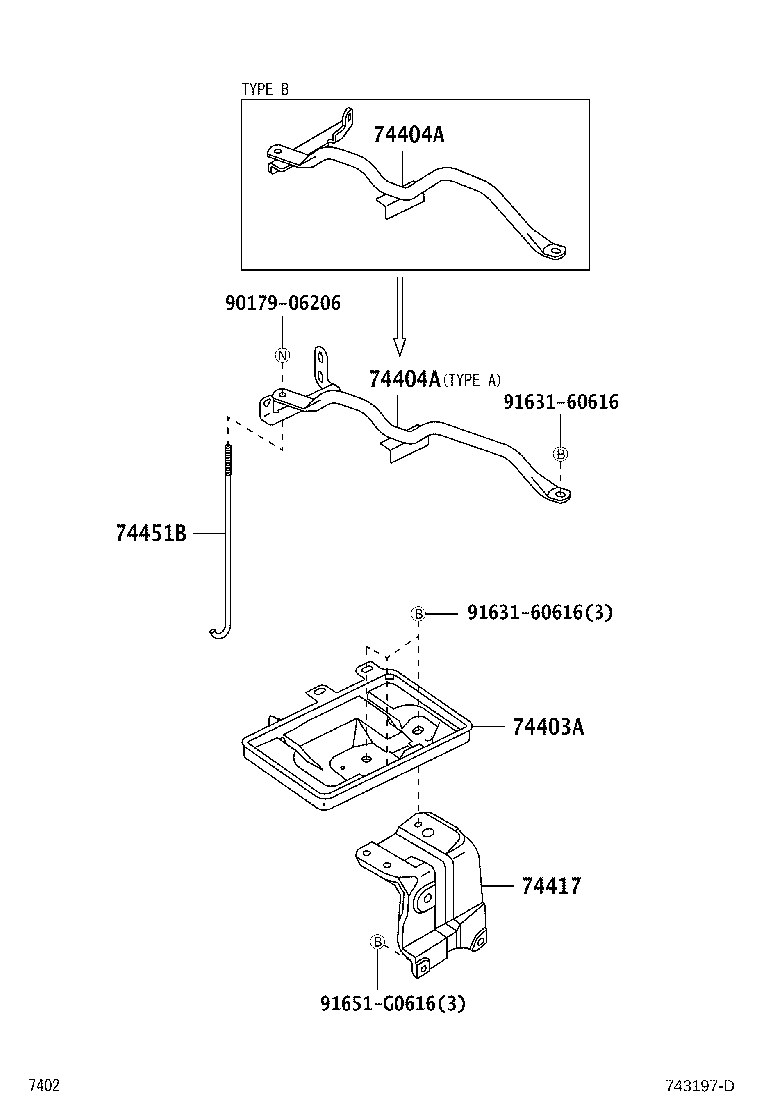

Click highlighted areas on diagram

diagram 74403A 74404A 74404A 74417 74451B 9017906206 9163160616 9163160616 91651G0616
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-B2070

LA300,310

 1
74403-B2080

LA300,310

 1
74404A - CLAMP SUB-ASSY, BATTERY
74404-B2140

LA300,310

ﾀｲﾌﾟ A

 1
74404-B2170

LA300,310

ﾀｲﾌﾟ B

 1
74404A - CLAMP SUB-ASSY, BATTERY
74404-B2140

LA300,310

ﾀｲﾌﾟ A

 1
74404-B2170

LA300,310

ﾀｲﾌﾟ B

 1
74417 - BRACKET, BATTERY CARRIER
74417-B2040

LA300,310

 1
74451B - BOLT, BATTERY CLAMP
74451-B2010

LA300,310

 1
Common parts
90179-06206
91631-60616
91651-G0616
