LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

Click highlighted areas on diagram

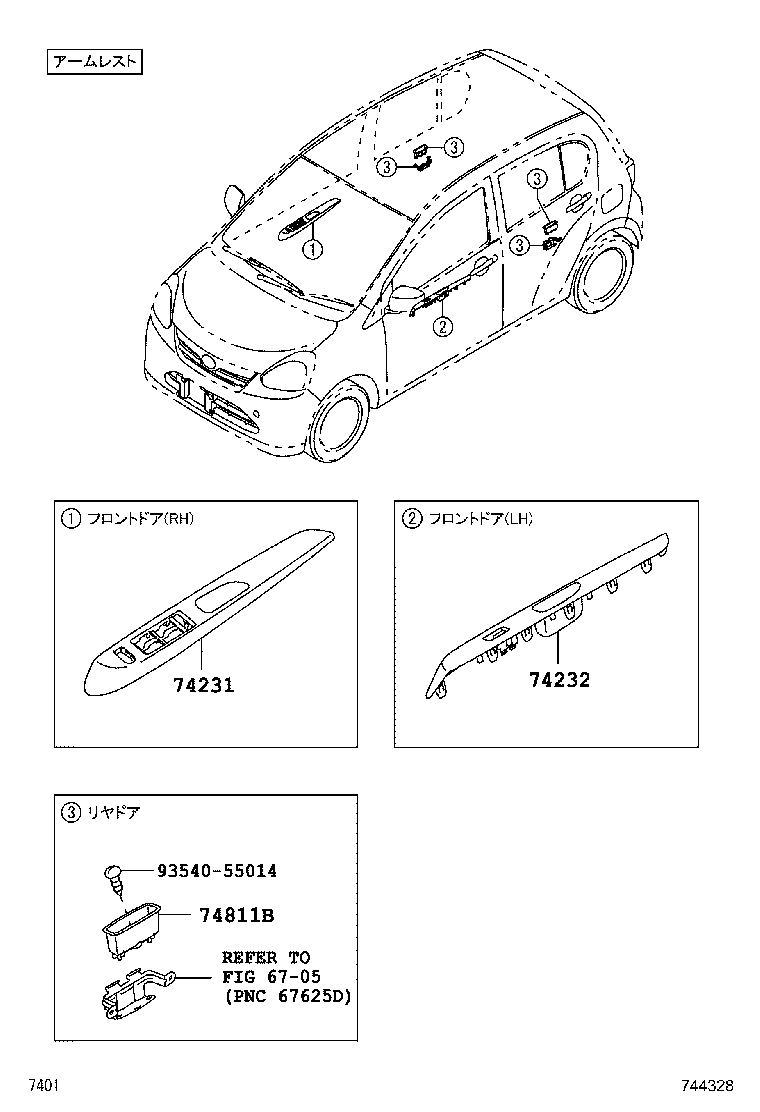

ｱｰﾑﾚｽﾄ

diagram 6705 74231 74232 74811B 9354055014
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B2050B0

LA300,310..D,L,LF

DK.GRAY,TRIM1#

 1
74231-B2040B0

LA300,310..G,GF,X,XF

DK.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B2040B0

LA300,310

DK.GRAY,TRIM1#

 1
74811B - HANDLE, DOOR PULL
74811-97201B2

LA300,310

WARM GRAY,TRIM1#

 2
Common parts
93540-55014
Linked diagrams
6705

(1204- )

Click highlighted areas on diagram

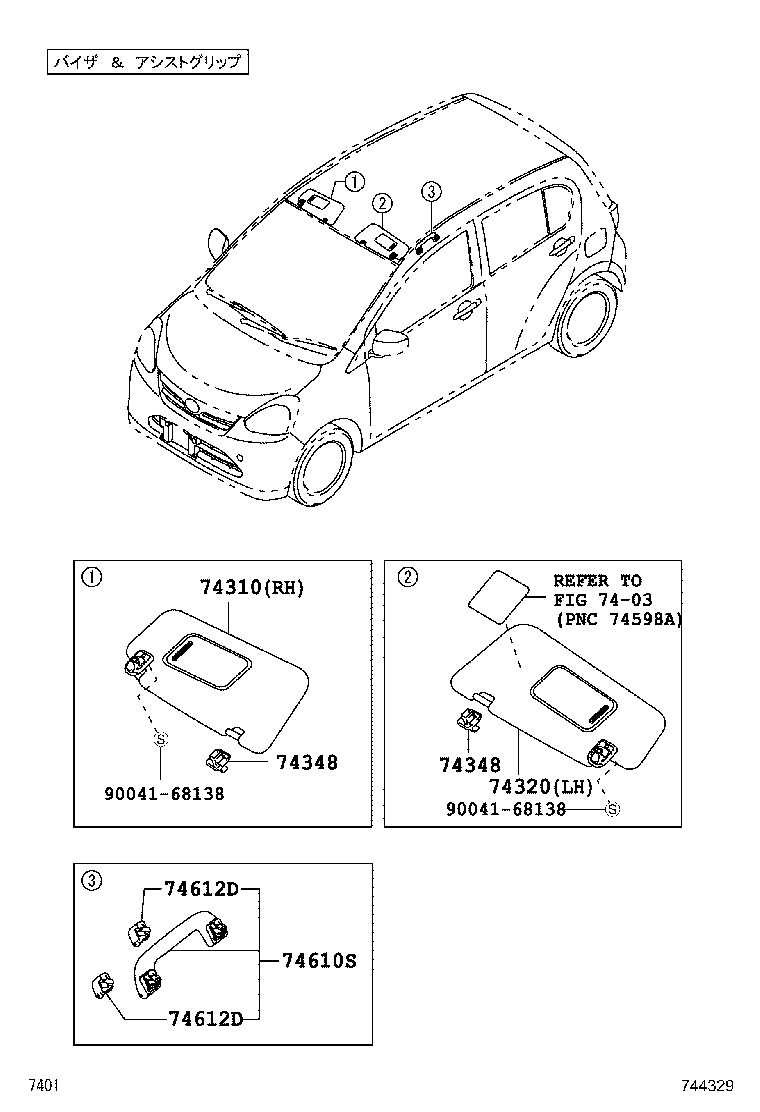

ﾊﾞｲｻﾞ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram 7403 74310 74320 74348 74348 74610S 74612D 74612D 9004168138 9004168138
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-B2591B0

LA300,310

LT.GRAY,TRIM1#,ﾊﾞﾆﾃｨﾐﾗｰ 有り

 1
74310-B2590B0

LA300,310

LT.GRAY,TRIM1#,ﾊﾞﾆﾃｨﾐﾗｰ 有り

 1
74320 - VISOR ASSY, LH
74320-B2500B0

LA300,310

LT.GRAY,TRIM1#,ﾊﾞﾆﾃｨﾐﾗｰ 有り

 1
74320-B2501B0

LA300,310

LT.GRAY,TRIM1#,ﾊﾞﾆﾃｨﾐﾗｰ 有り

 1
74348 - HOLDER, VISOR
74348-97401B2

LA300,310

LT.GRAY,TRIM1#

 2
74348 - HOLDER, VISOR
74348-97401B2

LA300,310

LT.GRAY,TRIM1#

 2
74610S - GRIP ASSY, ASSIST
74610-B2030B0

LA300,310

LT.GRAY,TRIM1#

 1
74612D - COVER, ASSIST GRIP
74612-B2070B0

LA300,310

LT.GRAY,TRIM1#

 2
74612D - COVER, ASSIST GRIP
74612-B2070B0

LA300,310

LT.GRAY,TRIM1#

 2
Common parts
90041-68138
Linked diagrams
7403
