LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

Click highlighted areas on diagram

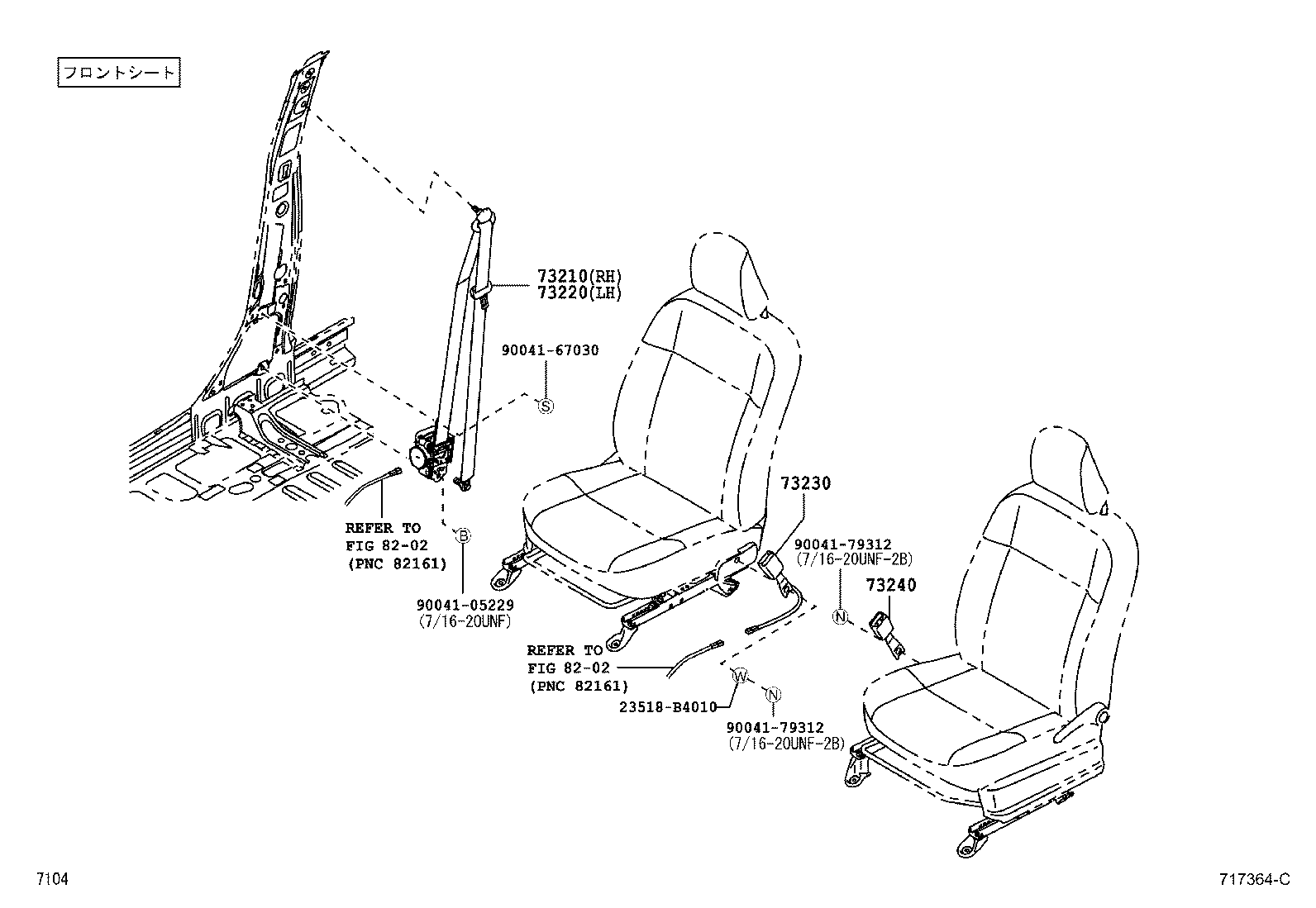

ﾌﾛﾝﾄｼｰﾄ

diagram 23518B4010 73210 73220 73230 73240 8202 8202 9004105229 9004167030 9004179312 9004179312
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-B2A10E0

LA300,310

FAWN,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-B2C60E0

LA300,310

FAWN,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-B2540B0

LA300,310..G,GF

DK.GRAY,TRIM1#

 1
73230-B2570B0

LA300,310..D,L,LF,X,XF

DK.GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-B2550B0

LA300,310

DK.GRAY,TRIM1#

 1
Common parts
23518-B4010
90041-05229
90041-67030
90041-79312
Linked diagrams
8202

(1204- )

Click highlighted areas on diagram

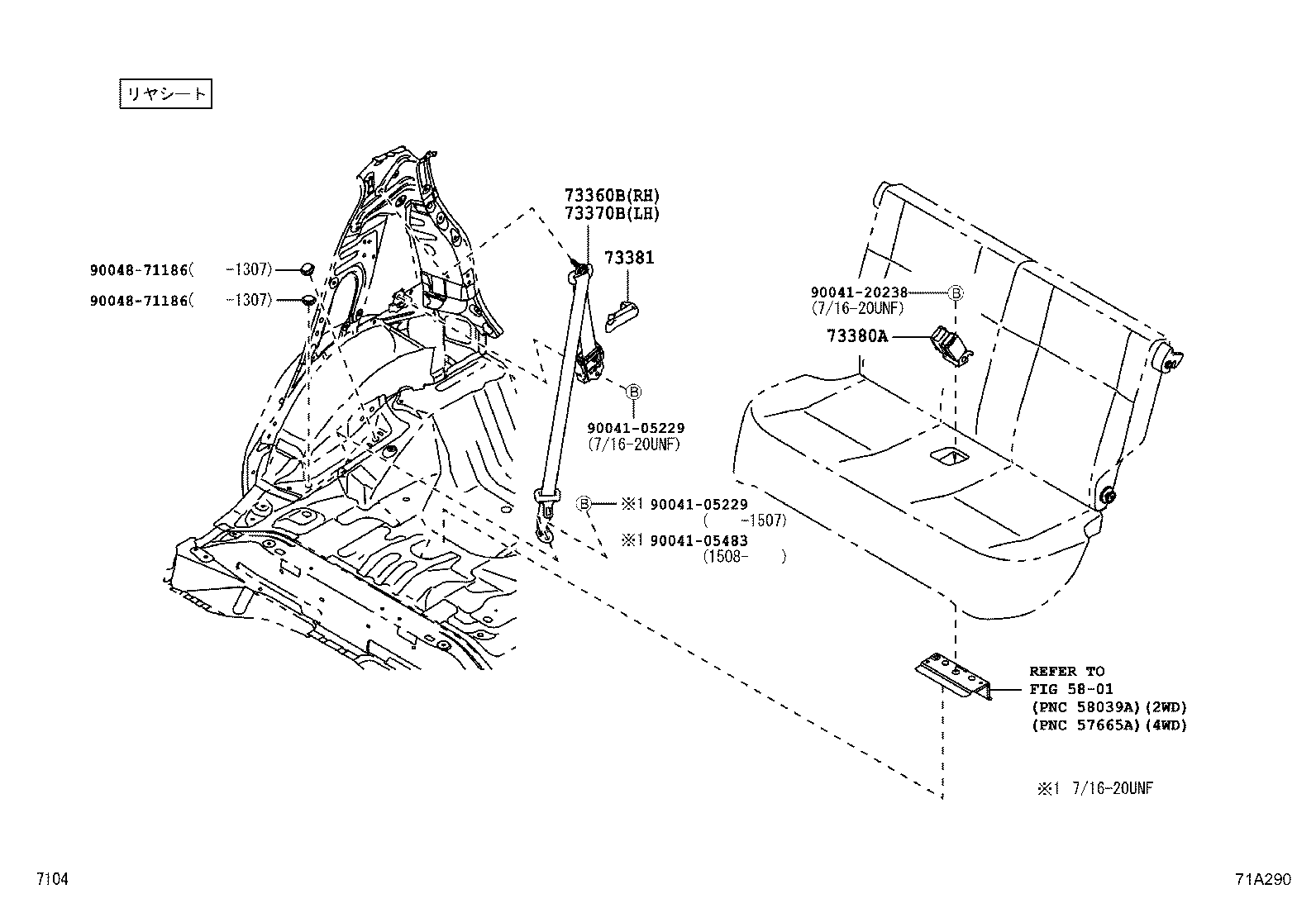

ﾘﾔｼｰﾄ

diagram 5801 73360B 73370B 73380A 73381 9004105229 9004105229 9004105483 9004120238 9004871186 9004871186
Part # Description Qty Price
73360B - BELT ASSY, REAR SEAT, OUTER
73360-B2330E0

LA300,310

FAWN,TRIM1#

 1
73370B - BELT ASSY, REAR SEAT, OUTER
73370-B2330E0

LA300,310

FAWN,TRIM1#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-B2330B0

LA300,310

DK.GRAY,TRIM1#

 1
73381 - HOLDER, REAR SEAT BELT
73381-87202E1

LA300,310

BEIGE,TRIM1#

 2
Common parts
90041-05229
90041-05483
90041-20238
90048-71186
Linked diagrams
5801
