LA300A-GBDF (2012)
Toyota Pixis Epoch
(1204- )

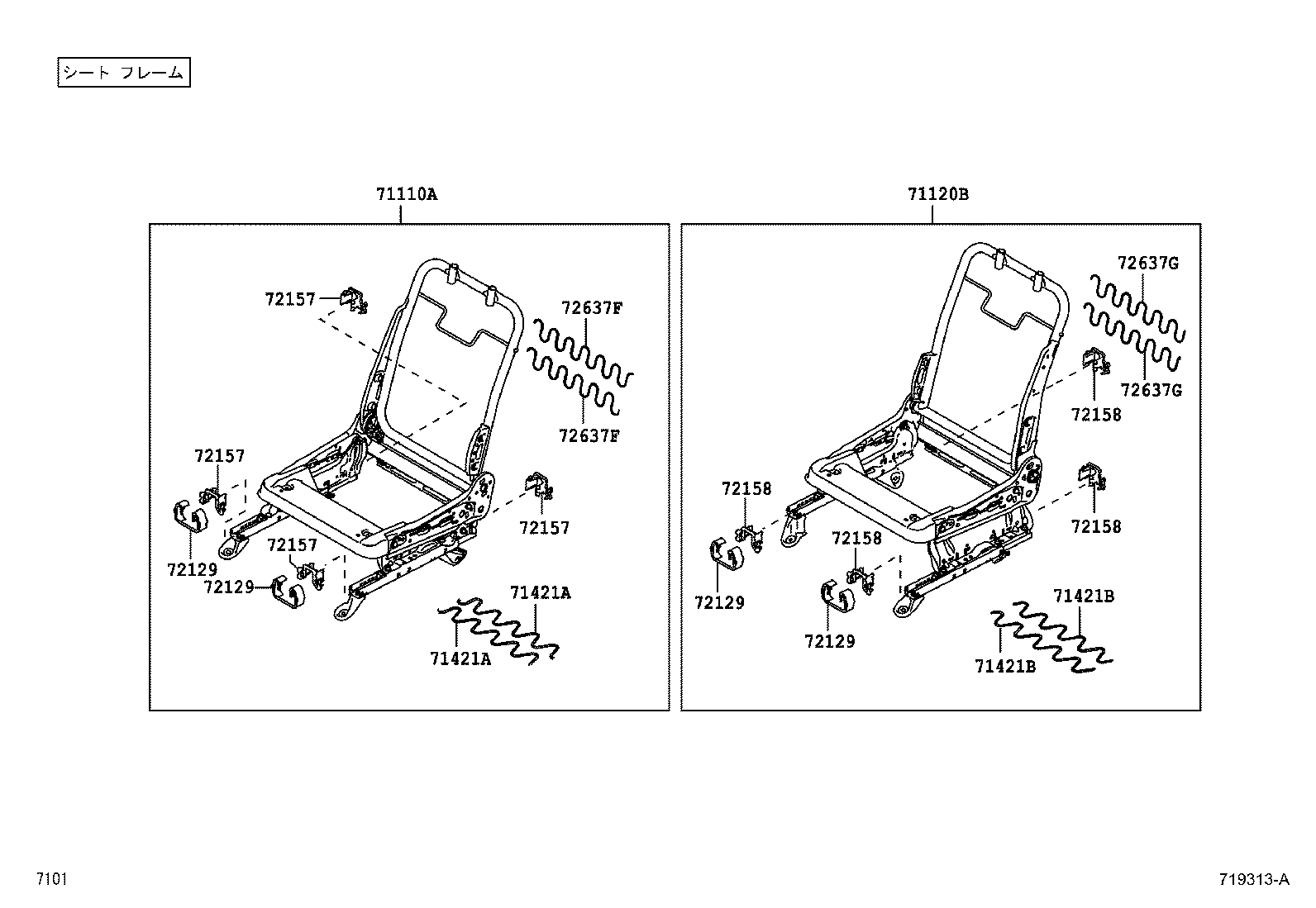

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-B2F50 |
LA300,310..G,GF |
1 | ||
| 71110-B2F40 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-B2810 |
LA300,310 |
1 | ||
| 71421A - SPRING, FRONT SEAT CUSHION | ||||
| 71421-B2010 |
LA300,310 |
2 | ||
| 71421A - SPRING, FRONT SEAT CUSHION | ||||
| 71421-B2010 |
LA300,310 |
2 | ||
| 71421B - SPRING, FRONT SEAT CUSHION | ||||
| 71421-B2010 |
LA300,310 |
2 | ||
| 71421B - SPRING, FRONT SEAT CUSHION | ||||
| 71421-B2010 |
LA300,310 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
LA300,310 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
LA300,310 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
LA300,310 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-B2030 |
LA300,310 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
LA300,310 |
3 | ||
| 72157-B2030 |
LA300,310 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
LA300,310 |
3 | ||
| 72157-B2030 |
LA300,310 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
LA300,310 |
3 | ||
| 72157-B2030 |
LA300,310 |
4 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-B2030 |
LA300,310 |
3 | ||
| 72157-B2030 |
LA300,310 |
4 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-B2030 |
LA300,310 |
4 | ||
| 72157-B2030 |
LA300,310 |
3 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-B2030 |
LA300,310 |
4 | ||
| 72157-B2030 |
LA300,310 |
3 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-B2030 |
LA300,310 |
4 | ||
| 72157-B2030 |
LA300,310 |
3 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-B2030 |
LA300,310 |
4 | ||
| 72157-B2030 |
LA300,310 |
3 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 71441-B2010 |
LA300,310 |
2 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 71441-B2010 |
LA300,310 |
2 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 71441-B2010 |
LA300,310 |
2 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 71441-B2010 |
LA300,310 |
2 | ||

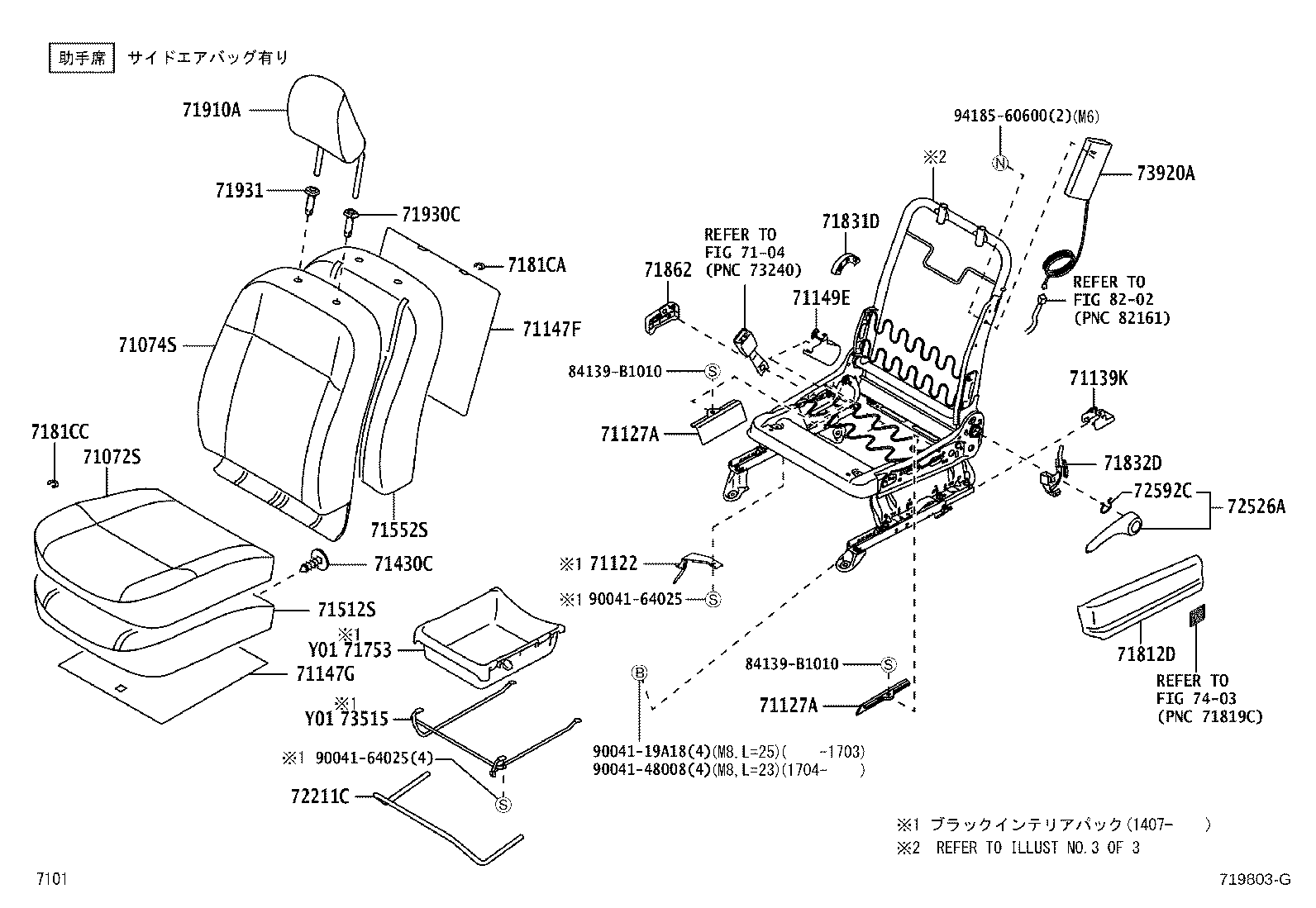

(1204- )G,GF
ｼﾞｮｼｭｾｷ,ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B2740E0 |
LA300,310 BEIGE,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B2U20E0 |
LA300,310..G,GF BEIGE,TRIM1# |
1 | ||
| 71074-B2U10E0 |
LA300,310..D,L,LF,X,XF BEIGE,TRIM1# |
1 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71127-BZ010 |
LA300,310 |
2 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71127-BZ010 |
LA300,310 |
2 | ||
| 71139K - COVER, FRONT SEAT LEG, LH(FOR LH SEAT) | ||||
| 71139-B2160B0 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B2030 |
LA300,310 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
LA300,310 |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71149-B2330B0 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71430C - CLIP | ||||
| 90044-68185B1 |
LA300,310..G,GF DK.GRAY |
7 | ||
| 90044-68185B1 |
LA300,310..D,L,LF,X,XF DK.GRAY |
6 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-B2830 |
LA300,310 PNC.71127A無し |
1 | ||
| 71501-B2831 |
LA300,310 PNC.71127A有り |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B2A40 |
LA300,310..G,GF |
1 | ||
| 71506-B2A30 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B2290B0 |
LA300,310..D,L,LF,X,XF WARM GRAY,TRIM1# |
1 | ||
| 71812-B2380B0 |
LA300,310..G,GF WARM GRAY,TRIM1# |
1 | ||
| 7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
LA300,310 |
3 | ||
| 7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
LA300,310 |
3 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71832-B2110B1 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-B2120B1 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B2100B0 |
LA300,310 WARM GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B2B70E0 |
LA300,310 BEIGE,TRIM1# |
2 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-B2010E0 |
LA300,310 BEIGE,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-B2010E0 |
LA300,310 ﾛｯｸ無,BEIGE,TRIM1# |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2100 |
LA300,310 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B2080B0 |
LA300,310 WARM GRAY,TRIM1# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
LA300,310 |
2 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-B1010 |
LA300,310..G,GF |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-19A18 | ||||
| 90041-48008 | ||||
| 90041-64025 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
| 8202 | ||||

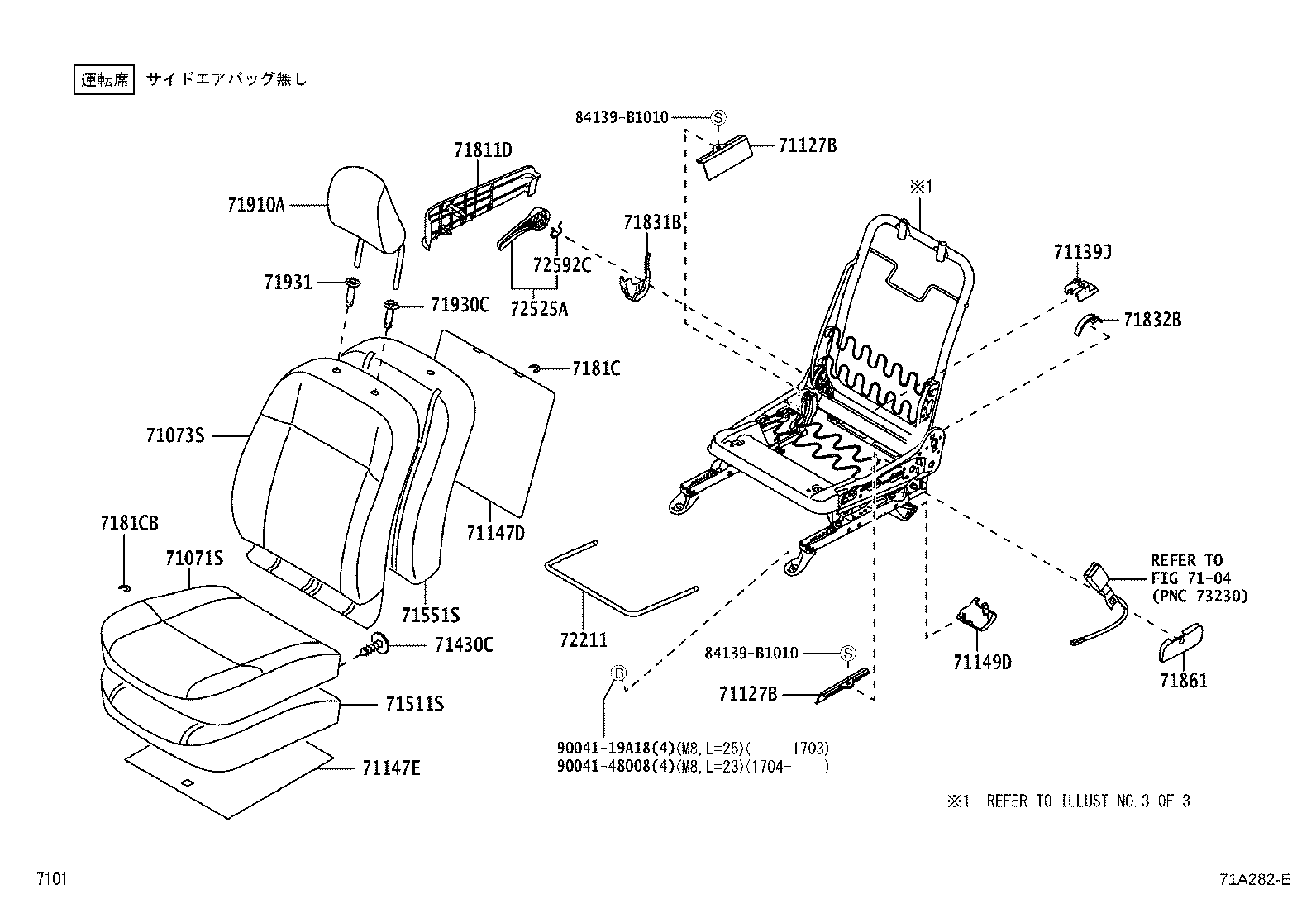

(1204- )D,L,LF,X,XF
ｳﾝﾃﾝｾｷ,ﾅｼ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B2G40E0 |
LA300,310..D,L,LF,X,XF BEIGE,TRIM1# |
1 | ||
| 71071-B2J30E0 |
LA300,310..G,GF BEIGE,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-B2710E0 |
LA300,310..G,GF BEIGE,TRIM1# |
1 | ||
| 71027-B2700E0 |
LA300,310..D,L,LF,X,XF BEIGE,TRIM1# |
1 | ||
| 71127B - PLATE, FR SEAT CUSHION PROTECTOR SET | ||||
| 71127-BZ010 |
LA300,310 |
2 | ||
| 71127B - PLATE, FR SEAT CUSHION PROTECTOR SET | ||||
| 71127-BZ010 |
LA300,310 |
2 | ||
| 71139J - COVER, FRONT SEAT LEG, RH(FOR RH SEAT) | ||||
| 71139-B2160B0 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B2030 |
LA300,310 |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
LA300,310 |
1 | ||
| 71149D - COVER, FRONT SEAT LEG, INNER (FOR RH SEAT) | ||||
| 71149-B2320B0 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71430C - CLIP | ||||
| 90044-68185B1 |
LA300,310..G,GF DK.GRAY |
7 | ||
| 90044-68185B1 |
LA300,310..D,L,LF,X,XF DK.GRAY |
6 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B2830 |
LA300,310 PNC.71127B無し |
1 | ||
| 71501-B2831 |
LA300,310 PNC.71127B有り |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B2A60 |
LA300,310..G,GF |
1 | ||
| 71505-B2A50 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B2430B0 |
LA300,310..G,GF WARM GRAY,TRIM1# |
1 | ||
| 71811-B2420B0 |
LA300,310..D,L,LF,X,XF WARM GRAY,TRIM1# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
LA300,310 |
3 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
LA300,310 |
3 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B2110B1 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2110B1 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B2150B0 |
LA300,310..G,GF WARM GRAY,TRIM1# |
1 | ||
| 71861-B2140B0 |
LA300,310..D,L,LF,X,XF WARM GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B2B70E0 |
LA300,310 BEIGE,TRIM1# |
2 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-B2010E0 |
LA300,310 BEIGE,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-B2010E0 |
LA300,310 ﾛｯｸ無,BEIGE,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2090 |
LA300,310 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B2080B0 |
LA300,310 WARM GRAY,TRIM1# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
LA300,310 |
2 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-19A18 | ||||
| 90041-48008 | ||||
| Linked diagrams | ||||
| 7104 | ||||

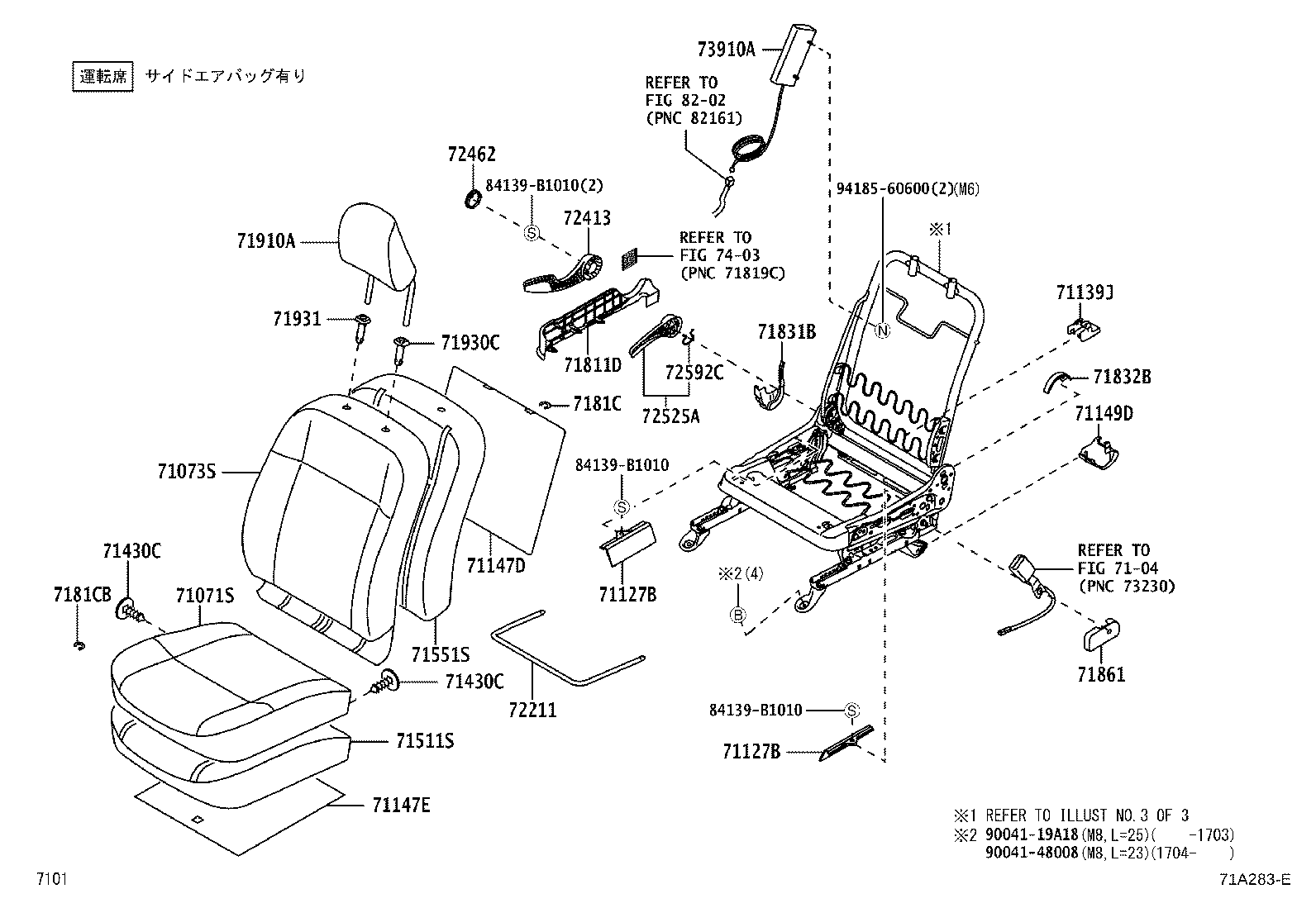

(1204- )G,GF
ｳﾝﾃﾝｾｷ,ｱﾘ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-B2G40E0 |
LA300,310..D,L,LF,X,XF BEIGE,TRIM1# |
1 | ||
| 71071-B2J30E0 |
LA300,310..G,GF BEIGE,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-B2710E0 |
LA300,310..G,GF BEIGE,TRIM1# |
1 | ||
| 71027-B2700E0 |
LA300,310..D,L,LF,X,XF BEIGE,TRIM1# |
1 | ||
| 71127B - PLATE, FR SEAT CUSHION PROTECTOR SET | ||||
| 71127-BZ010 |
LA300,310 |
2 | ||
| 71127B - PLATE, FR SEAT CUSHION PROTECTOR SET | ||||
| 71127-BZ010 |
LA300,310 |
2 | ||
| 71139J - COVER, FRONT SEAT LEG, RH(FOR RH SEAT) | ||||
| 71139-B2160B0 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71147D - SILENCER, SEAT SPRING, RH(FOR SEAT BACK) | ||||
| 71147-B2030 |
LA300,310 |
1 | ||
| 71147E - SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
LA300,310 |
1 | ||
| 71149D - COVER, FRONT SEAT LEG, INNER (FOR RH SEAT) | ||||
| 71149-B2320B0 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71430C - CLIP | ||||
| 90044-68185B1 |
LA300,310..G,GF DK.GRAY |
7 | ||
| 90044-68185B1 |
LA300,310..D,L,LF,X,XF DK.GRAY |
6 | ||
| 71430C - CLIP | ||||
| 90044-68185B1 |
LA300,310..G,GF DK.GRAY |
7 | ||
| 90044-68185B1 |
LA300,310..D,L,LF,X,XF DK.GRAY |
6 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-B2830 |
LA300,310 PNC.71127B無し |
1 | ||
| 71501-B2831 |
LA300,310 PNC.71127B有り |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-B2A60 |
LA300,310..G,GF |
1 | ||
| 71505-B2A50 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-B2430B0 |
LA300,310..G,GF WARM GRAY,TRIM1# |
1 | ||
| 71811-B2420B0 |
LA300,310..D,L,LF,X,XF WARM GRAY,TRIM1# |
1 | ||
| 7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
LA300,310 |
3 | ||
| 7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
LA300,310 |
3 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-B2110B1 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-B2110B1 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-B2150B0 |
LA300,310..G,GF WARM GRAY,TRIM1# |
1 | ||
| 71861-B2140B0 |
LA300,310..D,L,LF,X,XF WARM GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B2B70E0 |
LA300,310 BEIGE,TRIM1# |
2 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-B2010E0 |
LA300,310 BEIGE,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-B2010E0 |
LA300,310 ﾛｯｸ無,BEIGE,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-B2090 |
LA300,310 |
1 | ||
| 72413 - LEVER, VERTICAL ADJUSTER LOCK | ||||
| 72413-B2110B0 |
LA300,310..G,GF WARM GRAY,TRIM1# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-B2080B1 |
LA300,310..G,GF WARM GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-B2080B0 |
LA300,310 WARM GRAY,TRIM1# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
LA300,310 |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-B1010 |
LA300,310..G,GF |
1 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-19A18 | ||||
| 90041-48008 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7403 | ||||
| 8202 | ||||

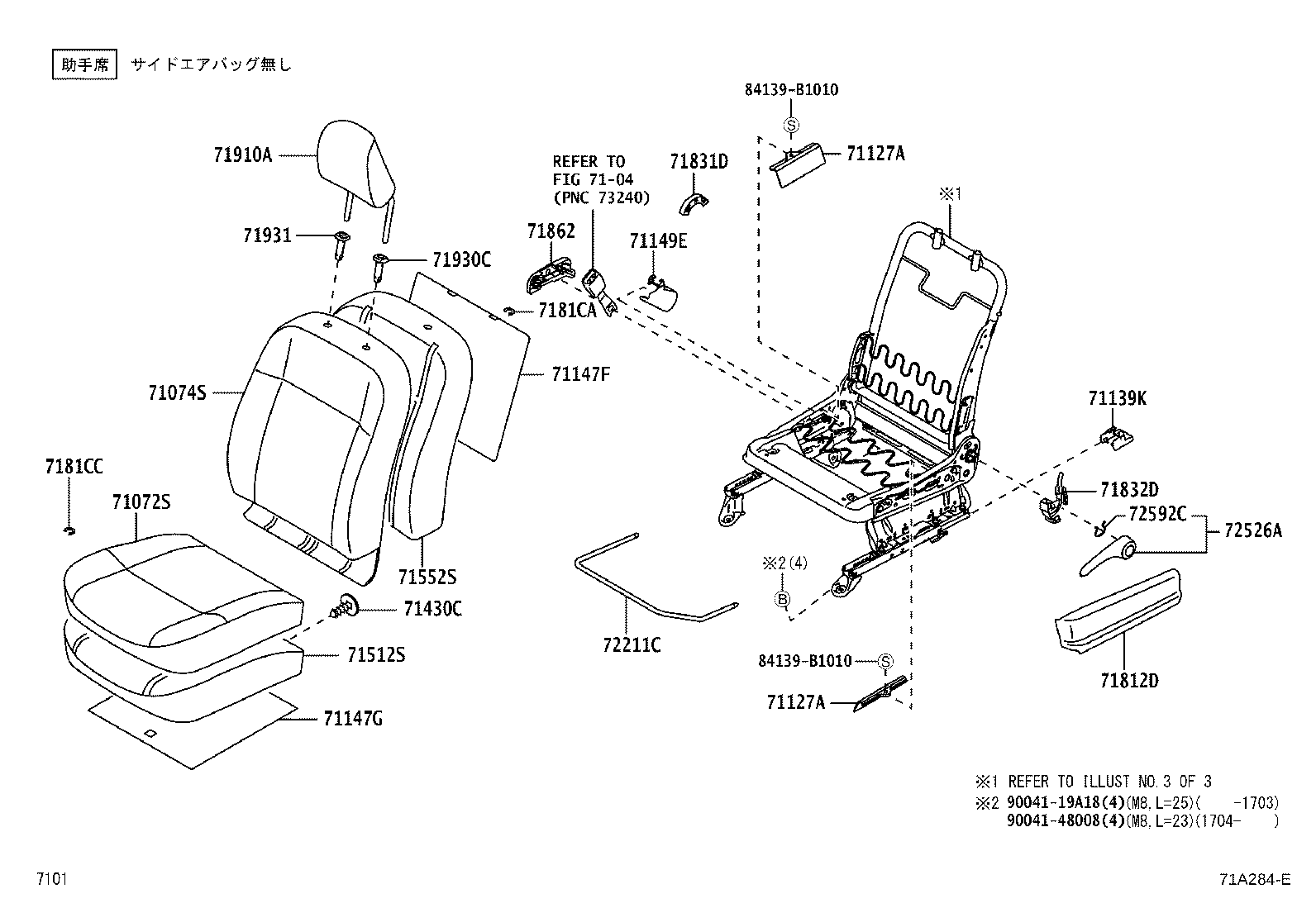

(1204- )D,L,LF,X,XF
ｼﾞｮｼｭｾｷ,ﾅｼ(ｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-B2740E0 |
LA300,310 BEIGE,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-B2U20E0 |
LA300,310..G,GF BEIGE,TRIM1# |
1 | ||
| 71074-B2U10E0 |
LA300,310..D,L,LF,X,XF BEIGE,TRIM1# |
1 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71127-BZ010 |
LA300,310 |
2 | ||
| 71127A - PLATE, FR0NT SEAT CUSHION COVER SET | ||||
| 71127-BZ010 |
LA300,310 |
2 | ||
| 71139K - COVER, FRONT SEAT LEG, LH(FOR LH SEAT) | ||||
| 71139-B2160B0 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71147F - SILENCER, SEAT SPRING, LH(FOR SEAT BACK) | ||||
| 71147-B2030 |
LA300,310 |
1 | ||
| 71147G - SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION) | ||||
| 71147-B1020 |
LA300,310 |
1 | ||
| 71149E - COVER, FRONT SEAT LEG, INNER (FOR LH SEAT) | ||||
| 71149-B2330B0 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71430C - CLIP | ||||
| 90044-68185B1 |
LA300,310..G,GF DK.GRAY |
7 | ||
| 90044-68185B1 |
LA300,310..D,L,LF,X,XF DK.GRAY |
6 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-B2830 |
LA300,310 PNC.71127A無し |
1 | ||
| 71501-B2831 |
LA300,310 PNC.71127A有り |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-B2A40 |
LA300,310..G,GF |
1 | ||
| 71506-B2A30 |
LA300,310..D,L,LF,X,XF |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-B2290B0 |
LA300,310..D,L,LF,X,XF WARM GRAY,TRIM1# |
1 | ||
| 71812-B2380B0 |
LA300,310..G,GF WARM GRAY,TRIM1# |
1 | ||
| 7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK) | ||||
| 71812-87201 |
LA300,310 |
3 | ||
| 7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION) | ||||
| 71812-87201 |
LA300,310 |
3 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71832-B2110B1 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-B2120B1 |
LA300,310 DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-B2100B0 |
LA300,310 WARM GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-B2B70E0 |
LA300,310 BEIGE,TRIM1# |
2 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-B2010E0 |
LA300,310 BEIGE,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-B2010E0 |
LA300,310 ﾛｯｸ無,BEIGE,TRIM1# |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72212-B2100 |
LA300,310 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-B2080B0 |
LA300,310 WARM GRAY,TRIM1# |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90520-01002 |
LA300,310 |
2 | ||
| Common parts | ||||
| 84139-B1010 | ||||
| 90041-19A18 | ||||
| 90041-48008 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
