Toyota Pixis epoch LA300A LOCK CYLINDER SET

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

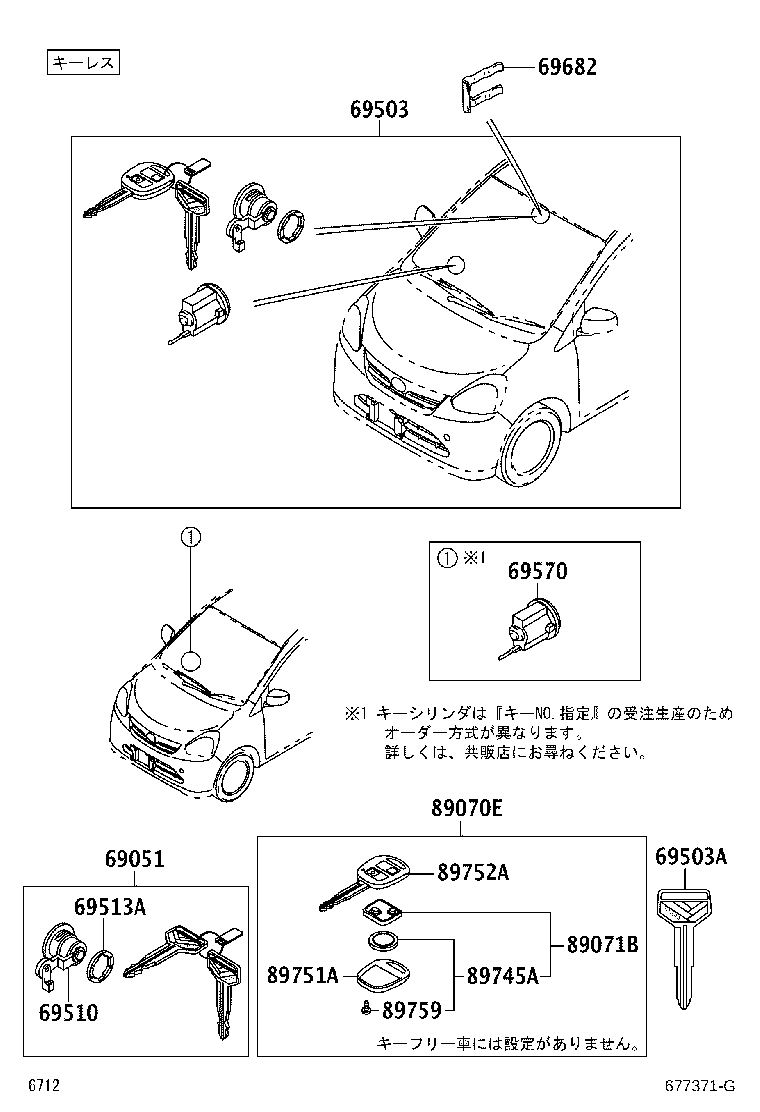

(1204-1307)G,GF,L,LF,X,XF ; (1307- )L,LF,X,XF

Click highlighted areas on diagram

ｷｰﾚｽ

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-B2280	LA300,310	04/2012 - 07/2013	1
69005-B2C30	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
69503 - CYLINDER SET, LOCK
69005-B2C20	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
69005-B2C40	LA300,310..D,L,LF	04/2012 - 07/2013	1
69005-B2C20	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
69005-B2C30	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
69503A - KEY, BLANK
90999-00153	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
90999-00153	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
90999-00153	LA300,310..D,L,LF	04/2012 - 07/2013	2
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-97205	LA300,310	04/2012 - 07/2013	1
69513A - PAD, DOOR CYLINDER
69513-87201	LA300,310	04/2012 - 07/2013	1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-B2040	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
69570-B2040	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
GAITO-UNASI	LA300,310..G,GF,X,XF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 12/2999	1
69570-B2040	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
69682 - RETAINER, LOCK CYLINDER
69682-97202	LA300,310	04/2012 - 07/2013	1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-B1022	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
89070-B1022	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89070-B1022	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
GAITO-UNASI	LA300,310..G,GF,X,XF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 12/2999	1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-B1021	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89071-B1021	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
89071-B1021	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
GAITO-UNASI	LA300,310..G,GF,X,XF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 12/2999	1
89745A - BATTERY, TRANSMITTER
89745-B2010	LA300,310..G,GF,X,XF CR1616	04/2012 - 07/2013	1
89745-B2010	LA300,310..L,LF L−LTD,CR1616	10/2012 - 07/2013	1
89745-B2010	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,CR161U	04/2012 - 07/2013	1
89745-B2060	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,CR203Q	04/2012 - 07/2013	1
89751A - COVER, TRANSMITTER HOUSING
89751-B4020	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89751-B4020	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
89751-B4020	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
89752A - CASE, TRANSMITTER HOUSING
GAITO-UNASI	LA300,310..G,GF,X,XF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 12/2999	1
89752-B1010	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
89752-B1010	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
89752-B1010	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89759 - SCREW, DOOR CONTROL TRANSMITTER
89759-B2010	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89759-B2010	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
89759-B2010	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
GAITO-UNASI	LA300,310..G,GF,X,XF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 12/2999	1

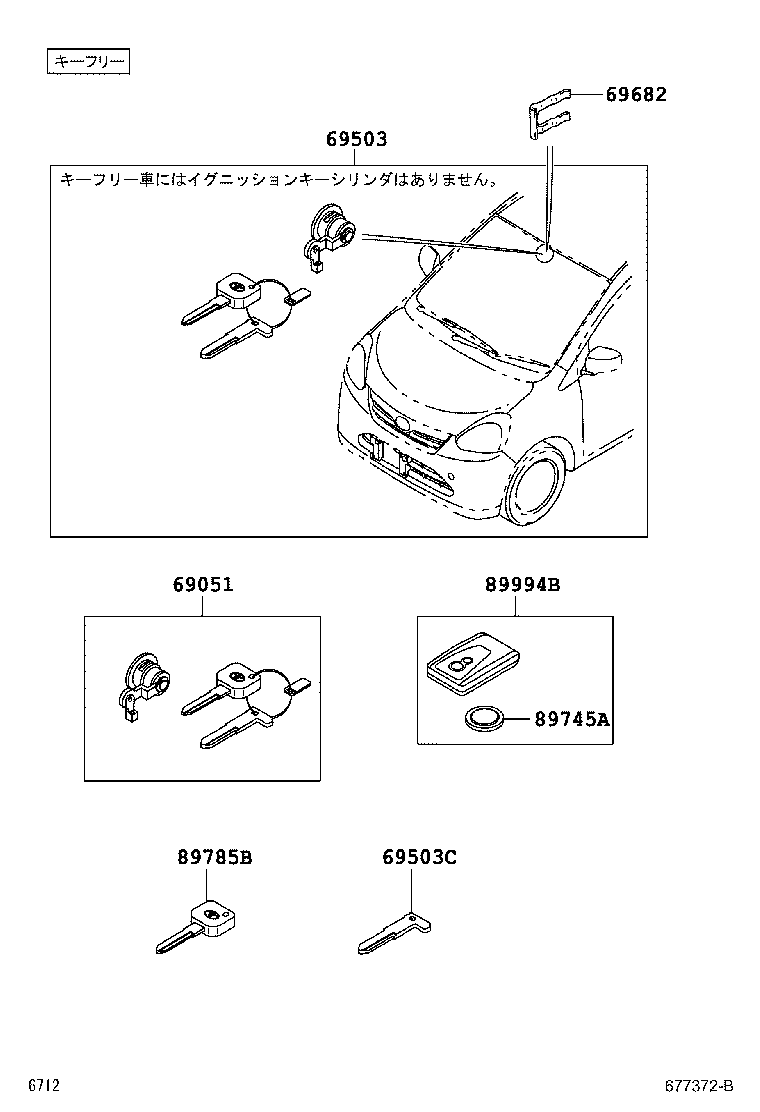

(1204- )G,GF

Click highlighted areas on diagram

ｷｰﾌﾘｰ

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-B2280	LA300,310	04/2012 - 07/2013	1
69005-B2C30	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
69503 - CYLINDER SET, LOCK
69005-B2C20	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
69005-B2C40	LA300,310..D,L,LF	04/2012 - 07/2013	1
69005-B2C20	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
69005-B2C30	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
69503C - KEY, SUB
69516-B2120	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
69682 - RETAINER, LOCK CYLINDER
69682-97202	LA300,310	04/2012 - 07/2013	1
89745A - BATTERY, TRANSMITTER
89745-B2010	LA300,310..G,GF,X,XF CR1616	04/2012 - 07/2013	1
89745-B2010	LA300,310..L,LF L−LTD,CR1616	10/2012 - 07/2013	1
89745-B2010	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,CR161U	04/2012 - 07/2013	1
89745-B2060	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,CR203Q	04/2012 - 07/2013	1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-B2130	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
89994B - TRANSMITTER, ELECTRICAL KEY
89994-B2170	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1

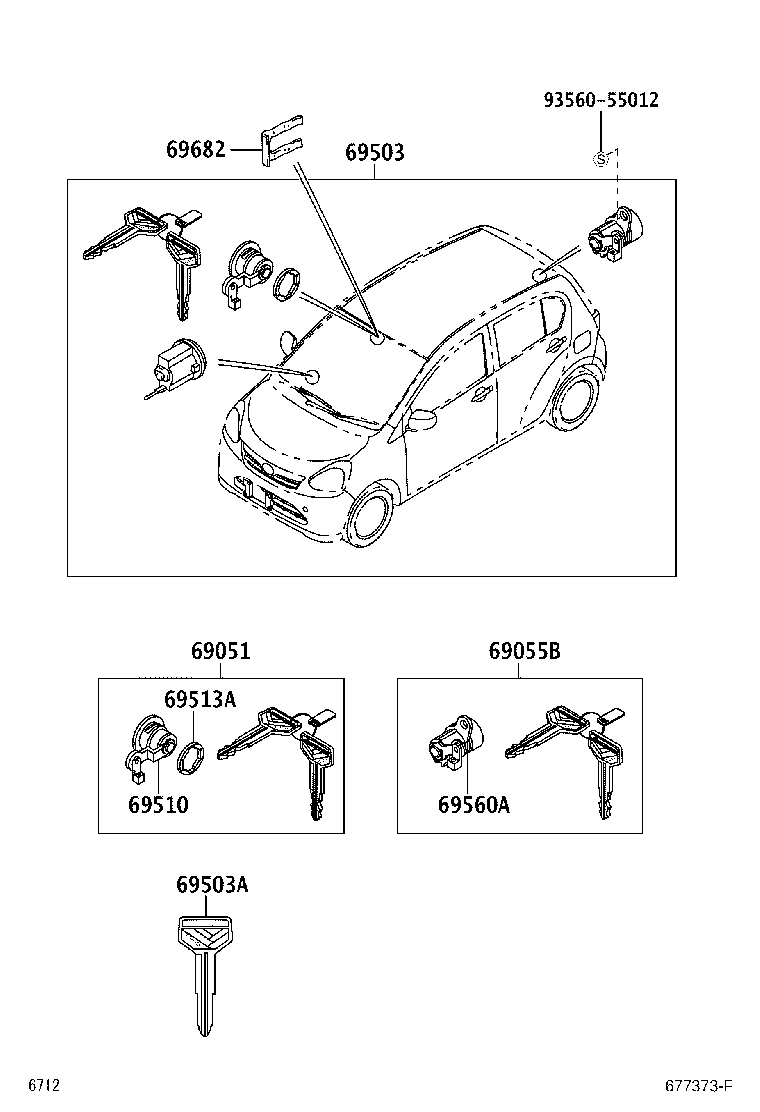

(1204-1307)D,L,LF ; (1307- )D

Click highlighted areas on diagram

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-B2280	LA300,310	04/2012 - 07/2013	1
69005-B2C30	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-B2190	LA300,310..D,L,LF	04/2012 - 07/2013	1
69503 - CYLINDER SET, LOCK
69005-B2C20	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
69005-B2C40	LA300,310..D,L,LF	04/2012 - 07/2013	1
69005-B2C20	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
69005-B2C30	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
69503A - KEY, BLANK
90999-00153	LA300,310..L,LF L−LTD	10/2012 - 07/2013	1
90999-00153	LA300,310..G,GF,X,XF	04/2012 - 07/2013	1
90999-00153	LA300,310..D,L,LF	04/2012 - 07/2013	2
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-97205	LA300,310	04/2012 - 07/2013	1
69513A - PAD, DOOR CYLINDER
69513-87201	LA300,310	04/2012 - 07/2013	1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-B2060	LA300,310..D,L,LF	04/2012 - 07/2013	1
69682 - RETAINER, LOCK CYLINDER
69682-97202	LA300,310	04/2012 - 07/2013	1
Common parts
93560-55012

LA300A-GBDF (2012)

(1204-1307)G,GF,L,LF,X,XF ; (1307- )L,LF,X,XF

(1204- )G,GF

(1204-1307)D,L,LF ; (1307- )D
