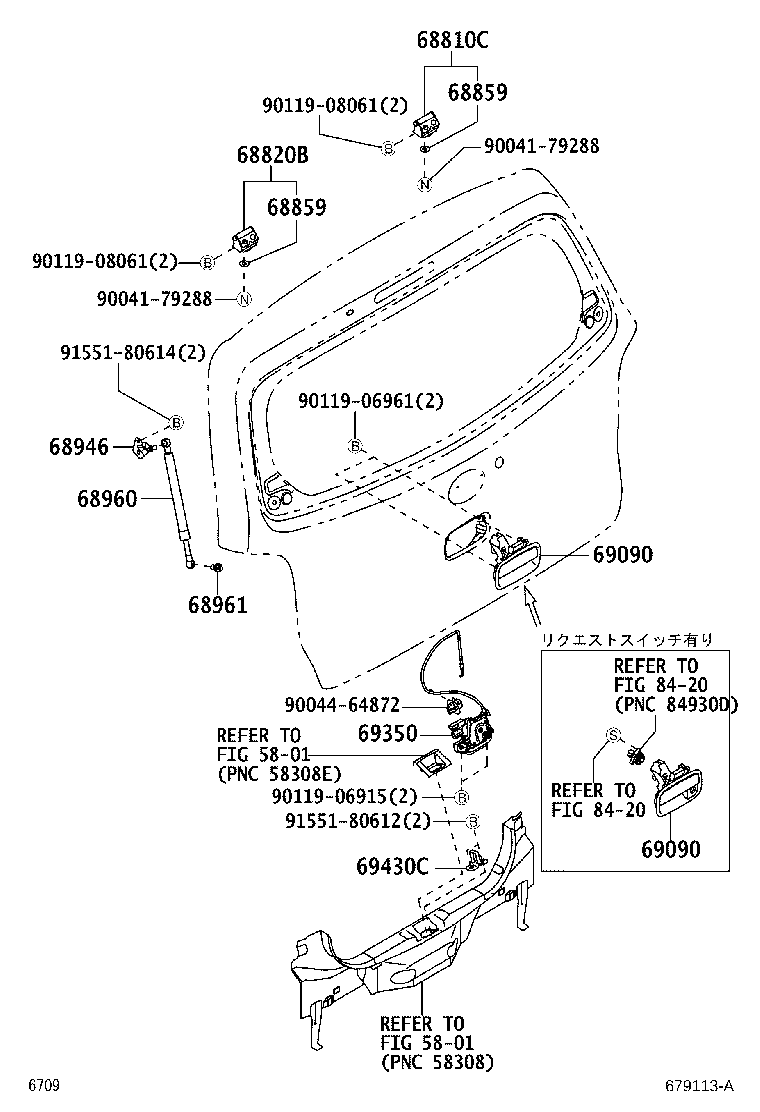

Toyota Pixis epoch LA300A BACK DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68810C - HINGE ASSY, BACK DOOR, RH
68801-B2070	LA300,310	04/2012 - 07/2013	1
68820B - HINGE ASSY, BACK DOOR, LH
68801-B2070	LA300,310	04/2012 - 07/2013	1
68859 - PACKING, BACK DOOR HINGE
68859-87201	LA300,310	04/2012 - 07/2013	2
68859 - PACKING, BACK DOOR HINGE
68859-87201	LA300,310	04/2012 - 07/2013	2
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-B2031	LA300,310	04/2012 - 07/2013	1
68960 - STAY ASSY, BACK DOOR, LH
68950-B2321	LA300,310	04/2012 - 07/2013	1
68961 - BOLT, BACK DOOR STAY
68459-87202	LA300,310	04/2012 - 07/2013	1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-B2300A1	LA300,310..G,GF,X,XF WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
69090-B2300C0	LA300,310..G,GF,X,XF BLACK M.M.,X07	04/2012 - 07/2013	1
69090-B2300E1	LA300,310..G,GF,X,XF LT.ROSE,T28	04/2012 - 07/2013	1
69090-B2300J0	LA300,310..G,GF,X,XF LT.BLUE,B73	04/2012 - 07/2013	1
69090-B2310A0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,WHITE,W09	04/2012 - 07/2013	1
69090-B2310A1	LA300..L WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
69090-B2300B0	LA300,310..G,GF,X,XF SILVER ME.,S28	04/2012 - 07/2013	1
69090-B2300D0	LA300,310..G,GF,X,XF BROWN MC.CS,R59	04/2012 - 07/2013	1
69090-B2310B0	LA300..L SILVER ME.,S28	04/2012 - 07/2013	1
69090-B2310C0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,BLACK M.M.,X07	04/2012 - 07/2013	1
69090-B2310A1	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
69090-B2310C0	LA300..D BLACK M.M.,W09	04/2012 - 07/2013	1
69090-B2310D0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,BROWN MC.CS,R59	04/2012 - 07/2013	1
69090-B2300A0	LA300,310..G,GF,X,XF WHITE,W09	04/2012 - 07/2013	1
69090-B2310E0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,IVORY,T19	04/2012 - 07/2013	1
69090-B2310D0	LA300..L BROWN MC.CS,R59	04/2012 - 07/2013	1
69090-B2310C0	LA300..L BLACK M.M.,X07	04/2012 - 07/2013	1
69090-B2310B0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,SILVER ME.,S28	04/2012 - 07/2013	1
69090-B2310E0	LA300..L IVORY,T19	04/2012 - 07/2013	1
69090-B2300E0	LA300,310..G,GF,X,XF IVORY,T19	04/2012 - 07/2013	1
69090-B2310A0	LA300..L WHITE,W09	04/2012 - 07/2013	1
69090-B2300A0	LA300..L L−LTD,WHITE,W09	10/2012 - 07/2013	1
69090-B2310E1	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,LT.ROSE,T28	04/2012 - 07/2013	1
69090-B2300D0	LA300..L L−LTD,BROWN MC.CS,R59	10/2012 - 07/2013	1
69090-B2310J0	LA300..L LT.BLUE,B73	04/2012 - 07/2013	1
69090-B2300C0	LA300..L L−LTD,BLACK M.M.,X07	10/2012 - 07/2013	1
69090-B2310J0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,LT.BLUE,B73	04/2012 - 07/2013	1
69090-B2300E0	LA300..L L−LTD,IVORY,T19	10/2012 - 07/2013	1
69090-B2300J0	LA300..L L−LTD,LT.BLUE,B73	10/2012 - 07/2013	1
69090-B2310E1	LA300..L LT.ROSE,T28	04/2012 - 07/2013	1
69090-B2300E2	LA300..L L−LTD,LT.ROSE M.M.,T22	10/2012 - 07/2013	1
69090-B2300A1	LA300..L L−LTD,WHITE PEARL MC.CS,W24	10/2012 - 07/2013	1
69090-B2300B0	LA300..L L−LTD,SILVER ME.,S28	10/2012 - 07/2013	1
69090-B2300J1	LA300..L L−LTD,DK.PURPLISH BLUE ME.CS,B70	10/2012 - 07/2013	1
69090 - HANDLE ASSY, BACK DOOR, OUTSIDE
69090-B2300A1	LA300,310..G,GF,X,XF WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
69090-B2300C0	LA300,310..G,GF,X,XF BLACK M.M.,X07	04/2012 - 07/2013	1
69090-B2300E1	LA300,310..G,GF,X,XF LT.ROSE,T28	04/2012 - 07/2013	1
69090-B2300J0	LA300,310..G,GF,X,XF LT.BLUE,B73	04/2012 - 07/2013	1
69090-B2310A0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,WHITE,W09	04/2012 - 07/2013	1
69090-B2310A1	LA300..L WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
69090-B2300B0	LA300,310..G,GF,X,XF SILVER ME.,S28	04/2012 - 07/2013	1
69090-B2300D0	LA300,310..G,GF,X,XF BROWN MC.CS,R59	04/2012 - 07/2013	1
69090-B2310B0	LA300..L SILVER ME.,S28	04/2012 - 07/2013	1
69090-B2310C0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,BLACK M.M.,X07	04/2012 - 07/2013	1
69090-B2310A1	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
69090-B2310C0	LA300..D BLACK M.M.,W09	04/2012 - 07/2013	1
69090-B2310D0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,BROWN MC.CS,R59	04/2012 - 07/2013	1
69090-B2300A0	LA300,310..G,GF,X,XF WHITE,W09	04/2012 - 07/2013	1
69090-B2310E0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,IVORY,T19	04/2012 - 07/2013	1
69090-B2310D0	LA300..L BROWN MC.CS,R59	04/2012 - 07/2013	1
69090-B2310C0	LA300..L BLACK M.M.,X07	04/2012 - 07/2013	1
69090-B2310B0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,SILVER ME.,S28	04/2012 - 07/2013	1
69090-B2310E0	LA300..L IVORY,T19	04/2012 - 07/2013	1
69090-B2300E0	LA300,310..G,GF,X,XF IVORY,T19	04/2012 - 07/2013	1
69090-B2310A0	LA300..L WHITE,W09	04/2012 - 07/2013	1
69090-B2300A0	LA300..L L−LTD,WHITE,W09	10/2012 - 07/2013	1
69090-B2310E1	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,LT.ROSE,T28	04/2012 - 07/2013	1
69090-B2300D0	LA300..L L−LTD,BROWN MC.CS,R59	10/2012 - 07/2013	1
69090-B2310J0	LA300..L LT.BLUE,B73	04/2012 - 07/2013	1
69090-B2300C0	LA300..L L−LTD,BLACK M.M.,X07	10/2012 - 07/2013	1
69090-B2310J0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,LT.BLUE,B73	04/2012 - 07/2013	1
69090-B2300E0	LA300..L L−LTD,IVORY,T19	10/2012 - 07/2013	1
69090-B2300J0	LA300..L L−LTD,LT.BLUE,B73	10/2012 - 07/2013	1
69090-B2310E1	LA300..L LT.ROSE,T28	04/2012 - 07/2013	1
69090-B2300E2	LA300..L L−LTD,LT.ROSE M.M.,T22	10/2012 - 07/2013	1
69090-B2300A1	LA300..L L−LTD,WHITE PEARL MC.CS,W24	10/2012 - 07/2013	1
69090-B2300B0	LA300..L L−LTD,SILVER ME.,S28	10/2012 - 07/2013	1
69090-B2300J1	LA300..L L−LTD,DK.PURPLISH BLUE ME.CS,B70	10/2012 - 07/2013	1
69350 - LOCK ASSY, BACK DOOR
69350-B2300	LA300,310..G,GF,X,XF ﾓｰﾀｰ付き	04/2012 - 07/2013	1
69350-B2320	LA300..D ﾓｰﾀｰ無し	04/2012 - 07/2013	1
69350-B2310	LA300,310..L,LF ﾓｰﾀｰ付き	04/2012 - 07/2013	1
69350-B2300	LA300,310..L,LF L−LTD,ﾓｰﾀｰ付き	10/2012 - 07/2013	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-B2070	LA300,310	04/2012 - 07/2013	1
Common parts
90041-79288
90044-64872
90119-06915
90119-06961
90119-08061
91551-80612
91551-80614
Linked diagrams
5801
8420

LA300A-GBDF (2012)

(1204- )
