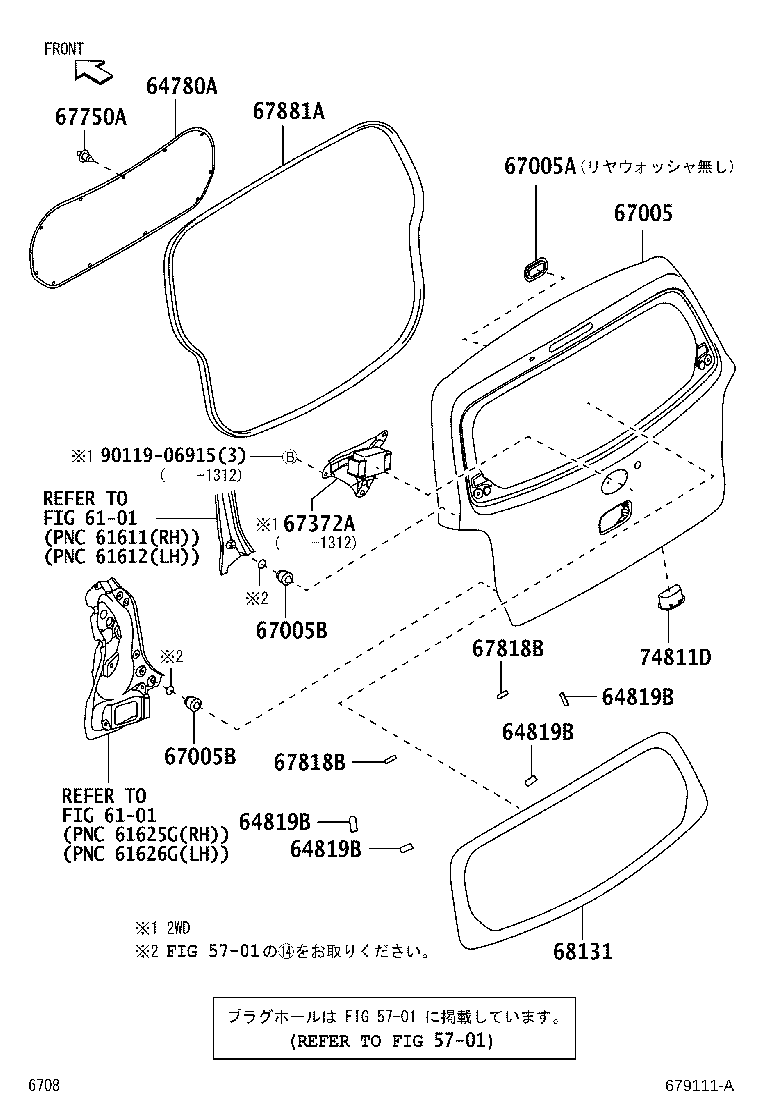

Toyota Pixis epoch LA300A BACK DOOR PANEL & GLASS

Part #	Description	Period	Qty
64780A - PANEL ASSY, BACK DOOR TRIM
64780-B2190B0	LA300,310 GRAY,TRIM1#	04/2012 - 07/2013	1
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-B2010	LA300,310	04/2012 - 07/2013	4
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-B2010	LA300,310	04/2012 - 07/2013	4
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-B2010	LA300,310	04/2012 - 07/2013	4
64819B - SPACER, BACK WINDOW GLASS, NO.2
64819-B2010	LA300,310	04/2012 - 07/2013	4
67005 - PANEL SUB-ASSY, BACK DOOR
67005-B2B41	LA300	04/2012 - 07/2013	1
67005-B2B71	LA300 寒冷地仕様	04/2012 - 07/2013	1
67005-B2B71	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
67005-B2B71	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
67005A - PLUG, HOLE(FOR BACK DOOR PANEL)
90044-80601	LA300	04/2012 - 07/2013	1
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41263	LA300,310	04/2012 - 07/2013	4
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41263	LA300,310	04/2012 - 07/2013	4
67372A - WEIGHT, BACK DOOR
67049-B2010	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
67049-B2010	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
67049-B2010	LA300	04/2012 - 07/2013	1
67049-B2010	LA300..G ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
67049-B2010	LA300 寒冷地仕様	04/2012 - 07/2013	1
67049-B2010	LA300..G 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW	04/2012 - 07/2013	1
67049-B2010	LA300 寒冷地仕様	04/2012 - 07/2013	1
67750A - CLIP(FOR BACK DOOR TRIM)
90044-67579B0	LA300,310 DK.GRAY,TRIM1#	04/2012 - 07/2013	11
67818B - SPACER, BACK WINDOW GLASS
64818-87704	LA300,310	04/2012 - 07/2013	2
67818B - SPACER, BACK WINDOW GLASS
64818-87704	LA300,310	04/2012 - 07/2013	2
67881A - WEATHERSTRIP, BACK DOOR
67881-B2190	LA300,310	04/2012 - 07/2013	1
68131 - GLASS, BACK DOOR
68105-B2270	LA300,310..D,L,LF,XF T=2.8,ｸﾞﾘｰﾝ	04/2012 - 07/2013	1
68105-B2280	LA300,310..G,GF,X T=2.8,ｽﾓｰｸ	04/2012 - 07/2013	1
74811D - HANDLE, DOOR PULL
74811-13010C0	LA300,310 BLACK,TRIM1#	04/2012 - 07/2013	1
Common parts
90119-06915
Linked diagrams
5701
6101

LA300A-GBDF (2012)

(1204- )
