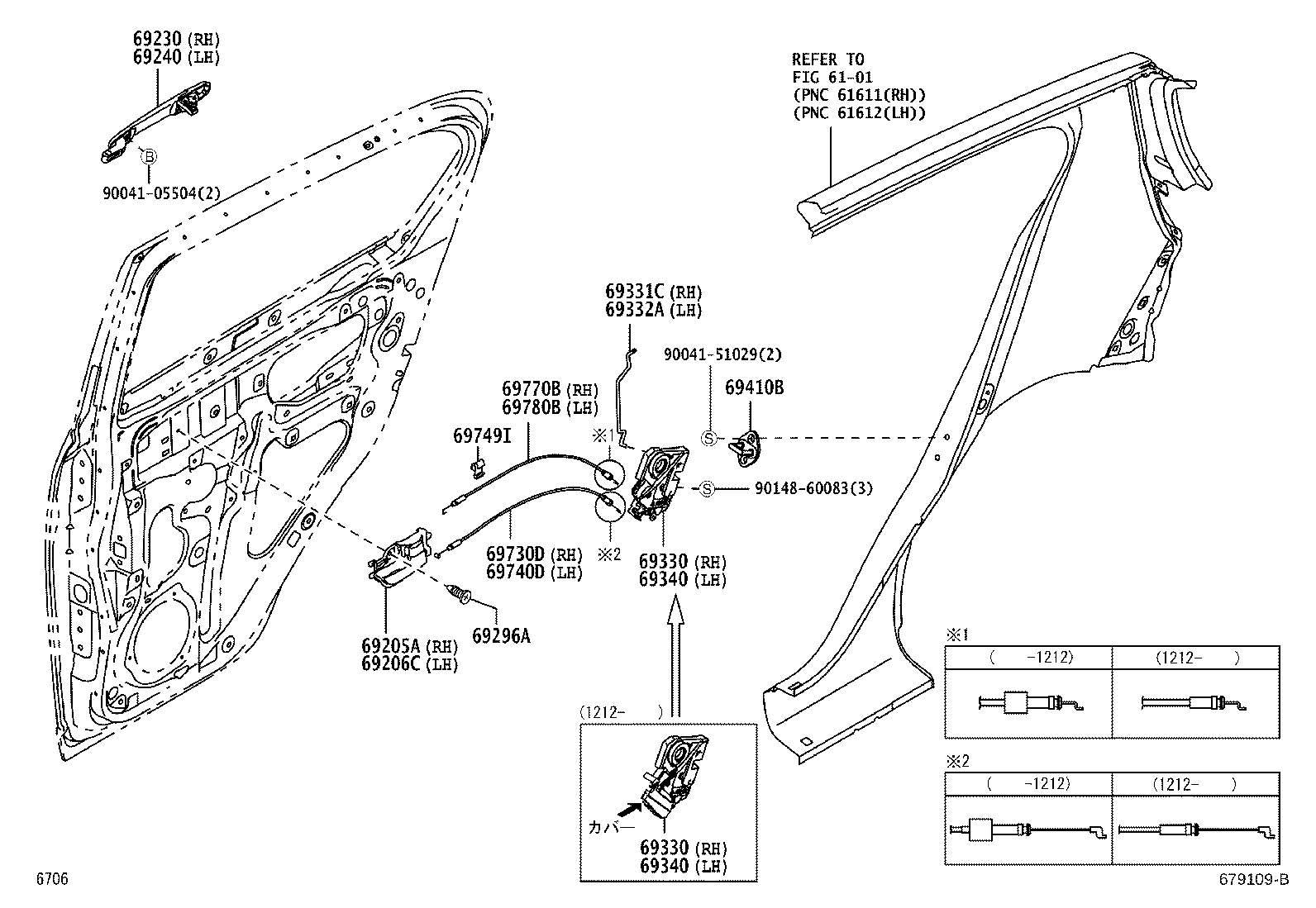

Toyota Pixis epoch LA300A REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69270-B2100B0	LA300,310..D,L,LF WARM GRAY,TRIM1#	04/2012 - 02/2013	1
69270-B2101B0	LA300,310..D,L,LF WARM GRAY,TRIM1#	03/2013 - 07/2013	1
69270-B2110B2	LA300,310..G,GF,X,XF WARM GRAY,TRIM1#	04/2012 - 04/2013	1
69270-B2111B2	LA300,310..G,GF,X,XF WARM GRAY,TRIM1#	05/2013 - 07/2013	1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69280-B2111B0	LA300,310..D,L,LF WARM GRAY,TRIM1#	03/2013 - 07/2013	1
69280-B2121B2	LA300,310..G,GF,X,XF WARM GRAY,TRIM1#	05/2013 - 07/2013	1
69280-B2110B0	LA300,310..D,L,LF WARM GRAY,TRIM1#	04/2012 - 02/2013	1
69280-B2120B2	LA300,310..G,GF,X,XF WARM GRAY,TRIM1#	04/2012 - 04/2013	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-B2340B0	LA300,310..L,X,XF SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69210-B2430C1	LA300..D PAINT BLACK DUMMYCOLOR,W09	04/2012 - 07/2013	1
69210-B2340B0	LA300,310..G,GF SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-B2410C1	LA300..D PAINT BLACK DUMMYCOLOR,W09	04/2012 - 07/2013	1
69220-B2320B0	LA300,310..G,GF SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69220-B2320B0	LA300,310..L,X,XF SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69296A - SCREW, DOOR INSIDE HANDLE
90041-67041	LA300,310	04/2012 - 07/2013	2
69330 - LOCK ASSY, REAR DOOR, RH
69330-B2180	LA300,310..G,GF,L,LF,X,XF ｶﾊﾞｰ無し,ﾓｰﾀｰ付き	04/2012 - 12/2012	1
69330-B2181	LA300,310..G,GF,L,LF,X,XF ｶﾊﾞｰ付き,ﾓｰﾀｰ付き	12/2012 - 07/2013	1
69330-B2190	LA300..D ｶﾊﾞｰ無し,ﾓｰﾀｰ無し	04/2012 - 12/2012	1
69330-B2191	LA300..D ｶﾊﾞｰ付き,ﾓｰﾀｰ無し	12/2012 - 07/2013	1
69330 - LOCK ASSY, REAR DOOR, RH
69330-B2180	LA300,310..G,GF,L,LF,X,XF ｶﾊﾞｰ無し,ﾓｰﾀｰ付き	04/2012 - 12/2012	1
69330-B2181	LA300,310..G,GF,L,LF,X,XF ｶﾊﾞｰ付き,ﾓｰﾀｰ付き	12/2012 - 07/2013	1
69330-B2190	LA300..D ｶﾊﾞｰ無し,ﾓｰﾀｰ無し	04/2012 - 12/2012	1
69330-B2191	LA300..D ｶﾊﾞｰ付き,ﾓｰﾀｰ無し	12/2012 - 07/2013	1
69331C - ROD, REAR DOOR LOCK OPEN, RH
69331-B2100	LA300,310	04/2012 - 07/2013	1
69332A - ROD, REAR DOOR LOCK OPEN, LH
69332-B2100	LA300,310	04/2012 - 07/2013	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-B2191	LA300..D ｶﾊﾞｰ付き,ﾓｰﾀｰ無し	12/2012 - 07/2013	1
69340-B2181	LA300,310..G,GF,L,LF,X,XF ｶﾊﾞｰ付き,ﾓｰﾀｰ付き	12/2012 - 07/2013	1
69340-B2190	LA300..D ｶﾊﾞｰ無し,ﾓｰﾀｰ無し	04/2012 - 12/2012	1
69340-B2180	LA300,310..G,GF,L,LF,X,XF ｶﾊﾞｰ無し,ﾓｰﾀｰ付き	04/2012 - 12/2012	1
69340 - LOCK ASSY, REAR DOOR, LH
69340-B2191	LA300..D ｶﾊﾞｰ付き,ﾓｰﾀｰ無し	12/2012 - 07/2013	1
69340-B2181	LA300,310..G,GF,L,LF,X,XF ｶﾊﾞｰ付き,ﾓｰﾀｰ付き	12/2012 - 07/2013	1
69340-B2190	LA300..D ｶﾊﾞｰ無し,ﾓｰﾀｰ無し	04/2012 - 12/2012	1
69340-B2180	LA300,310..G,GF,L,LF,X,XF ｶﾊﾞｰ無し,ﾓｰﾀｰ付き	04/2012 - 12/2012	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-B2020	LA300,310	04/2012 - 07/2013	2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-B2180	LA300,310	04/2012 - 12/2012	1
69730-B2181	LA300,310	12/2012 - 07/2013	1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-B2180	LA300,310	04/2012 - 12/2012	1
69730-B2181	LA300,310	12/2012 - 07/2013	1
69749I - CLAMP, DOOR LOCK LINK
69749-32040	LA300,310	04/2012 - 07/2013	2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-B2170	LA300,310	04/2012 - 12/2012	1
69770-B2171	LA300,310	12/2012 - 07/2013	1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-B2161	LA300,310	12/2012 - 07/2013	1
69780-B2160	LA300,310	04/2012 - 12/2012	1
Common parts
90041-05504
90041-51029
90148-60083
Linked diagrams
6101

LA300A-GBDF (2012)

(1204- )
