LA300A-GBDF (2012)
Toyota Pixis Epoch

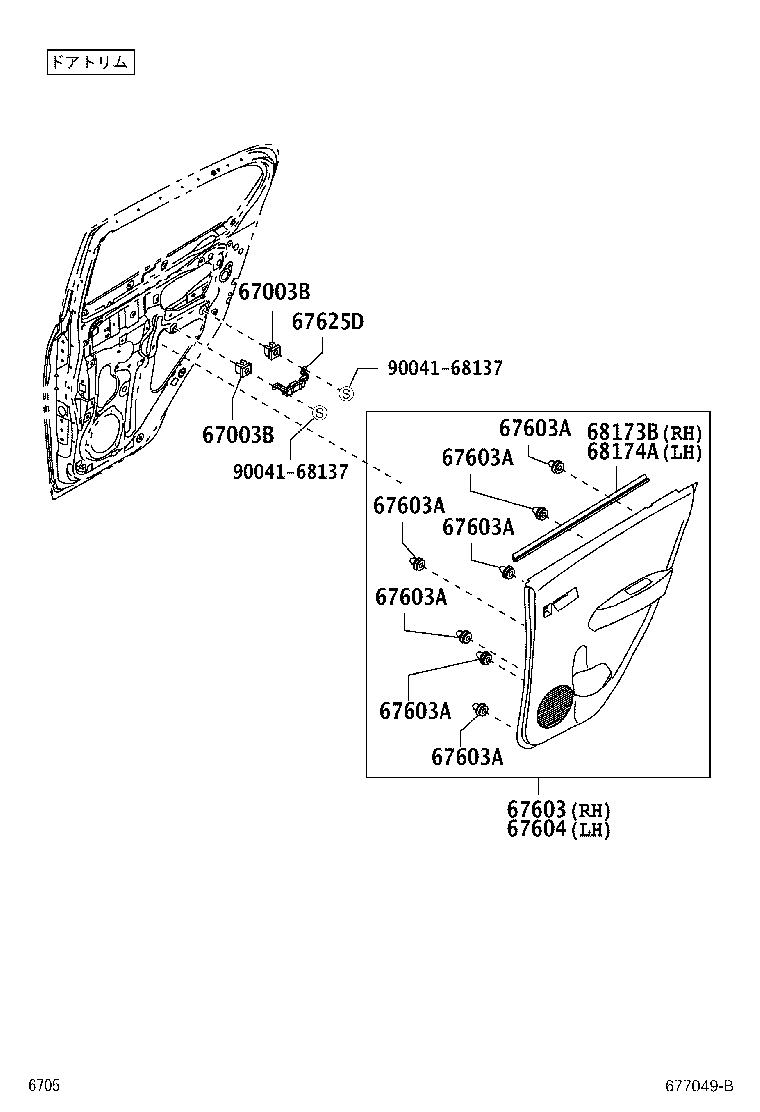

ILLUST NO. 2 OF 3(1204- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003B - GROMMET(FOR REAR DOOR PANEL) | ||||
| 90041-89019 |
LA300,310 |
4 | ||
| 67003B - GROMMET(FOR REAR DOOR PANEL) | ||||
| 90041-89019 |
LA300,310 |
4 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-B2490B0 |
LA300,310 WARM GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2010 |
LA300,310 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2010 |
LA300,310 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2010 |
LA300,310 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2010 |
LA300,310 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2010 |
LA300,310 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2010 |
LA300,310 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2010 |
LA300,310 |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-B2500B0 |
LA300,310 WARM GRAY,TRIM1# |
1 | ||
| 67625D - BRACKET, REAR DOOR TRIM | ||||
| 67625-97201 |
LA300,310 |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-B2150 |
LA300,310 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-B2150 |
LA300,310 |
1 | ||
| Common parts | ||||
| 90041-68137 | ||||

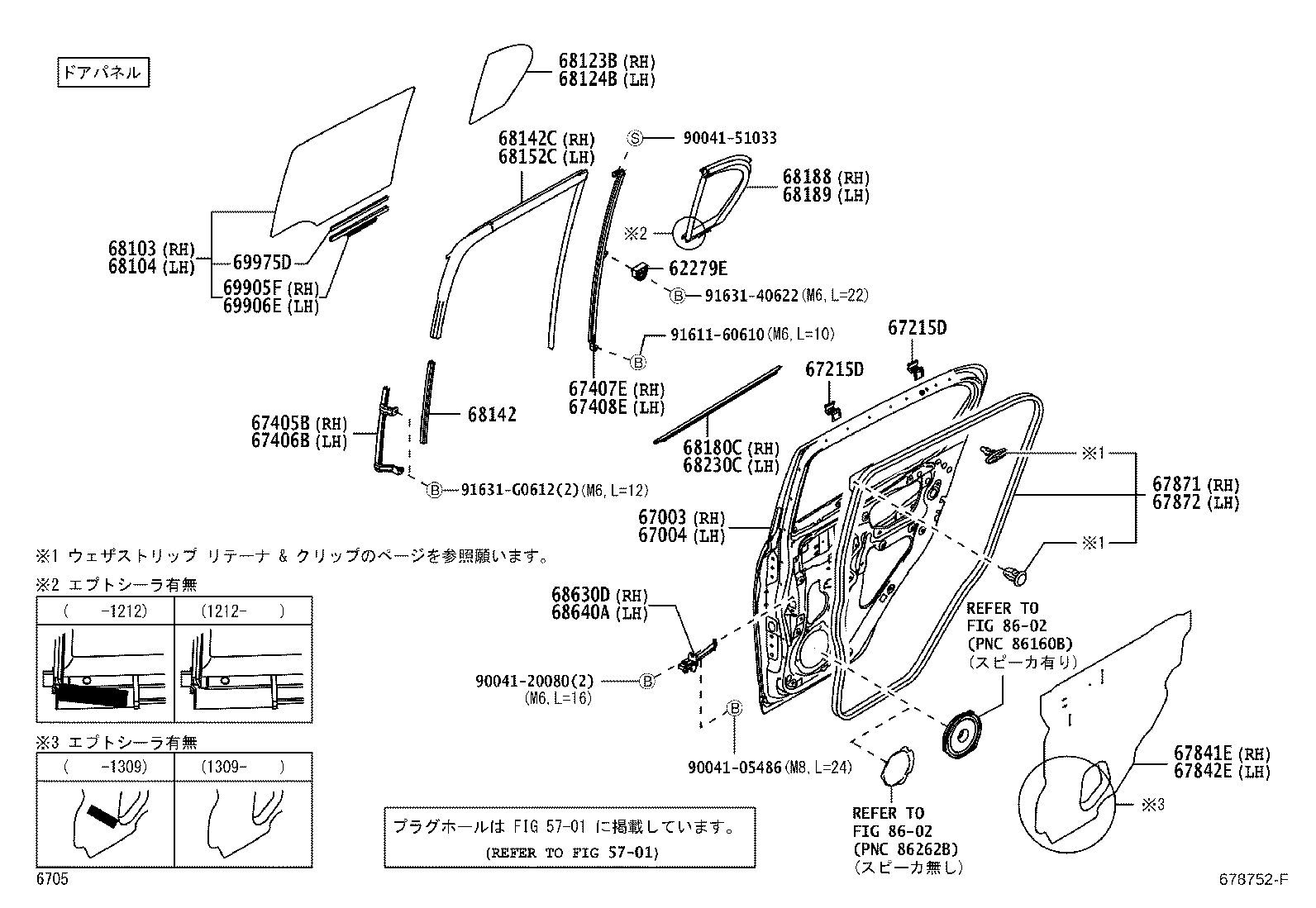

ILLUST NO. 1 OF 3(1204- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-B2010 |
LA300,310 |
2 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-B2191 |
LA300,310 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-B2191 |
LA300,310 |
1 | ||
| 67215D - STOP, REAR DOOR WINDOW, UPPER | ||||
| 67216-B2190 |
LA300,310 |
4 | ||
| 67215D - STOP, REAR DOOR WINDOW, UPPER | ||||
| 67216-B2190 |
LA300,310 |
4 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-B2100 |
LA300,310 |
1 | ||
| 67405-B2101 |
LA300,310 |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-B2090 |
LA300,310 |
1 | ||
| 67406-B2091 |
LA300,310 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-B2161 |
LA300,310 |
1 | ||
| 67407-B2160 |
LA300,310 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-B2160 |
LA300,310 |
1 | ||
| 67408-B2161 |
LA300,310 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-B2330 |
LA300,310 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-B2330 |
LA300,310 |
1 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-B2120 |
LA300,310 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-B2120 |
LA300,310 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-BW020 |
LA300,310..G,GF,X 厚さ=3.1,ｽﾓｰｸ |
1 | ||
| 68103-BW010 |
LA300,310..D,L,LF,XF 厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-BW020 |
LA300,310..G,GF,X 厚さ=3.1,ｽﾓｰｸ |
1 | ||
| 68104-BW010 |
LA300,310..D,L,LF,XF 厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-BW020 |
LA300,310..G,GF,X 厚さ=3.1 ｽﾓｰｸ |
1 | ||
| 68123-BW010 |
LA300,310..D,L,LF,XF 厚さ=3.1 ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-BW020 |
LA300,310..G,GF,X 厚さ=3.1,ｽﾓｰｸ |
1 | ||
| 68124-BW010 |
LA300,310..D,L,LF,XF 厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68144-B2100 |
LA300,310 |
2 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-B2180 |
LA300,310 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-B2170 |
LA300,310 |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68163-B2170 |
LA300,310 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-B2090 |
LA300,310 |
1 | ||
| 68188-B2091 |
LA300,310 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-B2090 |
LA300,310 |
1 | ||
| 68189-B2091 |
LA300,310 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68164-B2170 |
LA300,310 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-B2111 |
LA300,310 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-B2111 |
LA300,310 |
1 | ||
| 69905F - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-B2020 |
LA300,310 |
1 | ||
| 69906E - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-B2020 |
LA300,310 |
1 | ||
| 69975D - FILLER, REAR DOOR GLASS CHANNAL | ||||
| 69975-87702 |
LA300,310 |
2 | ||
| Common parts | ||||
| 90041-05486 | ||||
| 90041-20080 | ||||
| 90041-51033 | ||||
| 91611-60610 | ||||
| 91631-40622 | ||||
| 91631-G0612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 8602 | ||||

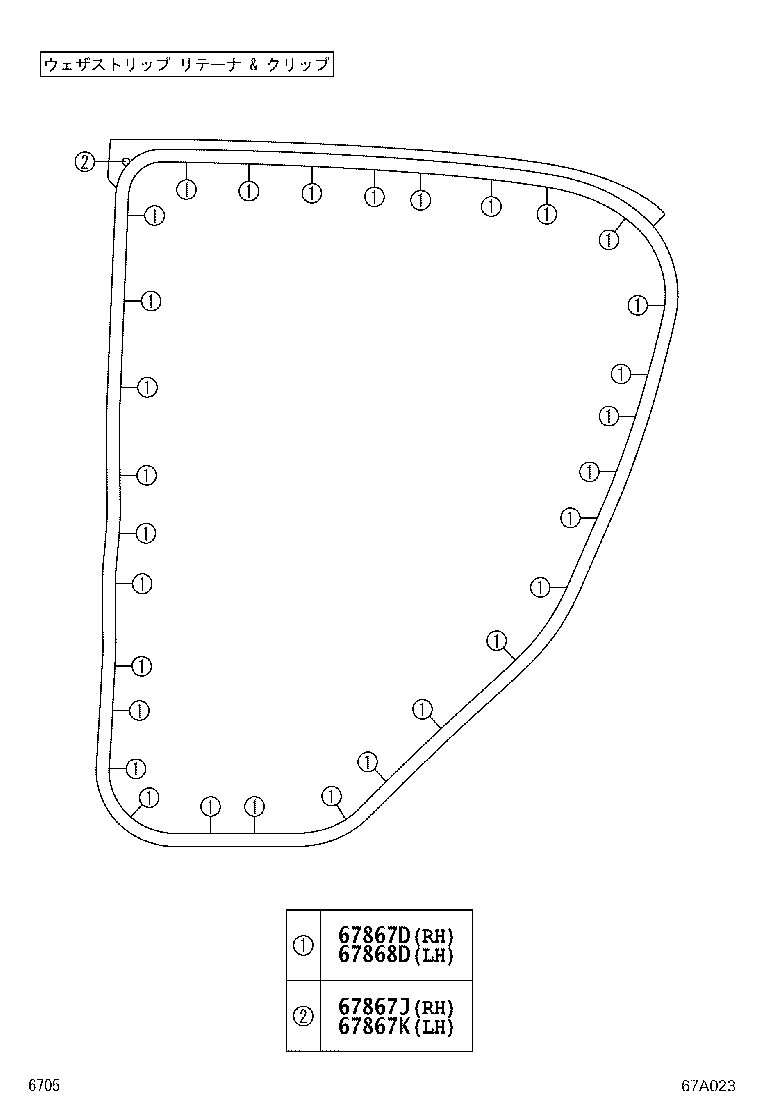

ILLUST NO. 3 OF 3(1204- )
ｳｪｻﾞｽﾄﾘｯﾌﾟ ﾘﾃｰﾅ&ｸﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-B2450 |
LA300,310 |
30 | ||
| 67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) | ||||
| 67869-B2010 |
LA300,310 |
1 | ||
| 67867K - CLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR) | ||||
| 67869-B2010 |
LA300,310 |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-B2460 |
LA300,310 |
30 | ||
