LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

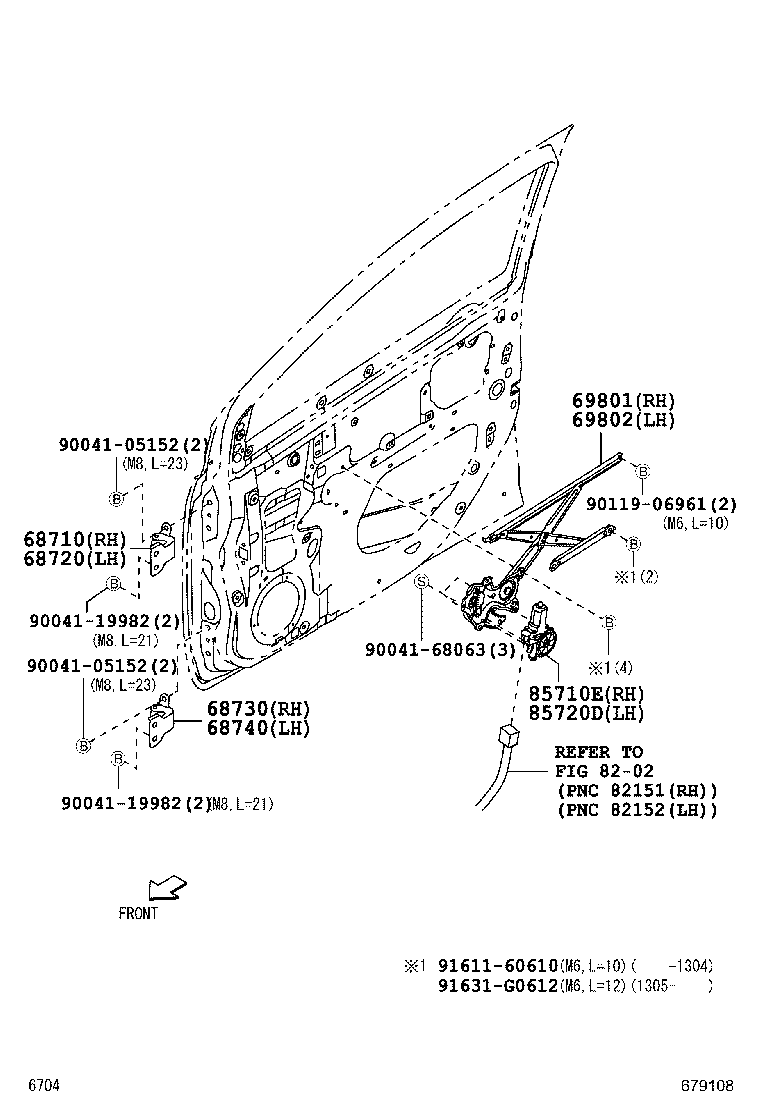

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69801 69802 8202 85710E 85720D 9004105152 9004105152 9004119982 9004119982 9004168063 9011906961 9161160610 91631G0612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-B2040

LA300,310

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-B2040

LA300,310

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-B2040

LA300,310

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-B2040

LA300,310

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-B2200

LA300,310

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-B2190

LA300,310

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-B2071

LA300,310

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-B2041

LA300,310

 1
Common parts
90041-05152
90041-19982
90041-68063
90119-06961
91611-60610
91631-G0612
Linked diagrams
8202
