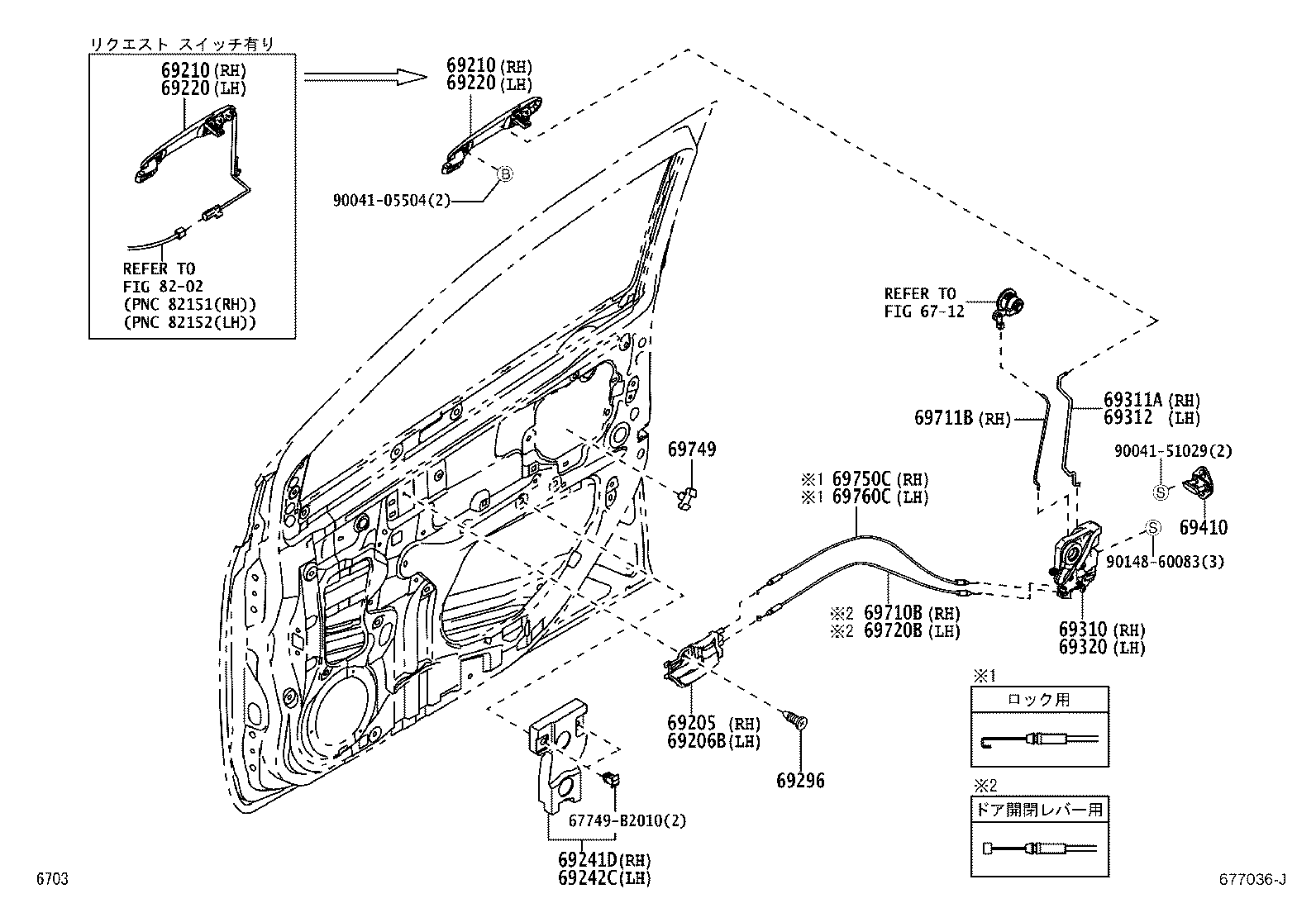

Toyota Pixis epoch LA300A FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-B2100B0	LA300,310..D,L,LF WARM GRAY,TRIM1#	04/2012 - 02/2013	1
69270-B2101B0	LA300,310..D,L,LF WARM GRAY,TRIM1#	03/2013 - 07/2013	1
69270-B2110B2	LA300,310..G,GF,X,XF WARM GRAY,TRIM1#	04/2012 - 04/2013	1
69270-B2111B2	LA300,310..G,GF,X,XF WARM GRAY,TRIM1#	05/2013 - 07/2013	1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-B2121B2	LA300,310..G,GF,X,XF WARM GRAY,TRIM1#	05/2013 - 07/2013	1
69280-B2120B2	LA300,310..G,GF,X,XF WARM GRAY,TRIM1#	04/2012 - 04/2013	1
69280-B2110B0	LA300,310..D,L,LF WARM GRAY,TRIM1#	04/2012 - 02/2013	1
69280-B2111B0	LA300,310..D,L,LF WARM GRAY,TRIM1#	03/2013 - 07/2013	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-B2430C1	LA300..D PAINT BLACK DUMMYCOLOR,W09	04/2012 - 07/2013	1
69210-B2340B0	LA300,310..L,X,XF SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69210-B2340B0	LA300,310..G,GF SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69210-B2470B0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07,ﾘｸｴｽﾄｽｲｯﾁ付き	04/2012 - 07/2013	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-B2430C1	LA300..D PAINT BLACK DUMMYCOLOR,W09	04/2012 - 07/2013	1
69210-B2340B0	LA300,310..L,X,XF SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69210-B2340B0	LA300,310..G,GF SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69210-B2470B0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07,ﾘｸｴｽﾄｽｲｯﾁ付き	04/2012 - 07/2013	1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-B2320B0	LA300,310..L,X,XF SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69220-B2320B0	LA300,310..G,GF SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69220-B2410C1	LA300..D PAINT BLACK DUMMYCOLOR,W09	04/2012 - 07/2013	1
69220-B2240B0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07,ﾘｸｴｽﾄｽｲｯﾁ付き	04/2012 - 07/2013	1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-B2320B0	LA300,310..L,X,XF SILVER ME.,B70 ,B73 ,R59 ,S28 ,T19 ,T22 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69220-B2320B0	LA300,310..G,GF SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07	04/2012 - 07/2013	1
69220-B2410C1	LA300..D PAINT BLACK DUMMYCOLOR,W09	04/2012 - 07/2013	1
69220-B2240B0	LA300,310..G,GF ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−ｷｰﾌﾘｰ+ﾌﾟｯｼｭｽﾀｰﾄ+ﾘｸｴｽﾄSW,SILVER ME.,B73 ,R59 ,S28 ,T19 ,T28 ,W09 ,W24 ,X07,ﾘｸｴｽﾄｽｲｯﾁ付き	04/2012 - 07/2013	1
69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH
75787-B2130	LA300,310 樹脂製.色(白)	04/2012 - 07/2013	1
69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH
75788-B2130	LA300,310 樹脂製.色(白)	04/2012 - 07/2013	1
69296 - SCREW, DOOR INSIDE HANDLE
90041-67041	LA300,310	04/2012 - 07/2013	2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-B2330	LA300,310 ﾓｰﾀｰ付き	04/2012 - 07/2013	1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-B2140	LA300,310	04/2012 - 07/2013	1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-B2060	LA300,310	04/2012 - 07/2013	1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-B2350	LA300,310..G,GF,L,LF,X,XF ﾓｰﾀｰ付き	04/2012 - 07/2013	1
69320-B2360	LA300..D ﾓｰﾀｰ無し	04/2012 - 07/2013	1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-B2020	LA300,310	04/2012 - 07/2013	2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-B2210	LA300,310 ﾄﾞｱ開閉ﾚﾊﾞｰ用	04/2012 - 07/2013	1
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-B2060	LA300,310	04/2012 - 07/2013	1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-B2210	LA300,310 ﾄﾞｱ開閉ﾚﾊﾞｰ用	04/2012 - 07/2013	1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040	LA300,310	04/2012 - 07/2013	2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-B2200	LA300,310 ﾛｯｸﾎﾞﾀﾝ用	04/2012 - 07/2013	1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69760-B2200	LA300,310 ﾛｯｸﾎﾞﾀﾝ用	04/2012 - 07/2013	1
Common parts
67749-B2010
90041-05504
90041-51029
90148-60083
Linked diagrams
6712
8202

LA300A-GBDF (2012)

(1204- )
