Toyota Pixis epoch LA300A FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
PIXIS EPOCH
LA300A-GBDF (2012)
6701 - FRONT DOOR PANEL & GLASS

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

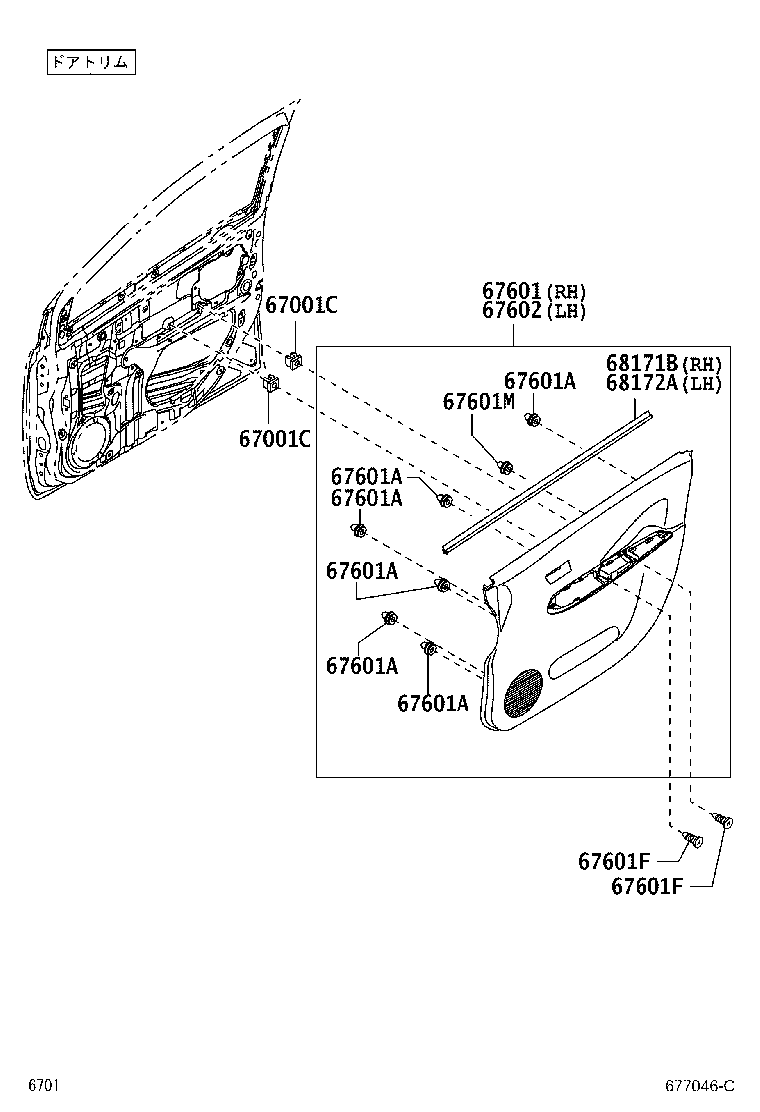

ILLUST NO. 2 OF 3(1204- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

Part #	Description	Period	Qty
67001C - GROMMET(FOR FRONT DOOR PANEL)
90041-89019	LA300,310	04/2012 - 07/2013	4
67001C - GROMMET(FOR FRONT DOOR PANEL)
90041-89019	LA300,310	04/2012 - 07/2013	4
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-B2750B0	LA300,310 WARM GRAY,TRIM1#	04/2012 - 07/2013	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-B2010	LA300,310	04/2012 - 07/2013	12
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-B2010	LA300,310	04/2012 - 07/2013	12
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-B2010	LA300,310	04/2012 - 07/2013	12
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-B2010	LA300,310	04/2012 - 07/2013	12
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-B2010	LA300,310	04/2012 - 07/2013	12
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-B2010	LA300,310	04/2012 - 07/2013	12
67601F - SCREW(FOR FRONT DOOR TRIM BOARD)
90041-68137	LA300,310	04/2012 - 07/2013	4
67601F - SCREW(FOR FRONT DOOR TRIM BOARD)
90041-68137	LA300,310	04/2012 - 07/2013	4
67601M - RETAINER, DOOR TRIM, NO.2
67771-B2010	LA300,310	04/2012 - 07/2013	2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-B2670B0	LA300,310 WARM GRAY,TRIM1#	04/2012 - 07/2013	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-B2140	LA300,310	04/2012 - 07/2013	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-B2120	LA300,310	04/2012 - 07/2013	1

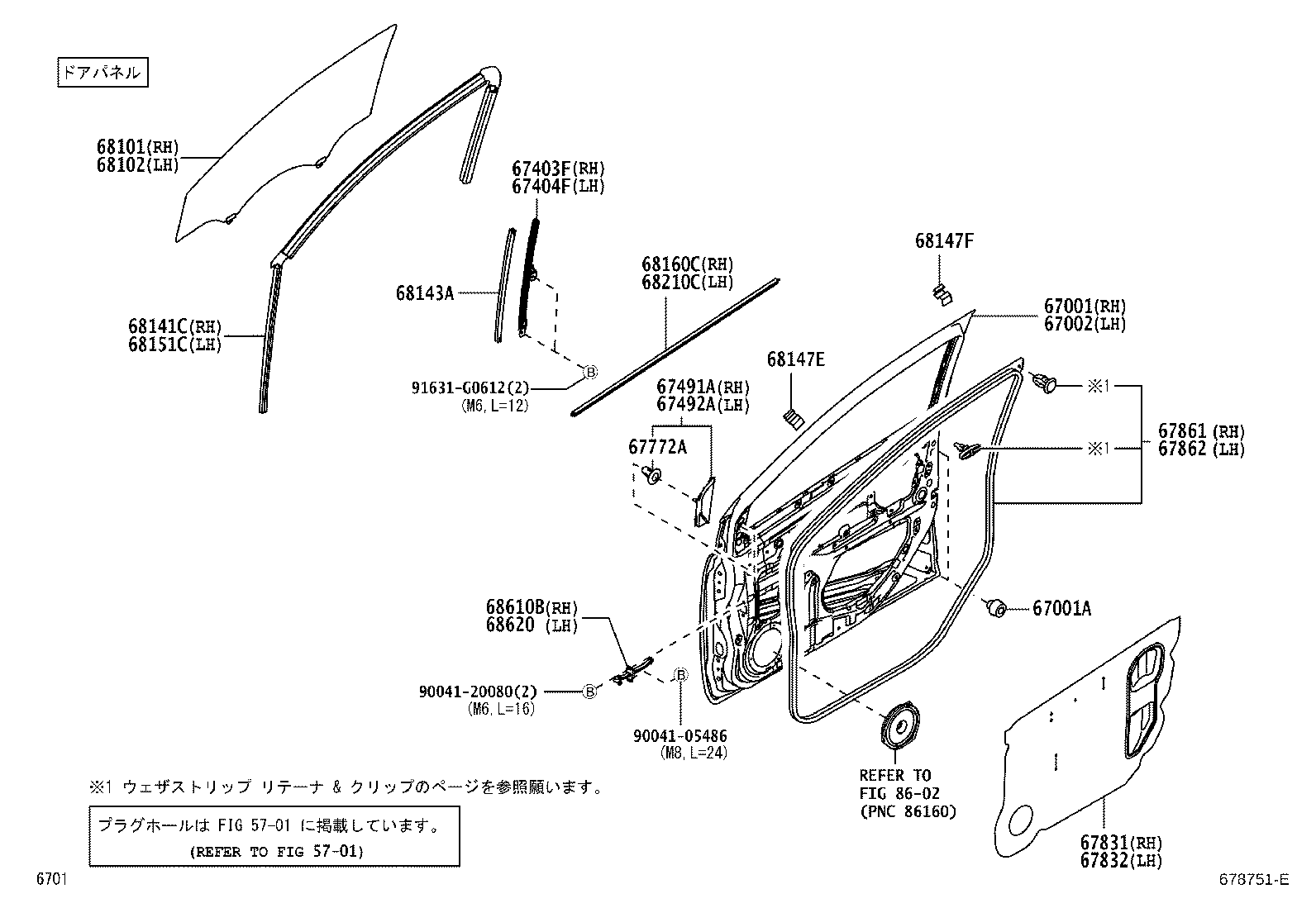

ILLUST NO. 1 OF 3(1204- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-B2351	LA300,310	04/2012 - 07/2013	1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069	LA300,310	04/2012 - 07/2013	4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-B2321	LA300,310	04/2012 - 07/2013	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-B2181	LA300,310	03/2013 - 07/2013	1
67403-B2180	LA300,310	04/2012 - 02/2013	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-B2180	LA300,310	04/2012 - 02/2013	1
67404-B2181	LA300,310	03/2013 - 07/2013	1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-B2180	LA300,310	04/2012 - 07/2013	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-B2180	LA300,310	04/2012 - 07/2013	1
67772A - CAP, FRONT DOOR TRIM RETAINER
67772-87101	LA300,310	04/2012 - 07/2013	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-B2270	LA300,310..G,GF,L,X,XF	04/2012 - 07/2013	1
67831-B2280	LA300,310..D,LF	04/2012 - 07/2013	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-B2270	LA300,310..G,GF,L,X,XF	04/2012 - 07/2013	1
67831-B2280	LA300,310..D,LF	04/2012 - 07/2013	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-B2190	LA300,310	04/2012 - 07/2013	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-B2210	LA300,310	04/2012 - 07/2013	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-B2291	LA300,310 T=3.1,UVｸﾞﾘｰﾝ	04/2012 - 07/2013	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-B2291	LA300,310 T=3.1,UVｸﾞﾘｰﾝ	04/2012 - 07/2013	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-B2210	LA300,310	04/2012 - 07/2013	1
68143A - RUN, FRONT DOOR GLASS, NO.2
68143-B2100	LA300,310	04/2012 - 07/2013	2
68147E - STOP, FRONT DOOR GLASS, UPPER
67216-B2180	LA300,310	04/2012 - 07/2013	2
68147F - STOP, FRONT DOOR GLASS, UPPER
67216-B2190	LA300,310	04/2012 - 07/2013	2
68151C - RUN, FRONT DOOR GLASS, LH
68151-B2200	LA300,310	04/2012 - 07/2013	1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-B2200	LA300,310	04/2012 - 07/2013	1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-B2190	LA300,310	04/2012 - 07/2013	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-B2121	LA300,310	04/2012 - 09/2012	1
68610-B2122	LA300,310	10/2012 - 07/2013	1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-B2121	LA300,310	04/2012 - 09/2012	1
68610-B2122	LA300,310	10/2012 - 07/2013	1
Common parts
90041-05486
90041-20080
91631-G0612
Linked diagrams
5701
8602

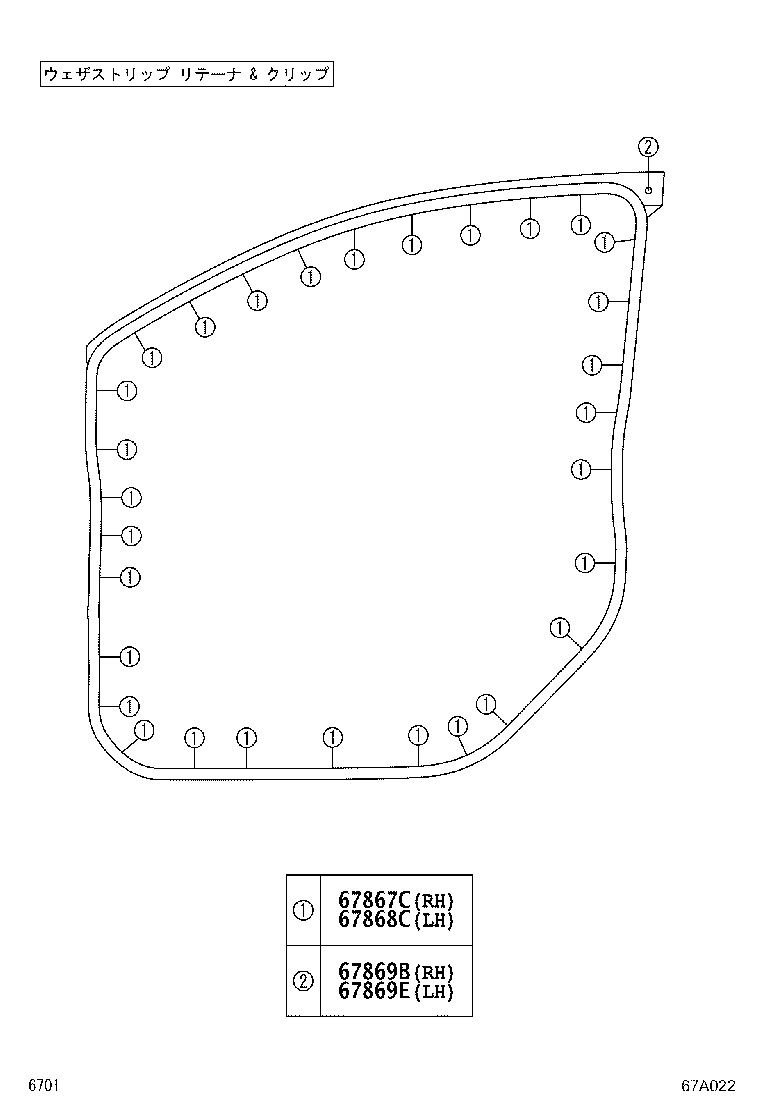

ILLUST NO. 3 OF 3(1204- )

Click highlighted areas on diagram

ｳｪｻﾞｽﾄﾘｯﾌﾟﾘﾃｰﾅ&ｸﾘｯﾌﾟ

Part #	Description	Period	Qty
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-B2430	LA300,310	04/2012 - 07/2013	30
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-B2440	LA300,310	04/2012 - 07/2013	30
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-B2010	LA300,310	04/2012 - 07/2013	1
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-B2010	LA300,310	04/2012 - 07/2013	1
