LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

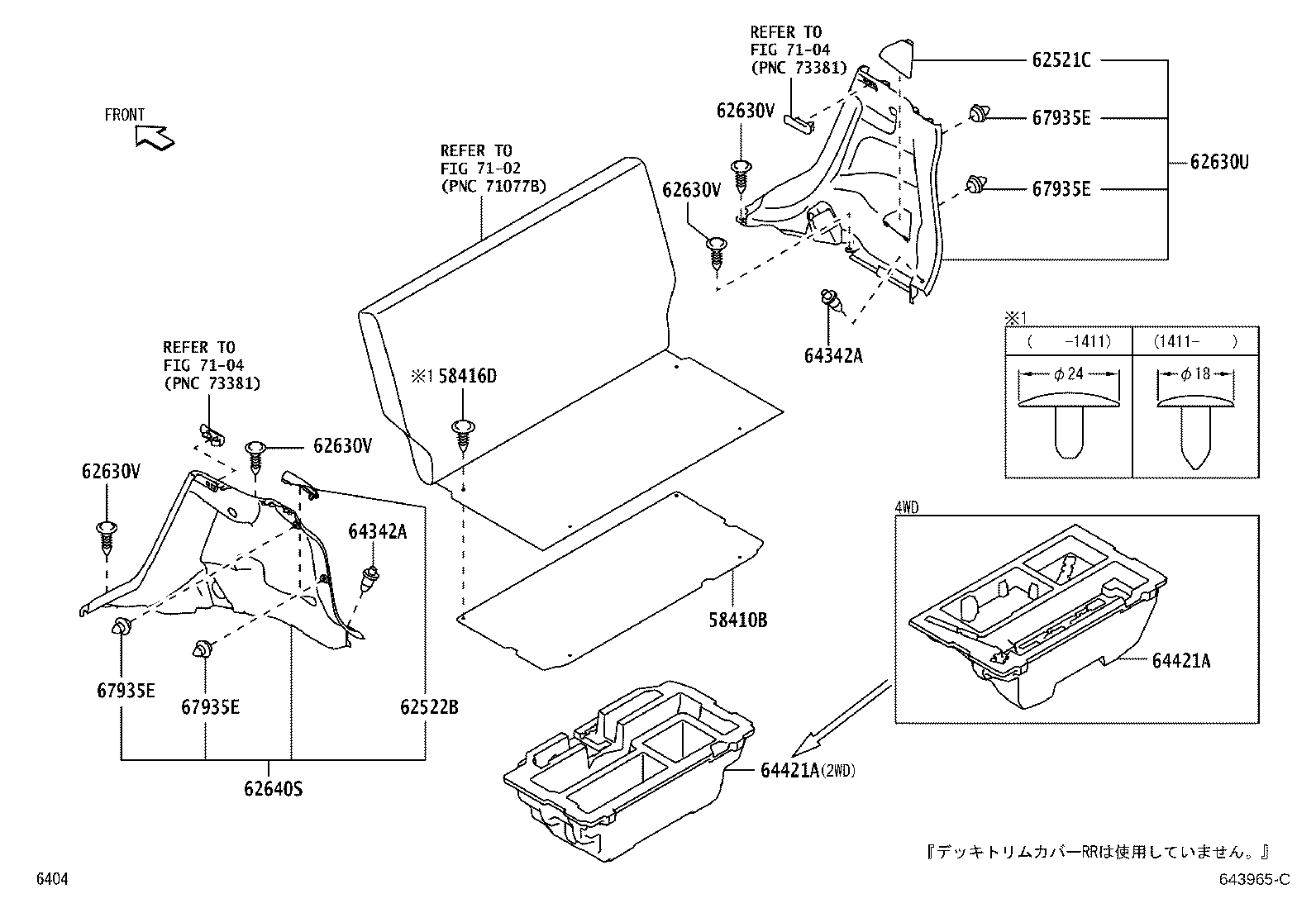

Click highlighted areas on diagram

diagram 58410B 58416D 62521C 62522B 62630U 62630V 62630V 62630V 62630V 62640S 64342A 64342A 64421A 64421A 67935E 67935E 67935E 67935E 7102 7104 7104
Part # Description Qty Price
58410B - BOARD ASSY, DECK
58410-B2320

LA300,310

 1
58416D - CLIP, REAR FLOOR BOARD
90044-68028B0

LA300,310

DK.GRAY,TRIM1#

 4
62521C - COVER, QUARTER TRIM RH
62521-B2060B0

LA300,310

WARM GRAY,TRIM1#

 1
62522B - COVER, QUARTER TRIM LH
62521-B2060B0

LA300,310

WARM GRAY,TRIM1#

 1
62630U - PANEL ASSY, QUARTER TRIM, REAR RH
62630-B2390B0

LA300,310

WARM GRAY,TRIM1#

 1
62630V - CLIP (FOR QUARTER REAR TRIM)
90044-68046B2

LA300,310

DK.GRAY,TRIM1#

 4
62630V - CLIP (FOR QUARTER REAR TRIM)
90044-68046B2

LA300,310

DK.GRAY,TRIM1#

 4
62630V - CLIP (FOR QUARTER REAR TRIM)
90044-68046B2

LA300,310

DK.GRAY,TRIM1#

 4
62630V - CLIP (FOR QUARTER REAR TRIM)
90044-68046B2

LA300,310

DK.GRAY,TRIM1#

 4
62640S - PANEL ASSY, QUARTER TRIM, REAR LH
62640-B2470B0

LA300,310

WARM GRAY,TRIM1#

 1
64342A - CLIP
90044-67579B0

LA300,310

DK.GRAY,TRIM1#

 2
64342A - CLIP
90044-67579B0

LA300,310

DK.GRAY,TRIM1#

 2
64421A - TRAY, LUGGAGE COMPARTMENT
64421-B2110

LA300

 1
64421A - TRAY, LUGGAGE COMPARTMENT
64421-B2110

LA300

 1
67935E - RETAINER, DOOR TRIM
67771-B2010

LA300,310

 4
67935E - RETAINER, DOOR TRIM
67771-B2010

LA300,310

 4
67935E - RETAINER, DOOR TRIM
67771-B2010

LA300,310

 4
67935E - RETAINER, DOOR TRIM
67771-B2010

LA300,310

 4
Linked diagrams
7102
7104
