LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

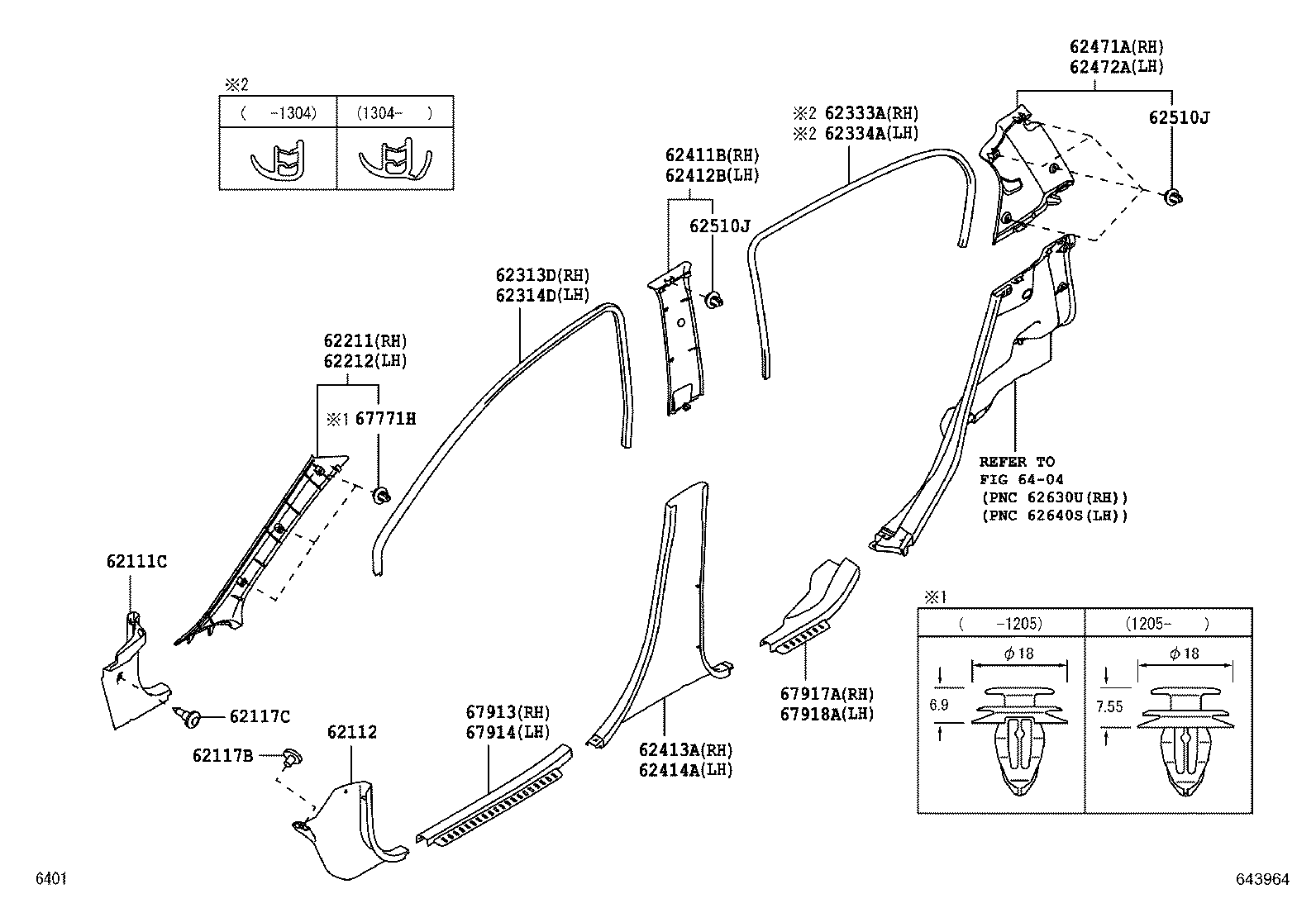

Click highlighted areas on diagram

diagram 62111C 62112 62117B 62117C 62211 62212 62313D 62314D 62333A 62334A 62411B 62412B 62413A 62414A 62471A 62472A 62510J 62510J 6404 67771H 67913 67914 67917A 67918A
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-B2210B1

LA300,310

WARM GRAY,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-B2180B1

LA300,310

WARM GRAY,TRIM1#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90044-67397

LA300,310

 1
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90044-67579B0

LA300,310

DK.GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-B2420B0

LA300,310

LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-B2400B0

LA300,310

LT.GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-B2350C0

LA300,310

BLACK,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-B2350C0

LA300,310

BLACK,TRIM1#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-B2150C0

LA300,310

BLACK,TRIM1#

 1
62331-B2060C0

LA300,310

BLACK,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62331-B2060C0

LA300,310

BLACK,TRIM1#

 1
62333-B2150C0

LA300,310

BLACK,TRIM1#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-B2430B0

LA300,310

LT.GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-B2410B0

LA300,310

LT.GRAY,TRIM1#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-B2180B0

LA300,310

WARM GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-B2170B0

LA300,310

WARM GRAY,TRIM1#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-B2260B0

LA300,310

LT.GRAY,TRIM1#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62472-B2250B0

LA300,310

LT.GRAY,TRIM1#

 1
62510J - RETAINER, QUARTER TRIM
67771-B2010

LA300,310

 8
62510J - RETAINER, QUARTER TRIM
67771-B2010

LA300,310

 8
67771H - RETAINER, DOOR TRIM
67771-B2040

LA300,310

 6
67771-B2010

LA300,310

 6
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-B2120B1

LA300,310

WARM GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-B2140B1

LA300,310

WARM GRAY,TRIM1#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-B2100B1

LA300,310

WARM GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-B2110B1

LA300,310

WARM GRAY,TRIM1#

 1
Linked diagrams
6404
