LA300A-GBDF (2012)
Toyota Pixis Epoch
Production
Apr 2012
-
Jul 2013
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1204- )
Click highlighted areas on diagram

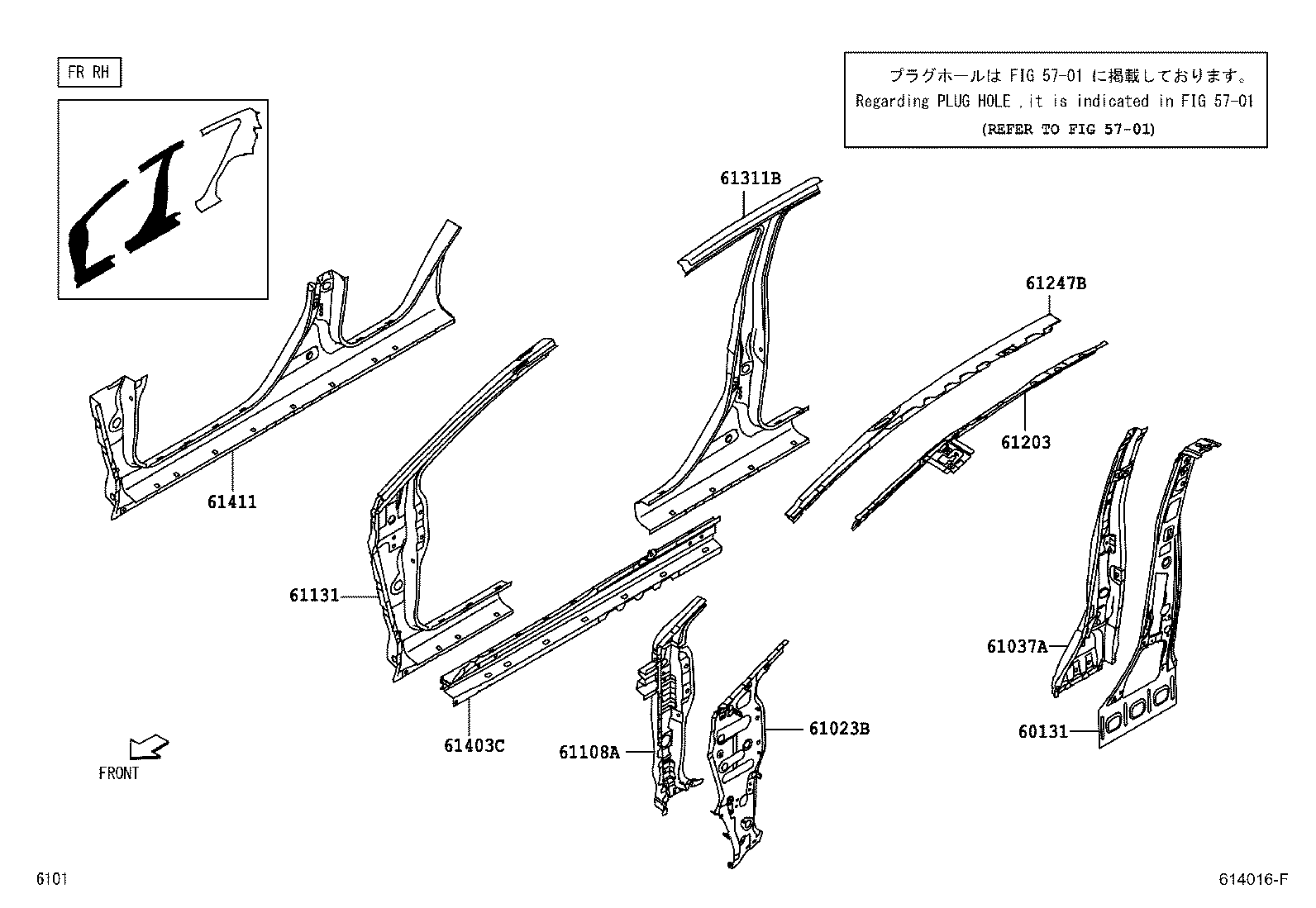

FR RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60131 - PILLAR SUB-ASSY, CENTER BODY, NO.2 RH | ||||
| 60131-B2080 |
LA300,310 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-B2240 |
LA300,310 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-B2280 |
LA300,310 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-B2180 |
LA300,310 |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-B2241 |
LA300,310 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-B2240 |
LA300,310 |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-B2190 |
LA300,310 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-B2191 |
LA300,310 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-B2190 |
LA300,310 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-B2381 |
LA300,310 |
1 | ||
| Linked diagrams | ||||
| 5701 | ||||
(1204- )

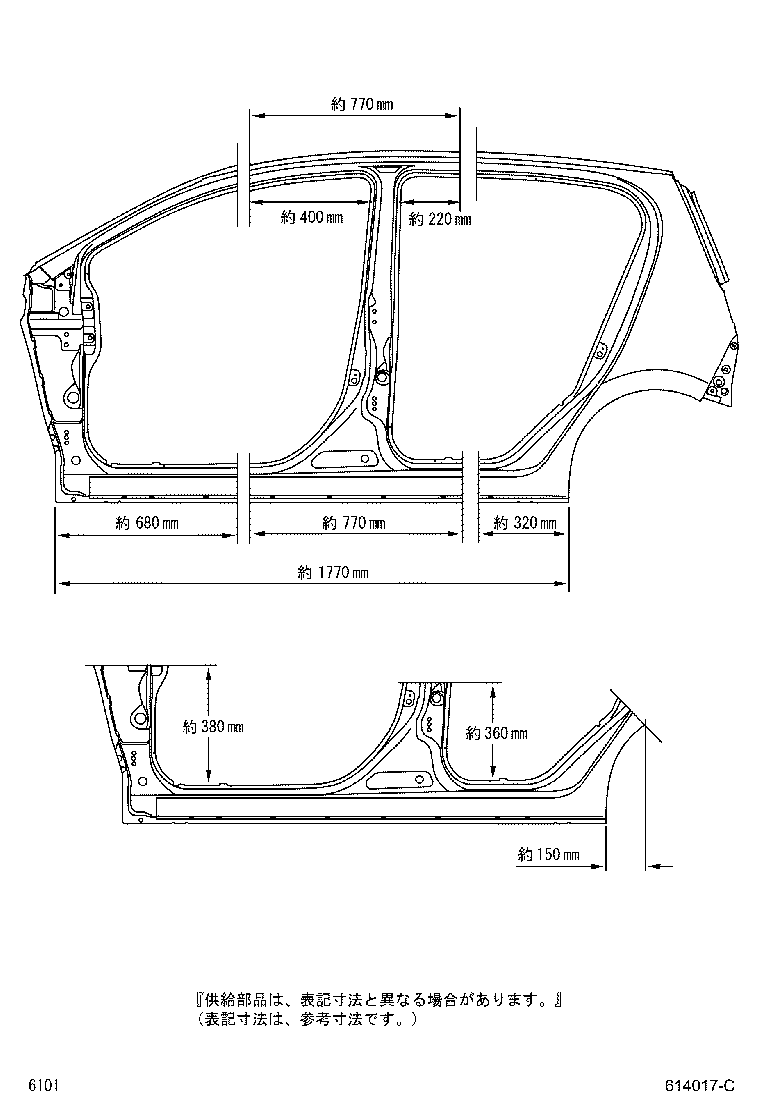

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(1204- )
Click highlighted areas on diagram

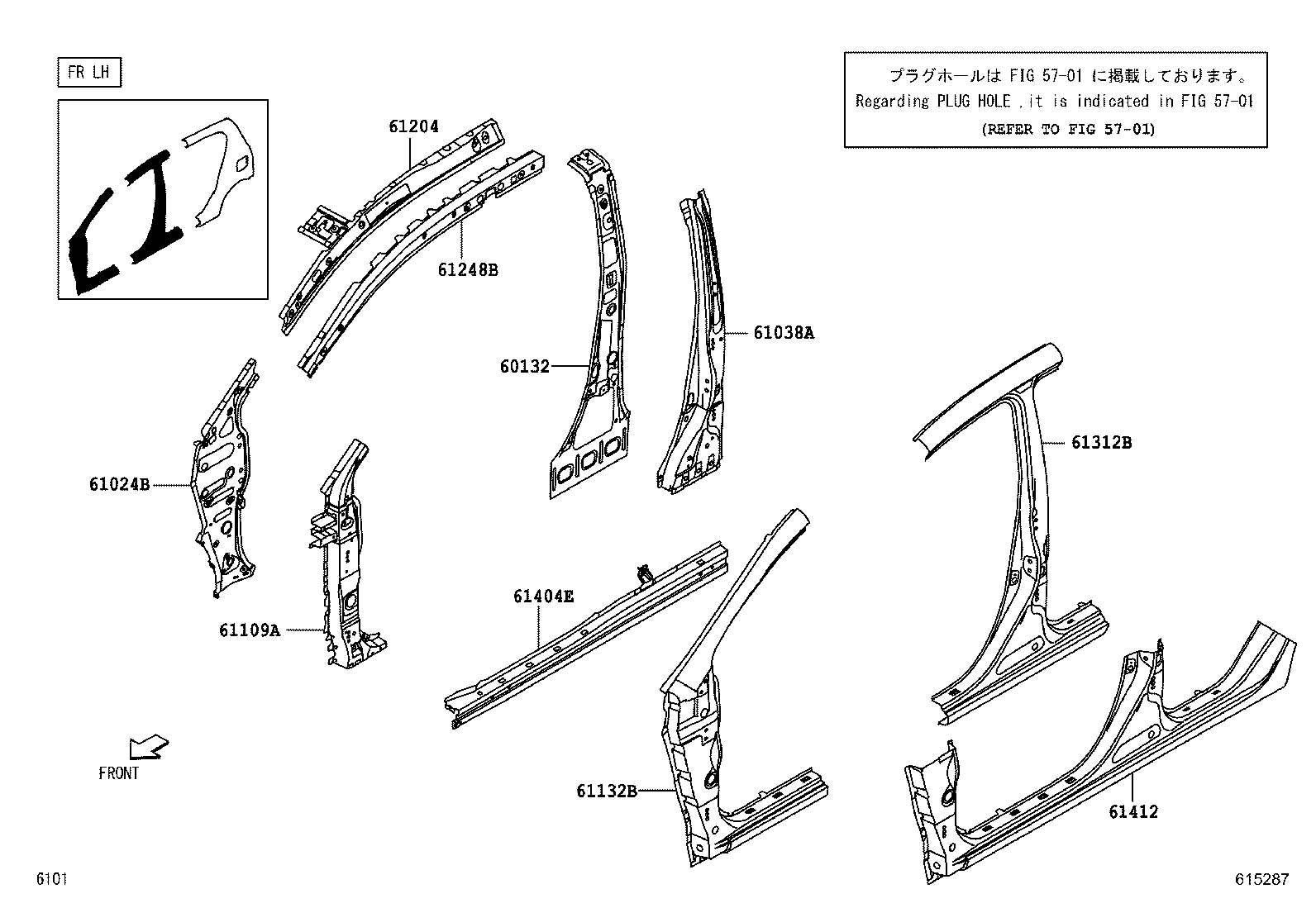

FR LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60132 - PILLAR SUB-ASSY, CENTER BODY, NO.2 LH | ||||
| 60132-B2070 |
LA300,310 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-B2240 |
LA300,310 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-B2350 |
LA300,310 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-B2180 |
LA300,310 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-B2331 |
LA300,310 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-B2210 |
LA300,310 |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61248-B2190 |
LA300,310 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-B2261 |
LA300,310 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-B2160 |
LA300,310 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-B2381 |
LA300,310 |
1 | ||
| Linked diagrams | ||||
| 5701 | ||||
(1204- )
Click highlighted areas on diagram

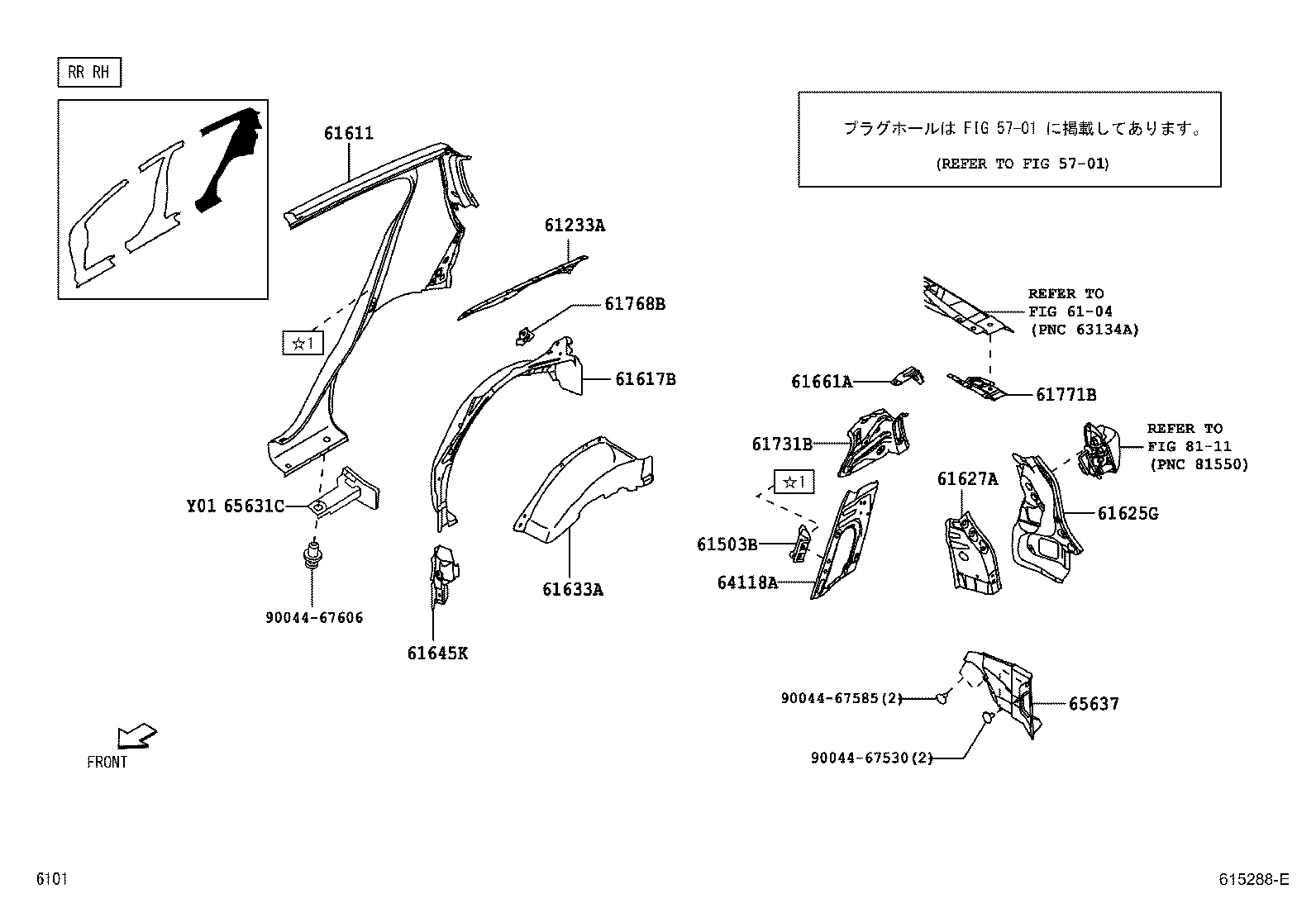

RR RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-B2160 |
LA300,310 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-B2070 |
LA300,310 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-B2231 |
LA300,310 |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61617-B2091 |
LA300,310 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-B2181 |
LA300,310 |
1 | ||
| 61627A - EXTENSION, QUARTER PANEL, LOWER RH | ||||
| 61621-B2130 |
LA300,310 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-B2040 |
LA300,310 |
1 | ||
| 61645K - GUSSET, QUARTER WHEEL HOUSE INNER, RH | ||||
| 61645-B2030 |
LA300,310 |
1 | ||
| 61661A - EXTENSION, QUARTER PANEL TO UPPER BACK, RH | ||||
| 61661-B2140 |
LA300,310 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-B2140 |
LA300,310 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-B2181 |
LA300,310 |
1 | ||
| 61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH | ||||
| 61771-B2100 |
LA300,310 |
1 | ||
| 64118A - REINFORCEMENT, UPPER BACK, NO.4 RH | ||||
| 64118-B2110 |
LA300,310 |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-B2150 |
LA300,310 |
1 | ||
| Common parts | ||||
| 90044-67530 | ||||
| 90044-67585 | ||||
| 90044-67606 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6104 | ||||
| 8111 | ||||
(1204- )
Click highlighted areas on diagram

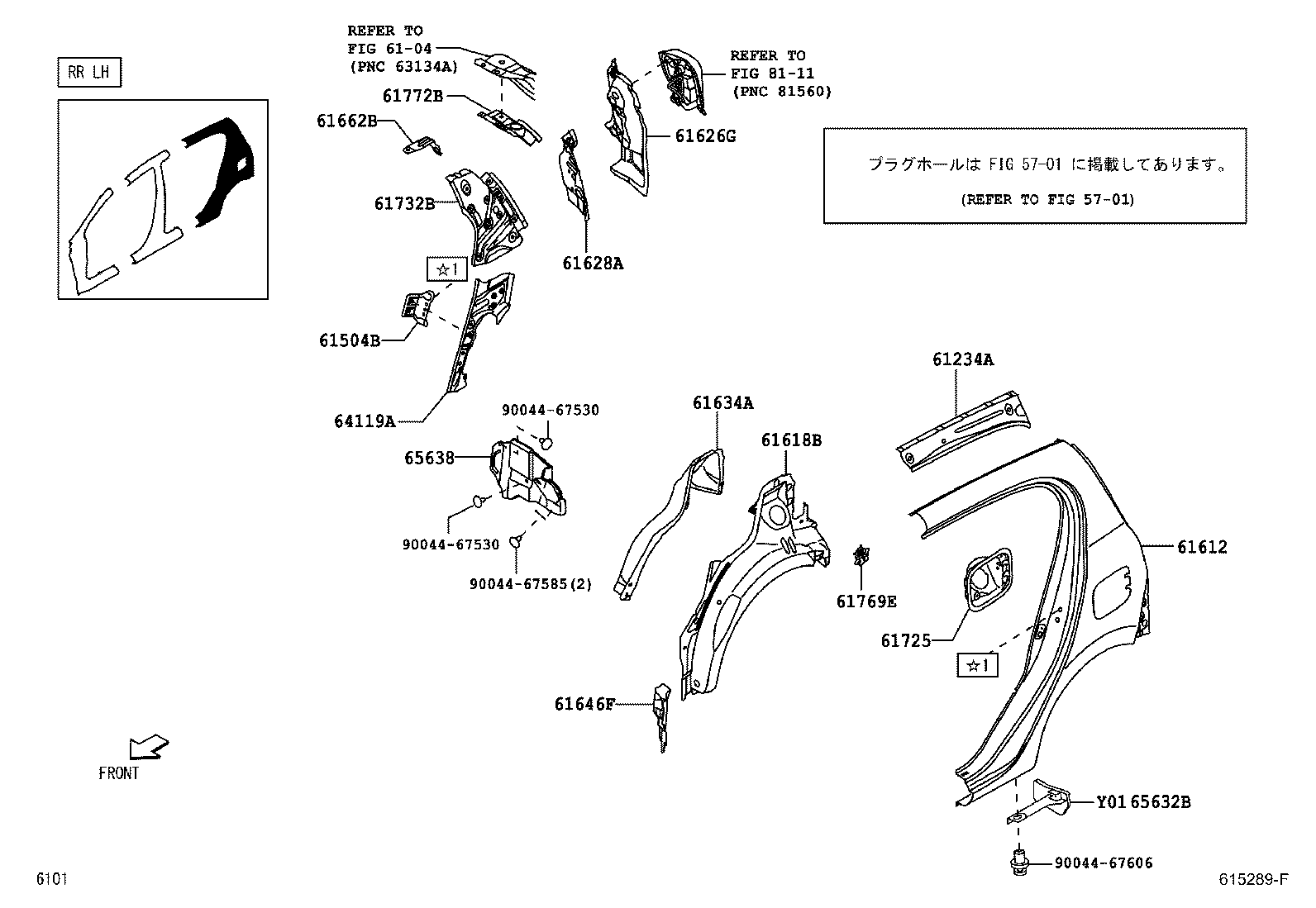

RR LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-B2160 |
LA300,310 |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-B2070 |
LA300,310 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-B2331 |
LA300,310 |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61618-B2131 |
LA300,310 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-B2181 |
LA300,310 |
1 | ||
| 61628A - EXTENSION, QUARTER PANEL, LOWER LH | ||||
| 61622-B2080 |
LA300,310 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-B2040 |
LA300,310 |
1 | ||
| 61646F - GUSSET, QUARTER WHEEL HOUSE INNER, LH | ||||
| 61646-B2030 |
LA300,310 |
1 | ||
| 61662B - EXTENSION, QUARTER PANEL TO UPPER BACK, LH | ||||
| 61662-B2140 |
LA300,310 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-B2210 |
LA300,310 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-B2150 |
LA300,310 |
1 | ||
| 61769E - REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH | ||||
| 61769-B2191 |
LA300,310 |
1 | ||
| 61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH | ||||
| 61772-B2100 |
LA300,310 |
1 | ||
| 64119A - REINFORCEMENT, UPPER BACK, NO.4 LH | ||||
| 64119-B2100 |
LA300,310 |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-B2150 |
LA300,310 |
1 | ||
| Common parts | ||||
| 90044-67530 | ||||
| 90044-67585 | ||||
| 90044-67606 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6104 | ||||
| 8111 | ||||
