LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

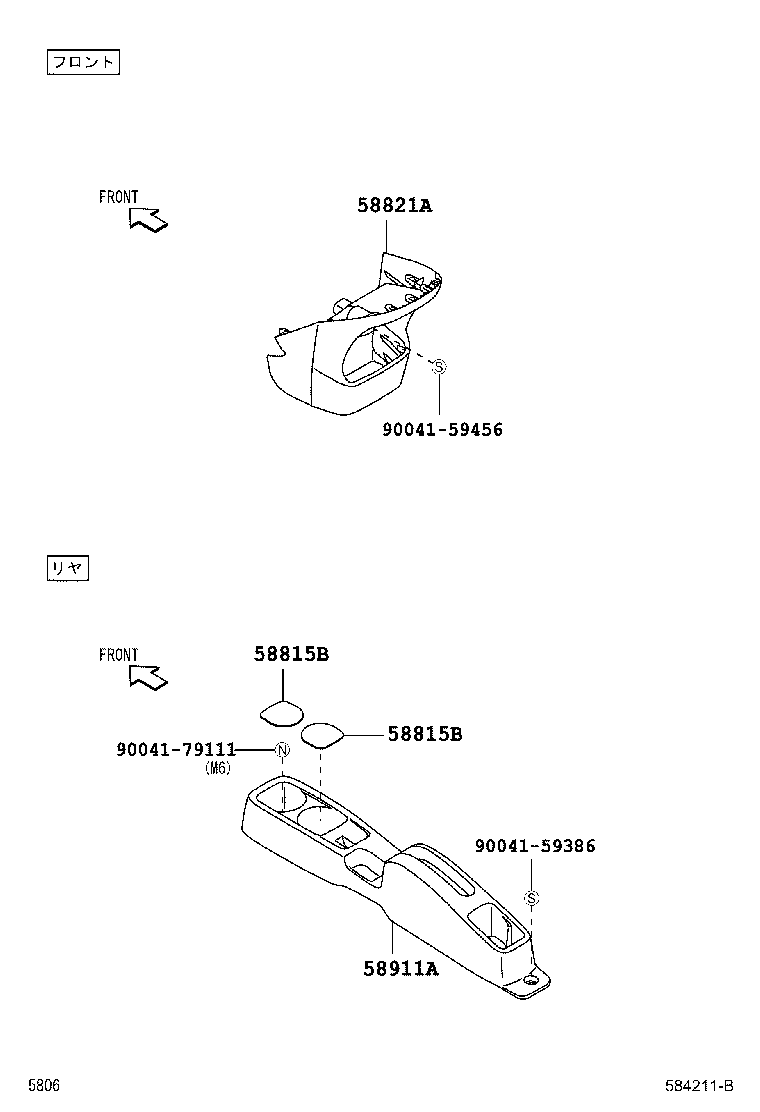

Click highlighted areas on diagram

diagram 58815B 58815B 58821A 58911A 9004159386 9004159456 9004179111
Part # Description Qty Price
58815B - CARPET, CONSOLE BOX
58815-B2030

LA300,310

 2
58815B - CARPET, CONSOLE BOX
58815-B2030

LA300,310

 2
58821A - PANEL, CONSOLE
58821-B2150B0

LA300,310

WARM GRAY,TRIM1#

 1
58911A - PANEL, BOX SIDE, NO.1
58911-B2110B1

LA300,310

DK.GRAY,TRIM1#

 1
Common parts
90041-59386
90041-59456
90041-79111
