Toyota Pixis epoch LA300A FLOOR PAN & LOWER BACK PANEL

Part #	Description	Period	Qty
51095 - HOOK, TRANSPORT, REAR
51095-B2040	LA300	04/2012 - 07/2013	1
55214B - PAD, DASH PANEL INSULATOR, NO.2
55214-B2080	LA300,310	04/2012 - 07/2013	1
55215B - PAD, DASH PANEL INSULATOR, NO.3
55215-B2080	LA300,310 ﾎﾟﾘｽﾁﾚﾝ発泡(白)	04/2012 - 07/2013	1
57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-B2160	LA300,310	04/2012 - 07/2013	1
57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-B2120	LA300,310	04/2012 - 07/2013	1
57055 - REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.5
57055-B2110	LA300	04/2012 - 07/2013	1
57056 - REINFORCEMENT SUB-ASSY, CROSS MEMBER FLOOR, NO.6
57053-B2230	LA300	04/2012 - 07/2013	1
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-B2070	LA300,310	04/2012 - 04/2013	2
57417-B2080	LA300,310	05/2013 - 07/2013	2
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-B2070	LA300,310	04/2012 - 04/2013	2
57417-B2080	LA300,310	05/2013 - 07/2013	2
57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-B2060	LA300,310	04/2012 - 07/2013	2
57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-B2060	LA300,310	04/2012 - 07/2013	2
57468B - BRACKET, FRONT SEAT, REAR
57468-B2020	LA300,310	04/2012 - 07/2013	1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-B2010	LA300,310	04/2012 - 07/2013	1
58039A - REINFORCEMENT SUB-ASSY, REAR FLOOR PANEL
58039-B2040	LA300	04/2012 - 07/2013	1
58172A - PLATE, PARKING BRAKE MOUNTING
46521-B2010	LA300,310	04/2012 - 07/2013	2
58172A - PLATE, PARKING BRAKE MOUNTING
46521-B2010	LA300,310	04/2012 - 07/2013	2
58199A - CLIP, FOOTREST, NO.2
58199-B2010C0	LA300,310 BLACK	04/2012 - 07/2013	2
58199A - CLIP, FOOTREST, NO.2
58199-B2010C0	LA300,310 BLACK	04/2012 - 07/2013	2
58213D - REINFORCEMENT, CENTER FLOOR PANEL
58213-B2060	LA300	04/2012 - 07/2013	1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-B2191	LA300,310 ﾅﾝﾊﾞｰﾌﾟﾚｰﾄ取付用ﾅｯﾄ付き	04/2012 - 07/2013	1
58308E - COVER, HOLE(FOR LOWER BACK)
64716-B2170B0	LA300,310 DK.GRAY,TRIM1#	04/2012 - 07/2013	1
58311 - PAN, REAR FLOOR
58311-B2110	LA300	04/2012 - 07/2013	1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-B2050	LA300	04/2012 - 07/2013	1
58371B - PANEL, BODY LOWER BACK, OUTER
58371-B2191	LA300,310	04/2012 - 07/2013	1
58377A - PANEL, BODY LOWER BACK, RH
61613-B2210	LA300,310	04/2012 - 07/2013	1
58378A - PANEL, BODY LOWER BACK, LH
61614-B2200	LA300,310	04/2012 - 07/2013	1
58385E - BRACKET, REAR BUMPER COVER, RH
52169-B2051	LA300,310	04/2012 - 07/2013	1
58386G - BRACKET, REAR BUMPER COVER, LH
52169-B2051	LA300,310	04/2012 - 07/2013	1
64225C - PATCH, REAR SEAT SET, RH
64225-B2070	LA300,310	04/2012 - 07/2013	1
64226C - PATCH, REAR SEAT SET, LH
64226-B2070	LA300,310	04/2012 - 07/2013	1
Common parts
90041-09262
90041-19982
90041-79359
90044-68320
Linked diagrams
5304
5701
8414

LA300A-GBDF (2012)

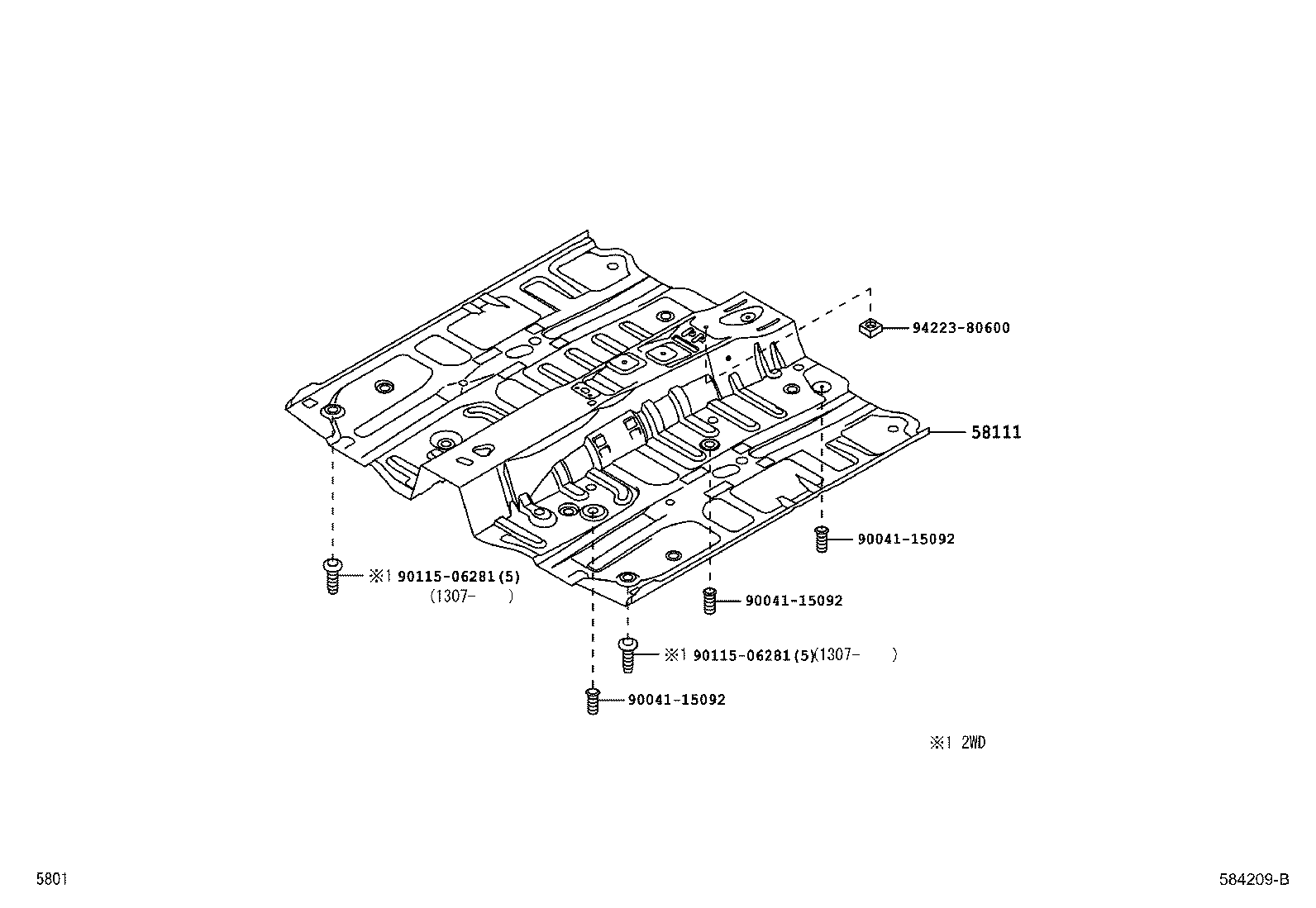

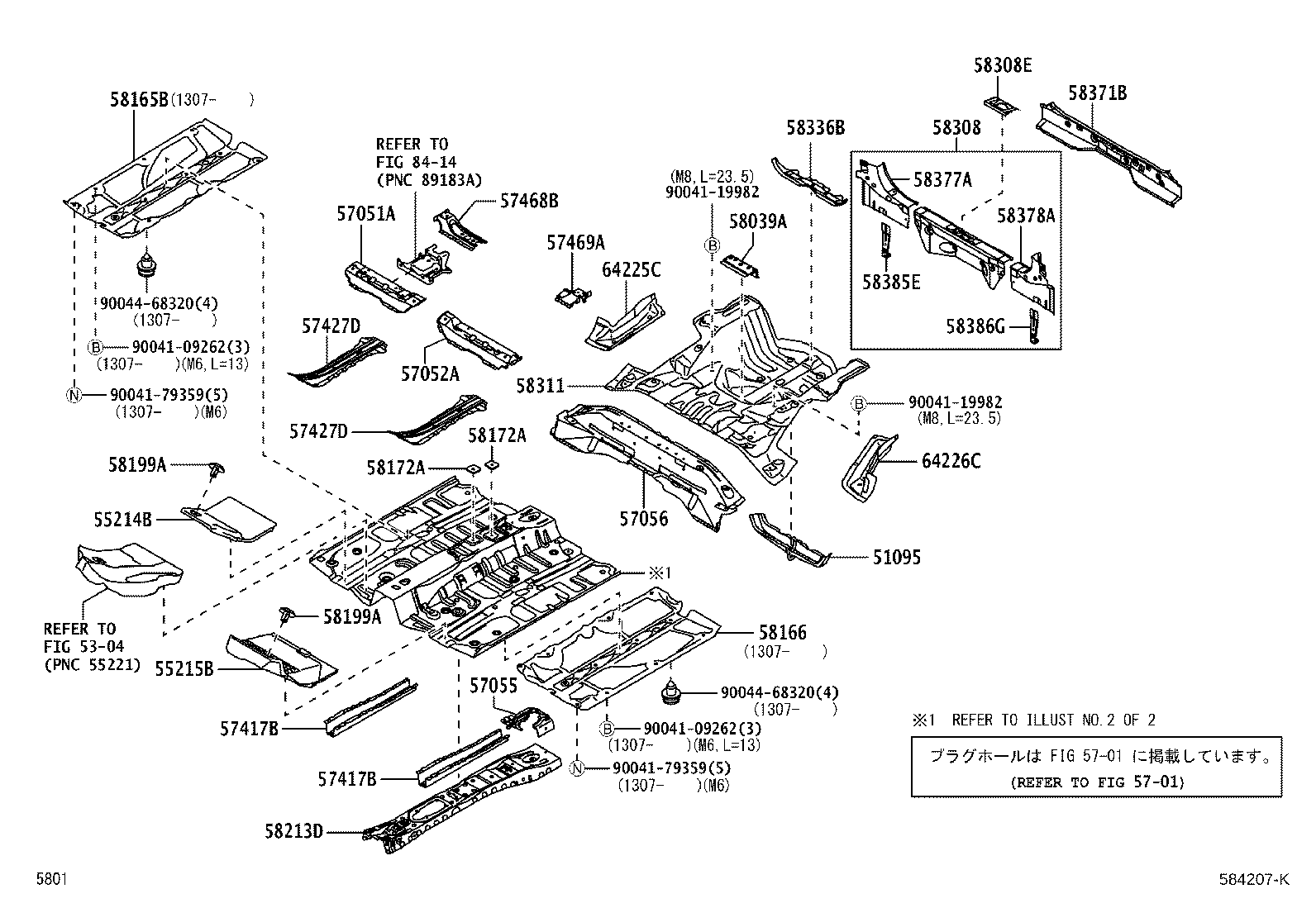

ILLUST NO. 1 OF 2(1204- )LA300

ILLUST NO. 2 OF 2(1204- )

Part Price Details

Part #	Description	Period	Qty
58111 - PAN, FRONT FLOOR
58111-B2908	LA300	04/2012 - 07/2013	1
Common parts
90041-15092
90115-06281
94223-80600
