LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

Click highlighted areas on diagram

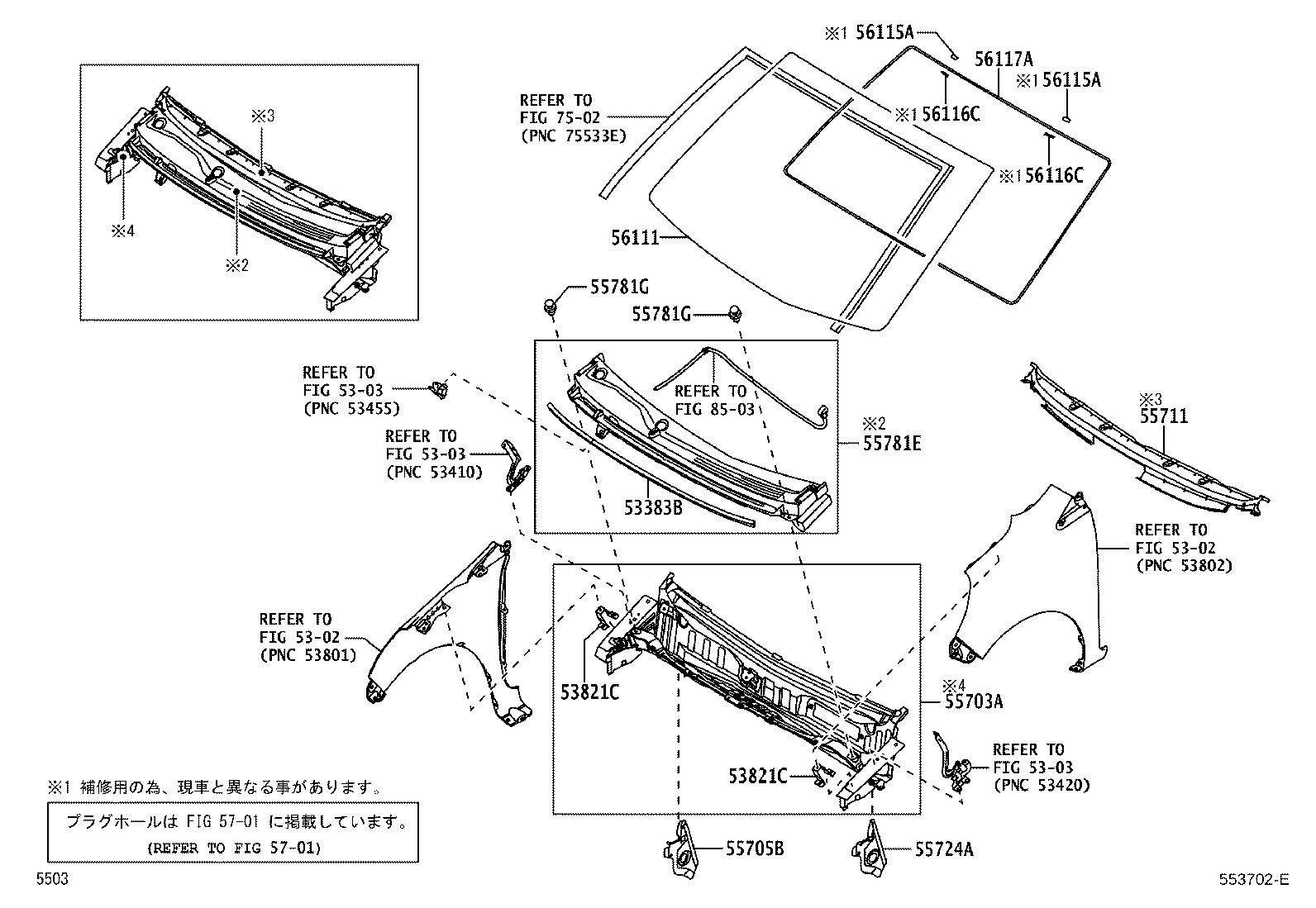

diagram 5302 5302 5303 5303 5303 53383B 53821C 53821C 53821C 55703A 55705B 55711 55724A 55781E 55781G 55781G 56111 56115A 56115A 56116C 56116C 56117A 5701 7502 8503
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-B2110

LA300,310

 1
53821C - BRACKET, FRONT FENDER, REAR
53717-B2120

LA300,310

 2
53821C - BRACKET, FRONT FENDER, REAR
53717-B2120

LA300,310

 2
53821C - BRACKET, FRONT FENDER, REAR
53717-B2120

LA300,310

 2
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-B2351

LA300,310

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55706-B2120

LA300,310

 1
55711 - PANEL, COWL TOP, OUTER
55711-B2260

LA300,310

 1
55724A - REINFORCEMENT, COWL TOP SIDE, LH
55724-B2120

LA300,310

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-B2060

LA300,310

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67569

LA300,310

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67569

LA300,310

 2
56111 - GLASS, WINDSHIELD
56111-B2400

LA300,310

T=4.5,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402

LA300,310

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402

LA300,310

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401

LA300,310

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401

LA300,310

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-B2190

LA300,310

長さ=3140

 1
