LA300A-GBDF (2012)
Toyota Pixis Epoch
Production
Apr 2012
-
Jul 2013
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1204- )LA300

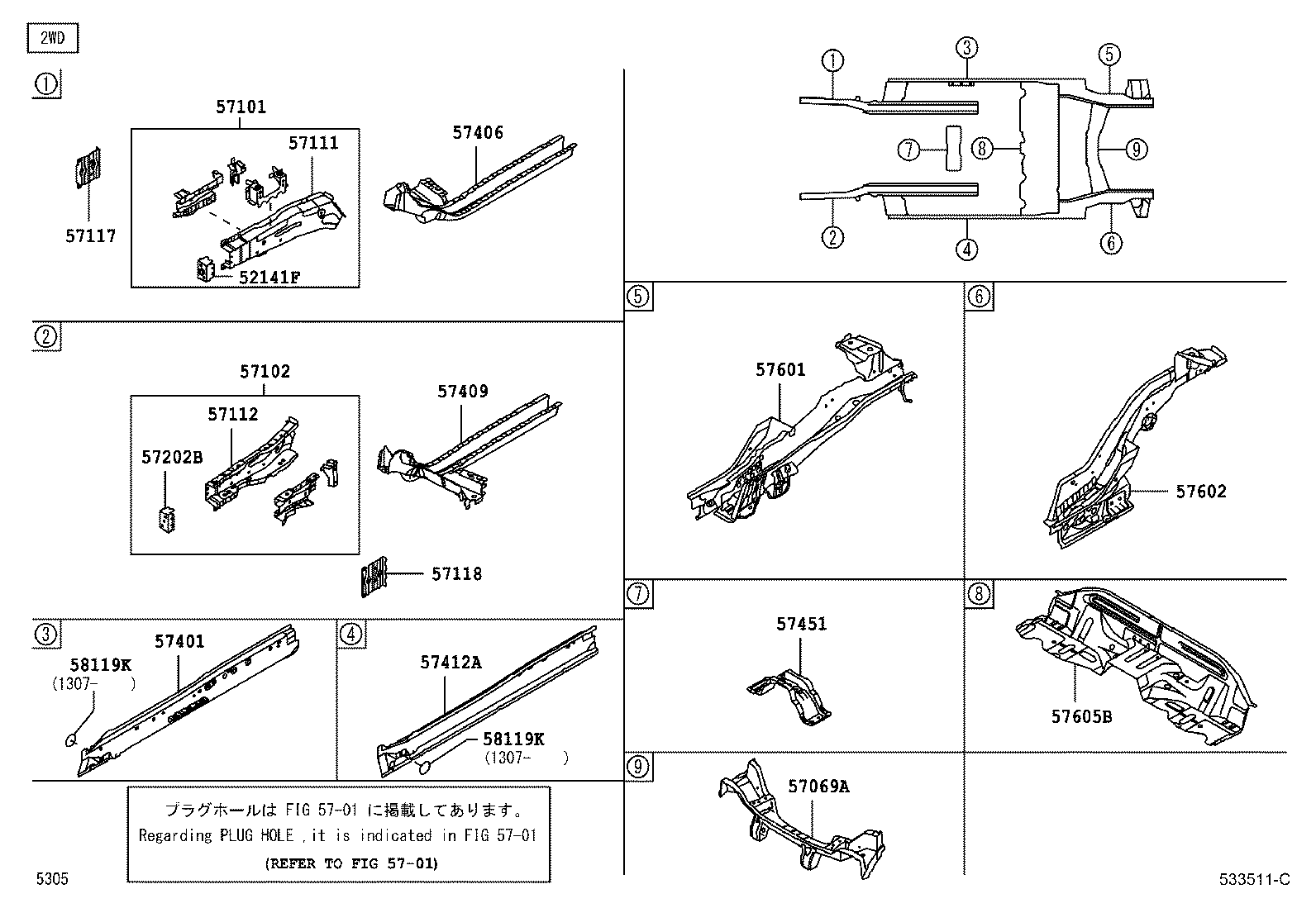

Click highlighted areas on diagram
2WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141F - ARM, FRONT BUMPER, RH | ||||
| 52141-B2030 |
LA300,310 |
1 | ||
| 57069A - MEMBER, REAR FLOOR, CENTER | ||||
| 57069-B2290 |
LA300 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-B2130 |
LA300,310 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-B2210 |
LA300,310 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-B2040 |
LA300,310 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-B2050 |
LA300,310 |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-B2020 |
LA300,310 |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57117-B2020 |
LA300,310 |
1 | ||
| 57202B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 53078-B2070 |
LA300,310 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-B2161 |
LA300,310 |
1 | ||
| 57401-B2160 |
LA300,310 |
1 | ||
| 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57406-B2080 |
LA300,310 |
1 | ||
| 57406-B2170 |
LA300,310 |
1 | ||
| 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-B2190 |
LA300,310 |
1 | ||
| 57409-B2090 |
LA300,310 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-B2060 |
LA300,310 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-B2090 |
LA300 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-B2270 |
LA300 |
1 | ||
| 57601-B2271 |
LA300 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-B2270 |
LA300 |
1 | ||
| 57602-B2271 |
LA300 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-B2190 |
LA300 |
1 | ||
| Linked diagrams | ||||
| 5701 | ||||
