Toyota Pixis epoch LA300A FRONT FENDER APRON & DASH PANEL

LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

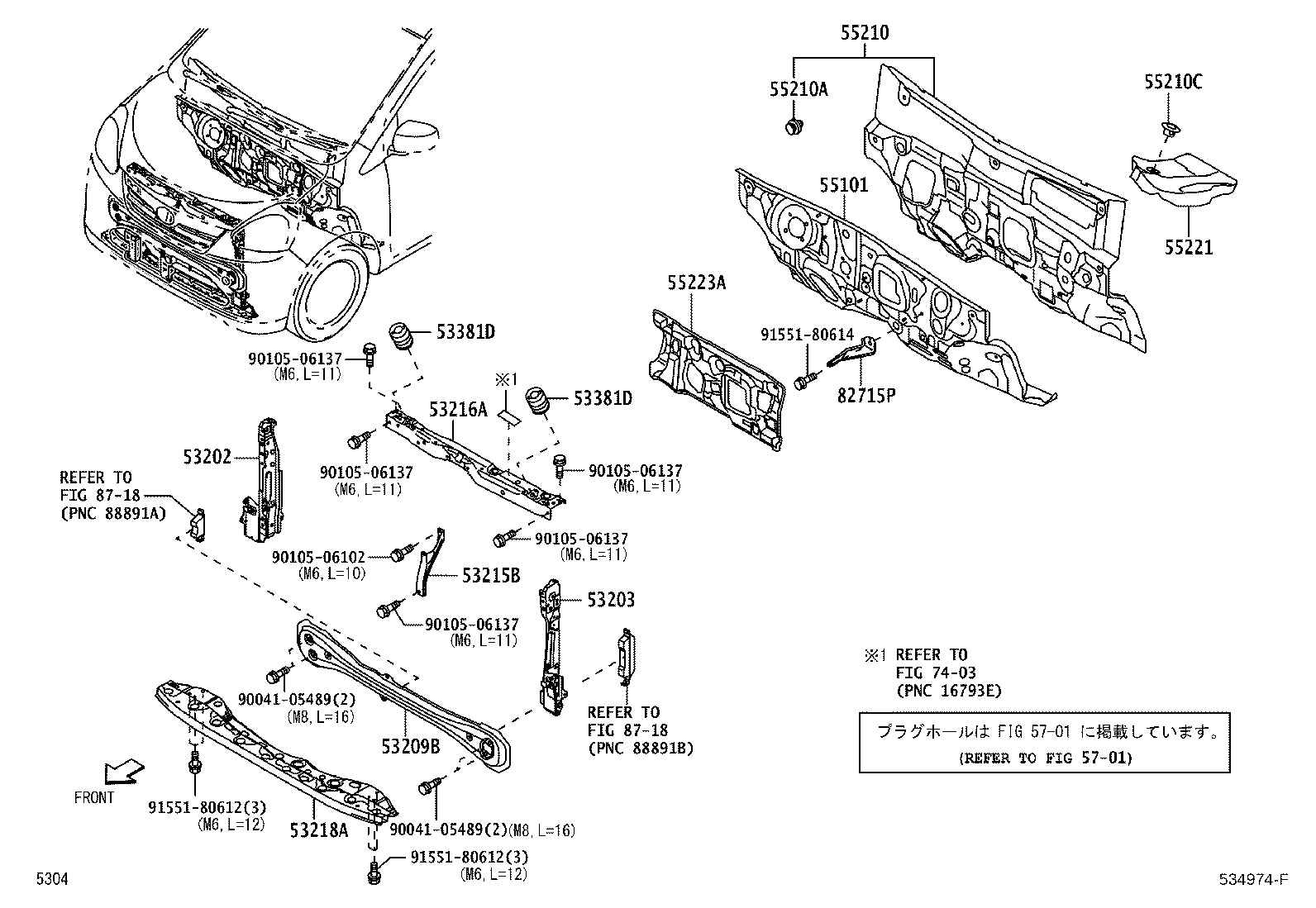

Click highlighted areas on diagram

Part #	Description	Period	Qty
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-B2221	LA300,310	04/2012 - 07/2013	1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-B2191	LA300,310	04/2012 - 07/2013	1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-B2020	LA300,310	04/2012 - 07/2013	1
53215B - SUPPORT, HOOD LOCK
53215-B2160	LA300,310	04/2012 - 07/2013	1
53216A - SUPPORT, RADIATOR, UPPER
53216-B2171	LA300,310	04/2012 - 07/2013	1
53218A - SUPPORT, RADIATOR, LOWER
53028-B2251	LA300	04/2012 - 07/2013	1
53028-B2081	LA300 寒冷地仕様	04/2012 - 07/2013	1
53381D - BUMPER, HOOD TO FRONT SHROUD
53381-97205	LA300,310	04/2012 - 07/2013	2
53381D - BUMPER, HOOD TO FRONT SHROUD
53381-97205	LA300,310	04/2012 - 07/2013	2
55101 - PANEL SUB-ASSY, DASH
55101-B2670	LA300,310	04/2012 - 07/2013	1
55210 - INSULATOR ASSY, DASH PANEL
55210-B2270	LA300,310	05/2012 - 04/2013	1
55210-B2300	LA300,310	04/2012 - 05/2012	1
55210-B2360	LA300,310	05/2013 - 07/2013	1
55210A - CLIP
90467-11122	LA300,310	04/2012 - 07/2013	5
55210C - CLIP
58199-B2010C0	LA300,310 BLACK	04/2012 - 07/2013	1
55221 - BOARD, DASH PANEL SILENCER
55221-B2010	LA300,310	04/2012 - 07/2013	1
55223A - INSULATOR, DASH PANEL, OUTER
55223-B2110	LA300,310..G,GF,L,LF,X,XF	04/2012 - 07/2013	1
82715P - BRACKET, WIRING HARNESS CLAMP
82715-B2160	LA300,310	04/2012 - 07/2013	1
Common parts
90041-05489
90105-06102
90105-06137
91551-80612
91551-80614
Linked diagrams
5701
7403
8718

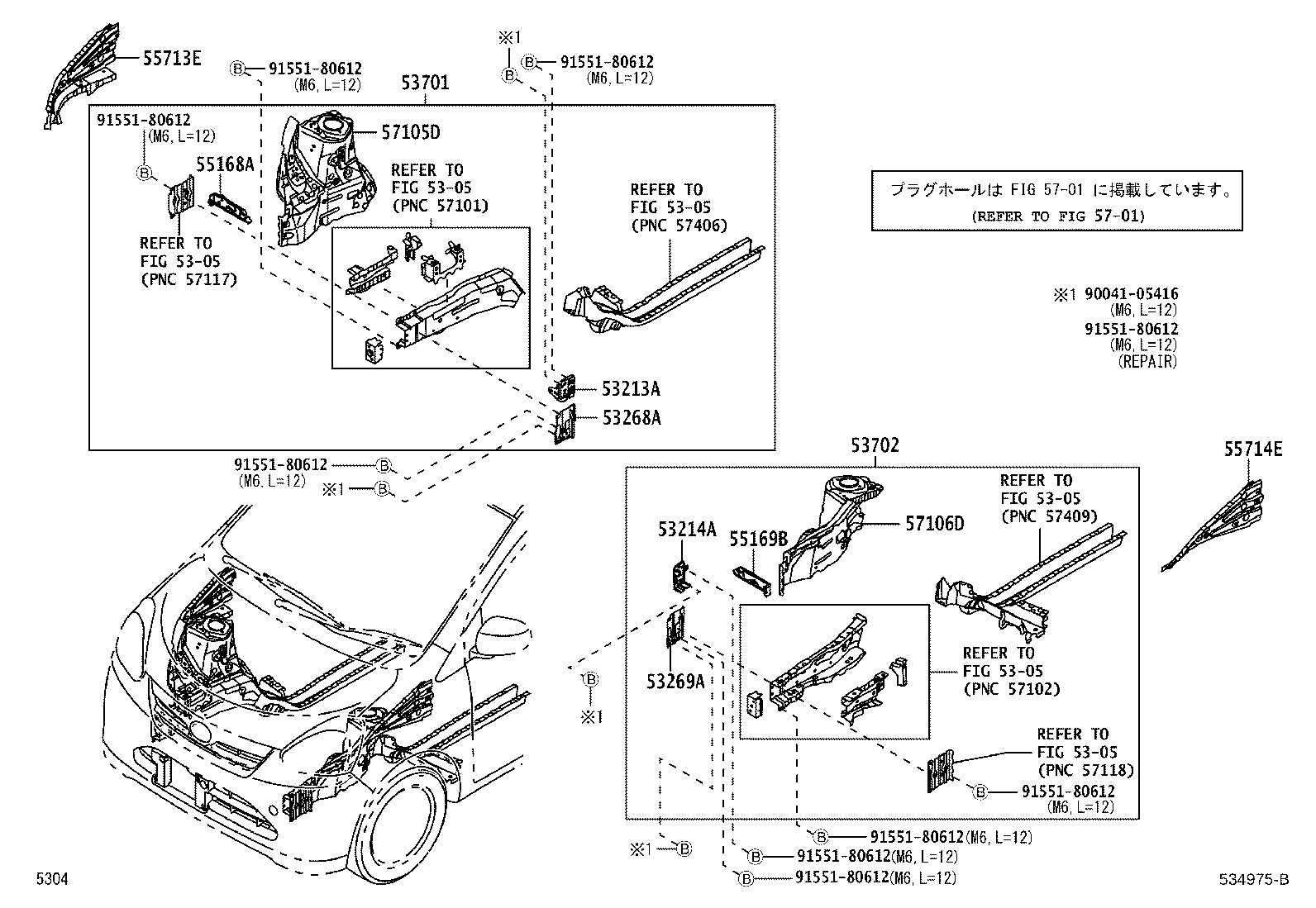

Click highlighted areas on diagram

Part #	Description	Period	Qty
53213A - SUPPORT, RADIATOR, UPPER RH
53213-B2100	LA300,310	04/2012 - 07/2013	1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-B2120	LA300,310	04/2012 - 07/2013	1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-B2070	LA300,310	04/2012 - 07/2013	1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-B2070	LA300,310	04/2012 - 07/2013	1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-B2242	LA300,310	05/2013 - 07/2013	1
53701-B2241	LA300,310	04/2012 - 04/2013	1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-B2251	LA300,310	04/2012 - 04/2013	1
53702-B2252	LA300,310	05/2013 - 07/2013	1
55168A - BRACKET, FRONT FENDER MOUNTING, RH
55168-B2180	LA300,310	04/2012 - 07/2013	1
55169B - BRACKET, FRONT FENDER MOUNTING, LH
55169-B2170	LA300,310	04/2012 - 07/2013	1
55713E - PANEL, COWL TOP SIDE, RH
55713-B2140	LA300,310	04/2012 - 07/2013	1
55714E - PANEL, COWL TOP SIDE, LH
55714-B2140	LA300,310	04/2012 - 07/2013	1
57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-B2141	LA300,310	04/2012 - 07/2013	1
57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-B2131	LA300,310	04/2012 - 07/2013	1
Common parts
90041-05416
91551-80612
Linked diagrams
5305
5701
