LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )

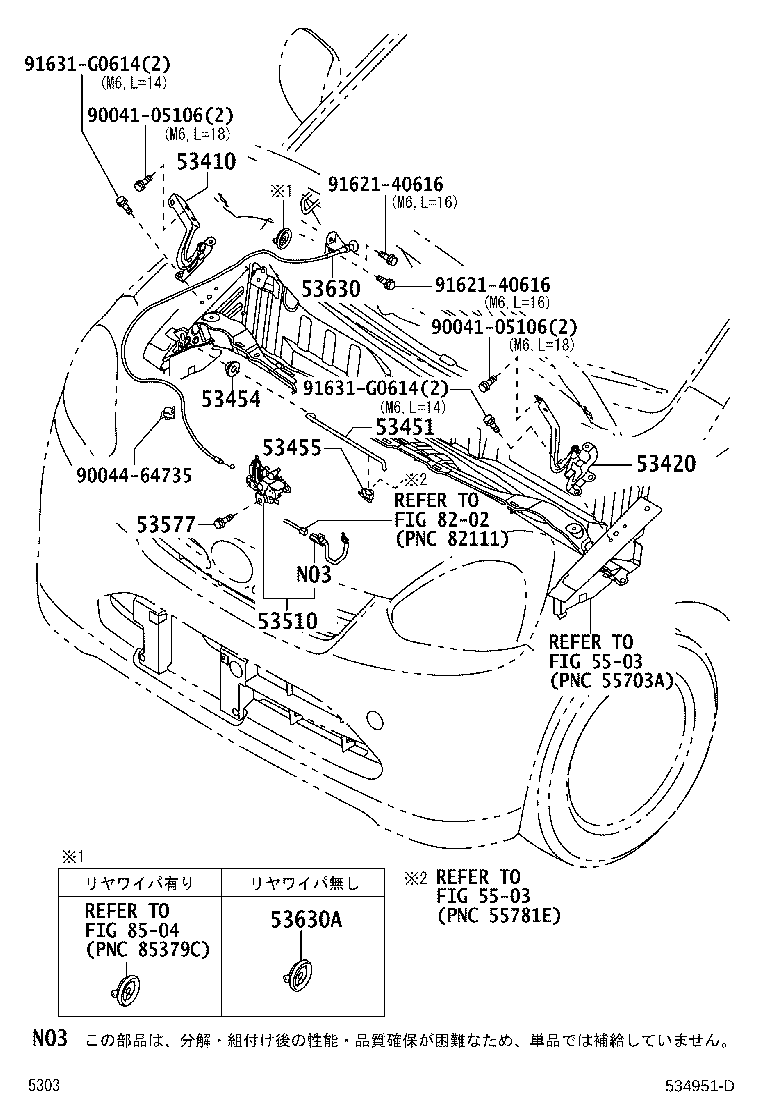

Click highlighted areas on diagram

diagram 53410 53420 53451 53454 53455 53510 53577 53630 53630A 5503 5503 8202 8504 9004105106 9004105106 9004464735 9162140616 9162140616 91631G0614 91631G0614
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-B2201

LA300,310

 1
53420 - HINGE ASSY, HOOD, LH
53402-B2181

LA300,310

 1
53451 - ROD, HOOD SUPPORT
53451-B2122

LA300,310

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-B2020

LA300,310

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-B2140

LA300,310

 1
53510 - LOCK ASSY, HOOD
53510-B2390

LA300,310

ｽｲｯﾁ付き

 1
53577 - BOLT, HOOD LOCK
91511-G0612

LA300,310

M6,L=12

 3
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-B2290

LA300,310

 1
53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE)
85373-B2010

LA300

 1
Common parts
90041-05106
90044-64735
91621-40616
91631-G0614
Linked diagrams
5503
8202
8504
