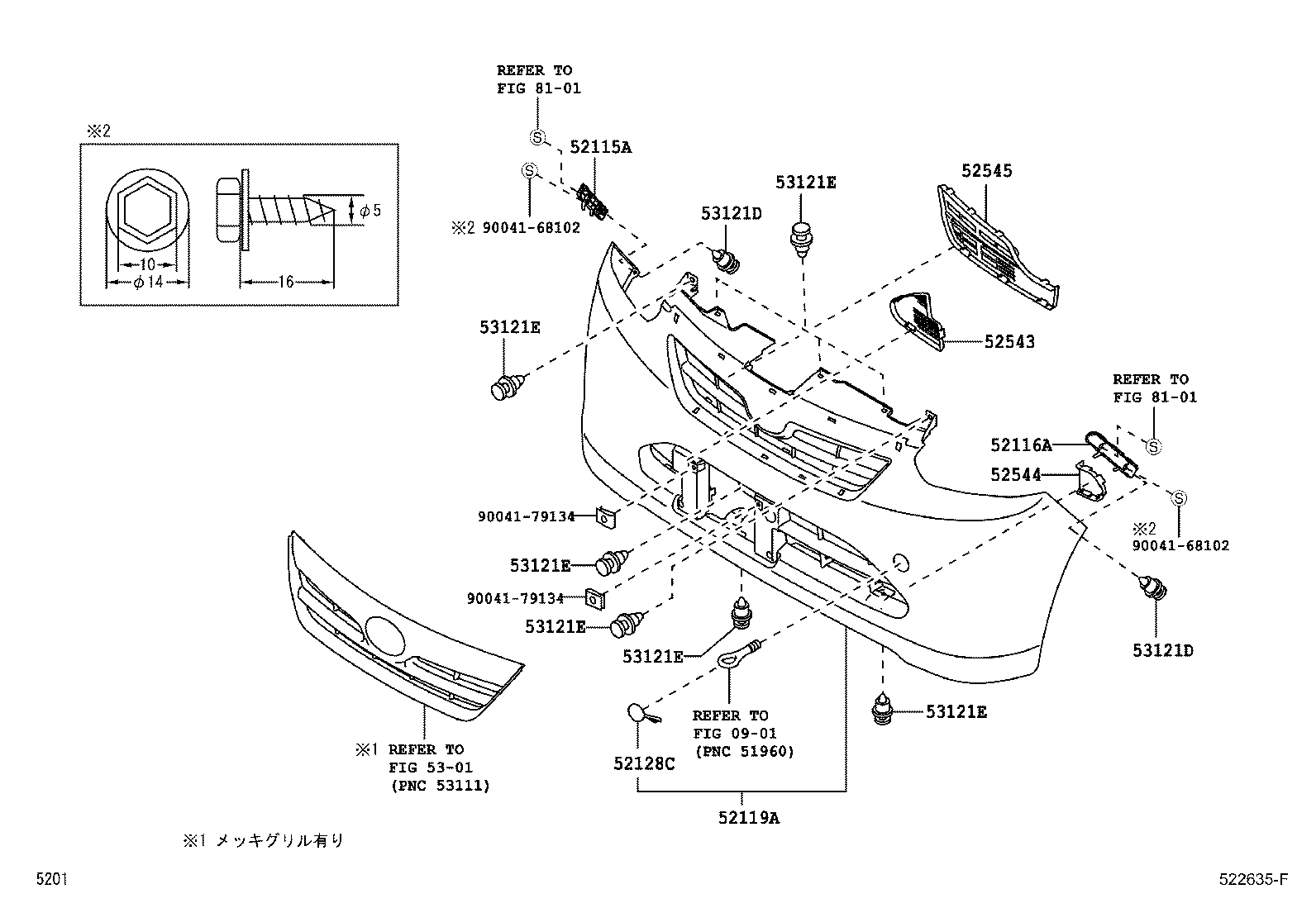

Toyota Pixis epoch LA300A FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-B2330	LA300,310	04/2012 - 07/2013	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-B2330	LA300,310	04/2012 - 07/2013	1
52119A - COVER, FRONT BUMPER
52101-B2640A0	LA300,310..D,L,LF,X,XF WHITE,W09	04/2012 - 07/2013	1
52101-B2640A1	LA300,310..L,LF,X,XF WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
52101-B2640E0	LA300,310..L,LF,X,XF IVORY,T19	04/2012 - 07/2013	1
52101-B2640B0	LA300,310..L,LF,X,XF SILVER ME.,S28	04/2012 - 07/2013	1
52101-B2660A0	LA300,310..G,GF WHITE,W09	04/2012 - 07/2013	1
52101-B2640J0	LA300,310..L,LF,X,XF LT.BLUE,B73	04/2012 - 07/2013	1
52101-B2640C0	LA300,310..L,LF,X,XF BLACK M.M.,X07	04/2012 - 07/2013	1
52101-B2660D0	LA300,310..G,GF BROWN MC.CS,R59	04/2012 - 07/2013	1
52101-B2660B0	LA300,310..G,GF SILVER ME.,S28	04/2012 - 07/2013	1
52101-B2660E1	LA300,310..G,GF LT.ROSE,T28	04/2012 - 07/2013	1
52101-B2640E2	LA300,310..L,LF,X,XF LT.ROSE M.M.,T22	10/2012 - 07/2013	1
52101-B2640J1	LA300,310..L,LF,X,XF DK.PURPLISH BLUE ME.CS,B70	10/2012 - 07/2013	1
52101-B2660J0	LA300,310..G,GF LT.BLUE,B73	04/2012 - 07/2013	1
52101-B2660A1	LA300,310..G,GF WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
52101-B2660E0	LA300,310..G,GF IVORY,T19	04/2012 - 07/2013	1
52101-B2640D0	LA300,310..L,LF,X,XF BROWN MC.CS,R59	04/2012 - 07/2013	1
52101-B2660C0	LA300,310..G,GF BLACK M.M.,X07	04/2012 - 07/2013	1
52101-B2640E1	LA300,310..L,LF,X,XF LT.ROSE,T28	04/2012 - 07/2013	1
52128C - COVER, FRONT BUMPER HOLE, LH
52128-B2060A1	LA300,310..G,GF,L,LF,X,XF WHITE PEARL MC.CS,W24	04/2012 - 07/2013	1
52128-B2060E0	LA300,310..G,GF,L,LF,X,XF IVORY,T19	04/2012 - 07/2013	1
52128-B2060A0	LA300,310 WHITE,W09	04/2012 - 07/2013	1
52128-B2060D0	LA300,310..G,GF,L,LF,X,XF BROWN MC.CS,R59	04/2012 - 07/2013	1
52128-B2060E2	LA300,310..L,LF,X,XF LT.ROSE M.M.,T22	10/2012 - 07/2013	1
52128-B2060E1	LA300,310..G,GF,L,LF,X,XF LT.ROSE,T28	04/2012 - 07/2013	1
52128-B2060B0	LA300,310..G,GF,L,LF,X,XF SILVER ME.,S28	04/2012 - 07/2013	1
52128-B2060J1	LA300,310..L,LF,X,XF DK.PURPLISH BLUE ME.CS,B70	10/2012 - 07/2013	1
52128-B2060C0	LA300,310..G,GF,L,LF,X,XF BLACK M.M.,X07	04/2012 - 07/2013	1
52128-B2060J0	LA300,310..G,GF,L,LF,X,XF LT.BLUE,B73	04/2012 - 07/2013	1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-B2170	LA300,310	04/2012 - 07/2013	1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-B2050	LA300,310	04/2012 - 07/2013	1
52545 - SEAL, FRONT BUMPER SIDE, NO.2 RH
52545-B2040	LA300,310	04/2012 - 07/2013	1
53121D - CLIP(FOR FRONT BUMPER), NO.2
90044-67585	LA300,310	04/2012 - 07/2013	2
53121D - CLIP(FOR FRONT BUMPER), NO.2
90044-67585	LA300,310	04/2012 - 07/2013	2
53121E - CLIP(FOR FRONT BUMPER), NO.1
90044-68320	LA300,310	04/2012 - 07/2013	8
53121E - CLIP(FOR FRONT BUMPER), NO.1
90044-68320	LA300,310	04/2012 - 07/2013	8
53121E - CLIP(FOR FRONT BUMPER), NO.1
90044-68320	LA300,310	04/2012 - 07/2013	8
53121E - CLIP(FOR FRONT BUMPER), NO.1
90044-68320	LA300,310	04/2012 - 07/2013	8
53121E - CLIP(FOR FRONT BUMPER), NO.1
90044-68320	LA300,310	04/2012 - 07/2013	8
53121E - CLIP(FOR FRONT BUMPER), NO.1
90044-68320	LA300,310	04/2012 - 07/2013	8
Common parts
90041-68102
90041-79134
Linked diagrams
0901
5301
8101

LA300A-GBDF (2012)

(1204-1307)
