LA300A-GBDF (2012)

Toyota Pixis Epoch

Production Apr 2012 - Jul 2013
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )LA300

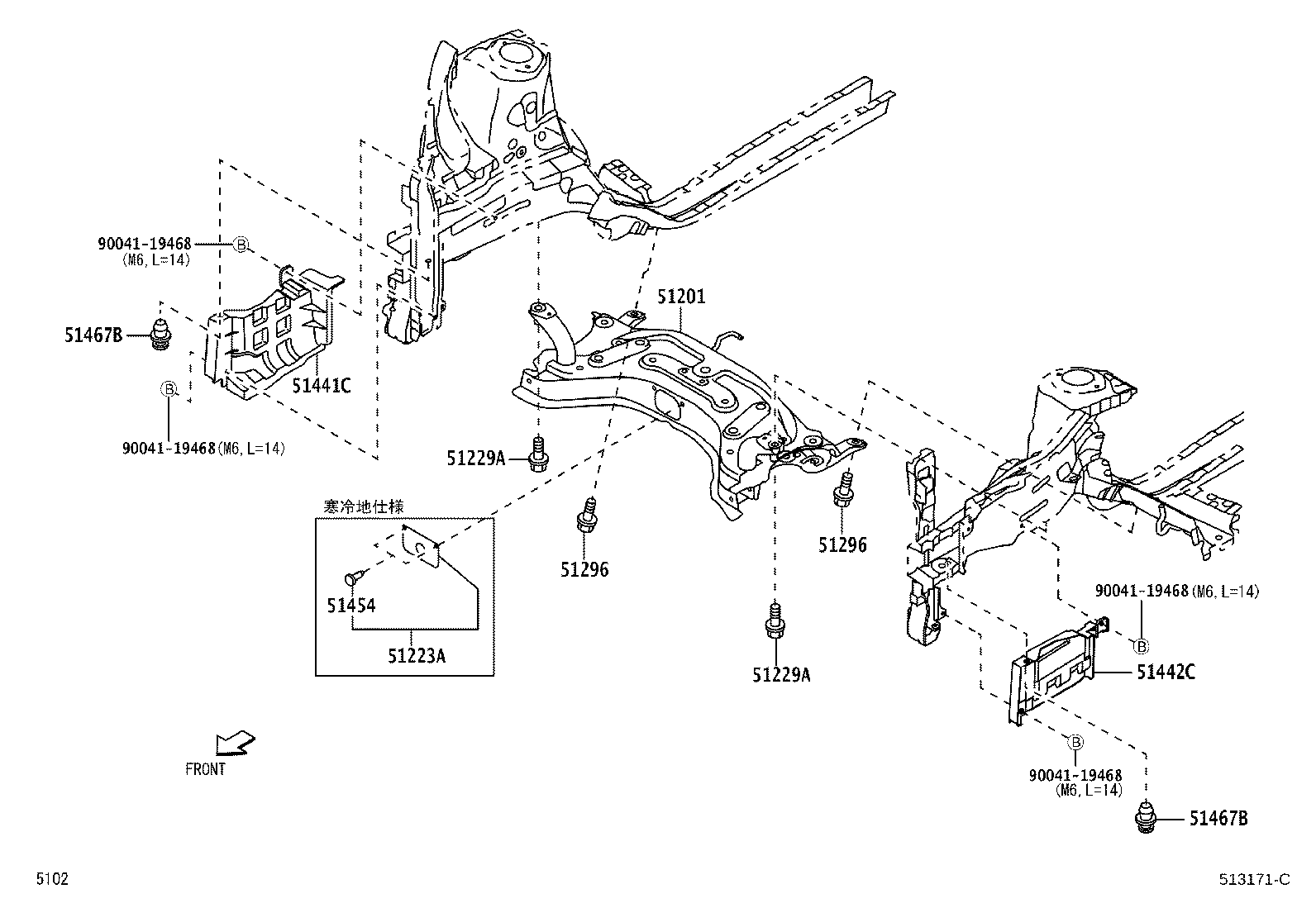

Click highlighted areas on diagram

2WD

diagram 51201 51223A 51229A 51229A 51296 51296 51441C 51442C 51454 51467B 51467B 9004119468 9004119468 9004119468 9004119468
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-B2150

LA300

 1
51201-B2100

LA300

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-B2070

LA300

寒冷地仕様

 1
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-20263

LA300

M12,L=47

 2
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-20263

LA300

M12,L=47

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-19948

LA300,310

M10,L=25

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-19948

LA300,310

M10,L=25

 2
51441C - COVER, ENGINE UNDER, RH
51441-B2030

LA300,310

 1
51442C - COVER, ENGINE UNDER, LH
51442-B2030

LA300,310

 1
51454 - CLIP
90044-67517

LA300

寒冷地仕様

 2
51467B - RETAINER, ENGINE UNDER COVER
51467-B2020

LA300,310

 2
51467B - RETAINER, ENGINE UNDER COVER
51467-B2020

LA300,310

 2
Common parts
90041-19468
