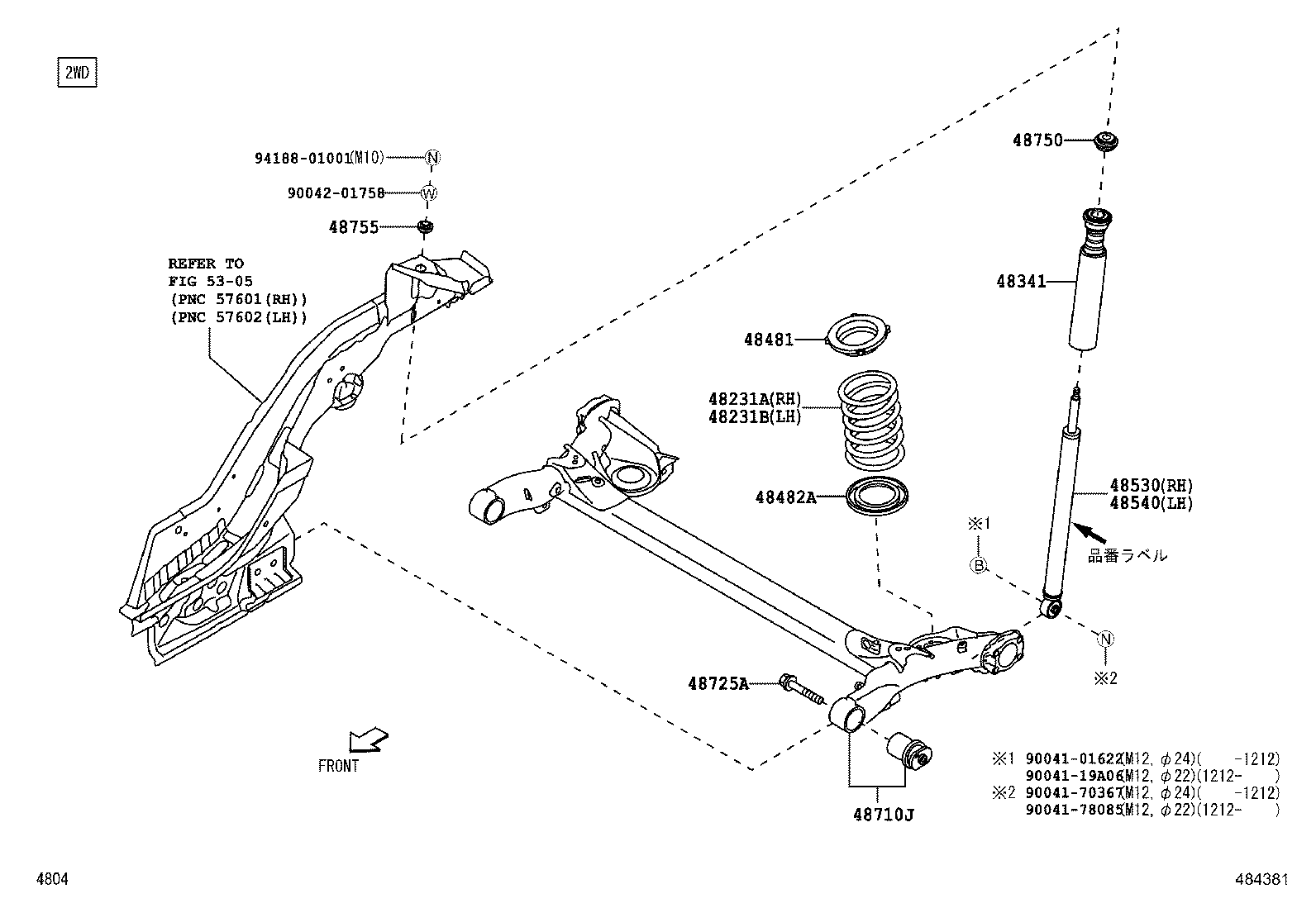

Toyota Pixis epoch LA300A REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48231A - SPRING, COIL, REAR RH
48231-B2A20	LA300	04/2012 - 07/2013	1
48231B - SPRING, COIL, REAR LH
48231-B2A20	LA300	04/2012 - 07/2013	1
48341 - BUMPER, REAR SPRING
48341-B2100	LA300 品番ﾗﾍﾞﾙ有り	04/2012 - 07/2013	2
48481 - SEAT, REAR SPRING, UPPER
48481-B2020	LA300	04/2012 - 07/2013	2
48482A - SEAT, REAR SPRING, LOWER
48482-B2030	LA300	04/2012 - 07/2013	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-B2D70	LA300 ﾏｰｸ 48531−B2D70,品番ﾗﾍﾞﾙ有り	04/2012 - 11/2012	1
48531-B2D73	LA300 ﾏｰｸ 48531−B2D73,品番ﾗﾍﾞﾙ有り	12/2012 - 07/2013	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-B2D70	LA300 ﾏｰｸ 48531−B2D70,品番ﾗﾍﾞﾙ有り	04/2012 - 11/2012	1
48531-B2D73	LA300 ﾏｰｸ 48531−B2D73,品番ﾗﾍﾞﾙ有り	12/2012 - 07/2013	1
48710J - ARM ASSY, REAR SUSPENSION, NO.1
48710-B2230	LA300 識別ﾍﾟｲﾝﾄ=黄	04/2012 - 07/2013	1
48725A - BOLT(FOR LOWER CONTROL ARM)
48718-B2031	LA300	04/2012 - 07/2013	2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-B2050	LA300 品番刻印有り	04/2012 - 07/2013	2
48755 - SUPPORT, REAR SUSPENSION
48755-B2030	LA300 品番刻印有り	04/2012 - 07/2013	2
Common parts
90041-01622
90041-19A06
90041-70367
90041-78085
90042-01758
94188-01001
Linked diagrams
5305

LA300A-GBDF (2012)
