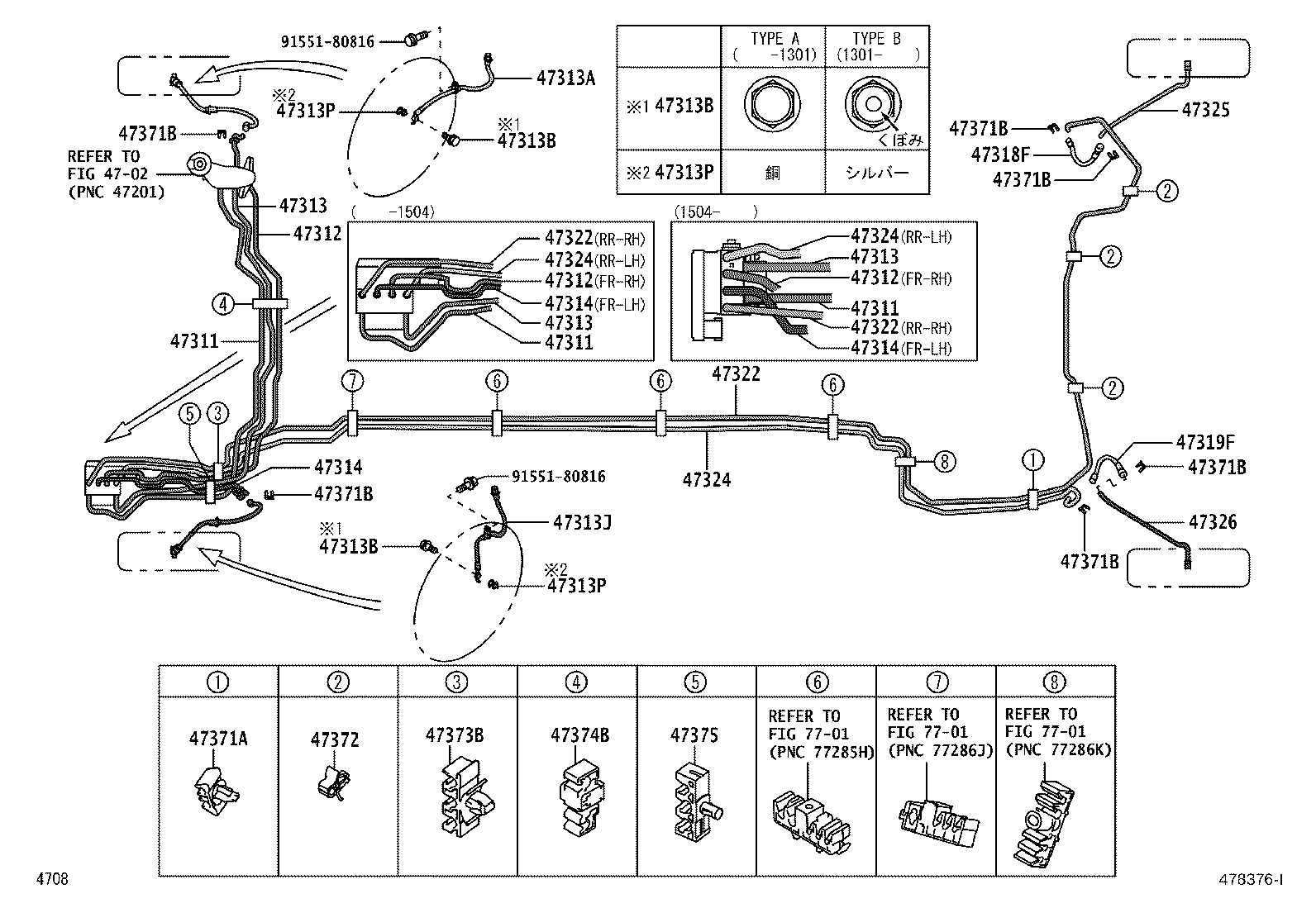

Toyota Pixis epoch LA300A BRAKE TUBE & CLAMP

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-B2420	LA300,310 NO.1	04/2012 - 07/2013	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B2420	LA300,310 NO.1	04/2012 - 07/2013	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B2420	LA300,310 NO.1	04/2012 - 07/2013	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B2190	LA300,310 ｸﾞﾛﾒｯﾄｱﾘ	04/2012 - 07/2013	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B2190	LA300,310 ｸﾞﾛﾒｯﾄｱﾘ	04/2012 - 07/2013	1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B2190	LA300,310 ｸﾞﾛﾒｯﾄｱﾘ	04/2012 - 07/2013	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B2460	LA300,310 NO.3	04/2012 - 07/2013	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B2460	LA300,310 NO.3	04/2012 - 07/2013	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B2460	LA300,310 NO.3	04/2012 - 07/2013	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22301	LA300,310	04/2012 - 07/2013	1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	LA300,310 ﾀｲﾌﾟ B	01/2013 - 07/2013	2
90044-01079	LA300,310 ﾀｲﾌﾟ A	04/2012 - 01/2013	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	LA300,310 ﾀｲﾌﾟ B	01/2013 - 07/2013	2
90044-01079	LA300,310 ﾀｲﾌﾟ A	04/2012 - 01/2013	2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058	LA300,310 ﾀｲﾌﾟ B	01/2013 - 07/2013	2
90044-01079	LA300,310 ﾀｲﾌﾟ A	04/2012 - 01/2013	2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90049-22302	LA300,310	04/2012 - 07/2013	1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201	LA300,310 TYPE A 銅	04/2012 - 01/2013	2
47389-50020	LA300,310 TYPE B ｼﾙﾊﾞｰ	01/2013 - 07/2013	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201	LA300,310 TYPE A 銅	04/2012 - 01/2013	2
47389-50020	LA300,310 TYPE B ｼﾙﾊﾞｰ	01/2013 - 07/2013	2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201	LA300,310 TYPE A 銅	04/2012 - 01/2013	2
47389-50020	LA300,310 TYPE B ｼﾙﾊﾞｰ	01/2013 - 07/2013	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-B2130	LA300,310 ｸﾞﾛﾒｯﾄｱﾘ	04/2012 - 07/2013	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B2130	LA300,310 ｸﾞﾛﾒｯﾄｱﾘ	04/2012 - 07/2013	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B2130	LA300,310 ｸﾞﾛﾒｯﾄｱﾘ	04/2012 - 07/2013	1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22202	LA300	04/2012 - 07/2013	1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22202	LA300	04/2012 - 07/2013	1
47322 - TUBE, REAR BRAKE, NO.2
47322-B2370	LA300	04/2012 - 07/2013	1
47322 - TUBE, REAR BRAKE, NO.2
47322-B2370	LA300	04/2012 - 07/2013	1
47322 - TUBE, REAR BRAKE, NO.2
47322-B2370	LA300	04/2012 - 07/2013	1
47324 - TUBE, REAR BRAKE, NO.4
47324-B2410	LA300	04/2012 - 07/2013	1
47324 - TUBE, REAR BRAKE, NO.4
47324-B2410	LA300	04/2012 - 07/2013	1
47324 - TUBE, REAR BRAKE, NO.4
47324-B2410	LA300	04/2012 - 07/2013	1
47325 - TUBE, REAR BRAKE, NO.5
47325-B2060	LA300	04/2012 - 07/2013	1
47326 - TUBE, REAR BRAKE, NO.6
47326-B2060	LA300	04/2012 - 07/2013	1
47371A - CLAMP, BRAKE TUBE, NO.1
90044-64485	LA300,310	04/2012 - 07/2013	1
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	LA300,310	04/2012 - 07/2013	6
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	LA300,310	04/2012 - 07/2013	6
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	LA300,310	04/2012 - 07/2013	6
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	LA300,310	04/2012 - 07/2013	6
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	LA300,310	04/2012 - 07/2013	6
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441	LA300,310	04/2012 - 07/2013	6
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64659	LA300,310	04/2012 - 07/2013	3
47373B - CLAMP, BRAKE TUBE, NO.3
90044-64742	LA300,310	04/2012 - 07/2013	1
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64807	LA300,310	04/2012 - 07/2013	1
47375 - CLAMP, BRAKE TUBE, NO.5
47372-B2020	LA300,310	04/2012 - 07/2013	1
Common parts
91551-80816
Linked diagrams
4702
7701

LA300A-GBDF (2012)

ILLUST NO. 1 OF 2(1204- )

ILLUST NO. 2 OF 2(1204-1504)

Part Price Details

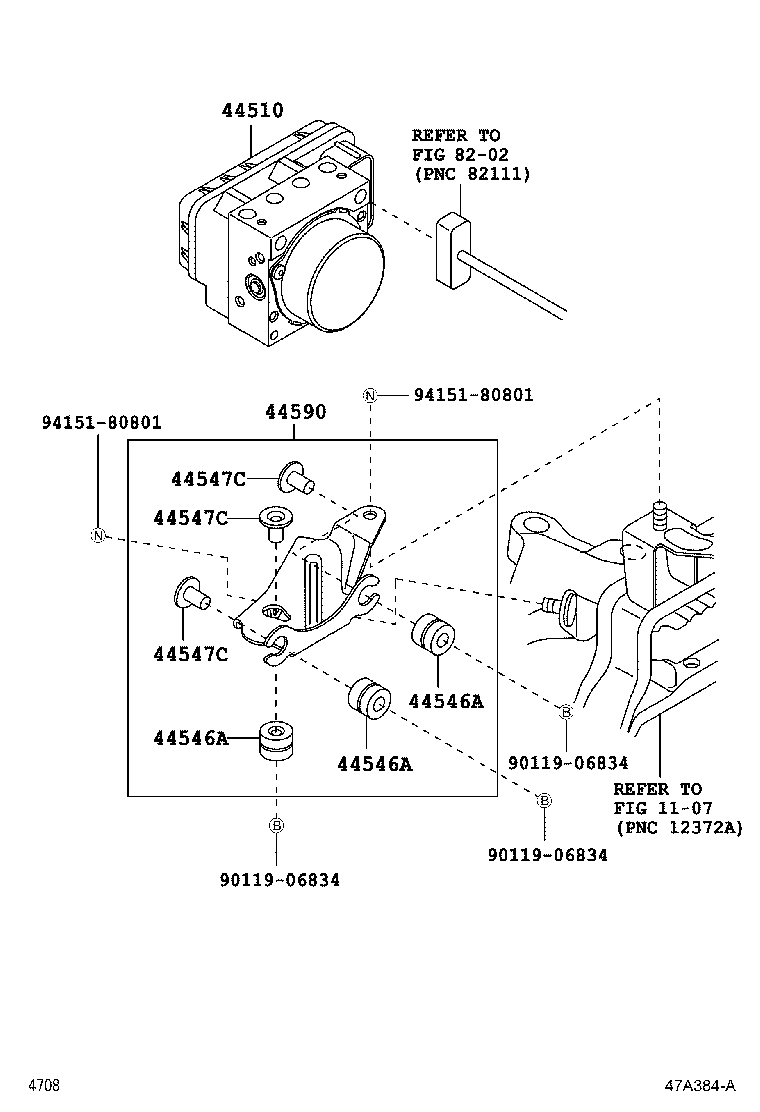

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-B2600	LA300..D,L,X	04/2012 - 07/2013	1
44050-B2610	LA300..G	04/2012 - 07/2013	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	LA300,310	04/2012 - 07/2013	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	LA300,310	04/2012 - 07/2013	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110	LA300,310	04/2012 - 07/2013	3
44547C - SPACER(FOR BRAKE ACTUATOR BRACKET)
44521-B1010	LA300,310	04/2012 - 07/2013	3
44547C - SPACER(FOR BRAKE ACTUATOR BRACKET)
44521-B1010	LA300,310	04/2012 - 07/2013	3
44547C - SPACER(FOR BRAKE ACTUATOR BRACKET)
44521-B1010	LA300,310	04/2012 - 07/2013	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44591-B2100	LA300,310	04/2012 - 07/2013	1
Common parts
90119-06834
94151-80801
Linked diagrams
1107
8202
